  • Page 1 Instructions for Gewa Jupiter...

  • Page 2: Table Of Contents

    .......................... 9 UNCTION TABLE ....................12 REPARING FOR PROGRAMMING ........................... 12 ROGRAMMING USING JUPITER ........................13 ......................13 ING WITH THE HANDSET Ring normally ......................... 13 Ring last-dialled number ......................13 Ring the second-last dialled number ..................13 Ring with direct dial buttons ....................13 Ring with abbreviated numbers....................

  • Page 3: Introduction

    IR transmitter. The telephone can thus be individually adapted to the needs of a disabled user. Gewa Jupiter is part of the Gewa Smart House system, which means that everything can be guided from one remote control.

  • Page 4: Connection And Description

    1. Place the batteries that are supplied (4 1.5 V Alk) in the correct position in the battery compartment on the back of Jupiter. Use Alkaline batteries only. 2. Connect the battery eliminator to the contact on Jupiter and a socket outlet. Only the battery eliminator that is supplied should be used (type: Vanson Regulated AC/DC Adaptor 230V AC /7.5V DC).

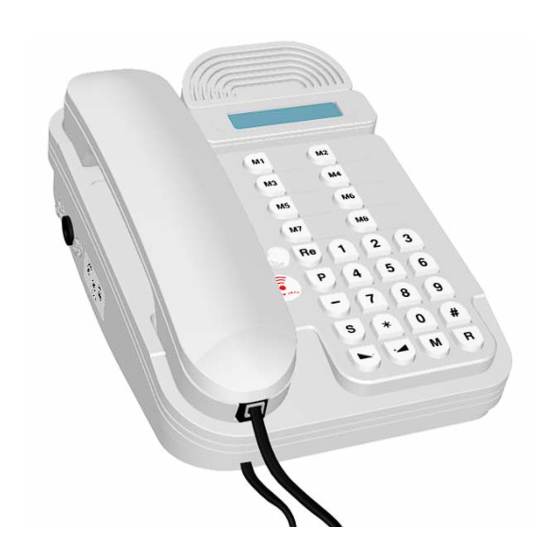

  • Page 5 Contact for connecting the cord with the telephone jack with the telephone line (underneath Jupiter) Handset Character display Direct dial keys M1-M8 Connection for power supply Redial Programming key IR eye/Indicating lamp The IR eye receives the Register key IR signals and should...

  • Page 6: Programming Different Settings

    Pause key 5 9 4 6 9 4 0 0 On rare occasions, Jupiter can send a number that is saved on a direct dial key or as an abbreviated number when automatic connection is used. Read more about automatic connection in the “Programme remote-controlled functions”. To avoid this problem, a time-delay should be added by pressing a pause before the actual telephone number.

  • Page 7: Programme Abbreviated Numbers K10-K49

    Programme abbreviated numbers K10-K49 1. Press 2. Choose an abbreviated number by pressing a number between 10-49. 3. Press 4. Press the desired telephone number. 5. Press Quick guide , the desired Programme K10-K49: telephone number Adjust volume of ring signal The volume of the ring signal can be set at either high or low.

  • Page 8: Keyboard Lock

    Keyboard lock The keyboard lock is used to bar outgoing calls. It is still possible to ring the telephone numbers saved on the direct dial keys and abbreviated numbers. Incoming call are not affected. If the keyboard is locked, a key symbol appears in the character display.

  • Page 9: Programming Remote-Controlled Functions

    • Check the table to see which IR transmitter is most appropriate for the different alternatives. Only IR transmitters from Gewa AB can be used. • The factory setting for Jupiter = Channel 16 on the first key, alternative 3 and group 4.
  • Page 10 Table 1 Only IR transmitters IR 17SO, IR 17SP and Gewa Prog III are suitable for the following alternatives. Group Key on Alt. 1 Alt. 2 Alt. 3 Alt. 4 transmitte Without automatic Without automatic With automatic With automatic connection on...
  • Page 11 Table 2 All types of Gewa transmitters can be used in alternative 7 Group Alt. 5 Alt. 6 Alt. 7 (reserved for (reserved for With automatic connection on M 1- future future M8, K10-K32. additions) additions) Grp 1 Grp 2...

  • Page 12: Preparing For Programming

    1. Press on Jupiter. 2. Hold the first channel down on the IR transmitter for 5 seconds until the indicating light starts to flash on Jupiter. The first channel is the channel where the first function will be saved. 3. Press on Jupiter within 3 seconds.

  • Page 13: Using Jupiter

    Using Jupiter Ring with the handset Ring normally 1. Lift the headset. 2. Wait for the tone. 3. Dial the telephone number. Ring last-dialled number 1. Lift the handset. 2. Wait for the tone. 3. Press . The last-dialled number will now be sent.

  • Page 14: Ring With Abbreviated Numbers

    Ring with abbreviated numbers 1. Lift the headset. 2. Wait for the tone. 3. Press 4. Press the desired abbreviated number The abbreviated number now appears in the character display. Check the number or choose a new abbreviated number. 5. Press .

  • Page 15: Save Telephone Numbers Temporarily

    Save telephone numbers temporarily Telephone numbers can be saved during ongoing calls. The number is saved in the automatic recall memory and can be used again after the call. To recall the number, press 1. Press 2. Press 3. Press the telephone number. Quick guide Save telephone number temporarily: , telephone number.

  • Page 16: Privacy (Mute)

    Privacy (Mute) The privacy key is used to disconnect the microphone on Jupiter. This can be used to speak without the other person hearing. Works with both the headset and loud speaking function. Mute appears in the character display when the function is activated.

  • Page 17: Other Information

    Save telephone number temporary: , telephone number. Battery function Jupiter normally runs on a battery eliminator that is connected to the mains supply. Jupiter comes with 4 1.5 V Alkaline LR6 (AA) batteries to guarantee function when the power fails.

  • Page 18: Change Batteries

    3. Replace the battery compartment. 4. Lift the handset to start Jupiter. Cleaning Jupiter is cleaned with a cloth wrung-out in water and a small amount of detergent. Application environment Jupiter should only be used indoors in a dry environment.

  • Page 19: Declaration Of Conformity

    DECLARATION OF CONFORMITY 19 (20)
  • Page 20 WEDEN : +46 (0)8-594 694 00 • T : +46 (0)8-594 694 18 EXTTEL : +46 (0)8-594 694 19 : info@gewa.se • W : www.gewa.se MAIL Article number: 808535. Document: 980914-0850PL Gewa Jupiter Eng. Version: E. Date: 2001-11-22. 20 (20)
