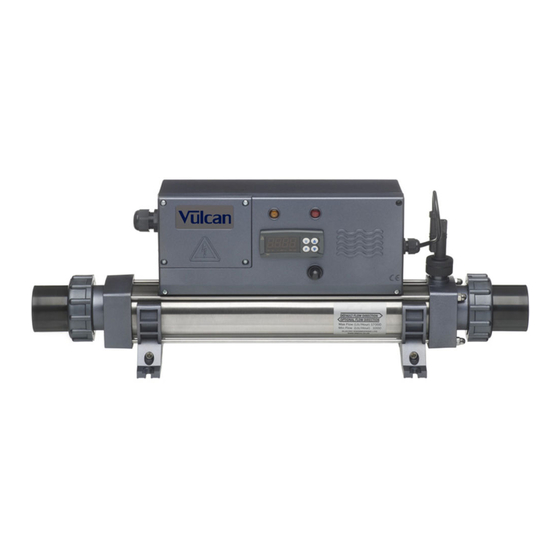

- Page 1 VULCAN Pool Heater Installation & Operating Manual...
-
Page 2: Important Notes
Important Notes! Thank you for purchasing the VULCAN direct electric swimming pool heater manufactured in England to the highest standards. To ensure your new heater will give years of trouble free service please carefully read the following instructions. Incorrect installation will aff ect your warranty. - Page 3 Positioning Your heater must be horizontally or vertically sited allowing suffi cient space for pipe connections and wiring, it should be screw fi xed securely to a fi rm base or wall. NOTE: See fi gure 2 for details of the foot arrangement when securing to the wall or fl oor.
- Page 4 Fig 3. POOL FILTER VULCAN HEATER PUMP Flow switch at top For vertical wall mounting water must always enter at the bottom Fig 4.
-
Page 5: Weather Protection
Pipe Work It is essential that the pipe work connecting to and from the heater has a minimum bore (internal diameter) of 1¼” (32mm). To assist correct air purging and to ensure the heater remains completely full of water during operation, the return pipe which carries the water back to the pool must incorporate a safety loop or ‘kick-up’... -
Page 6: Power Requirements
Power Requirements 3 Phase Power Voltage 400 V Star / Power 230 V Delta Output Output 3 - kW 6 - kW 400 / 230V 9 / 15 4.5 - kW 9 - kW 400 / 230V 13 / 23 6 - kW 12 - kW 400 / 230V... -
Page 7: Water Quality
The fl ow rate of water into the heater must not exceed 17,000 litres per hour (3,740 UK gallons/hour) A higher fl ow rate will require the installation of a bypass to prevent damage to the heater elements. The heater will not operate unless the following minimum fl ow rates are achieved ie: 1,000 litres / hour (220 UK gallons/hour) for 3 ~ 6-kW heaters and 4,000 litres / hour (880 UK gallons/hour) for 9 ~ 15-kW heaters. - Page 8 Fig 7. the required temperature The digital thermostat fi tted to your pool heater has been pre- programmed with all the necessary parameters to ensure reliable service and operation. All you need to do is set the temperature you would like your water to be maintained at, this is known as the required set point temperature.
-
Page 9: Function Testing
Time switching delay To prevent overheating of the components within the heater caused by frequent ’On’ and ’Off ’ switching (cycling) the digital thermostat has been pre-programmed with a time delay function. This prevents rapid fl uctua- tions in water temperature from switching the heater ’On’ and ’Off ’ more than once in a two minute period. - Page 10 The only infl uencing factors are the level of insulation and the location of the pool with regard to wind shelter. Useful advice: To reduce running costs and speed up the heating process; Insulate the pool wherever possible. A fl oating solar cover is an essential minimum to retain heat.
- Page 11 Trouble Shooting – Analogue HEATER WILL NOT SWITCH FROM STANDBY (AMBER LIGHT ) TO ON (RED LIGHT) In most cases this will be the result of one of the following points not being met. Possible cause 1: The set point temperature has been achieved. To confi rm increase the set point value by turning the temperature set point dial to a value greater than the current water temperature.
- Page 12 Note: In some cases the high limit thermostat tripping and a low fl ow rate can be linked ie: when a fi lter becomes choked air can be drawn into the fi ltration system and become trapped inside the heater so causing the thermostat to trip.
-
Page 13: General Troubleshooting
General Trouble Shooting NO LIGHT APPEARS ON THE HEATER WHEN IT IS SWITCHED ’ON’ Possible cause: Power failure external to the heater Remedy: Check any fuses, RCD or other switch components installed in the supply cable. Note: the heater is not fi tted with a fuse. THE FLOW TUBE DOES NOT FEEL WARM Due to the high effi ciency of your electric heater no warmth should be detectable from the fl ow tube of the heater. -
Page 14: Rohs Compliance Statement
RoHS Compliance Statement Elecro Engineering Limited certify that our Electric Swimming Pool Heater Range complies in accordance with RoHS Directive 2002/95/EC on the restriction of hazardous substances. Waste Of Electrical / Electronic Equipment This product complies with EU directive 2002/96/EC Do Not dispose of this product as unsorted municipal waste. - Page 15 CE Declaration Of Conformity The manufacturer declares that the herewith products or ranges ELECTRIC SWIMMING POOL HEATER RANGE Are in conformity with the provisions: of the ELECTROMAGNETIC COMPATIBILITY directive 89/336/EEC, as amended 93/068/EEC. Controlled by AEMC Measures laboratory—...
- Page 18 11 Gunnels Wood Park Stevenage Hertfordshire SG1 2BH United Kingdom +44 (0) 1438 749 474 | f: +44 (0) 1438 361 329 | e: info@elecro.co.uk © Copyright 2011 Z-INS-VULC-EVO...
