GLOBALINX

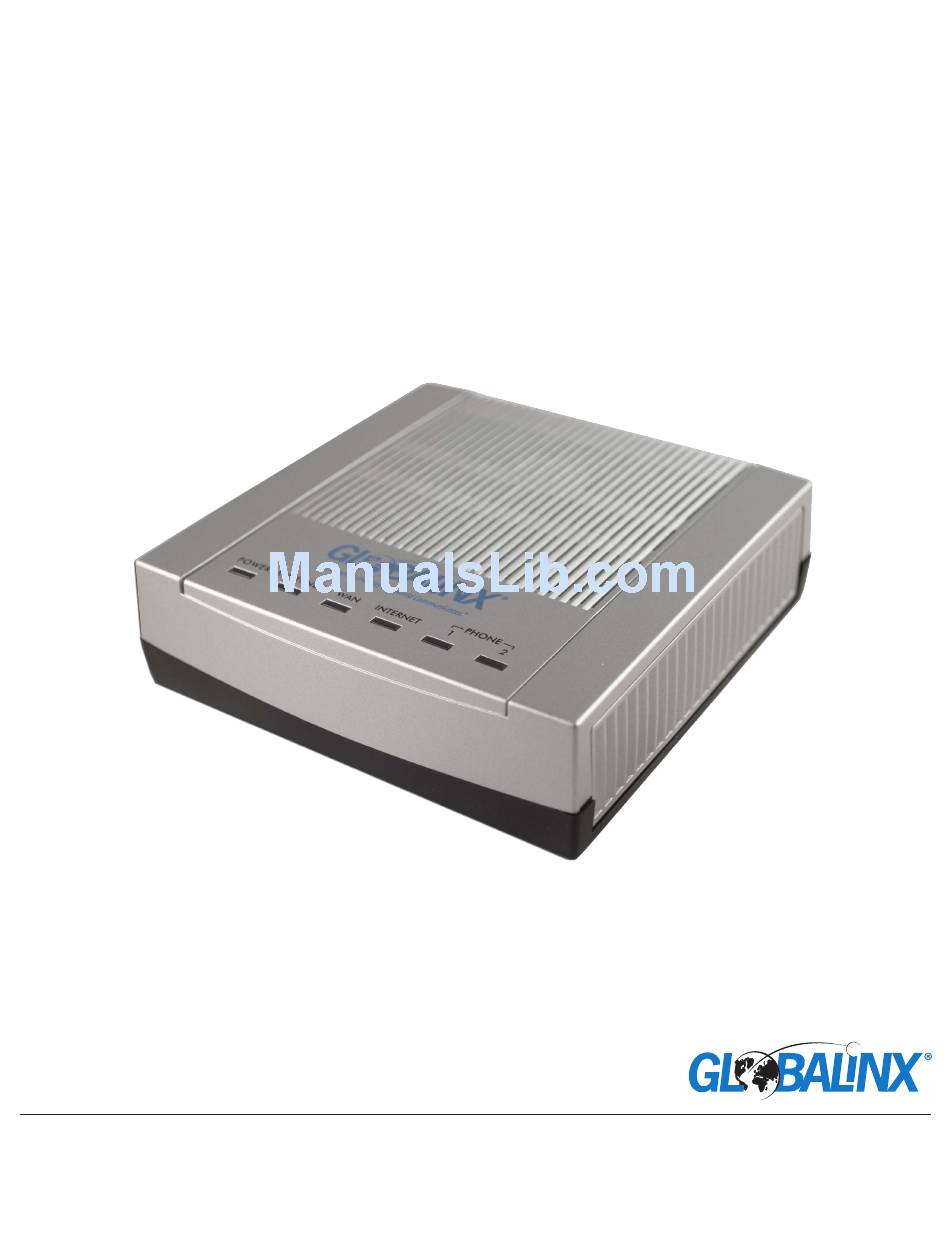

TALK-100 Dual Port
®
Digital Telephone Adaptor
User's Manual
© Copyright 2009 GLOBALINX®. All rights reserved.
No part of this document may be copied or reproduced in any form or by any means without the prior written consent of GLOBALINX®.
GLOBALINX® makes no warranties with respect to this documentation and disclaims any implied warranties of merchantability, quality, or fitness for any particular purpose.
The information in this document is subject to change without notice. GLOBALINX® reserves the right to make revisions to this publication without obligation to notify any
person or entity of any such changes. Trademarks or brand names mentioned herein are trademarks or registered trademarks of their respective owners.
TALK-100-11/09
Advertisement
Table of Contents
Related Manuals for Globalinx Talk-100
Summary of Contents for Globalinx Talk-100
- Page 1 GLOBALINX® makes no warranties with respect to this documentation and disclaims any implied warranties of merchantability, quality, or fitness for any particular purpose. The information in this document is subject to change without notice. GLOBALINX® reserves the right to make revisions to this publication without obligation to notify any person or entity of any such changes.
-
Page 2: Table Of Contents
Table of Contents Welcome ..................... 1 Safety Compliances ........................1 Warranty ....................2 Connect Your TALK-100 ................3 Included Equipment ........................3 Installing the TALK-100 ................4 Without a Router ........................... 4 With a Router ........................... 5 Product Overview ..................8 & 9 System Specifications ....................... -
Page 3: Welcome
GLOBALINX® accounts. This manual will help you learn how to operate and manage your GLOBALINX® TALK-100 Digital Telephone Adapter and make the best use of its many upgraded features including simple and quick installation and 3-way conferencing. -
Page 4: Warranty
GLOBALINX® shall not in any event be liable to the purchaser or any third party for any incidental or consequential damages or liability in the tort relating to this product or resulting from its use or possession. -
Page 5: Connect Your Talk-100
Connect Your TALK-100 Included Equipment: The TALK-100 DTA package contains: • One TALK-100 Telephone Adapter • One Ethernet Cable • One Power Adapter TALK-100 Telephone Adapter Ethernet Cable Power Adapter TALK-100 User’s Manual 3... -
Page 6: Installing The Talk-100
Installing the Talk-100 The TALK-100 is designed for easy configuration and installation. Follow these quick steps to start using your GLOBALINX® service: Installing without a Router DSL or Cable Telephone LED Status Lights Modem Telephone Adapter Internet Computer It’s fast and easy to set up your Telephone Adapter! Just follow these simple steps: Insert the provided blue Ethernet Cable into the blue WAN port of the Telephone Adapter. -
Page 7: With A Router
Once you have connected the Power Adapter into the Power Connection of the device it may take up to 5 minutes to activate your new Telephone Adapter and get it connected to the GLOBALINX network. DO NOT unplug the power or ®... - Page 8 PHONE1 (Gray) - Phone port to be connected to an analog phone. PHONE2 (Gray) - Phone port to be connected to an analog phone for second line only. Six (6) LED Status Lights - Help manage the status of your GLOBALINX® TALK-100. TALK-100 User’s Manual 6...
- Page 9 TABLE 2: Definitions of the TALK-100 LEDs Power LED blinking green: Device is booting up Power LED steady green: Device has finished boot up cycle and it is trying to connect to the network WAN,LAN LED blinking or steady: There is network activity in any of those ports...
-
Page 10: Product Overview
Product Overview The TALK-100 is a feature-rich Voice over Internet Protocol (VoIP) device that offers a high-level of integration including dual 10M/100Mbps Ethernet ports with integrated router, NAT, DHCP server, dual port FXS telephone gateway, market-leading sound quality, rich functionalities and a compact and lightweight design. - Page 11 • Restore Factory Defaults/Reset button (non-condensing) PHYSICAL SPECIFICATIONS Storage Environment • Dimensions: 108 (W) x 33 (D) x 105 (H) mm • Storage Temperature: -20°C ~ 60°C • Weight: 168 g • Storage Humidity: 20% ~ 90% (non-condensing) TALK-100 User’s Manual 9...
-
Page 12: Basic Operation
The TALK-100 supports Bellcore style 3-way Conference. Instructions for 3-way Conferencing: Assume that call party A and B are in conversation. Caller A (TALK-100) wants to bring third Caller C into conference: 1. A presses FLASH (on the analog phone, or hook flash for old model phones) to get a dial tone. -
Page 13: Call Features
Call Features The TALK-100 supports all the traditional and advanced telephony features. FEATURE CANCEL Abbreviated Dial 75* + menu 75* + menu Anonymous Call Rejection *77 v *87 v Call Block * 60 + menu *80 + menu Call Forward – All Calls 72* + phone number + # Call Forward –... -
Page 14: Safety Warnings
Use only No. 26 AWG (American Wire Gauge) or larger telecommunication line cord. If you wall mount your device, make sure no electrical lines, gas or water pipes will be damaged. This product is recyclable. Dispose of it properly. TALK-100 User’s Manual 12... -
Page 15: Legal Information
Consult the dealer or an experienced radio/TV technician for help. Notices Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This Class B digital apparatus complies with Canadian ICES-003. TALK-100 User’s Manual 13...
