GLOBALINX

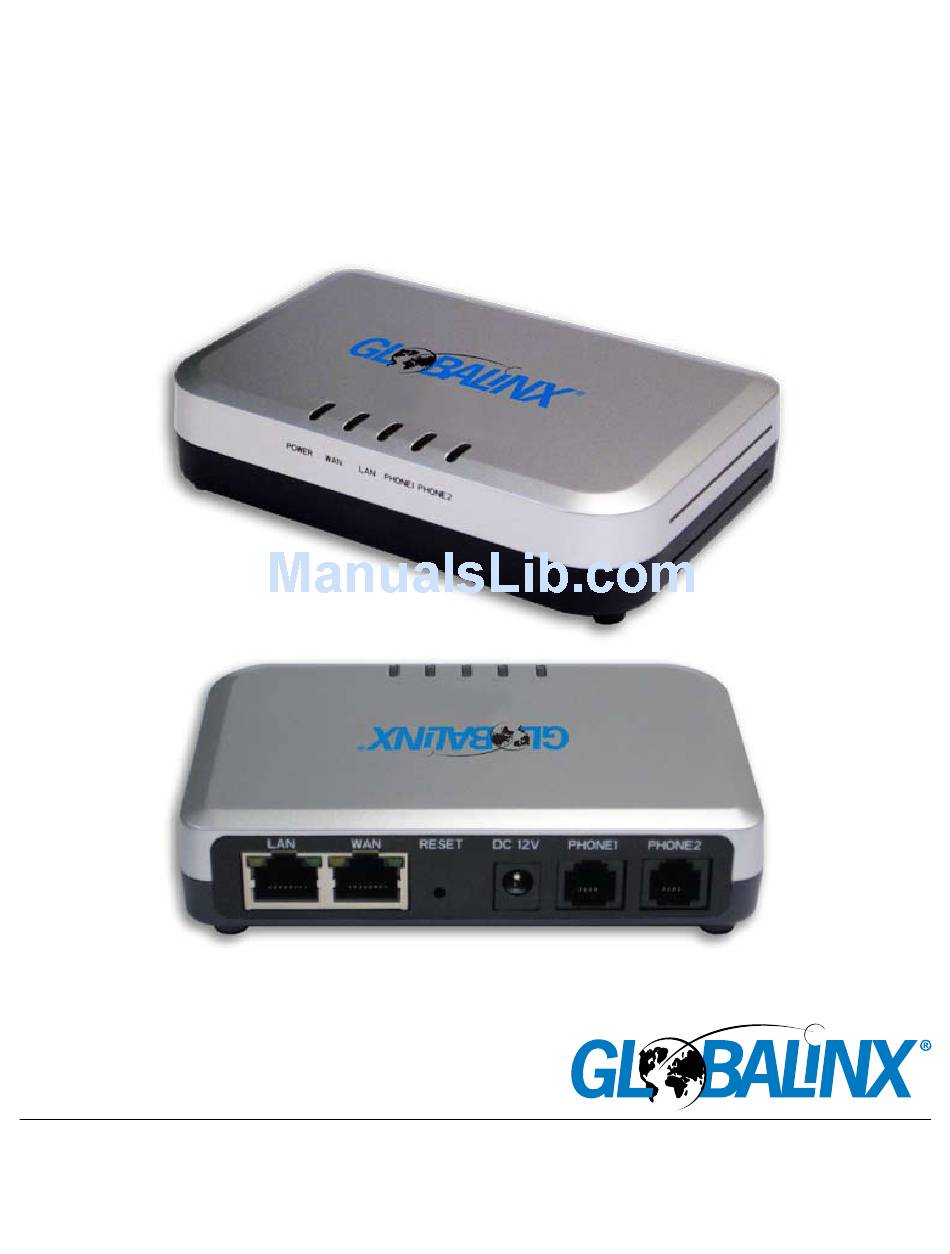

HT502 Dual FXS Port Analog
®
Telephone Adaptor Users Manual
© Copyright 2008 GLOBALINX
. All rights reserved.
®
No part of this document may be copied or reproduced in any form or by any means without the prior written consent of GLOBALINX®.
GLOBALINX
makes no warranties with respect to this documentation and disclaims any implied warranties of merchantability, quality, or fitness for any particular purpose. The information
®
in this document is subject to change without notice. GLOBALINX
reserves the right to make revisions to this publication without obligation to notify any person or entity of any such changes.
®
Trademarks or brand names mentioned herein are trademarks or registered trademarks of their respective owners.
GLDTAUM-12/16/08
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Globalinx HT502
Summary of Contents for Globalinx HT502
- Page 1 . All rights reserved. ® No part of this document may be copied or reproduced in any form or by any means without the prior written consent of GLOBALINX®. GLOBALINX makes no warranties with respect to this documentation and disclaims any implied warranties of merchantability, quality, or fitness for any particular purpose. The information ®...
-
Page 2: Table Of Contents
Table of Contents Welcome ....................Safety Compliances ....................Warranty ........................Connect Your HT502 ................Equipment Packaging ..................... Connecting theHT502 .................... Product Overview .................. Software features Overview ................. Hardware Specifications ..................Basic Operations ..................Placing a phone call ....................Placing extension or number ........ - Page 3 Figure 2: HT502 Connecting Diagram ............... Table 2 Table of Tables ................Table 1: Definations of the HT502 Connections ..........Table 2: Definations of the HT502 LEDs ............Table 3: HT502 Technical Specifications ............Table 4: HT502 IVR Menu Definations ...............
-
Page 4: Welcome
This manual will help you learn how to operate and manage your GLOBALINX ® HT502 Digital Telephone Adaptor and make the best use of its many upgraded features including simple and quick installation and 3-way conferencing. This HT502 is very easy to manage and configure, and is specifically designed to be an easy to use and affordable VoIP solution for both the residential user and the teleworker. -
Page 5: Warranty
Reproduction or transmittal of the entire or any part, in any form or by any means, electronic or print, for any purpose is not permitted without the express written permission of GLOBALINX® Inc. HT502 User’s Manual 2... -
Page 6: Connect Your Ht502
Connect Your HT502 Equipment Packaging The HT502 DTA package contains: • One HT502 Main Case • One Universal Power Adaptor • One Ethernet Cable • One HT502 Vertical Stand HT 502 Universal Power Adaptor Ethernet Cable Vertical Stand HT502 User’s Manual 3... -
Page 7: Connecting Theht502
Ethernet cable to an uplink port (a router or a modem, etc.) 4. Connect a PC to the LAN port of HT502 if it is being used as a router. 5. Insert the power adapter into the HT502 and connect it to a wall outlet. - Page 8 FXS port to be connected to analog phones / fax machines. PHONE2 (RJ-11) FXS port to be connected to analog phones / fax machines. There are five (5) LED buttons that help you manage the status of your GLOBALINX® HT502. TABLE 2: DEFINITIONS OF THE HT502 LEDS POWER LED Indicates Power.
-
Page 9: Product Overview
Product Overiew The HT502 is a full feature voice and fax-over-IP device that offers a high-level of integration including dual 10M/100Mbps Ethernet ports with integrated router, NAT, DHCP server, dual port FXS telephone gateway, market-leading sound quality, rich functionalities, and a compact and lightweight design. -
Page 10: Table 3: Ht502 Technical Specifications
TABLE 3: HT502 TECHNICAL SPECIFICATIONS Telephone Interfaces 2 FXS ports, 2 SIP accounts Network Interface Two (2) 10M/100 Mbps, RJ-45 LED Indicators Power, WAN, LAN, PHONE1 and PHONE2 Reset Button Factory Reset button Voice over Packet Capabilities Voice Activity Detection (VAD) with CNG (comfort noise generation) and PLC (packet loss concealment), Dynamic Jitter Buffer, Modem detection &... -
Page 11: Hardware Specifications
Hardware Specification The table below lists the hardware specification of HT502. TABLE 4: HT502 HARDWARE SPECIFICATION LAN Interface 2 x RJ45 10/100Mbps (integrated router) 5 LEDs (GREEN) Universal Switching Input: 100-240V AC, 50/60Hz, 0.5A Max Power Adaptor Output: 12V DC, 1.25A... -
Page 12: Basic Operations
Call waiting tone (3 short beeps) indicates an incoming call, if the call waiting feature is enabled. Toggle between incoming call and current call by pressing the “flash” button. First call is placed on hold. Press the “flash” button to toggle between two active calls. HT502 User’s Manual 9... -
Page 13: 3-Way Conferencing
The HT502 supports Bellcore style 3-way Conference. Instructions for 3-way conference: Assume that call party A and B are in conversation. Caller A(HT502) wants to bring third Caller C into conference: 1. A presses FLASH (on the analog phone, or Hook Flash for old model phones) to get a dial tone. -
Page 14: Call Features
CALL FEATURES The HT502 supports all the traditional and advanced telephony features. TABLE 6: HT502 CALL FEATURES Feature Description Call Return Place a call to the number from which last called you Call Forward *72 <number> Forward all calls to the <number> entered after 72 Cancel forwarding of all calls 76 #<number>...
