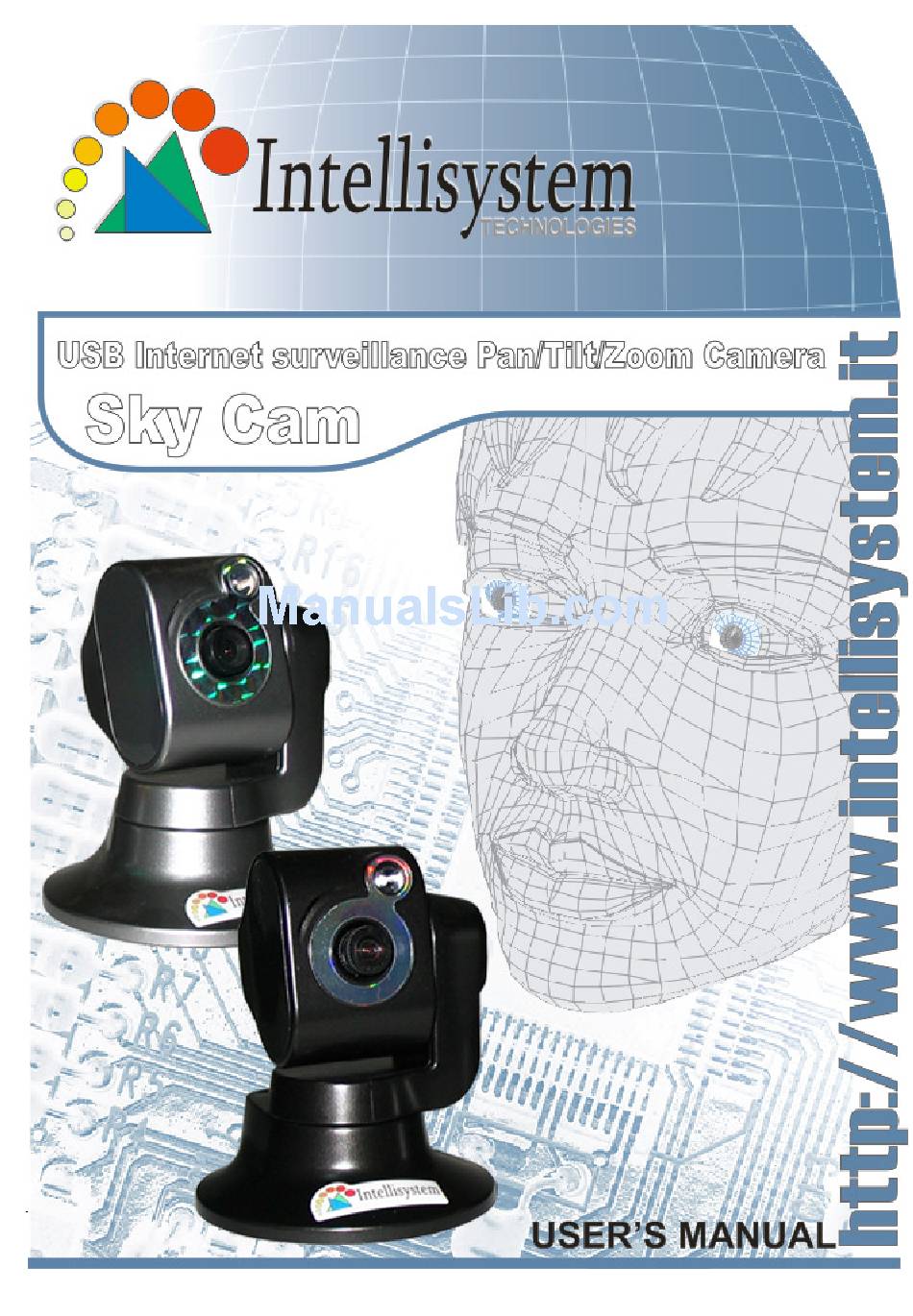

- Page 1 Sky Cam User's Manual Intellisystem Technologies - http://www.intellisystem.it - 0 -...
-
Page 2: Table Of Contents
2. Physical description -------------------------------------------------------------------------------------------------- p. 5 3. Installing the software ----------------------------------------------------------------------------------------------- p. 6 4. Connect and disconnect the Sky Cam to USB port ------------------------------------------------------------ p. 17 5. Launching the software -------------------------------------------------------------------------------------------- p. 19 6. Positioning the Sky Cam ------------------------------------------------------------------------------------------- p. 26 7. -
Page 3: Warning Before Install
Power off the Sky Cam as soon as it is found smoking or smelt unusual • Contact your distributor when such cases happen Keep the Sky Cam away from the water. If the Sky Cam is wet, power off immediately. • Contact your distributor when such cases happen Do not place the Sky Cam around the heat sources. - Page 4 Do not touch the Sky Cam when it’s lightening. • Do not disassembly the Sky Cam. • Do not drop the Sky Cam. • Do not manually pan and tilt the Sky Cam when it is rotating by electrical power. • Intellisystem Technologies - http://www.intellisystem.it - 3 -...
-
Page 5: Check Package Contents
Sky Cam User's Manual 1. Check package contents The Sky Cam (normal or high resolution model) USB cable Software CD Intellisystem Technologies - http://www.intellisystem.it - 4 -... -
Page 6: Physical Description
Sky Cam User's Manual 2. Physical description • Front Panel • Rear Panel Intellisystem Technologies - http://www.intellisystem.it - 5 -... -
Page 7: Installing The Software
XP professional SP-2 is recommended. If necessary, please upgrade the system from Microsoft website. USB 2.0 port will be good for better performance of the Sky Cam. Load the software CD into CD-ROM drive, wait a few seconds for auto-run menu running. Don’t connect the Sky Cam to your computer when installing the software. - Page 8 Sky Cam User's Manual The first software that will be installed is the Sky Cam USB driver. Please select “Avanti”/”Next” in order to install it. Each time that the following figure appears please select “Continua”/”Continue” Intellisystem Technologies - http://www.intellisystem.it - 7 -...
- Page 9 Sky Cam User's Manual Please click on “Fine” to finish the driver installation in order to continue with next software. Next software is “etMCAP”. Please select “I Agree” and follow the instruction. Intellisystem Technologies - http://www.intellisystem.it - 8 -...
- Page 10 Sky Cam User's Manual Click “OK” and continue. Please click on “Close” to finish this software installation in order to continue with next one. Intellisystem Technologies - http://www.intellisystem.it - 9 -...
- Page 11 Sky Cam User's Manual Next software is “FF DSHOW”. Please select your language an click “OK”. Please click “Next” Intellisystem Technologies - http://www.intellisystem.it - 10 -...
- Page 12 Sky Cam User's Manual Please click on “I Agree”. Please click on “Next”. No more then default “Selected components to install” are required. Intellisystem Technologies - http://www.intellisystem.it - 11 -...
- Page 13 Sky Cam User's Manual Click always “Next >” as on the next figures. Intellisystem Technologies - http://www.intellisystem.it - 12 -...
- Page 14 Sky Cam User's Manual Please select “Next >”. Please select “Install”. Intellisystem Technologies - http://www.intellisystem.it - 13 -...
- Page 15 Sky Cam User's Manual Please select “Next >” Select “Finish” in order to finish the software installation and continuing with next one. Intellisystem Technologies - http://www.intellisystem.it - 14 -...
- Page 16 Sky Cam User's Manual Next software is “Sky Cam Setup Wizard”. Please click “Next >” for begin the installation Please click “Next >” Intellisystem Technologies - http://www.intellisystem.it - 15 -...
- Page 17 Sky Cam User's Manual When the setup is complete please click on “Close” in order to finish this software installation and continue with next one. Last software is the ActiveX 9.0 runtime please install it. If your system has a new one the software will go quickly to the end of installation.
-
Page 18: Connect And Disconnect The Sky Cam To Usb Port
After software is well installed, it is possible to connect the Sky Cam to the computer’s USB port. When first time you plug the Sky Cam to the USB port, the device driver should be installed for the computer to identify the new hardware device. - Page 19 Sky Cam User's Manual When the Sky Cam is shown completely removed, it’s save to plug the Sky Cam again to your computer if necessary. Intellisystem Technologies - http://www.intellisystem.it - 18 -...
-
Page 20: Launching The Software
You can change the capture angle by moving the Sky Cam head from the motor control logo. Push the button on the Sky Cam could get a still image. You could also record the video in high resolution but that will get huge storage size occupation. - Page 21 Click the “picture view” from the main menu, makes you easy to do pictures management. Picture View The software “Sky Cam” especially provide you convenience to do several kind of video/audio application like motion tracking, motion detection with e-mail notification, surveillance through internet, ... etc. Close Intellisystem Technologies - http://www.intellisystem.it...
- Page 22 Please unblock this program and click “OK”. Video Server : In configuration of Video Server, you can do setting for properties of the Sky Cam and to enable some special function. Then choose mode “Capture” for local use or choose “ Monitor” for network connection.
- Page 23 Password setting Type twice to confirm the password, then every time you have to use the password when connecting to this Sky Cam from remote site. If you don’t set it, the default setting of password is “Sky Cam ”.
- Page 24 9001 opened for the router and use the software "video client" to monitor the Sky Cam. When the Sky Cam is installed at a Lan address, you can install the software on a PC in same Lan network and use the software "video client"...
- Page 25 IP address. Setup ready the Sky Cam first then turning on the software “Video Server” and “Video Client” simultaneously. Through the two way video/audio transmission, both you in server and client can see and control the Sky Cam each other. Intellisystem Technologies - http://www.intellisystem.it...
- Page 26 Sky Cam User's Manual Video Server + Video Client Intellisystem Technologies - http://www.intellisystem.it - 25 -...
-
Page 27: Positioning The Sky Cam
Sky Cam to your eye level. Monitor Placement. If there is a flat, stable surface on top of your monitor, place the Sky Cam on the base in the middle of your monitor. You don’t need to use the stand on your Sky Cam. -
Page 28: Cleaning The Lens
Sky Cam User's Manual 7. Cleaning the lens When it is necessary to clean the lens, please follow these instructions: • Prepare cotton swabs and alcohol. • Moisten the cotton swab with alcohol. • Slightly clean the lens. If the lens is still dirty, repeat 2 ~ 3 steps until it is cleaned. Change a clean cotton swab if the old one is dirty or contains dirt that might scrape the lens. -
Page 29: Specifications
Sky Cam User's Manual 8. Specifications Key Features Audio & Video Surveillance/Security for Home/Office Via Internet Motorized Pan/Tilt Operation and 10x Digital Zoom Via Web Remote Control Auto-pan allowed Built - in Motion Detection and E-mail Notification Built - in Microphone... - Page 30 CMOS sensor Sky Cam - Up to 1280 X 960 Pixels(Interpolated) Sky Cam : 300K pixels Sky Cam HR (High Res) - Up to 1280 X 1024 Pixels Sky Cam HR: 1300K pixels 30fps at CIF/QCIF/VGA, 15fps at SVGA Sensitivity 0.9V/Lux-Sec...
-
Page 31: Electromagnetic Compatibility
Sky Cam User's Manual Electromagnetic Compatibility (EMC) This device compiles with FCC Rules Part 15. Operation is subject to the following two conditions. This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation. -
Page 32: Liability
Intellisystem Technologies S.r.l. makes no warranty of any kind with regard to the material contained within this document, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.
