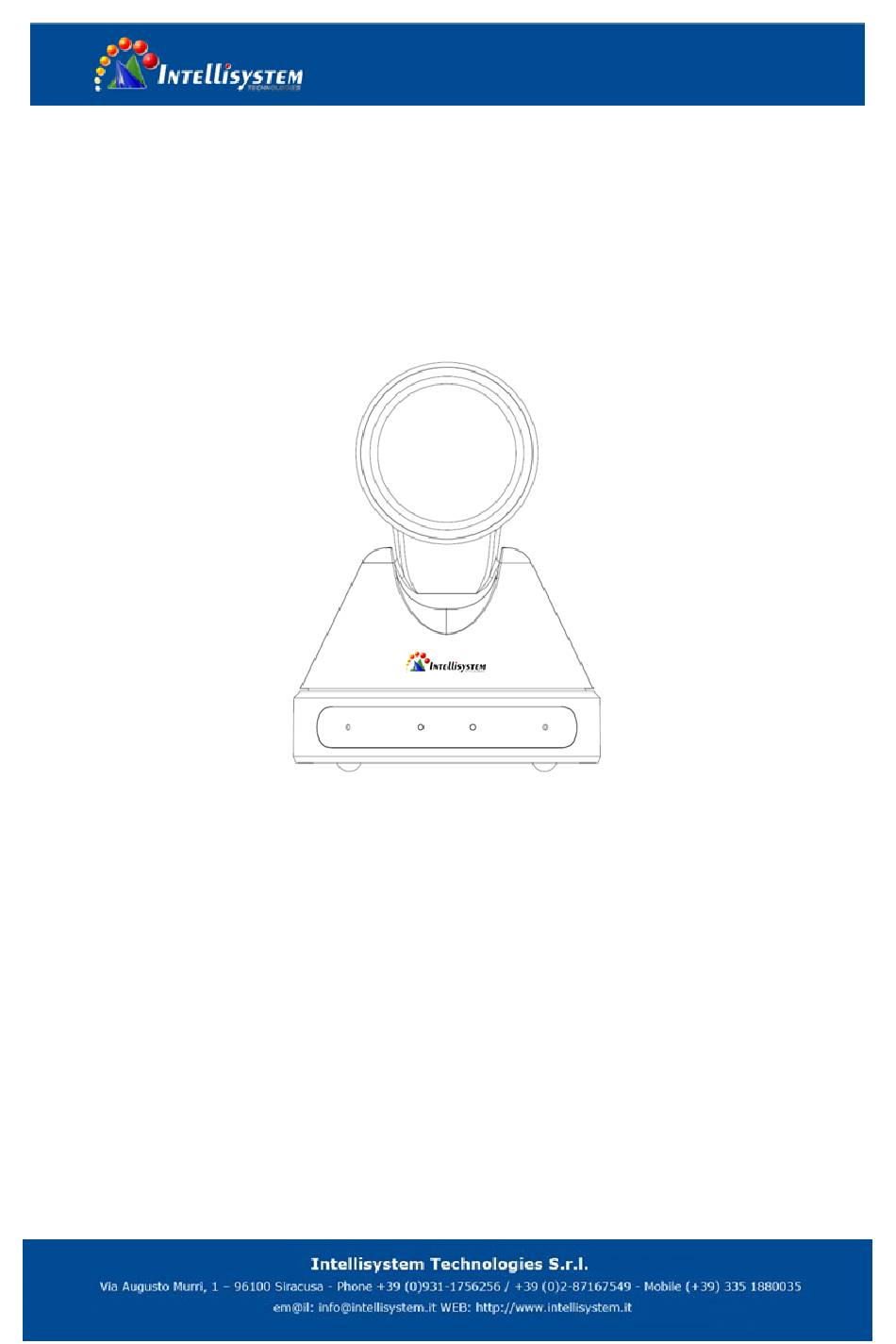

  • Page 1 VCHD710-SDI HD Video Conferencing Camera User Manual V1.1 (English)
  • Page 2 Preface Thanks for using this HD Video Conferencing Camera. This manual introduces the functions, installation process and operation of the HD camera. Prior to installation and usage, please read the manual thoroughly. Precautions This product can only be used in the specified conditions in order to avoid any damage to the camera: ...

  • Page 3: Table Of Contents

    Contents Note ................................ 4 Supplied Accessories ..........................4 Quick Start ............................. 5 Features ..............................6 Product Specification ..........................7 Main Unit ............................... 9 Size............................... 10 IR Remote Control Explanation ......................11 RS-232 Interface ..........................14 Serial Communication Control ......................15 PTZ over TCP/UDP ..........................

  • Page 4: Note

    Note  Electric Safety Installation and operation must accord with electric safety standard.  Use caution to transport Avoid stress, vibration or soakage in transport, storage and installation.  Polarity of power supply The power supply of this product is +12V, the max electrical current is 2A .Polarity of the power supply plug drawing shows as below.

  • Page 5: Quick Start

    Quick Start Step1. Check if connections are correct before starting Step2. Press the ON/OFF switch on the right rear of the camera, power light on. Step3. Pan-Tilt function rotates the camera to its maximum position of top right upon startup, then it returns to the center, and the process of initialization is finished.

  • Page 6: Features

    Features  Completely New Look Design with worm gear transmission, completely new look, mini size, two colors for choosing from.  1080P Full HD Support Panasonic's 1/2.7 inch, 2.07 million effective pixels with high quality HD CMOS sensor. The camera can reach a maximum of 1920 x 1080 high resolution and achieve high-quality image. ...

  • Page 7: Product Specification

    Product Specification Name IT-VCHD710-SDI Camera Sensor 1/2.7'', CMOS, Effective Pixel: 2.07M Scanning Mode Progressive Lens 12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8 Digital Zoom 16x (optional) Minimal 0.5 Lux @ (F1.8, AGC ON) Illumination Shutter 1/30s ~ 1/10000s White Balance...
  • Page 8 H & V Flip Support Image Freeze Support Number of Preset Preset Accuracy 0.1° IPC Features Video coding H.265/H.264/MJEPG standard Video Stream First stream, Second stream First stream 1920x1080,1280x720,1024x576,960x540,640x480,640x360 resolution Second stream 1280x720,1024x576,720x576(50Hz), 720x480(60Hz),720x408, resolution 640x360,480x270,320x240,320x180 Bit Rate 32Kbps ~ 20480Kbps Bit Rate Type Variable rate, fixed rate Frame Rate...

  • Page 9: Main Unit

    Network 1xRJ45: 10/100/1000M Adaptive Ethernet ports interface Power Jack JEITA type (DC IN 12V) Generic Specification Input Voltage DC 12V Current 1.0A (Max) Consumption Operating -10°C ~ 40°C (14°F ~ 104°F) Temperature Storage -40°C ~ 60°C (-40°F ~ 140°F) Temperature Power 12W (Max) Consumption...

  • Page 10: Size

    5. DC IN 12V jack Size...

  • Page 11: Ir Remote Control Explanation

    IR Remote Control Explanation 1. Standby Button Press this button to enter standby mode. Press it again to enter normal mode. (Note: Power consumption standby mode approximately half of the normal mode) 2. Position Buttons To set or call preset. 3.
  • Page 12 Press 1 and 2 buttons to set the direction of the Pan-Tilt. L/R Set +1[STD]: set the Pan-Tilt turn the same direction as the L/R Set L/R Set +2[REV]: set the Pan-Tilt turn the opposite direction as the L/R Set 9.
  • Page 13 Recall the Preset image Freeze：use "Recalling [*]+[＃]+[3]: OSD menu default Chinese the Preset image Freeze" function in the OSD [*]+[＃]+[4]: Default IP address Menu. After the function is activated, the screen [*]+[＃]+[5]: Save OSD pauses, and can be switched to any preset [*]+[＃]+[6]: Quick default reset position by pressing the corresponding number.

  • Page 14: Rs-232 Interface

    RS-232 Interface Camera Windows DB-9 1.DTR 1.CD 2.DSR 2.RXD 3.TXD 3.TXD 4.GND 4.DTR 5.RXD 5.GND 6.GND 6.DSR 7.IR OUT 7.RTS 8.NC 8.CTS 9.RI Camera Mini DIN Function 1.DTR 1.DTR 2.DSR 2.DSR 3.TXD 3.TXD 4.GND 4.GND 5.RXD 5.RXD 6.GND 6.GND 7.IR OUT 7.NC 8.NC 8.NC...

  • Page 15: Serial Communication Control

    Serial Communication Control In default working mode, the camera is able to connect to a VISCA controller with RS232C serial interface.  RS232 Communication Control: The camera can be controlled via RS232; the parameters of RS232C are as follows: Bit rate: 2400/4800/9600/38400 bit/s. Start bit: 1 bit.

  • Page 16: Menu Setting

    Menu Setting EXPOSURE 1. MENU Mode Auto Press [MENU] to display the main menu on the ExpCompMode screen. Use arrow buttons to move the cursor. Press [HOME] to enter the corresponding sub- Backlight menu. Gain Limit Anti-Flicker 50Hz MENU Meter Average Exposure Color...
  • Page 17 Bright: Bright intensity control. Options: COLOR 00~17. WB Mode Auto (Effective only in Bright mode) Anti-Flicker: Anti-flicker. Options: Off, 50Hz, RG Tuning 60Hz (Effective only in Auto, Bright mode) BG Tuning Meter: Options: Average, Center, Bottom, Top Saturation 100% Iris: Aperture value. Options: F1.8, F2.0, F2.4, F2.8, F3.4, F4.0, F4.8, F5.6, F6.8, F8.0, F9.6, AWB sens F11.0, Close (Effective only in Manual, AAE...
  • Page 18 Normal, High, Low. Items: On, Off. Flip-V: Image flips vertically. Options: On, Off 4. IMAGE B&W-Mode: Image color. Options: On, Off Move the cursor to the Image in the main menu Gamma: Options: Default, 0.45, 0.5, 0.56, 0.63 and press [HOME], IMAGE menu shows as Style: Options: Norm, Clarity, Bright, Soft, 5S.
  • Page 19 L/R Set: Options: STD, REV 1 ~ 8 Display Info Options: On, Off D-HotPixel: Dynamic bad points, Options: Off, 1 Image Freeze: Options: On, Off Digital Zoom: Options: 2x, 4x, 8x, 16x, Off Call Preset Speed: Options: 1~24 7. SETUP Move the cursor to Setup in the main menu and 6.
  • Page 20 V_AddrFix: Change serial port using infrared 8. COMMUNICATION SETUP Move the cursor to Setup in the main menu and switch. Options: On, Off (when set to on, press [HOME]. COMMUNICATION SETUP command 88 30 01 FF becomes invalid) menu shows as below. Net Mode: Set the serial port control pattern.
  • Page 21 Note: Press [HOME] to confirm. All parameters will be reset to default values, including IR Remote address and VISCA address. Save: Save settings. Options: Yes, No.

  • Page 22: Network Function

    Network Function 1 Operating Environment Operating System: Windows 2000/2003/XP/ Vista/7/8/10. Picture 1.2 connect by router /interchanger Network Protocol: TCP/IP. 5 IP camera visited/ controlled by LAN Client PC: P4/128MRAM/40GHD/ supports Setup IP address scaled graphics card, DirectX8.0 or more IP camera’s default IP address is 192.168. advanced version.
  • Page 23 IP camera’s default IP address: "192.168.100. 88", user: "admin", password: "admin". Visit/Access IP Camera Input http://192.168.100.88 in the address bar (better, with IE web browser, others will cause a little latency). When login window pops up, input login name: admin, password: admin. Method 2: Open “upgrade_En.exe”, change IP and click “Set”.
  • Page 24 player (VLC). Please go to VLC website http://www.videolan.org/vlc,download install as instructed. After installation, login again, the home page will show. 6 IP Camera accessed/controlled by WAN (Internet) Setup IPC accessed/controlled by dynamic DNS 2 dynamic DNS available: Dyndns.org, 3322. org Router Port Mapping: Take Tenda router for example, enter Router Home Page (interface page)>...
  • Page 25 Open VLC media player, click "Media"> "Open Network Steam", or use "Ctrl+N". 7 IP Camera parameter setup Homepage introduction Menu All pages include 2 menu bars: Real-time monitoring: display video. Input URL address: Parameter setup: function buttons. rtsp://ip: port number/1 (First stream); Video viewing window rtsp://ip: port number/2 (Second stream).
  • Page 26 2) Audio control buttons: can set silent mode. distant objects or on close objects. 3) Full screen switch button. 5) Set/ Call: when PTZ turns to expected PTZ Setup position, it can be saved as a preset entry as below. Method 1: Type a number into the Preset box.
  • Page 27 selects menu; home button enters the submenu, Support 3 formats: 50Hz (PAL), 60Hz (NTSC), left/right button modifies the submenu. After the and Dial priority. menu being modified, select PTZ. If in the main Encode Level menu, system will save the settings and exit Support 3 formats: baseline, mainprofile, and automatically.
  • Page 28 a higher frame rate gives a smoother image. With a smaller frame rate, there is a higher chance of beating. I key frame interval: Set interval between 2 I frames, the bigger the interval is, the slower the response will be in the viewing window.
  • Page 29 Default: 2. Bit rate Bit rate: 96k, 128k, 256k. Hue 0~14, slide to control. The box on the right Input Type shows the corresponding numerical. Line-in only. Default: 7. Input Vol L Flip & Mirror Volume of the left channel. Click “Flip”...
  • Page 30 Lan Settings Default IP address: 192.168.100.88. MAC address can be modified. Work Mode Work mode: RTSP NOTE！ Reboot Click "Reboot", system restarts. To adjust the Land parameters, click "apply" to User and password save, click "cancel" to discard the change of the User can modify the user name and password parameters.
  • Page 31 program the corresponding port. The port Click "Cancel" to discard parameter changes. mapping needs to be consistent with the port 7.1 Click “Information” to finish device number (default port: 80). information setup: RTSP Port Network camera supports RTSP protocol, and user can use the VLC tools to broadcast.

  • Page 32: Maintenance And Troubleshooting

    Maintenance and Troubleshooting Camera Maintenance  If camera will be idle for a long time, please turn off the power switch, disconnect AC power cord from the outlet.  Use soft cloth or tissue to clean the camera (lens not recommended). ...
  • Page 33 When IPC is for the first time accessed by Internet Explorer (or other web browser), a plug-in must be installed. Installation: visit IP Camera address, click [Download], and a download dialog box will pop up. Select [Run] or [Save] to download. If no dialog box pops up, please go to VLC (player software) website http://www.videolan.org/vlc,download and install VLC.
  • Page 34  Serial communication cannot control the camera 1. Check if the camera is in working mode. 2. Check if the control cable is connected correctly.
