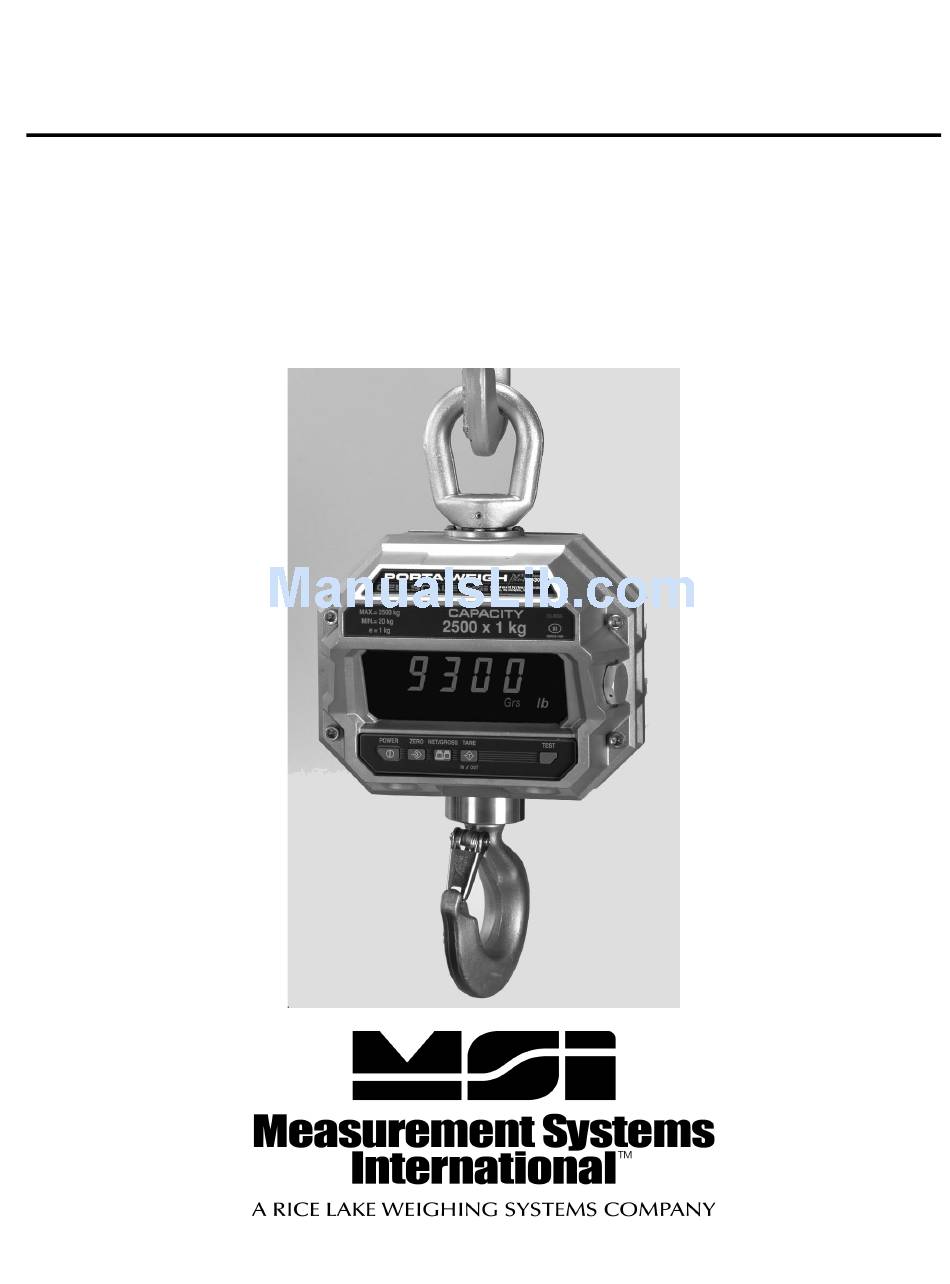

- Page 1 MSI9300 PortaWeigh Plus Crane Scales PortaWeigh Plus Hi-Torque Crane Scales Operator’s Manual...
-
Page 2: Table Of Contents
MSI-9300 Porta-Weigh+ Crane Scale TABLE OF CONTENTS 1 – I & I ..................3 ECTION NTRODUCTION NSTALLATION Introduction ..............................3 Installation ..............................3 Battery Removal & Replacement ........................4 Battery Life ..............................5 Battery Charger ..............................5 FCC Statement ...............................6 MSI-9300 Porta-Weigh Plus Display ......................7 Keyboard Operations .............................7 2 –... -
Page 3: Section 1 - Introduction & Installation
MEASUREMENT SYSTEMS INTERNATIONAL SECTION 1 – INTRODUCTION & INSTALLATION INTRODUCTION The Measurement Systems International MSI-9300 Series Porta-Weigh Plus Crane Scales are designed to provide a rugged weight indicator and data system for any type and size of crane used in industry. Two basic styles are available: MSI-9300 and MSI-9300HT. -
Page 4: Battery Removal & Replacement
MSI-9300 Porta-Weigh+ Crane Scale shackle or too large a hook to interface with the MSI-9300. This can cause off center loading and stress points that will reduce the life of the MSI-9300 lifting eye or hook. Use the appropriate interface hardware for the capacity of the scale. -
Page 5: Battery Life
MEASUREMENT SYSTEMS INTERNATIONAL 6) Remove the battery by pulling straight back. 7) Install a fully charged battery by plugging it in to the exposed battery jacks. The crane scale will turn on briefly then turn itself off. 8) Reattach the battery retaining strap. 9) Reseat the access panel. -
Page 6: Fcc Statement
MSI-9300 Porta-Weigh+ Crane Scale Charge Indicator Light Amber = Charging Green = Float The charger is a universal input type and is rated for 100-240VAC, 50-60Hz. AC power cords suitable for any world location are available from MSI. FCC STATEMENT FCC ID: HSW-2450M Note: This unit has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. -
Page 7: Msi-9300 Porta-Weigh Plus Display
MEASUREMENT SYSTEMS INTERNATIONAL MSI-9300 PORTA-WEIGH PLUS DISPLAY The MSI-9300 has six 1.2” (30.5mm) ultrabright LED Digits along with annunciators. The brightness of the display is automatically adjusted to the lighting conditions. When the ambient light is dim, the LEDs are lower in intensity. -
Page 8: Section 2 - Scale Operation
MSI-9300 Porta-Weigh+ Crane Scale SECTION 2 – SCALE OPERATION POWER To Turn On the Power 1) Push POWER. The system performs a display POWER 8. 8 . 8 . 8 . 8 . 8 check: All segments and annuciators illuminate for 3 seconds. -
Page 9: Tare
MEASUREMENT SYSTEMS INTERNATIONAL TARE Tare is typically used to zero out a known weight such as a packing container or pallet and display the load in NET weight. A Tare value is entered in one of three ways: 1) AUTO TARE – When the TARE key is pushed twice, the current weight is zeroed and Net Weight is dis- played. -
Page 10: Special Tare Modes
MSI-9300 Porta-Weigh+ Crane Scale Tare - Rules for Use: 1) Only positive gross weight readings can be tared. Weight can be tared in both the NET and GROSS modes. When in the NET mode, the TARE is not cumulative, all the weight is zeroed. 2) The motion annunciator must be off. -
Page 11: Test
MEASUREMENT SYSTEMS INTERNATIONAL TEST Provides a functional system test, and an on-demand display check without disturbing the current weighment. The Test function can be interrupted by pushing any key during the test. To start the Test Push the TEST/USER key (programmed as TEST). The TEST 8. -
Page 12: Section 3 - Msi-9300 Setup Menu
MSI-9300 Porta-Weigh+ Crane Scale SECTION 3 – MSI-9300 SETUP MENU KEY FUNCTIONS DURING SETUP POWER ZERO NET/GROSS TARE TEST 1) The Test key is used to scroll through menu selections. 2) The Tare key is used to select the displayed menu choice. 3) The Zero key is used to exit out of the current menu. -
Page 13: User Key Function
MEASUREMENT SYSTEMS INTERNATIONAL USER KEY FUNCTION The TEST/USER key can be programmed to 1 of 6 functions: 1) TEST – Default function. Provides segment test of the display, battery level, and RF Network information. 2) UNIT – Switch between pounds (lb) and kilograms (kg). 3) S LIST –... -
Page 14: Units
MSI-9300 Porta-Weigh+ Crane Scale To Setup Automatic Off 1) Start the Setup Mode using the procedure on page 12. F unc TEST a- O ff 2) Use the TEST (Scroll) key to scroll to “A-OFF”. TARE 3) With the display reading “A-OFF” press the TARE (Select) key. -
Page 15: Total
MEASUREMENT SYSTEMS INTERNATIONAL TOTAL The MSI-9300 CellScale feature set provides Total and Statistics capabilities. The MSI-9300 keypad allows the enabling and display of some of these features. More extensive total and statistics capability is provided when a 9750A or 3750CS meter is part of the network. However, the MSI-9300 allows the setting of the following Total features: 1) OFF –... -
Page 16: Automatic Temperature Display
MSI-9300 Porta-Weigh+ Crane Scale AUTOMATIC TEMPERATURE DISPLAY The MSI-9300 will display its internal temperature once every 20 seconds if enabled with the following proce- dure. To Enable Auto Temp Display (° Auto) & Set Temperature Units 1) Start the Setup Mode using the procedure on page 12. F unc 2) Use the TEST (Scroll) key to scroll to “°... - Page 17 MEASUREMENT SYSTEMS INTERNATIONAL (Select) to select it. TARE 000000 Pushing TARE (Select) reconfigures the Modem to new network settings. 5) The display will go into test mode while the network set- 111111 tings are being altered. When the modem is successfully changed, the display will return to the weight mode.
-
Page 18: Rf Remote Control
MSI-9300 Porta-Weigh+ Crane Scale SECTION 4 – RF REMOTE CONTROL DESCRIPTION MSI-9300 Series crane scales can be equipped with an RF Remote Control (RFRC). This differs from using the MSI-9750A or MSI-3750CS Indicators to control the scale. The RFRC is a transmit only device that can be used to perform basic scale functions. -
Page 19: Contention Considerations
MEASUREMENT SYSTEMS INTERNATIONAL CONTENTION CONSIDERATIONS It is important to understand that only one transmitter at a time can be activated within a reception area. While the transmitted signal consists of encoded digital data, only one carrier of any frequency can occupy airspace without contention at any given time. -
Page 20: Section 4 - The Embedded Cellscale
MSI-9300 Porta-Weigh+ Crane Scale SECTION 4 – THE EMBEDDED CELLSCALE For a complete guide to all the features of the embedded CellScale, refer to the MSI-9000 User Guide. ACCESSING THE CELLSCALE MSI-9300 Series crane scales are a shell interface to an embedded CellScale. To access the advanced features of the CellScale, a Comm Port is provided on the front casting of the crane scale. -
Page 21: Set Points
MEASUREMENT SYSTEMS INTERNATIONAL SET POINTS The Internal CellScale can monitor up to 32 Set Points. Set Points are used for safety warnings and process control. The MSI-9300 has LED annunciators for Set Points 1 through 3. Set Points are programmed from a 3750CS, a 9750A, or through the Terminal Access Mode. -
Page 22: Calibration Procedure
MSI-9300 Porta-Weigh+ Crane Scale cosine theta errors. Adjust the rigging as necessary so that the pull is straight through the center of the scale. 3) Calibration always starts with the zero load. Remove all rigging that is not always present on the scale. However, it is sometimes best to calibrate zero with the rigging necessary for picking up the test weights attached to the scale. - Page 23 MEASUREMENT SYSTEMS INTERNATIONAL ***** Choose Channel Parameters ***** Continue. These settings are correct Choose the channel to calibrate: Calibration timeout: 10 minutes (ESC) Exit 6) If the desired channel is already displayed, press [1] to continue to the next step. The channel number is changed by pressing [2] until the desired channel to calibrate is displayed.
- Page 24 MSI-9300 Porta-Weigh+ Crane Scale ***** Select a countby ***** Kilograms Kilograms Kilograms Kilograms Kilograms Kilograms 100. Kilograms 11) The first actual calibration step is zero. Unload the scale, make sure it is stable, and press Y. The scale performs its zeroing step, removing all dead load. This process takes up to 4 seconds. ***** Channel Calibration ***** Calibrating Ch # 1-1, named: Test2....
- Page 25 MEASUREMENT SYSTEMS INTERNATIONAL ***** Channel Calibration ***** Calibrating Ch # 1-1, named: Fred2....Precision in Kilograms 10000. x 2. Test weight # 0 in Kilograms Test weight # 1 in Kilograms 5000. Load the scale with test weight # Press when scale is loaded and steady Press to backup...
-
Page 26: Cellscale Settings For Msi-9300
MSI-9300 Porta-Weigh+ Crane Scale ***** Channel Calibration ***** Calibrating Ch # 1-1, named: Fred2....Precision in Kilograms 10000. x 2. Test weight # 0 in Kilograms Test weight # 1 in Kilograms 5000. Test weight # 2 in Kilograms 2000. Load the scale with test weight # Press when scale is loaded and steady... -
Page 27: Rf System Setup
MEASUREMENT SYSTEMS INTERNATIONAL mode, leave the system in Industry or Metric modes. Descriptions of standard modes: [1] Industry – All functions and units are available. This is the default mode of the scale. [2] NTEP – Choosing NTEP has the following effect: 1) The sealed switch must be pressed to modify any metrologically significant setting. -
Page 28: Legal-For-Trade Control Device
MSI-9300 Porta-Weigh+ Crane Scale LEGAL-FOR-TRADE CONTROL DEVICE When the MSI-9300 is configured for NTEP or OIML Legal-For-Trade (LFT) only one remote device is allowed to have control over the CellScale. The control device is the only RF connected device that can zero, tare, calibrate, and any other controls that are considered metrologically significant. -
Page 29: Sealing Msi-9300 Crane Scales
MEASUREMENT SYSTEMS INTERNATIONAL SEALING MSI-9300 CRANE SCALES The 9300 Series Crane Scales are sealed with a standard lead-wire seal. The seal is used to prevent removal of the seal screw covering the calibration enable switch. The wire is passed through the seal screw and through an adjacent casting bolt. - Page 30 MSI-9300 Porta-Weigh+ Crane Scale • Page 30 MSI-9300 Crane Scale™ User Guide...
-
Page 31: Appendix - Specifications & Dimensions
MEASUREMENT SYSTEMS INTERNATIONAL APPENDIX – SPECIFICATIONS & DIMENSIONS HARDWARE OVERVIEW Electronics • µC Board: 6 layer SMD, AM186ESLV based w/ Flash Memory – 512kbytes of Flash Program Memory, 512kbytes of non-volatile RAM. • Power Supply / I/O Board: power regulation and I/O for MM – Input range 10-16V. Optional direct AC board 90-260VAC. -
Page 32: General Specifications
MSI-9300 Porta-Weigh+ Crane Scale GENERAL SPECIFICATIONS Calibration Parameters (Programmed via Terminal Access Mode) CAL – Zero then Span, up to 10 point calibration (counting 0) • • AZM – OFF, ON (.5d), 1d to 255d Programmable • Motion Detect – OFF, ON (.5d), 1d to 255d (programmable in 1d steps) •... -
Page 33: Dimensions And Load Train Specifications, Standard Msi-9300
MEASUREMENT SYSTEMS INTERNATIONAL DIMENSIONS AND LOAD TRAIN SPECIFICATIONS, STANDARD MSI-9300 DIMENSIONS AND LOAD TRAIN SPECIFICATIONS, MSI-9300HT B (DIA.) 13.45/342 New top interface specifically designed to easily accomodate optional low headroom adapter 9.1/231 Note: Standard hook orientation shown. Please specify if alternate orientation is required. -
Page 34: Options And Accessories
MSI-9300 Porta-Weigh+ Crane Scale OPTIONS AND ACCESSORIES • Substitute Shackle for bottom swivel hook • Oversized top lifting eye or shackle • Direct wired input power, AC or DC, (specify required voltage) • Audible Alarm or Very Loud Siren • Heat Shield for Foundry Operations •... - Page 35 Measurement Systems International A RICE LAKE WEIGHING SYSTEMS COMPANY 14240 Interurban Avenue South Suite 200 Seattle, WA 98168-4661 Phone: 206-433-0199 Fax: 206-244-8470 www.msiscales.com © 2012 Rice Lake Weighing Systems...
