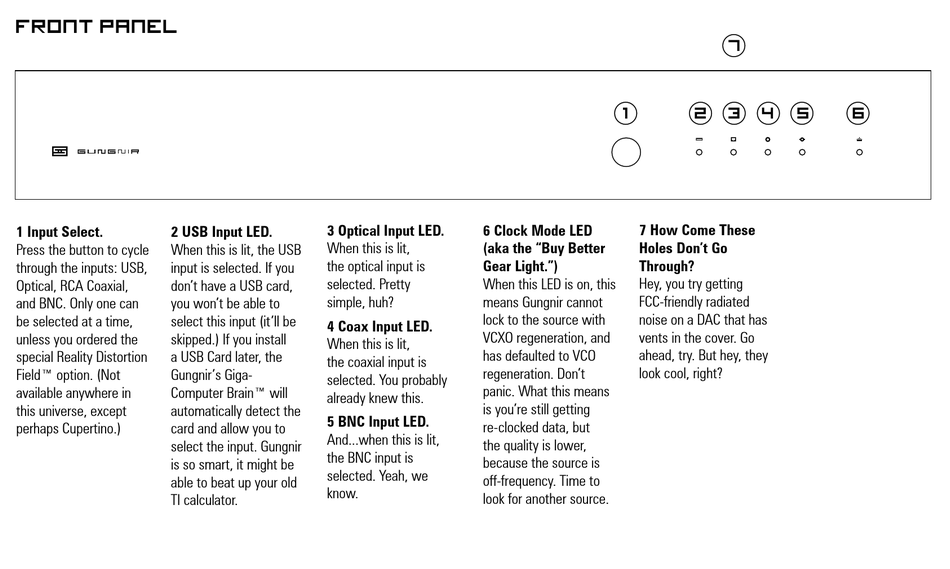

FRONT PANEL

1 Input Select.

2 USB Input LED.
Press the button to cycle When this is lit, the USB
through the inputs: USB, input is selected. If you
Optical, RCA Coaxial, don't have a USB card,
and BNC. Only one can you won't be able to
sE OUTs
be selected at a time, select this input (it'll be
unless you ordered the skipped.) If you install
special Reality Distortion a USB Card later, the
Field™ option. (Not Gungnir's Giga-
available anywhere in Computer Brain™ will
this universe, except automatically detect the
perhaps Cupertino.) card and allow you to
select the input. Gungnir
is so smart, it might be
able to beat up your old
TI calculator.
3 Optical Input LED.
When this is lit,
the optical input is
selected. Pretty
simple, huh?
bal OUT
4 Coax Input LED.
When this is lit,
balanced DAC
fully upgradable
ADAPTICLOCk™ the coaxial input is
discrete analog
selected. You probably
NO USER SERVICEABLE PARTS INSIDE
already knew this.
5 BNC Input LED.
And...when this is lit,
the BNC input is
selected. Yeah, we
know.
6 Clock Mode LED
(aka the "Buy Better
Gear Light.")
When this LED is on, this
means Gungnir cannot
digital inputs
lock to the source with
SCH06J
VCXO regeneration, and
000001
has defaulted to VCO
230VAC 20W
regeneration. Don't
panic. What this means
is you're still getting
re-clocked data, but
the quality is lower,
because the source is
off-frequency. Time to
look for another source.
