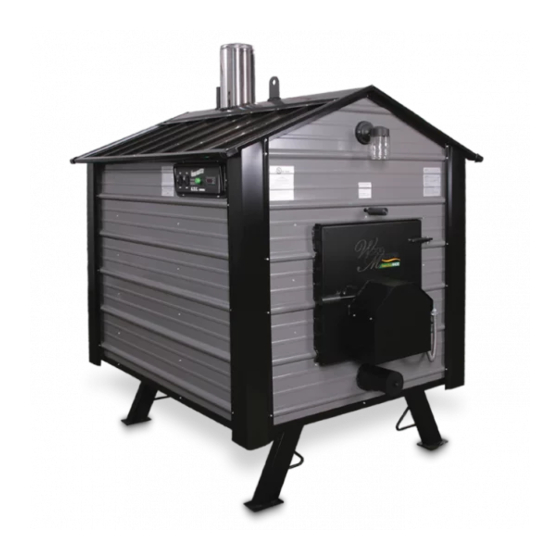

Wood master 3300 Installation, Operating And Maintenance Manual

Wood master 3300 Installation, Operating And Maintenance Manual

Installation, operating and maintenance manual
Hide thumbs Also See for 3300:

Advertisement

www.woodmaster.com
7994-500
Northwest Manufacturing, Inc.
600 Polk Ave SW
Red Lake Falls, MN 56750
Retain this manual/Conserver ce manuel
Owner's Manual
Models:
3300
4400
Heavy Duty
5500
Super Duty
6500
Super Duty
Installation, Operation
& Maintenance Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3300 and is the answer not in the manual?

Questions and answers

James Haggerty
January 18, 2025

how many amps does the 4400 hd require

1 comments:
Mr. Anderson
February 4, 2025

The amp requirement for the WoodMaster 4400 HD is:

- Maximum: 6.9 A at 120V
- Idle: 0.5 A
- Average Running: 2.5 A

This answer is automatically generated

Subscribe to Our Youtube Channel

Summary of Contents for Wood master 3300

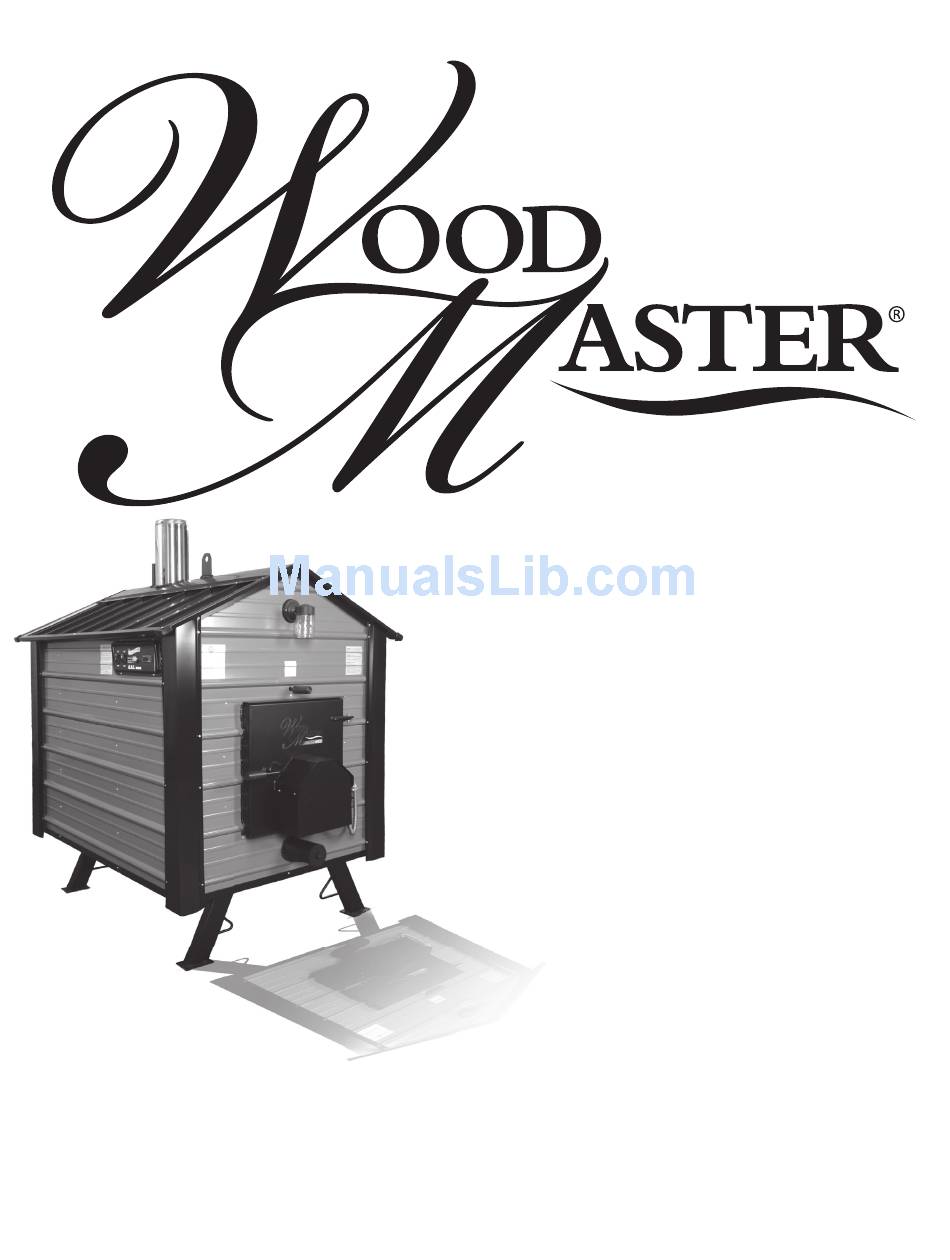

  • Page 1 Owner’s Manual Models: 3300 4400 Heavy Duty 5500 Super Duty 6500 Super Duty Installation, Operation & Maintenance Manual www.woodmaster.com Northwest Manufacturing, Inc. 600 Polk Ave SW Red Lake Falls, MN 56750 Retain this manual/Conserver ce manuel 7994-500...
  • Page 3: Table Of Contents

    Ta b l e o f C o n t e n t s Woody Woodmaster Table of Contents ..................... 3 Best Burn Practices ..................4 Safety ......................5 Features ......................6 Installation ......................7 The Furnace ....................7 Choosing Location ................7 Chimney Specifications ................
  • Page 4: Best Burn Practices

    B e s t B u r n P r a c t i c e s Woody Woodmaster 1. Read and follow all operating instructions supplied by the manufacturer. 2. FUEL USED: Burn only split and seasoned wood with 25% moisture content or less. DO NOT burn green wood.
  • Page 5: Safety

    S a f e t y Woody Woodmaster IMPORTANT SAFETY IMPORTANTS INSTRUCTIONS INSTRUCTIONS DE SECÛRITÉ READ ALL INSTRUCTIONS BEFORE INSTALLATION LISEZ TOUT CES INSTRUCTIONS AVANT L’INSTALLATION Pre-Installation Precautions Precautions a prendre avant l’installation All installation and operations must follow STATE and LOCAL CODES for wiring, Tout installations et opérations doivent être plumbing, and firing of this unit. These faites en accord aux régulations en force dans...
  • Page 6: Features

    F e a t u r e s Woody Woodmaster Front View Chimney Hanger Strap Vent Pipe Utility Light Heat Baffle E.T.C. System Instructions (Electronic Temperature Control) Serial /Model Number Operating Instructions Fuel Door Baffle Bypass Draft Optional Fan Assembly Ash Auger Port (Inside Shroud) Rear Panel Main Power...
  • Page 7: Installation

    I n s t a l l a t i o n Woody Woodmaster THE FURNACE Choosing Location The WoodMaster is designed for outdoor use. We do not recommend installing in a building. When installing your WoodMaster, keep in mind the direction of the winds during heating months. Try to place the furnace in an area where exhaust will not be a problem for yourself or any surrounding neighbors.
  • Page 8: Mounting The Pump

    I n s t a l l a t i o n Woody Woodmaster THE FURNACE Mounting the Pump Attach the 1” x 2” Black Nipple (0020-250) and one half of the Flanges from the 1” Cast Iron Pump Flange Kit (0020-368) to one of the Hot Water Supply Valves on back of furnace.
  • Page 9: The Home

    I n s t a l l a t i o n Woody Woodmaster THE HOME Entering the building with water lines can be done underground or over the sill plate. Once inside the building the typical hookup would run first to the Domestic Hot Water Supply and next to an existing heating system such as a forced air furnace or a hot wa- ter heating system. Finally, before leaving the building, a fill valve must be installed near enough to a water supply for filling and flushing the boiler in the WoodMaster furnace.
  • Page 10: Existing Hot Water Heat

    I n s t a l l a t i o n Woody Woodmaster Existing Hot Water Heat A Water to Water Heat Transfer Unit (0020-052) is used to connect to an existing hot water boiler system. NOTE: Any changes that are made to an existing boiler Existing Heat should be done by a qualified plumber and follow all state Zone Return...
  • Page 11: Operation

    O p e r a t i o n Woody Woodmaster Filling With Water Connect a garden hose between a domestic water supply and the furnace fill valve (0020-275), which was installed in the cold water return line at a point just prior to its exiting the building. Make sure that valves not being used on the furnace are closed and the valves that are being used are open. Begin filling and inspect for leaks on all fittings. Repair any leaks that are found.
  • Page 12: Firing The Furnace

    O p e r a t i o n Woody Woodmaster Firing The Furnace Paper and kindling should be used for starting the fire. Build a small fire, then add wood as needed. Be sure that the pumps are circulating when firing the furnace. Once the furnace has reached 170 degrees, the furnace is ready to be filled to capacity to operate for a 12 hour period. Load wood towards the back of the furnace for improved efficiency. WoodMaster recommends burning cut, split and seasoned wood. Do not overfill so that hot coals fall out of the furnace when opening the fuel door. During periods of warmer weather, you may find it to have creosote inside the firebox. It is important to fill the furnace only with enough wood to last a 12 to 24 hour period. After burning your furnace for a period of time, you will discover how much wood is needed per day and what types of wood burn the best.
  • Page 13: Boiler Treatment

    O p e r a t i o n Woody Woodmaster Boiler Treatment Allow the system to burn for 2 hours and then add the boiler treatment as follows: Make sure that the water temperature is at least 100 degrees or higher. Add the boiler treatment that came with your furnace to the vent pipe located directly behind the chimney. Treat- ment must be added on an annual basis.
  • Page 14: Maintenance

    M a i n t e n a n c e Woody Woodmaster Baffle Bypass Ash Removal (Weekly or as needed) To ensure that your Baffle Bypass remains clear of any excessive build-up, you will need to clean it out. To effectively clean out the Baffle Bypass you must: 1. Pull the rod back until it hits the stop. 2. Twist the rod clockwise and pull back in order to pass over the stop. 3. Slide rod in and out several to clean the Baffle Bypass.
  • Page 15: Troubleshooting

    T r o u b l e s h o o t i n g Woody Woodmaster If furnace is not heating: 1. Check fire. 2. Check pump. If pump is not running, shut off power supply to pump and inspect. 3. Check water level. If water is low, inspect for leaks in the system. 4. Check chimney for creosote build-up. If opening is reduced fire cannot burn properly.
  • Page 16: Guide

    E . T. C . G u i d e Woody Woodmaster ELECTRONIC TEMPERATURE CONTROL (ETC): Function: (Factory Settings below) • The ETC monitors and controls the WoodMaster water temperature by controlling the draft and draft fan. • During normal operation (adequate wood supply) the controller will turn off the draft and draft fan when the water reaches 170° F (Set) and will turn on the draft and draft fan when the water falls 10° F (Hy). • During shut down (low wood supply) or when the water falls to 120° F (ALL) the controller will shut off the draft and draft fan. At this time, the WoodMaster will need to be filled with wood and the ETC will need to be reset (see Startup) Energy Start Shut-Down:...
  • Page 17: Reference

    E . T. C . R e f e r e n c e Woody Woodmaster Temperature Digital custom controller Set Point XR30C FOR WOODMASTER Set Point- Hy CONTENTS 1. GENERAL WARNING ___________________________ 1 2. GENERAL DESCRIPTION_______________________ 1 Time 3. CONTROLLING LOADS_________________________ 1 4.
  • Page 18: Main Functions

    E . T. C . R e f e r e n c e Woody Woodmaster 5.1 HOW TO SEE THE ALARM DURATION AND MAX 6.5 TO UNLOCK THE KEYBOARD (MIN) TEMPERATURE Keep pressed together for more than 3s the keys, till the “Pon”...
  • Page 19 E . T. C . R e f e r e n c e Woody Woodmaster Changing E.T.C. Settings For units equipped with the XR30C Note: The procedures are the same wether you are using degrees (F) or degrees (C). Changing the Set Point 1.
  • Page 20 E . T. C . R e f e r e n c e Woody Woodmaster Temperature Digital custom controller Set Point XR30CX FOR WOODMASTER Set Point- Hy CONTENTS 1. GENERAL WARNING ___________________________ 1 2. GENERAL DESCRIPTION_______________________ 1 Time 3. CONTROLLING LOADS_________________________ 1 4.
  • Page 21 E . T. C . R e f e r e n c e Woody Woodmaster 5.1 HOW TO SEE THE ALARM DURATION AND MAX 6.5 TO UNLOCK THE KEYBOARD (MIN) TEMPERATURE Keep pressed together for more than 3s the keys, till the “Pon”...
  • Page 22: E.t.c. Reference

    E . T. C . R e f e r e n c e Woody Woodmaster Changing E.T.C. Settings For units equipped with the XR30CX Note: The procedures are the same wether you are using degrees (F) or degrees (C). Changing the Set Point (Fig.
  • Page 23: Wiring Diagrams

    W i r i n g D i a g r a m s Woody Woodmaster Note: The MF 5500 has an additional Snap Disk Located on the rear fan tube. This Snap Disk is wired in sequence with the other Snap Disk August 2012 Woodmaster Owner’s Manual...
  • Page 24: Technical Specifications & Slab Dimensions

    Maximum Amp Draw can only occur when all devices are operating, this only happens momentarily at the start up. Actual results will vary depending on the system, applications and insulation values. 3300 Slab Dimensions 4400 Slab Dimensions 5500 Slab Dimensions...
  • Page 25: Warranty

    WoodMaster Limited Lifetime Warranty 3300/4400/5500/6500 NORTHWEST MANUFACTURING, INC. 600 Polk Ave. SW – Red Lake Falls, MN 56750 Toll free (800) 932-3629 or (218) 253-4328 Limited Lifetime Warranty on Fire Drum and Water Jacket Northwest Manufacturing, Inc. of Red Lake Falls, MN 56750 warrants material and labor on any defects in workmanship on the Fire drum and Water Jacket for a period of ten years from the purchase date to the original owner only.
  • Page 26 OWNER’S REGISTRATION CARD Name _________________________________________ Installed by: Dealer Customer Address _______________________________________ If customer, was installation explained to you? _______________________________________________ Phone ________________________________________ Type of Installation: Date of Purchase ________________________________ House/Garage Shop/Shed Greenhouse Kiln Model No. ______________________________________ Other ____________________________ Serial No. ______________________________________ Purchased: (Model and serial numbers are located on the decal on front of furnace.) With Auger...
  • Page 27 WoodMaster Limited Lifetime Warranty 3300/4400/5500/6500 NORTHWEST MANUFACTURING, INC. 600 Polk Ave. SW – Red Lake Falls, MN 56750 Toll free (800) 932-3629 or (218) 253-4328 Limited Lifetime Warranty on Fire Drum and Water Jacket Northwest Manufacturing, Inc. of Red Lake Falls, MN 56750 warrants material and labor on any defects in workmanship on the Fire drum and Water Jacket for a period of ten years from the purchase date to the original owner only.
  • Page 28 OWNER’S REGISTRATION CARD Name _________________________________________ Installed by: Dealer Customer Address _______________________________________ If customer, was installation explained to you? _______________________________________________ Phone ________________________________________ Type of Installation: Date of Purchase ________________________________ House/Garage Shop/Shed Greenhouse Kiln Model No. ______________________________________ Other ____________________________ Serial No. ______________________________________ Purchased: (Model and serial numbers are located on the decal on front of furnace.) With Auger...
  • Page 29 W a r r a n t y Woody Woodmaster WoodMaster Limited Lifetime Warranty 3300/4400/5500/6500 NORTHWEST MANUFACTURING, INC. 600 Polk Ave. SW – Red Lake Falls, MN 56750 Toll free (800) 932-3629 or (218) 253-4328 Limited Lifetime Warranty on Fire Drum and Water Jacket Northwest Manufacturing, Inc.
