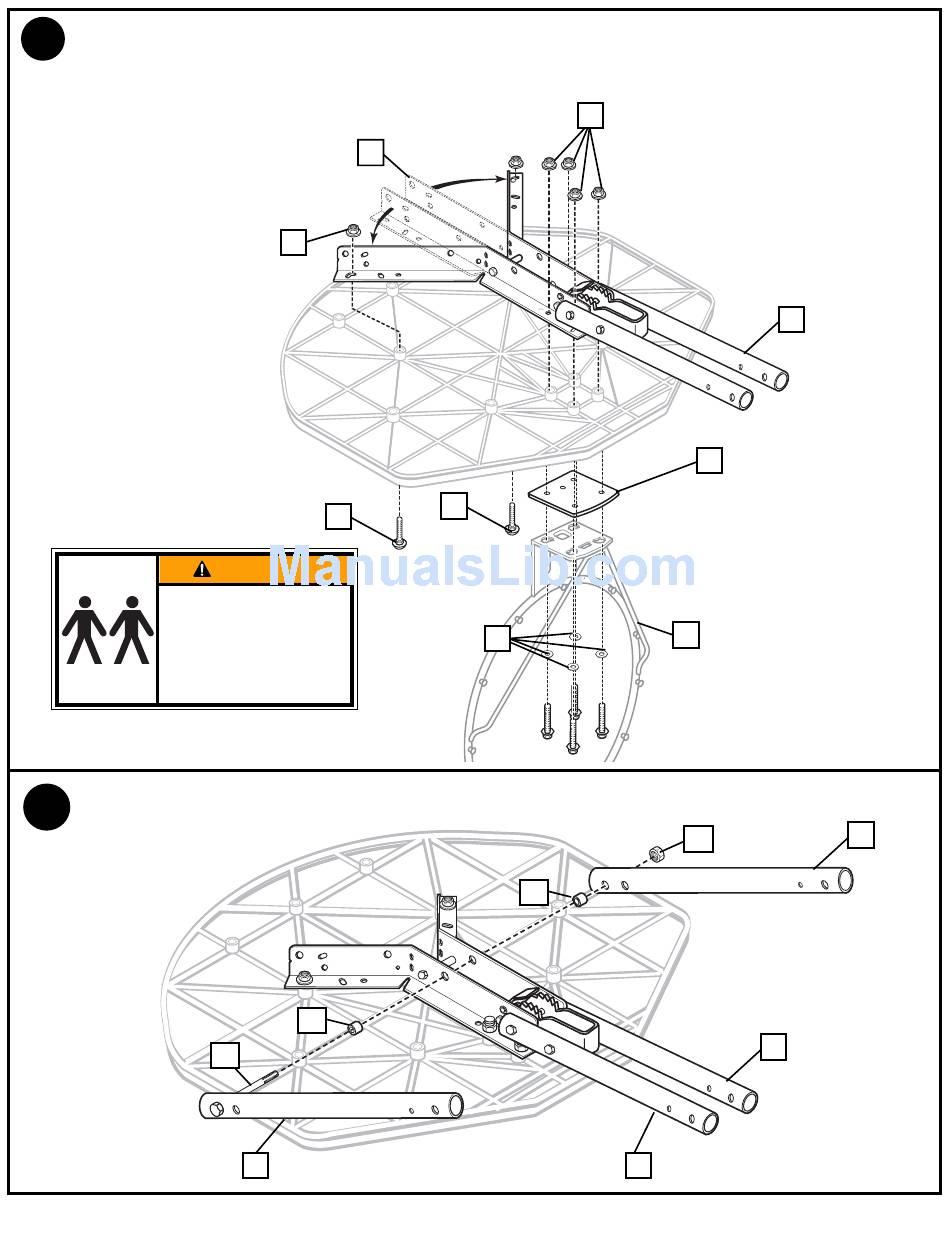

Bend upper halves of backboard brackets (29) to line up with holes in backboard and secure
1.
with bolts (32) and nuts (16).
Attach rim (21) and plastic spacer ( ) to board with
bolts (31) as shown.
Tighten completely.
TWO PEOPLE REQUIRED
FOR THIS PROCEDURE.
FAILURE TO FOLLOW THIS
WARNING COULD RESULT
IN SERIOUS INJURY AND/OR
PROPERTY DAMAGE.
Attach upper elevator tubes (44) to backboard brackets (29) using spacers (42) bolt (43) and nut
.
2
(39) as shown.
P/N 211022
01/05
29
16
32
WARNING!
42
43
44
16
32
31
42
18
44
46
21
39
44
44
44
