Summary of Contents for Advance Power AP3000
-

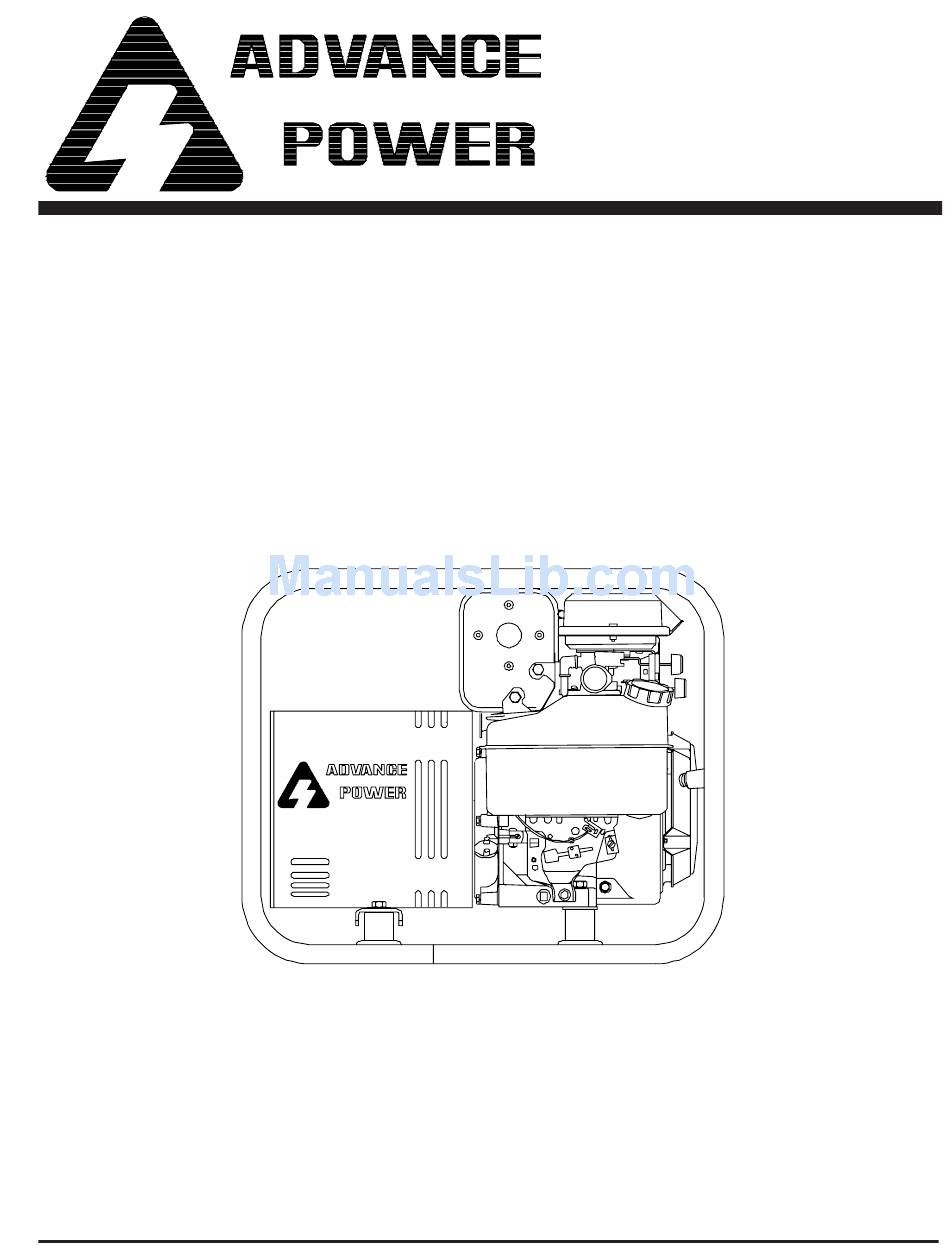

Page 1: Safety First
PORTABLE GENERATORS INSTALLATION, OPERATION, and MAINTENANCE INSTRUCTIONS MODELS AP3000 AP4500 AP5000H MODEL AP3000 SAFETY FIRST READ THIS MANUAL BEFORE OPERATING YOUR GENERATOR... -
Page 2: Table Of Contents
12 MONTH WARRANTY COPY YOUR MODEL AND SERIAL NUMBER HERE No other ADVANCE POWER generator has the same serial number as yours. It is important that you record the number and other vital information here. If you should ever need to contact us on this unit it will help us to respond to your needs faster. -
Page 4: Guide To Product Safety
Keep a fire extinguisher nearby and know its proper use. Fire extinguishers rated ABC by NFPA are appropriate. e. Store fuel only in an approved container, and only in a well-ventilated area. ADVANCE POWER SERIES Page 2 60708-029... -
Page 5: Basic Information
BASIC INFORMATION INTENDED USES NOTE: The AP3000 generator is a 120 volt only generator and contains only the "A" circuit shown in this These engine generator sets have been designed primarily schematic. for portable use. 120 and/or 240 volt AC receptacles are... -
Page 6: Preparing The Unit
1. Lubrication - Before starting the engine, fill the crankcase to the proper level with a good quality oil. The recommended grade of oil and quantity of oil required is listed in both the engine operator's manual and in the ADVANCE POWER SERIES Page 4 60708-029... -
Page 7: Basic Operation
Repeat if necessary. 4. When the engine starts, open the choke gradually. 5. The engine should promptly come up to operating speed. 60708-029 Page 5 ADVANCE POWER SERIES... -
Page 8: Operating Speed
During a power outage, move the unit appliances. If the generator is not equipped with a voltmeter, it can be checked with a portable meter. ADVANCE POWER SERIES Page 6 60708-029... -
Page 9: Operator Care And Maintenance
25 hours, whichever occurs first. Service more often under dusty conditions. a. Remove knob and cover. b. Remove foam pre-cleaner by sliding it off the paper cartridge. 60708-029 Page 7 ADVANCE POWER SERIES... -
Page 10: Cleaning
Generator *Overloaded. overheating *Insufficient ventilation. —————————————————————————— No output voltage *Short in load (disconnect). *Broken or loose wire. *Defective receptacle. *No residual magnetism (in generator). *Defective stator. *Defective rotor (field). *Shorted capacitor. *Defective rectifier. —————————————————————————— ADVANCE POWER SERIES Page 8 60708-029... -
Page 11: Schematic Wiring Diagram
AP3000 SCHEMATIC (Stator] Excitation Winding (Stator) A.C. Winding G1 - Hot AC Capacitor 120 Volts Neutral Diode Ground "A" 120 Volt Receptacles (Rotor) Field Coils EXCITATION POWER OUTPUT SECTION AP4500 SCHEMATIC AP5000H SCHEMATIC (Stator] Excitation Winding (Stator) A.C. Winding G1 - Hot... -
Page 12: Month Warranty
For warranty service, return the product, transportation charges prepaid, to your nearest WINCO Authorized Service Center or to WINCO at Le Center Minnesota. When requesting warranty service, evidence of original purchase date must be presented. Phone - 612-357-6831 225 S. Cordova Ave. LeCenter, Mn 56057 Fax - 612-357-4857 ADVANCE POWER SERIES P/N 60708-029...
