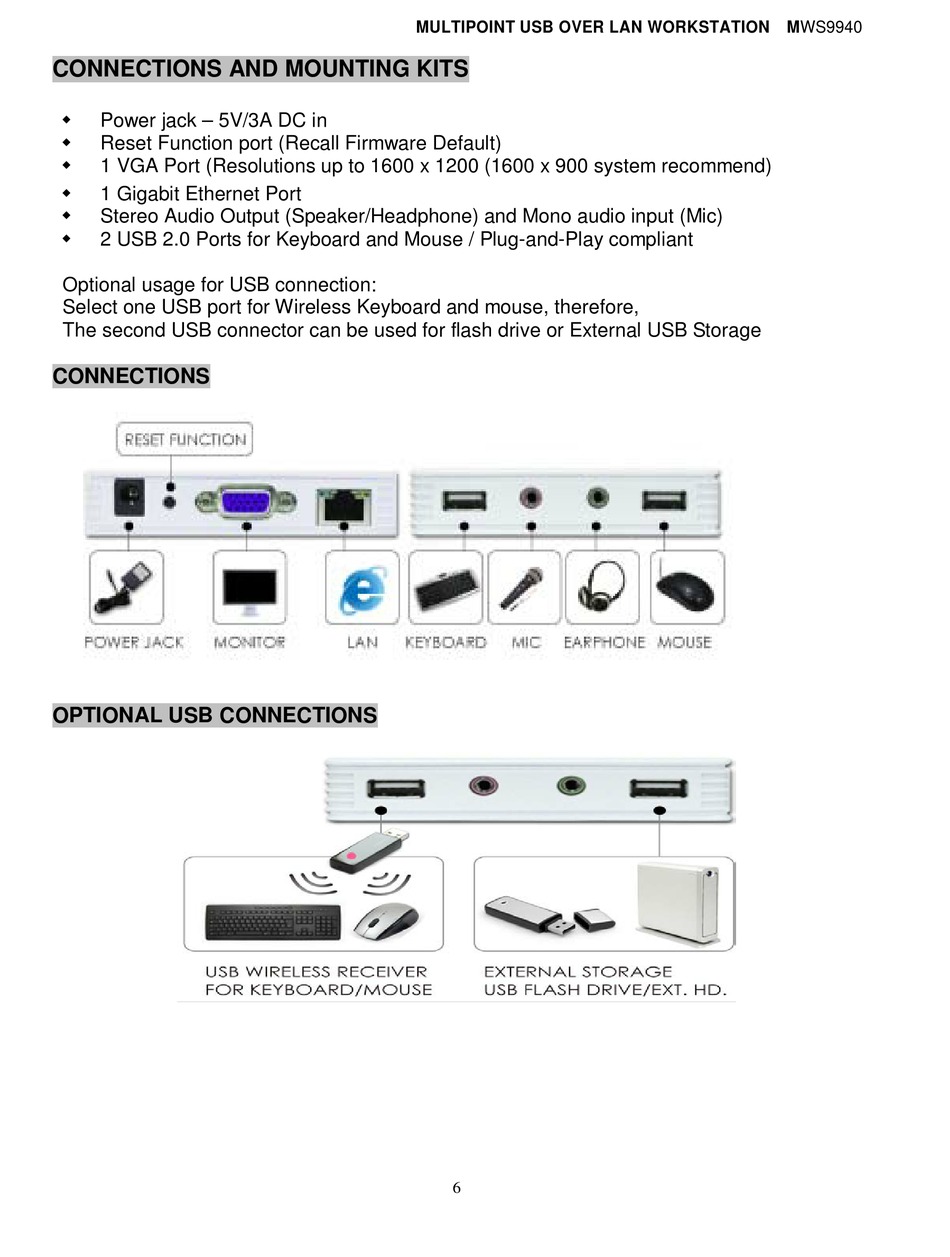

CONNECTIONS AND MOUNTING KITS


Power jack – 5V/3A DC in

Reset Function port (Recall Firmware Default)

1 VGA Port (Resolutions up to 1600 x 1200 (1600 x 900 system recommend)

1 Gigabit Ethernet Port

Stereo Audio Output (Speaker/Headphone) and Mono audio input (Mic)

2 USB 2.0 Ports for Keyboard and Mouse / Plug-and-Play compliant
Optional usage for USB connection:
Select one USB port for Wireless Keyboard and mouse, therefore,
The second USB connector can be used for flash drive or External USB Storage

CONNECTIONS

OPTIONAL USB CONNECTIONS

MULTIPOINT USB OVER LAN WORKSTATION MWS9940
6
