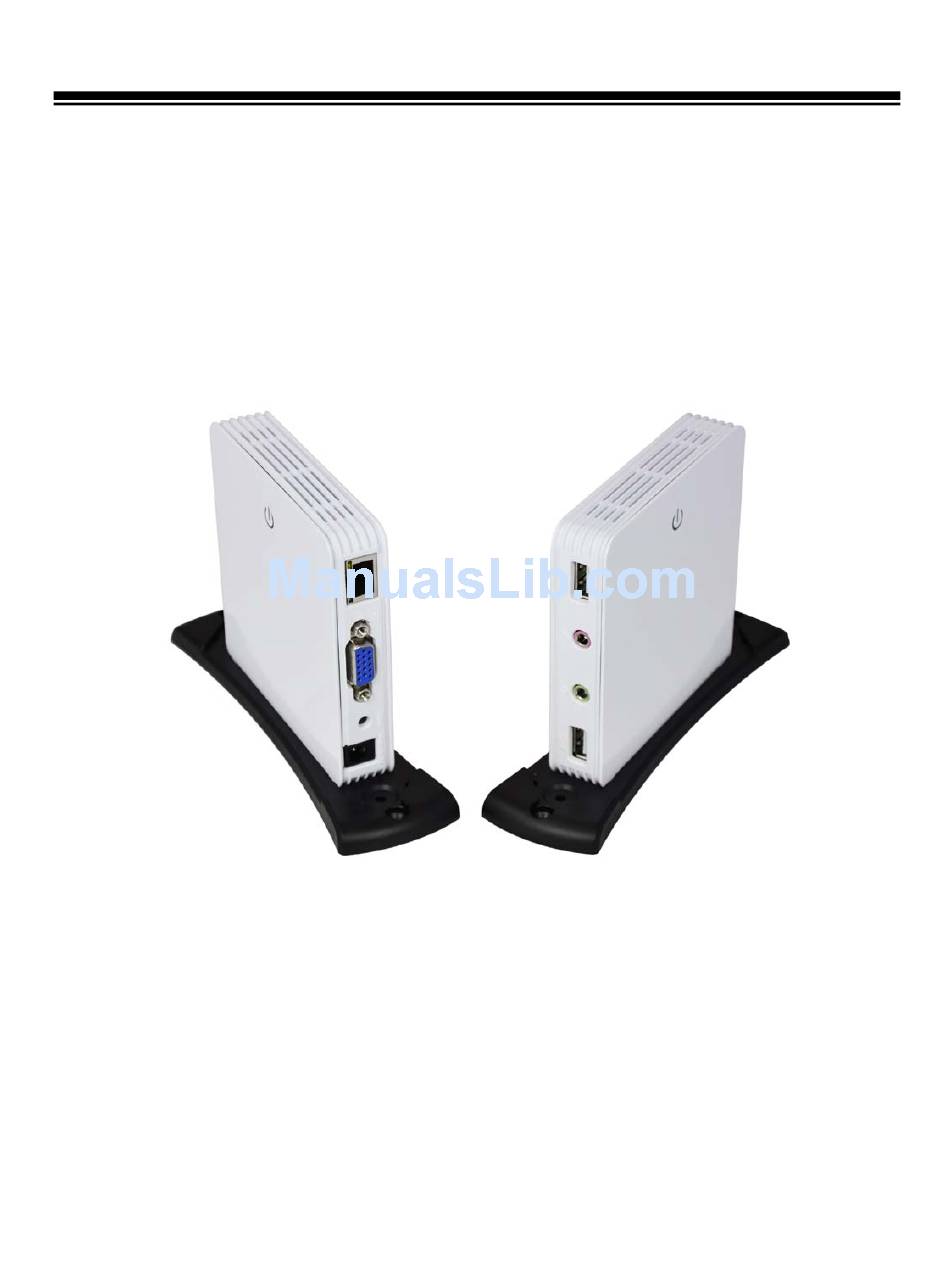

- Page 1 MULTIPOINT USB OVER LAN WORKSTATION MWS9940 LAN Workstation MWS9940 ULTI OINT OVER MWS9940 USER MANUAL...
-
Page 2: Table Of Contents
MULTIPOINT USB OVER LAN WORKSTATION MWS9940 Contents INTRODUCTION -------------------------------------------------------------3 MINIMUM SYSTEM REQUIREMENTS---------------------------------4 FEATURES---------------------------------------------------------------------5 CONNECTIONS AND MOUNTING KITS-------------------------------6 CONNECTIONS --------------------------------------------------------------6 OPTIONAL USB CONNECTIONS----------------------------------------6 VESA MOUNTS --------------------------------------------------------------7 OPERATING SYSTEMS SUPPORTED---------------------------------8 FOR OPTIMUM VIDEO DISPLAY ----------------------------------------8 REGULATORY COMPLIANCE --------------------------------------------8 PACKAGE CONTENTS -----------------------------------------------------8 SUPPORTED DISPLAY RESOLUTIONS -------------------------------9... -
Page 3: Introduction
MWS9940 simply connect it to Gigabit Ethernet Port on the server and attach a monitor, keyboard, and mouse to add a new workstation. The MWS9940 features two high-speed USB 2.0 ports, audio and microphone ports, a VGA port that... -
Page 4: Minimum System Requirements
MULTIPOINT USB OVER LAN WORKSTATION MWS9940 MINIMUM SYSTEM REQUIREMENTS • Available Gigabit Ethernet port or Gigabit Ethernet extension card. • CPU – One of the following: x64-based Intel Pentium, Intel quad core (i7, i5). • Compatible processor (MultiPoint Server supports up to four core & eight core CPUs on... -
Page 5: Features
MULTIPOINT USB OVER LAN WORKSTATION MWS9940 Figure 1 10-Seat Implementation of Windows MultiPoint Server2011 with using MWS9940 FEATURES Ethernet connection the host server with distance free Simple plug and play setup Eliminates the need for internal video card installation ... -
Page 6: Connections And Mounting Kits
MULTIPOINT USB OVER LAN WORKSTATION MWS9940 CONNECTIONS AND MOUNTING KITS Power jack – 5V/3A DC in Reset Function port (Recall Firmware Default) 1 VGA Port (Resolutions up to 1600 x 1200 (1600 x 900 system recommend) ... -
Page 7: Vesa Mounts
MULTIPOINT USB OVER LAN WORKSTATION MWS9940 VESA MOUNTS Follow up the picture illustration below: VESA mounting Monitor MWS9940 Unit 100x100mm VESA HOLES ON MONITOR VESA mounting BACK VIEW... -
Page 8: Operating Systems Supported
MULTIPOINT USB OVER LAN WORKSTATION MWS9940 OPERATING SYSTEMS SUPPORTED For optimal multimedia performance, we recommend the following CPUs: Dual-core processor: support up to 3 stations under low processing application. Quad-core processor: support up to 6 stations under low processing application. -
Page 9: Supported Display Resolutions
MULTIPOINT USB OVER LAN WORKSTATION MWS9940 SUPPORTED DISPLAY RESOLUTIONS NOTE Always prepare devices as how many stations as the user plan to build up. Then classify into the Mac addresses for different servers. In order to better organize for different locations, the table as below is strongly recommended to use for pasting the Mac address while in the build-up process. - Page 10 MULTIPOINT USB OVER LAN WORKSTATION MWS9940 Table 1...
- Page 11 MULTIPOINT USB OVER LAN WORKSTATION MWS9940 Table 2...
-
Page 12: Device Installation - Software
MULTIPOINT USB OVER LAN WORKSTATION MWS9940 DEVICE INSTALLATION - SOFTWARE Installing the device driver enables Windows MutliPoint Server 2011 to recognize the MWS300UV2. Please make sure the MWS300UV2 is unplugged from your server before executing the setup program. Step 1 Insert the Driver installation CD into the CD-ROM drive. - Page 13 MULTIPOINT USB OVER LAN WORKSTATION MWS9940 Step 3 License Agreement; review it and check I accept the terms of the license agreement Click Next to accept the License Agreement.
- Page 14 MULTIPOINT USB OVER LAN WORKSTATION MWS9940 Step 4 Setup is searching for installed features... *You may notice the screen flashes during hardware installation. It is part of the normal process. .
- Page 15 MULTIPOINT USB OVER LAN WORKSTATION MWS9940 Step 5 Driver Installation Wizard, click Finish to continue and restart the computer.
-
Page 16: The Stations Assignment
MULTIPOINT USB OVER LAN WORKSTATION MWS9940 THE STATIONS ASSIGNMENT BUILDING WORKSTATION ON SINGLE SERVER ONLY Step 1 The “MultiPoint Manager” page will be auto-displayed in a minute after system boot-up and administrator log-in. NOTE: If this page did not pop out automatically, please follow the illustrate below: 1. Start... - Page 17 MULTIPOINT USB OVER LAN WORKSTATION MWS9940 Step 2 Click “Network Stations” as showed: Step 2-1 When there is 3 workstation HUB is connected, It shows 3 stations on the screen which are free / waiting for assignment inside the “status” column indicating as “not...
- Page 18 MULTIPOINT USB OVER LAN WORKSTATION MWS9940 Step 3 Click the block “□” to select one of the stations under the column on the left side of the “client Name” and then click “Assign to this server” at the right column as illustrated.
- Page 19 MULTIPOINT USB OVER LAN WORKSTATION MWS9940...
- Page 20 MULTIPOINT USB OVER LAN WORKSTATION MWS9940 Step 4 Click “Yes” to complete the station assignment. Repeat the same process of step3 – 4 for the any other one of the station you desire to select for station assignment. Step 5 The status column will show “Connected”...
- Page 21 MULTIPOINT USB OVER LAN WORKSTATION MWS9940 NOTE: If any one of the stations needs to be disconnected, please select the station and Click “Clear Assignment” under “Device Task Item” on the right panel of the screen then click “Yes” while the dialog pop up for disconnection.
- Page 22 MULTIPOINT USB OVER LAN WORKSTATION MWS9940 STATIONS RENAME Renaming the station may convenient administrator recognizing MAC address location by his own design, it needs to be done before station gets assignment. Rename step: 1. Select station by one left click 2.
- Page 23 MULTIPOINT USB OVER LAN WORKSTATION MWS9940 NETWORK SETTING A Local Area Network setting to be prioritize either by Static IP or Dynamic IP for this Server, this Network Setting needs to be done before station gets assigned. “Dynamic IP” is recommend with Router Device: 1.
- Page 24 MULTIPOINT USB OVER LAN WORKSTATION MWS9940 UPDATE FIRMWARE Station “Update firmware” needs to be done before station gets assignment. Restart device step: Select station by one left click highlighting Left click on “Update firmware” under “Device Task Item” Select the firmware file then click “Submit” to complete.
-
Page 25: Quick Set Workstations
MULTIPOINT USB OVER LAN WORKSTATION MWS9940 QUICK SET WORKSTATIONS Under Local Area Network environment, multiple server may often exist and required to be use, each server linked with a group of workstation and all workstation (MAC address) may appear on every server’s system manager, therefore administrator needs to clarify which workstation linked with particular server by keeping each MAC address in handbook and able to rename it. - Page 26 Step 1 - Label remarking MAC address and save for records. Label the MAC addresses onto the table 1 for Server A and Server B -Grouping Server ‘A’ devices (MWS9940) and peel the Mac address labels from the back side of the HUB device. Then paste it on the Server ‘A’ page of the Handbook “Table 1” as provided in the QIG.
- Page 27 MULTIPOINT USB OVER LAN WORKSTATION MWS9940 Step 3 The status column on the bottom of the screen shows “Connected” while the assignments for Server ‘A’ completed.
- Page 28 MULTIPOINT USB OVER LAN WORKSTATION MWS9940 Step 4 Select and match for the stations one by one as assigned and pasted on the Server B Column of the table 1 in step 1. Then left click “Assign to this server ”under“ Device Task Item” to complete assignment.
-
Page 29: Verifying The Mws9940 Connection
MULTIPOINT USB OVER LAN WORKSTATION MWS9940 VERIFYING THE MWS9940 CONNECTION Step 1 Please follow up the illustration below: 1. Start -> 2. All Programs -> 3. MultiPoint Manager(under Windows MultiPoint Server folder) - Page 30 MULTIPOINT USB OVER LAN WORKSTATION MWS9940 Step 2 Click “Device Manager” then select “Devices by connection” as the picture...
- Page 31 MULTIPOINT USB OVER LAN WORKSTATION MWS9940 Step 3 Extend “Network USB Server Bus” trees for all the input and output devices as the picture for verification whether all of the devices have been successfully connected.
-
Page 32: Adjusting The Screen Resolution
MULTIPOINT USB OVER LAN WORKSTATION MWS9940 ADJUSTING THE SCREEN RESOLUTION By default, Windows MultiPoint Server 2011 will select the recommended resolution for each connected display. However, if you would like to choose a different resolution, follow these steps: Step 1 Please follow up the procedure on illustration for getting into “MultiPoint Manager”... - Page 33 MULTIPOINT USB OVER LAN WORKSTATION MWS9940 Step 2: Go to MultiPoint Manager => Home =>Local Station => switch to maintenance mode Step 3: Click OK to continue Step 4 Press “Ctrl + Alt + Delete” to log in administrator into Maintenance Mode...
- Page 34 MULTIPOINT USB OVER LAN WORKSTATION MWS9940 Step 5 Right click on the desktop and choose Screen Resolution from the contextual menu. Step 6 Click Identify to identify each display. Then click on the display to be adjusted and choose the desired resolution from the Resolution dropdown menu. (suggest: better using the...
-
Page 35: Device Driver Un-Installation
MULTIPOINT USB OVER LAN WORKSTATION MWS9940 DEVICE DRIVER UN-INSTALLATION The following procedure allows you to uninstall the MWS9940 device driver. Please make sure all MWS9940 are Clear assignment from your (Network Stations) before executing the device driver uninstallation program. Step 1 1. - Page 36 MULTIPOINT USB OVER LAN WORKSTATION MWS9940 Step 3 Select the “Magic Control Technology – MWS xx.xx.xxxx.xxxx” item. Click Uninstall button.
- Page 37 MULTIPOINT USB OVER LAN WORKSTATION MWS9940 Step 4 Click “OK” to continue Step 5 Select “Yes, I want to restart my computer now” and click “Finish” to reboot. The driver is now uninstalled.
-
Page 38: Specifications
MULTIPOINT USB OVER LAN WORKSTATION MWS9940 SPECIFICATIONS... -
Page 39: Regulatory Compliance
MULTIPOINT USB OVER LAN WORKSTATION MWS9940 REGULATORY COMPLIANCE This equipment has been tested and found to comply with Part 15 of the FCC rules. Operation is subject to the following two conditions: • This device may not cause harmful interference •... -
Page 40: Troubleshooting Tips
Copyright© 2011 Magic Control Technology Corp. All rights reserved. All trade names are registered trademarks of their respective owners. Features and specifications are subject to change without notice. Product may not be exactly as shown in the diagrams.
