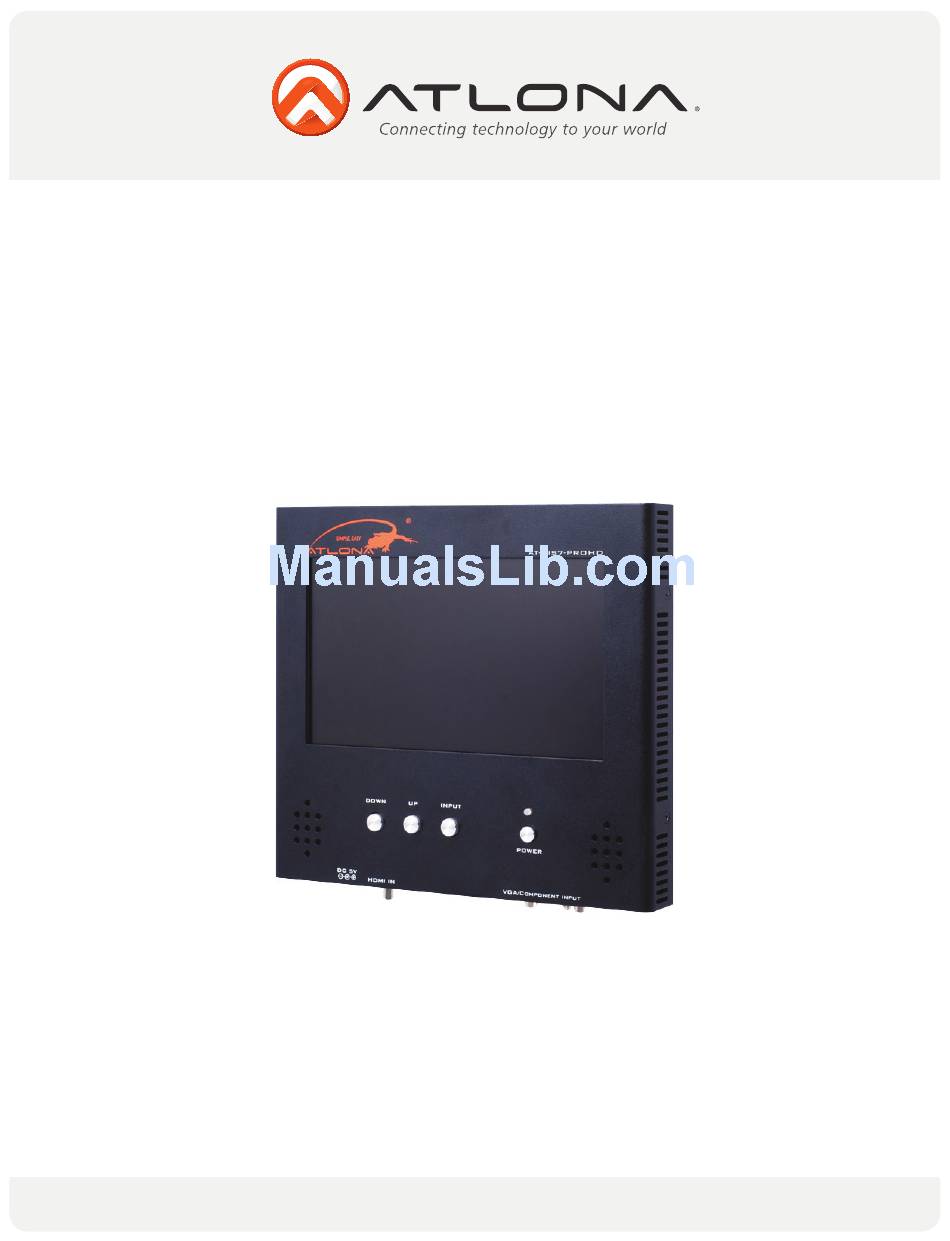

Page 1: User Manual
Atlona 7” PRO HD Monitor with HDMI, VGA and Component Inputs AT-DIS7-PROHD User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 2: Table Of Contents
AT-DIS7-PROHD Atlona 7” PRO HD Monitor with HDMI, VGA and Component Inputs Table of Contents 1. Introduction ................3 2. Applications ................3 3. Package Contents ................3 4. Features ................4 5. Specification ................4 6. Operation Controls and Functions a. -
Page 3: Introduction
HDTV and Computer Resolutions), and allow integrators and installers to observe both audio and video signals in real time. The AT-DIS7-PROHD can be used to test 3D sources, even though it is not a 3D monitor; however when 3D signal will be sent to it, the monitor will display that it is receiving 3D content. -
Page 4: Features
AT-DIS7-PROHD Atlona 7” PRO HD Monitor with HDMI, VGA and Component Inputs Features • 7” PRO HDMI, DVI, VGA and Component Testing Display • Supports Resolutions from 640x480 to 1920x1200 and 480p to 1080p • HDMI 1.3c input which is fully compatible with DVI and able to accept all VESA DVI Resolu- tions •... -
Page 5: Operation Controls And Functions
Generator or any other. This input can be used for either HDMI or DVI sources 3. Tripod hole: Thread is ¼” designed for users to attach the AT-DIS7-PROHD to a tripod. 4. VGA/COMPONENT INPUT: This input is for user to connect a source device such as DVD, Cable Box, Computer, Generator or any other. -
Page 6: Osd Menu
The On-screen Display Menu can be moved so that you may have the input source menu and AT-DIS7-PROHD menu going at the same time. Press the up arrow or down arrow to change the position that the OSD Menu is at. -
Page 7: 10. Safety Information
Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your AT-DIS7-PROHD. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 8: 11. Warranty
Customer Remedies Atlona Technologies’ and its suppliers’ entire liability and Customer’s exclusive remedy shall be, at Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. -
Page 9: 12. Registration
VGA and Component Inputs Atlona Product Registration Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and...
