Summary of Contents for Atlona AT-DIS7-PROHD

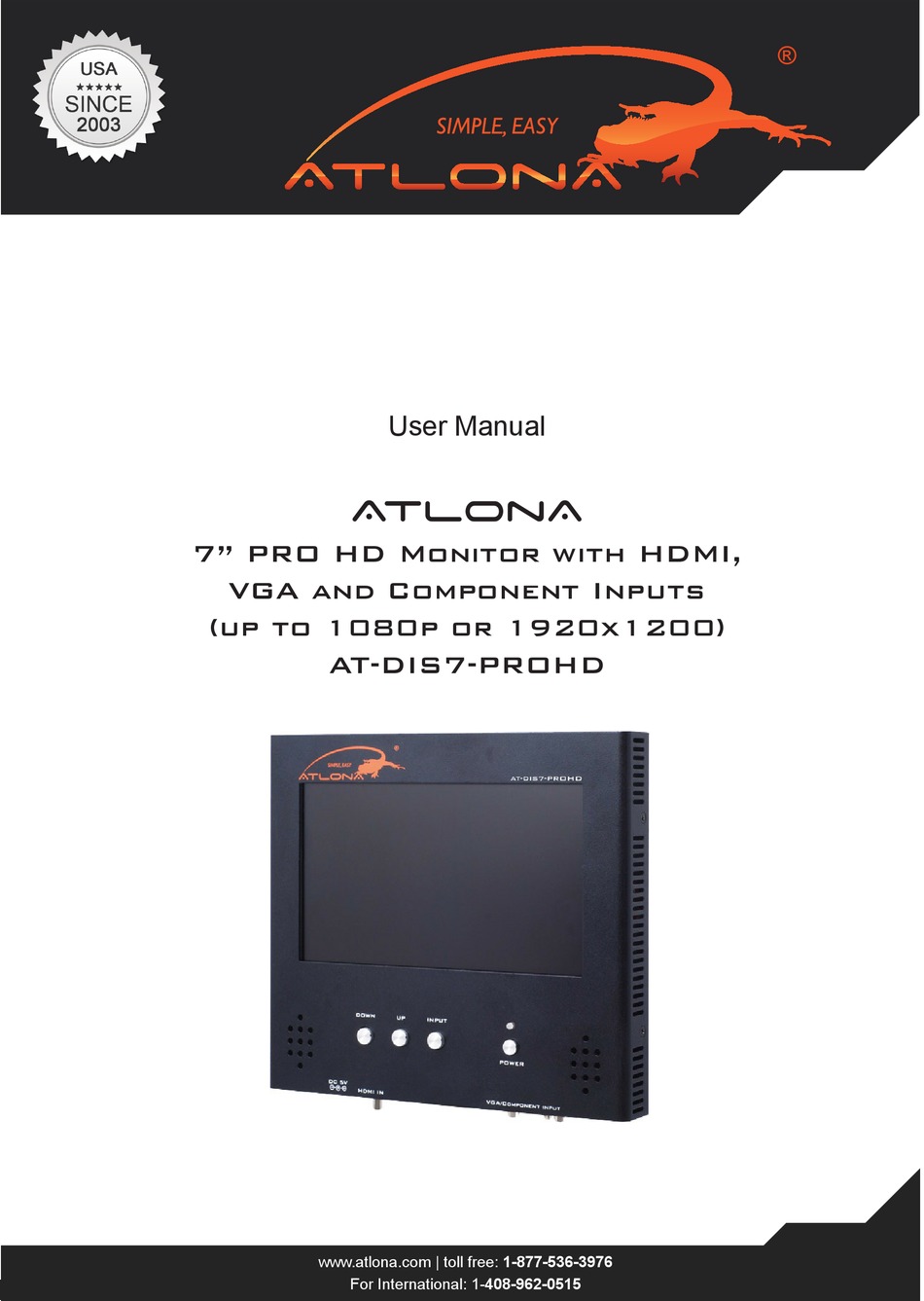

- Page 1 User Manual AtlonA 7” PRO HD Monitor with HDMI, VGA and Component Inputs (up to 1080p or 1920x1200) AT-DIS7-PROHD www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515...
-
Page 2: Table Of Contents
..........6. Operation Controls and Functions ..........6.1. Front Panel ..........6.2. Rear Panel ..........7. Connection and Installation ..........8. Atlona Product Registration ..........9. Safety Information ..........10. Warranty ..........www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 3: Introduction
3D signal will be sent to it, the monitor will display that it is receiving 3D content. The AT-DIS7-PROHD is featured with tripod inputs on top and bottom of the unit and also the ability to be rack-mounted (size 4U). The Rack Ears could be purchased separately. -
Page 4: Features
7.7 x 7.1 x 1 Weight (unit only) 2.5LB Power Supply 5V/2.6A DC (Universal) Power Consumption 9.6W Operating Temperature 0°C ~ 40°C / 32°F~104°F Storage Temperature -20°C ~60°C / -4°F~140°F Relative Humidity 20~90% RH (non-condensing) www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 5: Operation Controls And Functions
4. VGA/COMPONENT INPUT: This input is for user to connect a source device such as DVD, Cable Box, Computer, Generator or any other. This input can be used for either VGA to Component Video Sources; the VGA to Component cable is included. www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 6: Connection And Installation
At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited war- ranty rights. To register go to www.atlona.com/registration www.atlona.com | toll free: 1-877-536-3976... -
Page 7: Safety Information
Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features. -
Page 8: 10. Warranty
Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication.
