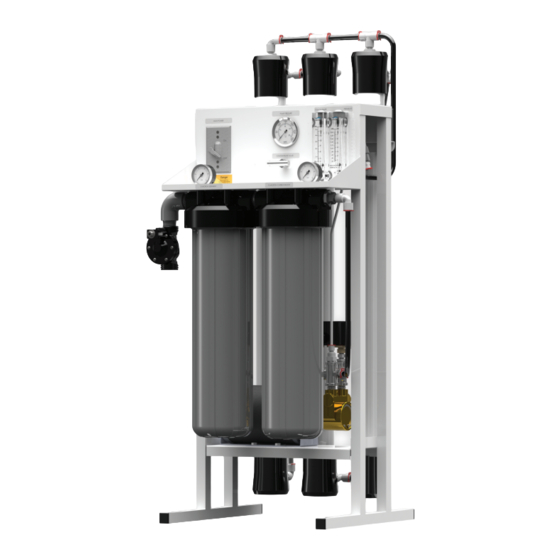

Axeon Water Technologies BT-1500 User Manual

Axeon Water Technologies BT-1500 User Manual

Bt-series reverse osmosis

Advertisement

Reverse Osmosis
User's Manual
Model
BT-1500, BT-1800, BT-2000

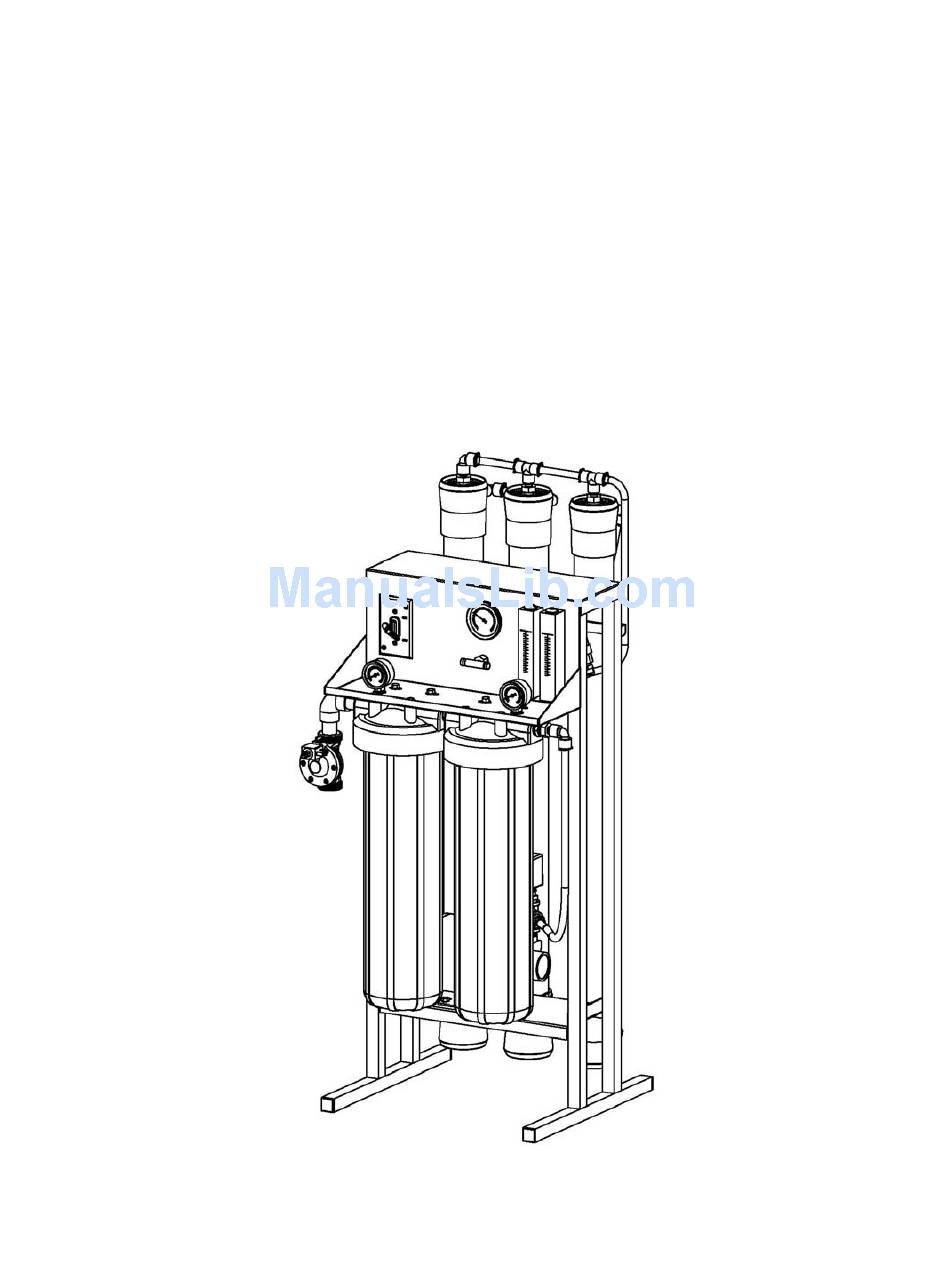

BT-2000 Pictured

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BT-1500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Axeon Water Technologies BT-1500

  • Page 1 Reverse Osmosis User’s Manual Model BT-1500, BT-1800, BT-2000 BT-2000 Pictured...
  • Page 2 This Page Left Blank ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
  • Page 3: Table Of Contents

    BT-1800 MEMBRANE FLOW DIAGRAM ..............18 BT-2000 MEMBRANE FLOW DIAGRAM ..............19 SYSTEM PURGING ....................20 INITIAL START-UP ....................21 DESIGN BASIS FOR BT-1500, BT-1800, BT-2000 ........... 22 OPERATING DO’s & DON’Ts ..................23 OPERATION & MAINTENANCE ................23 MEMBRANE REMOVAL & REPLACEMENT ............. 26 FLUSHING THE SYSTEM ..................
  • Page 4 WARNING: INDICATES STATEMENTS THAT ARE USED TO IDENTIFY CONDITIONS OR PRACTICES THAT COULD RESULT IN INJURY OR LOSS OF LIFE. FAILURE TO FOLLOW WARNINGS COULD RESULT IN SERIOUS INJURY OR EVEN DEATH. ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
  • Page 5: Introduction

    WARNING: INDICATES STATEMENTS THAT ARE USED TO IDENTIFY CONDITIONS OR PRACTICES THAT COULD RESULT IN INJURY OR LOSS OF LIFE. FAILURE TO FOLLOW WARNINGS COULD RESULT IN SERIOUS INJURY OR EVEN DEATH. ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
  • Page 6: Feed Water & Operation Specifications

    BT-Series reverse osmosis systems are designed to produce permeate water at the capacities indicated by the suffix in the system’s name under the conditions listed above. For example, the BT-1500 produces 1500 gallons per day of permeate water at the listed operating test conditions.
  • Page 7: System Requirements & Operation Guidelines

    2. Attach the inlet piping to the 1” FNPT Solenoid Valve feed water inlet. 3. Be certain that all of the components of the feed water are soluble at the concentrations attained in the system. ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
  • Page 8 110/220 Volt 50/60 Hertz 1 Phase. Each BT-Series system is equipped with a 5 foot electrical cord. 110V models are equipped with a plug. Ensure that the electrical circuit supplying the system is compatible with the requirements of the specific BT model you are installing. ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
  • Page 9: Membrane Elements

    BT-Series reverse osmosis systems come pre-loaded with Thin Film Composite (TFC) HF1 High Flow Low Energy membranes, unless otherwise specified. General membrane element performance characteristics are listed on the next page. ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
  • Page 10 HF1-STANDARD ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
  • Page 11 HF4-OPTIONAL ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
  • Page 12 NF3-OPTIONAL ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
  • Page 13 NF4-OPTIONAL ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
  • Page 14: Bt-1500, Bt-1800, Bt-2000 System Identification

    BT-1500, BT-1800, BT-2000 SYSTEM IDENTIFICATION FIGURE 1A NUMBER IDENTIFICATION 1. Solenoid Valve – Turns On/Off Feed Water 2. 5 micron Sediment – Removes particulates 3. 10 Micron Carbon Block – Chlorine reduction 4. Pressure Gauge - Measures feed pressure 5. Pressure Gauge - Measures pressure after filters 6.
  • Page 15 FIGURE 1B FIGURE 1C ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
  • Page 16 FIGURE 1D FIGURE 1E ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
  • Page 17 FIGURE 1F Note: A portion of the frame has been removed to expose components. ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
  • Page 18: Bt-1500 Membrane Flow Diagram

    BT-1500 MEMBRANE FLOW DIAGRAM FIGURE 1G Note: Black arrows represent concentrate water and white arrows represent permeate water. ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
  • Page 19: Bt-1800 Membrane Flow Diagram

    BT-1800 MEMBRANE FLOW DIAGRAM FIGURE 1H Note: Black arrows represent concentrate water and white arrows represent permeate water. ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
  • Page 20: Bt-2000 Membrane Flow Diagram

    BT-2000 MEMBRANE FLOW DIAGRAM FIGURE 1I Note: Black arrows represent concentrate water and white arrows represent permeate water. ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
  • Page 21: System Purging

    5. Turn the feed water on and let the system purge until no visible bubbles appear from concentrate flow meter #11. (Figure 1B, Page 13) Lever Inline Lever Offset Operating Position Bypass Position FIGURE 2 ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
  • Page 22: Initial Start-Up

    Adjust the pump bypass valve and concentrate valve until the correct flow is achieved. For example, BT-1500 should be adjusted until it produces about 1500 GPD or 1.04 GPM of permeate (product water) at 77˚F. Design flow might be achieved below 150 PSI.
  • Page 23: Design Basis For Bt-1500, Bt-1800, Bt-2000

    DESIGN BASIS FOR BT-1500, BT-1800, BT-2000 WARNING: NEVER EXCEED THE MAXIMUM PRESSURE RATING OF YOUR SYSTEM. ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
  • Page 24: Operating Do's & Don'ts

    NOTE: PRECIPITATION CAN SCALE OR FOUL MEMBRANES AND MUST BE PREVENTED. Check your feed water chemistry and pre-treat the water and/or reduce the system’s recovery as required. If necessary, consult with your local dealer or distributor. ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
  • Page 25 1.04 gpm at 100 psi; however the same system installed in Maine – much colder feed water – may require 150 psi to produce the same amount of permeate. Never exceed 150 psi. Example: ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
  • Page 26 Use a fat screw driver to increase or decrease the pressure to the bypass valve. To increase the pressure turn the screw clockwise. To decrease the pressure and turn the screw counter clockwise. (See Figure xx) FIGURE 3 ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
  • Page 27: Membrane Removal & Replacement

    A high pH and/or precipitation of hardness can cause premature loss in rejection. ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
  • Page 28 SOLUTION. THE MEMBRANES MUST BE FLUSHED FOR AT LEAST 1 HOUR TO REMOVE THE PRESERVATIVE FROM THE MEMBRANE. DISCARD ALL OF THE PERMEATE AND CONCENTRATE, WHICH IS PRODUCED DURING THE FLUSH PERIOD. ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
  • Page 29 FIGURE 4 View from the back of BT-1500, BT-1800, and BT-2000 reverse osmosis system. ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
  • Page 30: Flushing The System

    4. Repeat this process at least once a month. During the shutdown period, the plant must be kept frost-free, or the temperature must not exceed 113°F (45°C). Preparing unit for shipment: ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
  • Page 31 9. Drain the flow meters. 10. Allow the system to drain for a minimum of eight hours or until the opened ports quit dripping. 11. After draining is complete, reconnect all of the plumbing. ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
  • Page 32: Reverse Osmosis Troubleshooting

    Clean with high pH Organic Fouling cleaner. Check Chlorine feed equipment and Chlorine Oxidation de-chlorination system. Improve pretreatment. Check all Abrasion of membrane by Crystalline filters for media leakage. Material ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
  • Page 33 77°F. Check your permeate flow meter to determine the permeate flow rate. NOTE: TO DETERMINE THE TEMPERATURE CORRECTION FACTOR, LOCATE THE TEMPERATURE CORRECTION TABLE IN THIS USER’S MANUAL AND FOLLOW THE DIRECTIONS ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
  • Page 34: Temperature Correction Factors For Membrane

    Find the temperature correction factor (TCF) from the table below. Divide the rated permeate flow at 77°F by the temperature correction factor. The result is the permeate flow at the desired temperature. (See example on the next page) ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
  • Page 35 Contact your local dealer or distributor. Prior to making the call, have the following information available: system installation date, serial number, daily log sheets, current operating parameters (e.g. flow, operating pressures, pH, etc.), and a detailed description of the problem. ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
  • Page 36: Operation

    Concentrate Flow (gpm) Recovery % Feed Temperature Feed TDS (ppm) Permeate TDS (ppm) Rejection % Feed PH Permeate PH Scale Inhibitor Feed (ppm) Iron (mg/L) Free Chlorine (mg/L) Hardness (gpg CaCO3) ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
  • Page 37: Drawings

    DRAWINGS FIGURE 5 ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
  • Page 38 Note: A portion of the frame has been removed to expose components. FIGURE 6 ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
  • Page 39 FIGURE 7 ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
  • Page 40 FIGURE 8 ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
  • Page 41 BT-1500 SYSTEM PART LIST Item No. Qty. Part No. Description 1……………2………..200901……GAUGE, BTM, NO FILL, 0-100PSI/BAR, 2” DIA 2……………1………..204913……VALVE, SOLENOID, N/C, UL, 110V, 1” FNPT 3……………1………..200640……CART, SEDIMENT, POLYPRO, 4.5”x 20”, 5 MIC 4……………1………..200663……CARTRIDGE, CARBON, BLOCK, 4.5”x 20”, 10 MIC 5……………2………..203649……HOUSING, FILTER, BLK/BLU, 4.5”x 20”, 1” FNPT 6……………1………..200898……METER, FLOW, PM, 0-5GPM, 1/2”x 1/2”...
  • Page 42 17………….1………..202371……MHS, PVC, 4040, 1/2” x 1/2” SP FNPT, SYSTEMS 18………….2………..200598……SNAP RING, DELRIN, 4” 19………….1………..200596……END PLUG, OPEN, GTX, 4”, 1/2” FNPT 19………….1………..200597……END CLOSED, OPEN, GTX, 4”, 1/2” FNPT 20………….2………..200588……CLAMP, SADDLE, NYLON, BLK, 4”, PVC ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
  • Page 43 17………….3………..200520……MHS, PVC, 2540, 3/8” x 3/8” SP FNPT, SYSTEMS 18………….6………..200593……SNAP RING, DELRIN, 2.5” 19………….3………..200591……END PLUG, OPEN, GTX, 2.5”, 3/8” FNPT 19………….3………..200592……END CLOSED, OPEN, GTX, 2.5”, 3/8” FNPT 20………….6………..200586……CLAMP, SADDLE, NYLON, BLK, 2.5”, PVC ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
  • Page 44 BT-1500 FLOW DIAGRAM ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
  • Page 45 BT-1800 FLOW DIAGRAM ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
  • Page 46 BT-2000 FLOW DIAGRAM ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
  • Page 47 110V ELECTRICAL SCHEMATIC ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
  • Page 48 220V ELECTRICAL SCHEMATIC ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
  • Page 49 ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
  • Page 50 BT-Series reverse osmosis systems are designed to produce permeate water at the capacities indicated by the suffix in the system’s name under the conditions listed above. For example, the BT-1500 produces 1500 gallons per day of permeate water at the listed operating test conditions.
  • Page 51 110/220 Volt 50/60 Hertz 1 Phase. Each BT-Series system is equipped with a 5 foot electrical cord. 110V models are equipped with a plug. Ensure that the electrical circuit supplying the system is compatible with the requirements of the specific BT model you are installing. ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
  • Page 52 BT-Series reverse osmosis systems come pre-loaded with Thin Film Composite (TFC) HF1 High Flow Low Energy membranes, unless otherwise specified. General membrane element performance characteristics are listed on the next page. ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
  • Page 53 DESIGN BASIS FOR BT-1500, BT-1800, BT-2000 WARNING: NEVER EXCEED THE MAXIMUM PRESSURE RATING OF YOUR SYSTEM. ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
  • Page 54 A high pH and/or precipitation of hardness can cause premature loss in rejection. ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
  • Page 55 SOLUTION. THE MEMBRANES MUST BE FLUSHED FOR AT LEAST 1 HOUR TO REMOVE THE PRESERVATIVE FROM THE MEMBRANE. DISCARD ALL OF THE PERMEATE AND CONCENTRATE, WHICH IS PRODUCED DURING THE FLUSH PERIOD. ENGF-106 REV. A 01/11 © 2011 AXEON Water Technologies...
