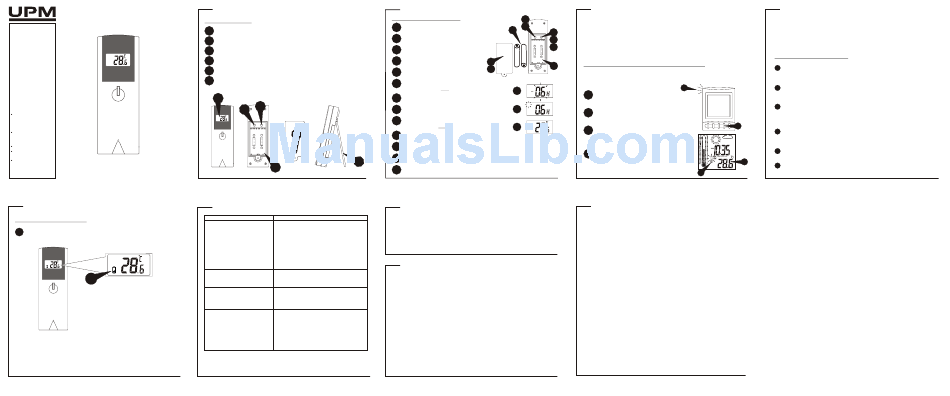

UPM WT440 Owner's Manual

Weather Station Transmitter
WT440
OWNER'S
MANUAL
Congratulations on your
purchase of this UPM
remote transmitter. This
1
unit is specifically
designed to work with
UPM Weather Stations.
Please take the time to
read and understand
this manual so you can
begin to enjoy the
convenience and
features this product has
to offer.
FEATURES
Displays and transmits
temperature readings
to the weather station
(in C or F) ° °
RF technology for
reliable wireless
transmission
Low Battery Indicator
Compact design with
wall mount bracket
Drip-proof design
WT440 transmitter
PAGE 1
LOW BATTERY INDICATION
WT440 Remote Transmitter
Replace the batteries when the Low Battery Indication lights up on
*
the bottom-left corner of the LCD screen on the WT440H transmitter.
1
1
*
NOTE:
After replacing the batteries, you will need to perform the Setup and
Learn Function procedures again. Refer to the GETTING STARTED and
WIRELESS TRANSMISSION sections.
PAGE 6
GETTING STARTED
Button Placement
1
LCD Screen
2
SET: activates SET function
3
C/F: changes House Code and Channel Code; selects °C or °F
4
Battery Compartment
5
Battery Cover
6
Wall Mount Bracket & Table Stand
1
3
2
1
SET C/F
5
6
4
PAGE 2
TROUBLESHOOTING
PROBLEM SOLUTION
The temperature data on the remote transmitter This may occur when you move the remote transmitter from one
does not match the data displayed on the environment to another. For example, when you bring the
transmitter from inside the warm house out to the cold exterior. In
receiver.
such a case, there will be a big change in temperature. The
transmitter will record this change in temperature much quicker
than it is able to transmit the data to the receiver (which is done
once every minute). Therefore, you will temporarily get a
difference in reading between the remote transmitter and receiver.
The solution is to allow the remote transmitter some time to sit in
its new location to reach equilibrium. This may take several
minutes. Once the data is stable, the data displayed on the
remote transmitter should match that displayed on the receiver.
This may also be the result of a temporary loss of reception due
The temperature data on the remote transmitter
to interfering sources. Normal reception should resume once
does not match the data displayed on the
receiver. the interference ends. Refer to the WIRELESS TRANSMISSION
section.
The remote (outdoor) readout on the receiver is Re-synchronize the remote transmitter and receiver by pressing
blinking. and holding CHN on the receiver for 3 seconds until a beep is
heard. The temperature data from the remote transmitter will
display on the receiver within 3 minutes. Refer to the WIRELESS
TRANSMISSION (Manual Learn Function) section.
The remote (outdoor) readout on the receiver is Ensure the remote transmitter is away from any possible source of
blinking. The receiver will not detect or receive interference and electrical disturbances. You may try to reposition
the temperature data from the remote transmitter, the remote transmitter in a different location and/or closer to the
even after the Manual Learn Function has been receiver. The remote transmitter does have a maximum range of
executed. 40 metres, but any walls or windows the signal has to pass through
will reduce the distance. Due to the nature of the batteries,
extreme cold temperatures may also affect the transmission range.
Refer to the WIRELESS TRANSMISSION section and repeat the
Manual Learn Function with the remote transmitter in a new
location.
PAGE 7
GETTING STARTED
Setting up the Transmitter
6
9
* Set up the transmitter(s) before setting up the receiver
2
5
1
Remove battery cover SET C/F 8
11
2
2 AA size batteries (included)
Insert batteries into compartment,
3
1
observing proper polarity
3
12
4
House code will blink for 8 seconds
Select House code (1-15) by pressing C/F
5
* If you have multiple transmitters for a single receiver,
1
set each transmitter to the same House code 4
6
Press SET
1
7 7
Channel code will blink for 8 seconds
Select Channel code (1-4) by pressing C/F
8
* If you have multiple transmitters for a single receiver, 1
10
set each transmitter to a different Channel code
9
Press SET
10
Temperature will appear on the LCD screen
11
Select temperature display in C or F by pressing C/F
° °
12
Replace battery cover
PAGE 3
FCC COMPLIANCE
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
1. THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
2. THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
SPECIFICATIONS
WT440 - WEATHER STATION TRANSMITTER
- Battery Type: 2 X 1.5V AA batteries
- Operating Temperature: -20°C to 60°C
- Temperature Range: -30 °C to 70°C
- Temperature Resolution: 0.1°C for above -10°C / 1°C for below -10°C
- Measurement Accuracy: Max. +/- 1°C within measuring range of 0°C to 40°C
- Transmission Frequency: 433.92 MHz
- Transmission Range: up to 40 metres in open area
CUSTOMER SUPPORT HOTLINE: 1-888-468-6876
PAGE 8
WIRELESS TRANSMISSION
The LEARN FUNCTION must be performed to allow the data collected from
the remote transmitter to be transmitted to the weather station.
Please refer to your specific Weather Station Set manual for proper
instructions on executing the LEARN FUNCTION.
Specifically for the WS222 Weather Station, you can follow the directions
below to perform the Manual Learn Function.
Manual Learn Function (WS222 Receiver):
If a new remote transmitter is added or if the signal is lost (outdoor readout
on the receiver is blinking), the learn function must be executed again.
2
Press and hold CHN for
1
3 seconds to start.
Unit will beep to indicate that
2
learn function has started.
1
3 Channel symbol will blink and unit
will continue to beep as each remote
transmitter is detected.
Within 3 minutes, the temperature reading
4
of the remote transmitter will display on
the receiver. 4
3
PAGE 4
LIMITED TWO-YEAR WARRANTY
UPM warrants this product, excluding battery, to be free from defects in the materials or workmanship, under normal
use and service, for a period of two (2) years from the date of purchase by the consumer.
If, at any time during the warranty period, the product is defective or malfunctions, UPM shall repair or replace it (at
UPM's discretion) within a reasonable period of time.
If the product is defective,
(i) return it, with a dated proof of purchase, to the retailer from which you purchased it, or
(ii) package it carefully, along with a dated proof of purchase and a short description of the malfunction, and mail it,
postage prepaid, to the following address:
UPM Marketing Inc.
Return Goods
Unit 10B - 250 Shields Court
Markham, Ontario
L3R 9W7
This warranty does not cover removal or reinstallation costs. This warranty shall not apply if it is shown by UPM that
the defect or malfunction was caused by damage which occurred while the product was in the possession of the
consumer.
UPM's sole responsibility shall be to repair or replace the product within the terms stated above. UPM SHALL NOT BE
LIABLE FOR ANY LOSS OR DAMAGE OF ANY KIND, INCLUDING ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES
RESULTING, DIRECTLY OR INDIRECTLY , FROM ANY BREACH OF ANY WARRANTY, EXPRESS OR IMPLIED, OR ANY
OTHER FAILURE OF THIS PRODUCT. Some states do not allow the exclusion or limitation of incidental or
consequential damages, so this limitation may not apply to you.
THIS WARRANTY IS THE ONLY EXPRESS WARRANTY UPM MAKES ON THIS PRODUCT . THE DURATION OF ANY
IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, IS HEREBY LIMITED TO THE TWO YEAR DURATION OF THIS WARRANTY . Some states do not allow
limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
This warranty gives you specific legal rights, and you may have other rights which may vary from state to state.
If you have any questions concerning this warranty, please write to:
UPM Marketing Inc.
Customer Service Department
Unit 10B - 250 Shields Court
Markham, Ontario
L3R 9W7
Or call 1-888-GO-TO-UPM (1-888-468-6876), Monday to Friday, from 9:00am to 5:00pm eastern.
PAGE 9
WIRELESS TRANSMISSION
Environmental factors and signals from other household devices, such
as remote entry controls, security systems, and computers, may
interfere with the wireless transmission of this product and cause
temporary reception loss. This is normal and does not affect the general
performance of this product. Stable reception will resume once the
interference ends.
For optimal performance:
Place the receiver and remote transmitter side by side about 1 metre
apart, and allow the receiver and remote transmitter to synchronize
for 10 minutes before you place the remote transmitter outdoors.
The remote transmitter should be placed in a dry shaded area.
NOTE: Fog and mist will not harm the remote transmitter but
direct rain must be avoided.
Mount the remote transmitter upright avoiding metallic objects
and frames, such as window sills. Verify that there are no obstacles
like a transmission tower or steep hill that can cause interference
and blockage between the remote transmitter and receiver.
Place the receiver unit at least 2 metres away from any electrical
devices, such as your television set, computer, cordless phone, or
any radio controlled equipment.
You may need to reposition the remote transmitter to a different
location and/or closer to the receiver for the best transmission.
Replace unit(s) with fresh batteries when the Low Battery Indicator
lights up. Refer to the LOW BATTERY INDICATION section.
