Genie CCTV SDI06 User Manual

1 input / 4 output 3g/hd-sdi video distribution amplifier
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual

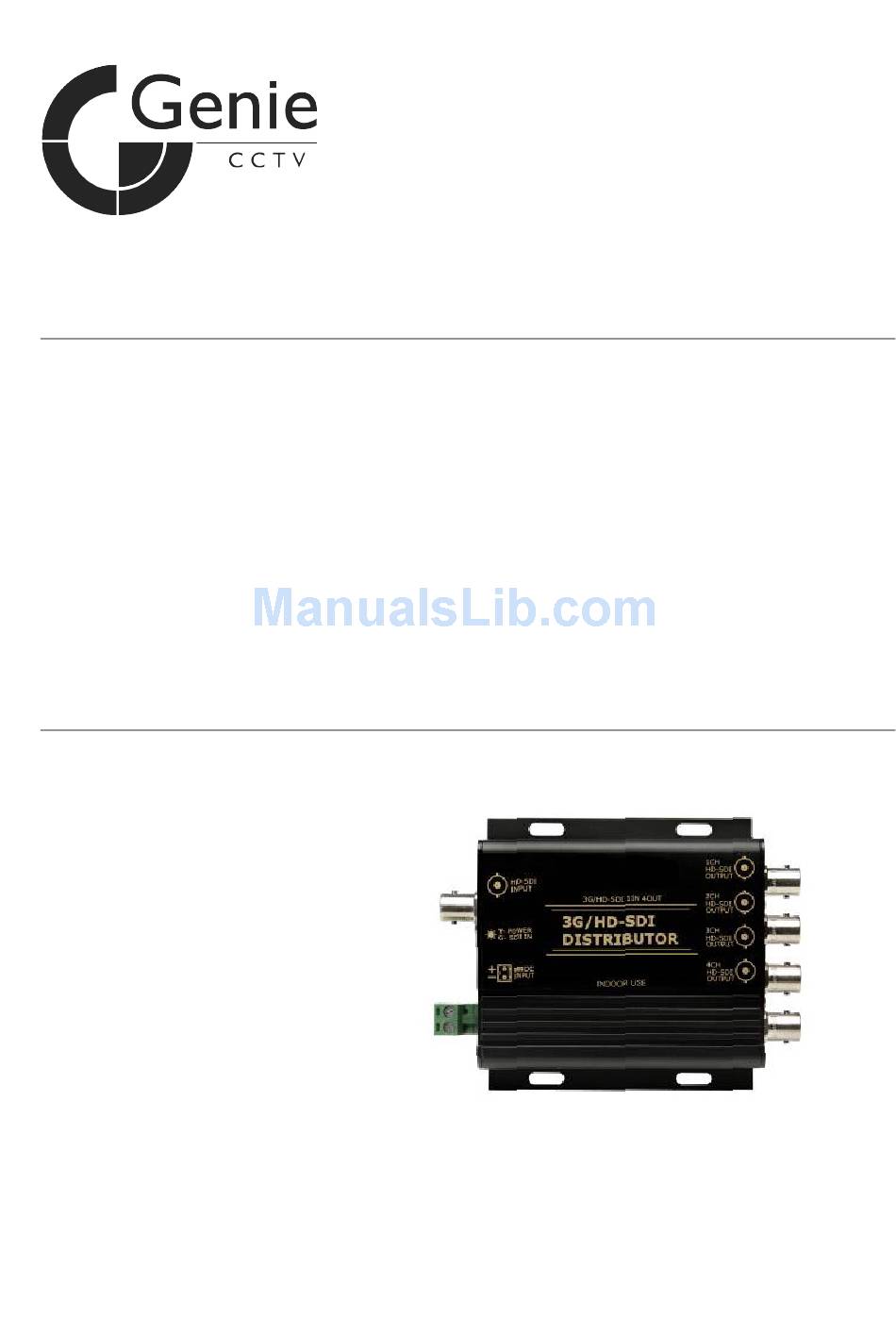

MODEL: SDI06
1 Input / 4 Output
3G/HD-SDI Video Distribution Amplifier
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the SDI06 and is the answer not in the manual?

Questions and answers

Related Manuals for Genie CCTV SDI06

Summary of Contents for Genie CCTV SDI06

  • Page 1 MODEL: SDI06 1 Input / 4 Output 3G/HD-SDI Video Distribution Amplifier User Manual...
  • Page 3 Precautions and Safety Guidelines Please read this user manual thoroughly prior to using this product • Do not install the product in places having extremely low or high temperature conditions, those exposed to rain, snow, or high humidity, places containing or exposed to oil and gas, or exposed to vibration, shock, direct sunlight or exposed to outdoor weather conditions.
  • Page 4 1. Introduction 1.1 Overview This model is a single channel HD-SDI signal distribution amplifier. Using this device, you can split the HD-SDI signal input to up to four output signals. This device provides stable signal distribution and clear video images as each channel has a separate video chips.

  • Page 5: Connection Diagram

    3. Product Parts & Peripheral Device Connection 3.1 Product Parts and Functions HD-SDI IN : HD-SDI Signal Input Port LED Indicators LED Indicator Description Yellow ON Normal Power Supply Green ON Normal Operation (Input HD-SDI Signal) DC INPUT : DC12V~48V (DC12V/0.167A [2W]) HD-SDI OUT (Channel 1 ~ 4): HD-SDI Output Port (Connecting with HD-SDI Receiver) 4.

  • Page 6: Transmission Distance

    5. Transmission Distance Cable Transmissions Distance (m) 1.485Gb/s (HD) 2.97Gb/s (FULL HD) RG59 CT125 • The above assume high quality cable specifications using copper conductor. • We recommend only using 70% of the maximum distance stated above as there are other external factors which sometimes cause signal degradation.

  • Page 7: Specification

    6. Specification * SMPTE292M, SMPTE424M Description Video In / Out HD-SDI Input Power DC12V ~ 48V Power Consumption DC12V 165mA (DC48V 45mA) Maximum Transmission Distance 100m (Full HD), 200m (HD) with RG6 Baudrate 270Mbps ~ 3Gbps HD-SDI In / Out BNC-F (75Ω) Connect Power Video In...
  • Page 8 GENIE CCTV LTD. CCTV House, City Park, Watchmead, Welwyn Garden City, Hertfordshire, AL7 ILT Tel: +44 (0) 1707 330541 Fax: +44 (0) 1707 330543 www.geniecctv.com Edition. GN-March 2013...
