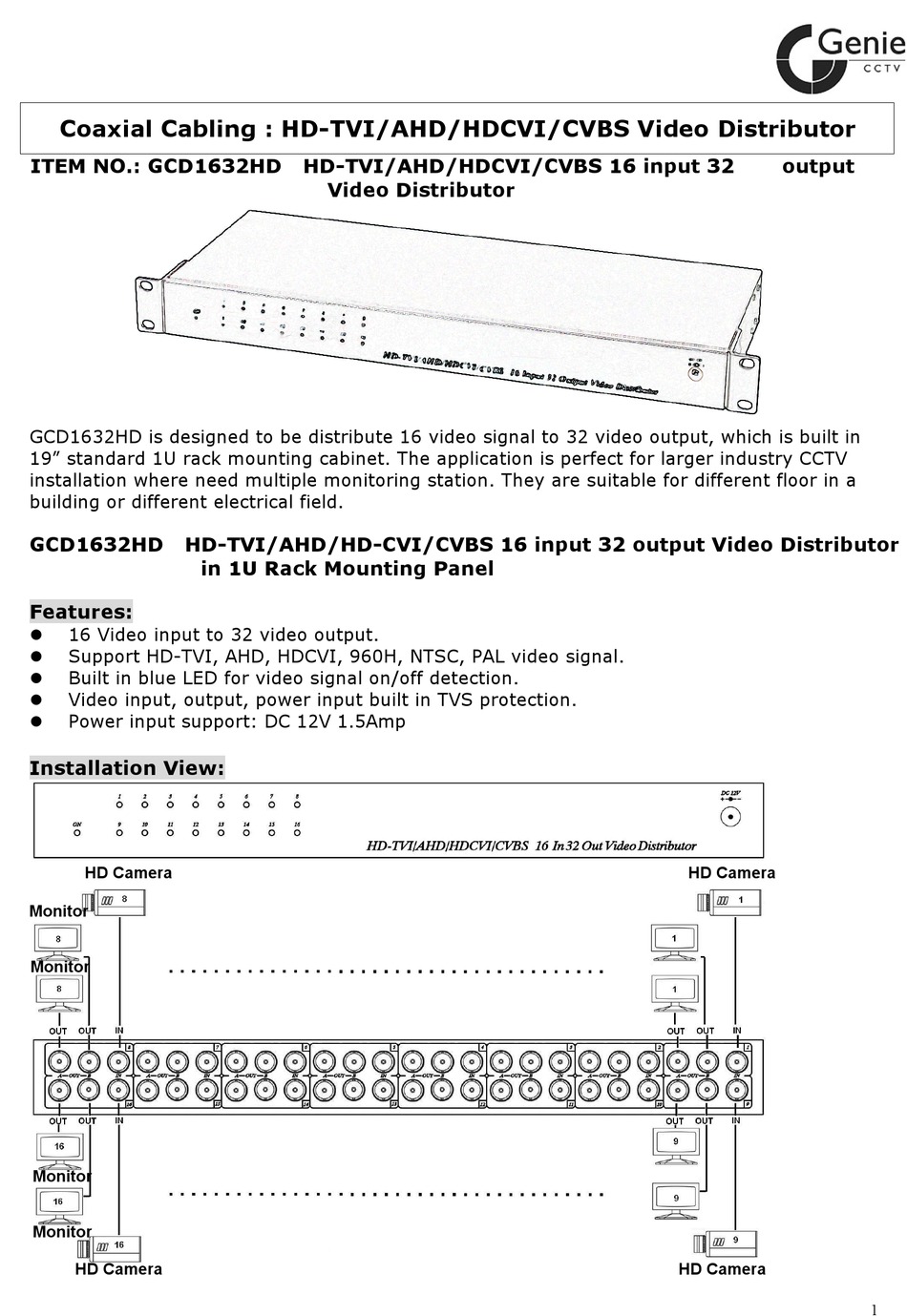

Coaxial Cabling : HD-TVI/AHD/HDCVI/CVBS Video Distributor
ITEM NO.: GCD1632HD
GCD1632HD is designed to be distribute 16 video signal to 32 video output, which is built in
19" standard 1U rack mounting cabinet. The application is perfect for larger industry CCTV
installation where need multiple monitoring station. They are suitable for different floor in a
building or different electrical field.
GCD1632HD
HD-TVI/AHD/HD-CVI/CVBS 16 input 32 output Video Distributor
Features:
16 Video input to 32 video output.
l
Support HD-TVI, AHD, HDCVI, 960H, NTSC, PAL video signal.
l
Built in blue LED for video signal on/off detection.
l
Video input, output, power input built in TVS protection.
l
Power input support: DC 12V 1.5Amp
l
Installation View:
HD Camera
Monitor
Monitor
Monitor
Monitor
Monitor
Monitor
Monitor
Monitor
HD Camera
HD-TVI/AHD/HDCVI/CVBS 16 input 32
Video Distributor
in 1U Rack Mounting Panel
output
HD Camera
HD Camera
1
Advertisement
Related Manuals for Genie CCTV GCD1632HD
Summary of Contents for Genie CCTV GCD1632HD
- Page 1 Video Distributor GCD1632HD is designed to be distribute 16 video signal to 32 video output, which is built in 19” standard 1U rack mounting cabinet. The application is perfect for larger industry CCTV installation where need multiple monitoring station. They are suitable for different floor in a building or different electrical field.
-
Page 2: Led Indication
1. This device not support HD camera control data signal transmission. 2. The signal LED light may have different brightness or flash status based on different video signal Specifications: ITEM NO. GCD1632HD Video Input Channel BNC x 16, 75Ω, 1Vpp Video Output Channel BNC x 32, 75Ω, 1Vpp...
