USER'S MANUAL
MODEL: VST-WS588IH
IMPORTANT! PLEASE READ CAREFULLY AND SAVE.
This user's manual contains important information about your Alarm's operation. If you are installing the Alarm
for use by others, you must leave this manual—or a copy of it—with the end user.
WIRELESS PHOTOELECTRIC SMOKE ALARM
Photoelectric smoke alarms are generally more effective at detecting smoldering fires which smolder for hours
before bursting into flame. Sources of these fires may include cigarettes burning in couches or bedding.
MAIN FEATURES
DC operated Wireless Interconnectable Smoke Alarm
Photoelectric sensor for slow smoldering fires
Non-radioactive technology for environmental friendly
Test / Hush Button
Insects proof
High and stable sensitivity
With quick fix mounting bracket for easy installation
Fitting and battery tamper-resist feature
LED operation indicator
Extra loud alarm sound over 85 dB at 3m
Low-battery and battery missing warning indicator
Auto reset after smoke is clear
SPECIFICATION
Detection Type:
Power Source:
Working frequency:
Emission distance:
Standby Current:
Alarm Current:
Sensitivity to Smoke:
Alarm Sound Level
Operation Temperature:
Ambient Humidity:
Compact size:
IMPORTANT SAFETY INFORMATION
1.
This smoke alarm requires constant working 9-volt battery to operate properly. This smoke alarm WILL NOT
work if DC power is not connected or has failed or been interrupted for any reason AND the battery is
removed, drained or improperly connected. DO NOT use any other kind of battery except as specified. DO
NOT connect this smoke alarm to any other type of smoke alarm or auxiliary device, except those listed in
this manual.
Photoelectric sensor for smoke
9V(6F22) Battery
868MHz
>60m open space
）
25uA max
40mA max
3.0-6.0 %Obs /m
85 Decibels at 3 meters
℃
℃
4
to 45
10% to 90% Relative Humidity
110mm diameter
Advertisement
Table of Contents
Related Manuals for Orientalert VST-WS588IH
Summary of Contents for Orientalert VST-WS588IH
-
Page 1: Main Features

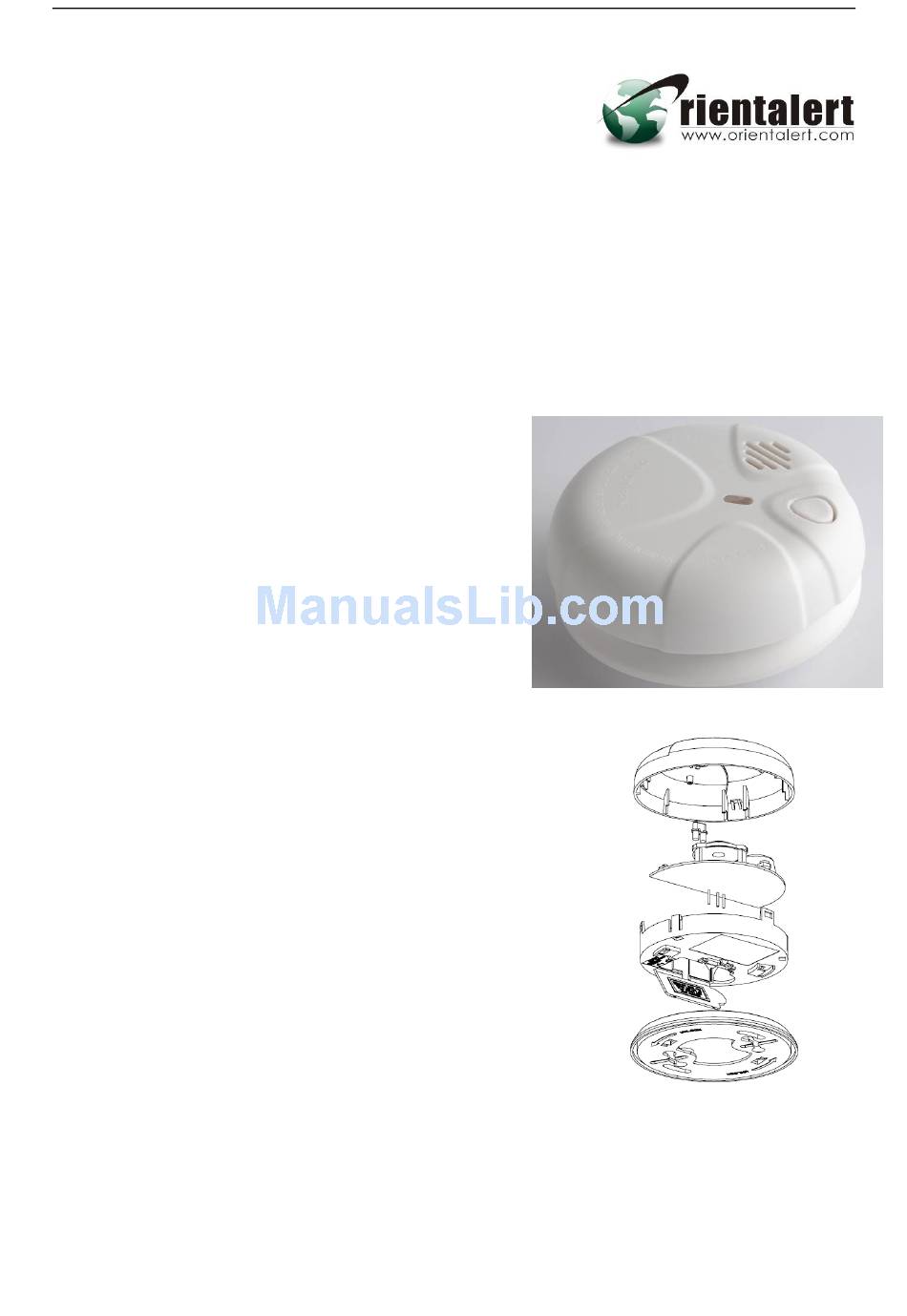

USER’S MANUAL MODEL: VST-WS588IH IMPORTANT! PLEASE READ CAREFULLY AND SAVE. This user’s manual contains important information about your Alarm’s operation. If you are installing the Alarm for use by others, you must leave this manual—or a copy of it—with the end user. -
Page 2: Installation
The Test button accurately tests all smoke alarm functions. Do not use any other test method. Test smoke alarm weekly to ensure proper operation. DO NOT remove or disconnect battery to quiet unwanted alarms. This will remove your protection. Open windows or fan the air around smoke alarm to silence it Observe and follow all local and national electrical and building codes for installation. - Page 3 KEY: Minimum required smoke alarm locations ○ R ecommended additional smoke alarm locations △ S moke alarms with hush features recommended for additional protection IMPORTANT SMOKE ALARM PLACEMENT AND EXCEPTION INFORMATION Install a smoke alarm as close to the center of the ceiling as possible. If this is not practical, mount no closer than 4 inches from a wall or corner.
-
Page 4: How To Install This Alarm
HOW TO INSTALL THIS ALARM This Alarm is designed to be mounted on any standard wiring junction box up to a 4-inch (10 cm) size, on either the ceiling or wall (if allowed by local codes). WARNING! Make sure the Alarm is not receiving excessively noisy power. Examples of noisy power could be major appliances on the same circuit, power from a generator or solar power, light dimmer on the same circuit or mounted near fluorescent lighting. - Page 5 FOLLOW THE ID SETUP STEPS Remove the battery. Press and hold the button for a minimum of 10 seconds. Find the 5-position dipswitch located on the back of each device. Select one of the units. You will define the ID of your system by positioning the switches of the dipswitch in a random pattern.
-
Page 6: Testing The Smoke Alarm
Button Definition as below: (TABLE3) Current Status Function (Press button and Function (Press button and release it in 2 seconds) hold it for 3 seconds minimum) Normal Operation 、 Hush State 、 Low Battery Test Local Hush Local Alarm Locate All Hush Remote Alarm Locate... -
Page 7: Hush Feature
for repair or replacement. HUSH FEATURE This smoke alarm has a combined Test/Hush button to help you control nuisance false alarms. Through pressing and holding the Test/Hush button for 3S min to cancel the nuisance false alarms 。 The alarm will automatically switch to a reduced sensitivity condition (very large levels of smoke from a nearby fire will override the Hush on the smoke alarms). - Page 8 Golden Power #6F22; New Leader #6F22; Gold Peak #6F22; Eveready #522, #1222.; Golden Power G6F22; Golden Power GL6F22A IMPORTANT! Actual battery service life depends on the Alarm and the environment in which it is installed. All the batteries specified above are acceptable replacement batteries for this unit. Regardless of the manufacturer’s suggested battery life, you MUST replace the battery immediately once the unit starts “chirping”...
-
Page 9: Troubleshooting Guide
Cover your nose and mouth with a cloth (preferably damp). Take short, shallow breaths. Meet at your planned meeting place outside your home, and do a head count to make sure everybody got out safely. Call the Fire Department as soon as possible from outside. Give your address, then your name. Never go back inside a burning building for any reason. - Page 10 NOTE: End of Life Signal — Once the unit reaches the end of its lifecycle, the MALFUNCTION SIGNAL will sound once a minute to indicate the need to immediately replace the Alarm. Manufacturer: Xiamen Vs-Top Electronics Co., Ltd. 2nd floor, No-107 Xiaguang Road, Xinyang Industrial District, Haicang ,Xiamen, China. Tel: 0086-592-6017700 Fax: 0086-592-6017711 E-mail: info@vs-top.com Website: www.orientalert.com...
