Avallon APAC140C User Manual

Avallon APAC140C User Manual

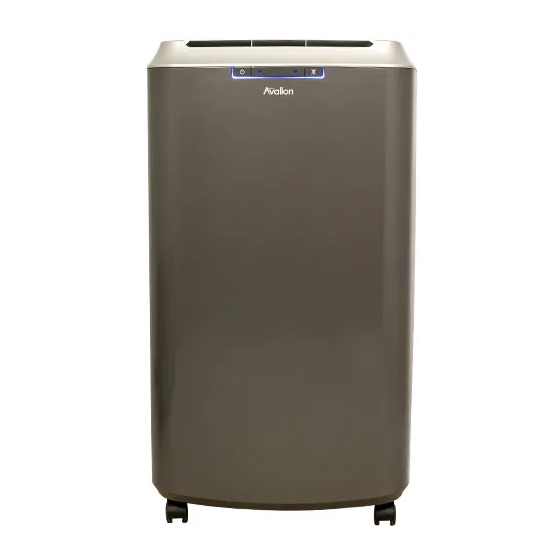

Portable air conditioner

Advertisement

USER'S GUIDE
Installation, Operation, and Maintenance for your
portable air conditioner
PORTABLE AIR CONDITIONER
MODEL- APAC140C
www.avallon.com
1-866-471-7427

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APAC140C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Avallon APAC140C

  • Page 1 USER’S GUIDE Installation, Operation, and Maintenance for your portable air conditioner PORTABLE AIR CONDITIONER MODEL- APAC140C www.avallon.com 1-866-471-7427...
  • Page 2: Important Safety Information

    2. Press the TEST button on the LCDI plug. This should trip the plug and cut the power to the air conditioner. If the plug does not trip and you are able to turn on the unit, please contact Avallon support. DO NOT USE YOUR PORTABLE AIR CONDITIONER IF THE TEST FAILS.
  • Page 3: Table Of Contents

    ANEL ONTROLS ENERGY SAVING GUIDE ............................. 16 MAINTENANCE ..............................17 ..............................17 LEANING THE UNIT ............................17 LEANING THE PRE FILTER ............................17 REPARATION FOR TORAGE TROUBLESHOOTING ............................18 ..........................19 ROUBLESHOOTING CONTINUED SPECIFICATIONS ..............................20 Avallon Portable Air Conditioner...
  • Page 4: Introduction

    Introduction Thank you for purchasing your Avallon portable air conditioner. Avallon is dedicated to developing products that will enhance your lifestyle with superior quality and distinctive features. Please visit www.avallon.com for more information on your product and other Avallon products.
  • Page 5: Parts Identification

    Indicator Light Button Handle Back View Pre-filter Air Intake Exhaust Outlet Air Intake Drain Pump Connection CAUTION: Make sure the drain plug is firmly installed before using the unit to Caster prevent leaking. Power Cord Drain Port Avallon Portable Air Conditioner...
  • Page 6: Window Kit Installation Instructions

    Window Kit Installation Instructions You must vent your portable air conditioner when running it in Preparations for installing cooling mode or heat mode (certain models). Your unit includes a the window kit window exhaust kit that can be used to vent the unit out a window. Before you begin, make sure you have all the parts necessary for installation.
  • Page 7: Installing The Grated Adapter

    1. Insert the round grated adapters through the back grooved side of the window kit plate with holes.  2. Secure the grated adapters by fastening the screws from flat side of the window kit plate to the holes on the grated adapter. Avallon Portable Air Conditioner...
  • Page 8: Installing The Window Plates

    Installing the window plates  3. Open your window and place the window kit with grooved side facing outward on the window sill. Then, slide  the window kit plate to fit the width of the window. You can use screws to secure the window kit plate from sliding. ...
  • Page 9: Attaching The Duct Connectors To The Exhaust Hose

    A. Extend the ends of the exhaust hose B. Thread the duct connector on by turning it clockwise until it stops.  6. Roll the unit towards the window kit. Leave a space that is at least 20 inches to the wall. Avallon Portable Air Conditioner...
  • Page 10: Connecting The Duct Connector To The Unit

    Connecting the duct connector to the unit  7. Align the slots on the duct connector to the tabs and  snap into the back of the unit. In order to use the misting drain feature you will need to attach the duct connector with opening for the water line to the exhaust outlet on the unit.
  • Page 11: Notes About The Exhaust Hose

    Control Panel. Direct drainage 1. Remove the rubber drain plug from the drain port. 2. Connect a drain hose to the drain port. The portable air conditioner will now drain through the drain hose. Avallon Portable Air Conditioner...
  • Page 12: Drainage Options

    Drainage Options Your Avallon portable air conditioner comes with several different options to drain water accumulated during operation. The most common will be the self evaporative mode. The unit will do this automatically. This mode will be sufficient for the most environments.
  • Page 13 The unit will now automatically mist any excess water to the outside. Installing the mist system in the exhaust hose ensures all of the moisture is pushed completely away from the window. Avallon Portable Air Conditioner...
  • Page 14: Installing The Batteries

    Remote Control Overview Button Function Powers the unit on or off. Power Sets the fan speed. The Automatic, High, Medium or Low indicator will Fan Speed appear depending on the mode you set. Sets the mode. The Automatic, Cool, Dehumidify, Fan and Mode heat indicator will appear depending on the...
  • Page 15: Remote Control Lcd Indicators

    Dehumidify The unit will run as a fan and circulate air. The front panel lights will be green. Fan Only Available on certain models. The unit will heat. The front panel lights will be red. Heat Avallon Portable Air Conditioner...
  • Page 16: Operating The Remote Control

    Operating the Remote Control Use the Power button to turn the portable air conditioner on and off. Power By default when you first use the power button, the unit will begin to operate in cooling mode and the front panel will be illuminated in blue. The unit will remember the last used mode/settings if you shut down and restart.
  • Page 17: Fan Only Mode

    18:00 3) To save your settings press and hold the Clock button until the 7:00 PM 19:00 Clock indicator stops blinking. 8:00 PM 20:00 9:00 PM 21:00 10:00 PM 22:00 11:00 PM 23:00 12:00 AM 00:00 Avallon Portable Air Conditioner...
  • Page 18: Timer

    The timer can be used to either turn the unit on or off after a number of Timer elapsed hours. The timer is adjustable between 1-24 hours in one hour increments. How to set the unit to automatically turn on: 1) Press the Timer button while the unit and remote are powered off.
  • Page 19: Energy Saving Guide

     To prolong the compressor's life, please wait at least 3 minutes before turning the unit back on after shutting it off.  Inspect and keep the pre-filters clean by cleaning regularly.  Perform routine maintenance. Avallon Portable Air Conditioner...
  • Page 20: Maintenance

    Maintenance Clean the air conditioner and filters regularly to maximize performance and efficiency, and prolong the unit’s life. Be sure to always unplug the air conditioner from the power outlet before cleaning. Cleaning the unit Use a soft dry cloth to wipe the body clean. If necessary, use lukewarm water to dampen a cloth to clean the unit.
  • Page 21: Troubleshooting

    The front control panel Your water reservoir is Drain your unit. lights blink red full. Avallon Portable Air Conditioner...
  • Page 22: Troubleshooting Continued

    Troubleshooting continued Issue Possible Cause Solution My air conditioner is Unit is not operating in Set the unit to be in not cooling at all cooling mode cooling mode, and lower the set temperature (pg. 12) The compressor is not The compressor may take up to 3 minutes to turn on, or longer if it is...
  • Page 23: Specifications

    Description of product Portable Air Conditioner Model APAC140C Voltage/Frequency 115V/60Hz Input Power 1250W Current 10.8A Color Grey and Silver Coolant R410A Timer 24 Hour 33.7” x 19.5” x 15.7” Dimensions H x W x D Weight 73 lbs Avallon Portable Air Conditioner...
  • Page 24: Product Warranty

    Once an Avallon authorized representative has con- firmed that your product is defective and eligible for warranty service, the product must be returned to an Avallon authorized repair facility.
  • Page 25 AVALLON GLOBAL, LLC 3736 Bee Cave Rd. STE 1 #188 West Lake Hills, TX 78746 Toll Free: 1-866-471-7427 Web: http://www.avallon.com E-mail: service@avallon.com Product contents and specifications may change without notice. Copyright © 2013 Avallon Gobal, LLC...
