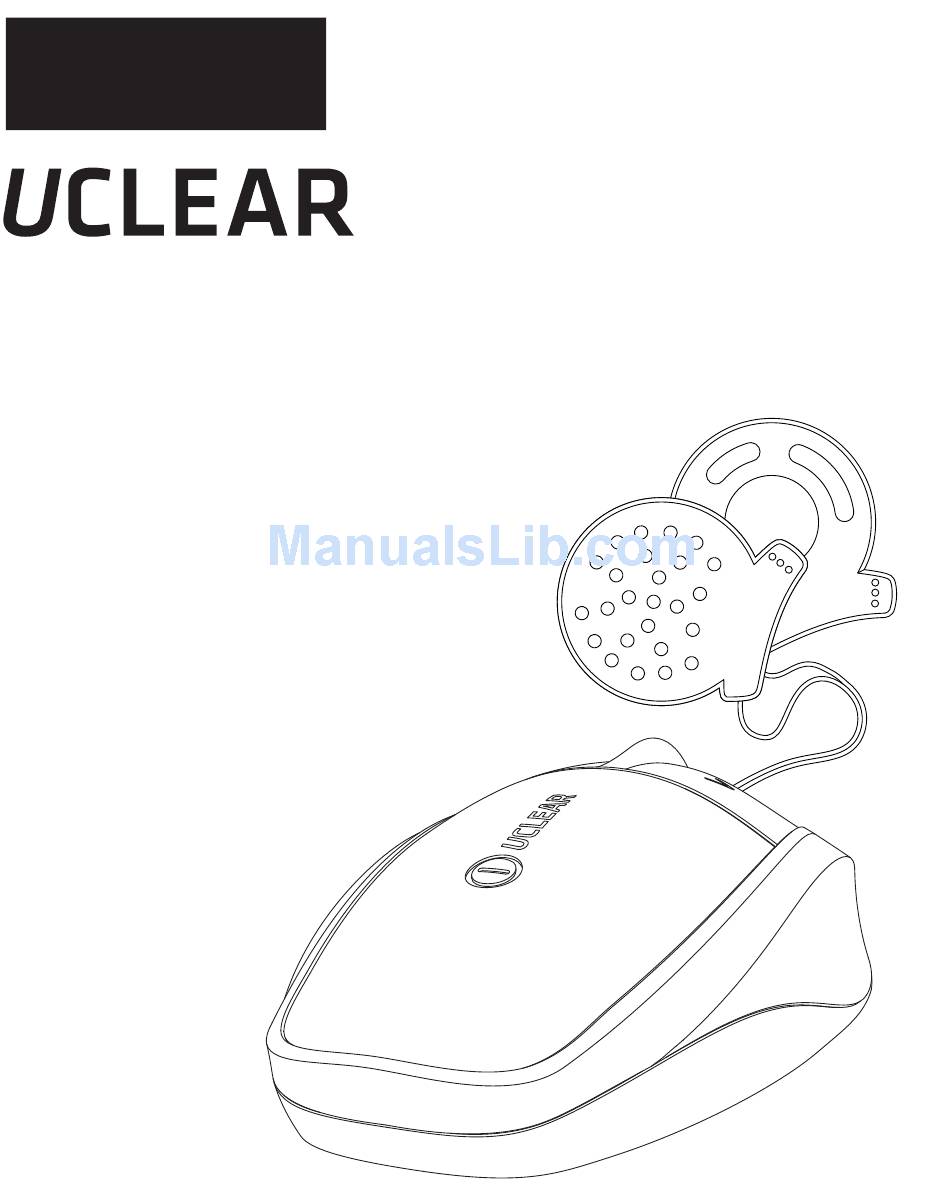

- Page 1 HBC200 ® Helmet Communicator User Manual...
-
Page 2: Contents
Welcome to HBC200 ® Helmet Communicator User Manual HBC200 Metal mounting Removable metal control unit bracket mounting bracket Hi-fi Velcro Pads Anti-slip Stereo Speaker rubber patch AC charger & User Manual USB charging cable... -
Page 3: Table Of Contents
Contents Contents ----------------------------------------------------------------------- 1 Quick User Guide ----------------------------------------------------------- Warnings and Safety Instructions --------------------------------------- 7 Features ----------------------------------------------------------------------- 9 Installation -------------------------------------------------------------------- General Operations -------------------------------------------------------- Mobile Phone Operations ------------------------------------------------ Music Streaming Operations -------------------------------------------- Intercom Operations ------------------------------------------------------ Button Configurations Summary --------------------------------------- Status Indicator Configurations Summary --------------------------- Technical Data -------------------------------------------------------------- Troubleshooting Operational Tips -------------------------------------- Notices ------------------------------------------------------------------------... -
Page 4: General Functions
Quick User Guide Your HBC200 at a glance GENERAL FUNCTIONS Before using your HBC200 Please charge it first! Answer Button Up Button Also, make sure to register your product on Status Indicator uclear-digital.com and ensure you have the latest firmware update downloaded to enjoy feature enhancements. -
Page 5: Power Off
Quick User Guide Power On Hold Answer for 2 seconds. Power Off Volume Down Hold Answer for 5 seconds. Press Down once per level. Reset Press all 3 buttons at the same time from an ON position until you see light go out. *NOTE: The volumes for mobile phone, music and intercom functions are controlled separately. -
Page 6: Mobilephone Functions
Quick User Guide MOBILEPHONE FUNCTIONS Pairing your HBC200 with your mobile phone. >Check Bluetooth phone capabilities before use. >Hold Up and Down buttons together for 2 seconds. The status indicator light will blink blue and red alternately. >From your mobile phone Bluetooth Pairing menu, search for ‘UCLEAR HBC200’. -
Page 7: Music Streaming Function
(see page 20 of the manual for detail): *NOTE: Pairing needs to be done once. should the same group of users be riding. UCLEAR control units should be reset and paired again for any new configuration of riders. Intercom Pairing on First Unit... -
Page 8: Warnings And Safety Instructions
Warning and Safety Instructions This manual uses the icons to highlight certain instructions. Below is an explanation of the icons. Attention > This icon highlights special instructions and precautions intended to avoid damage to the system. Non-compliance may void the product warranty. Warning >... -
Page 9: Warnings And Safety Instructions
Warnings and Safety Instructions > Prolonged exposure to loud sounds may lead to permanent hearing damage. > Speaker volume is greater than 90 dB may lead to permanent hearing damage. > Do not attempt to place an outgoing call through the mobile phone while riding on the motorcycle at any point of time. -
Page 10: Features
Features helmet communicator has three main functions: to make mobile phone calls, to listen to music and for intercom communication. Mobile Phone Functions • Bluetooth phone audio capabilities, HFP & HSP Profile. • Voice activated call pick up. Music Streaming Functions •... -
Page 11: Installation
Installation HBC200 helmet communicator package contains : HBC200 Hi-fi stereo speaker with helmet communicator embedded microphones Anti-slip rubber patch control unit Metal mounting AC charger & bracket User Manual USB charging cable Removable metal Round Velcro Pad mounting bracket... - Page 12 Installation Install Speakers 1. Use the Velcro to install the speakers into the ear cavity of the helmet. 2. The microphones MUST be placed facing forward. 3. Left and right speakers must be installed symmetrically. and at the same angle to Microphone create an intersection point in front of your mouth for voice pickup.
- Page 13 Your HBC200 helmet communicator package comes with 2 types of mounting brackets: a temporary clip bracket and a metal mounting bracket. Use either of the brackets to install the HBC200 control unit onto your helmet. Install Temporary Clip Bracket 1. Position and fasten the clip bracket onto the helmet.
- Page 14 Installation Install Metal Mounting Bracket 1. Identify a position on the helmet to adhere the Metal Mounting Bracket. Ensure this area is clean and free from dust or debris. 2. Peel off the double sided tape protective film. 3. Carefully place the Metal Mounting Bracket onto the position identified in step 1. (You may only do this step once) 4.
-
Page 15: General Operations
• If the intercom feature has been in use, and all Bluetooth devices have been disconnected, the system will auto shutdown in 2 hours. If the intercom feature has not been in use and the HBC200 is not connected to any other devices, the system will auto shutdown in 10 minutes. - Page 16 General Operations Charging the Unit • To charge the helmet communicator, connect it to the adaptor / USB Port with the USB charging cable provided. Upon charging, if the unit is on, the system will automatically initiate power down. Volume Control •...
-
Page 17: Mobile Phone Operations
Mobile Phone Operations To use the UCLEAR control unit with your mobile phone for the first time, you must first connect them wirelessly by pairing. Pairing •To connect the control unit to a mobile phone, hold the Up and Down buttons for 2 seconds. - Page 18 Music feature • If the mobile phone supports A2DP/AVRCP profile, user may activate the music by playing it directly from the phone or by controlling the music via the UCLEAR. To operate refer to Music Streaming Operations section. Should the documented steps not work, refer to your phone user manual on how to activate the A2DP/AVRCP feature.
-
Page 19: Music Streaming Operations
• Next, put the Bluetooth music device into pairing mode. Both the control unit and the music device should automatically pair together. After pairing to a music device, you may use the UCLEAR to wirelessly listen to music stored on the device. -
Page 20: Intercom Operations
Intercom Operations New Generation Multi-Hop Technology -Superior voice quality -Allows large group communication -Multiplies range through hopping, so that you achieve up to 700m between each UCLEAR unit. - Page 21 Two-Party Intercom To use the intercom for the first time, you must pair your control unit to another HBC200 unit. Pairing process needs to be carried out only once unless the configuration of riders changes, as in you add more people to the group. In this case, it is best to reset and again pair units for intercom.
- Page 22 You can daisy-chain multiple HBC200 units to form bigger group intercom. A chain of 10 or more parties is achievable.To setup group intercom, you must first pair all the HBC200 units. Pairing process needs to be carried out only once. unless your group of riders changes.
- Page 23 Intercom Operations Enhanced Private Intercom This intercom contains two voice channels, one common channel and one private channel. By default, all the users are on common voice channel. You can enable the private voice channel by performing on-the-fly pairing. a) Make sure all intercom units are powered on & PAIRED UP. Common Channel Mode by default b) Connect all the intercom units by pressing...
- Page 24 *Note: HFP mode is the simple mode just like paring to a mobile phone. Refer to other brands owner manuals for instructions** b) Powered on your UClear HBC by pressing & holding the power button for 8-10 seconds.You will be notified by blinking purple LED.
-
Page 25: Other Functions
*Note: To make calls through the HBC200, you may need to pair your mobile phone to the GPS followed by pairing the GPS to the HBC200. Pair the phone to the GPS device by following the instructions of the GPS device. -
Page 26: Button Configurations Summary
Button Configurations Summary Action Button Common Instruction Commands Power on Hold Answer for 2 seconds Power off Hold Answer for 5 seconds Activate Bluetooth Pairing Hold Up & Down for 2 seconds Volume up Press Up once per level Volume down Press Down once per level Reset Press Answer, Up &... -
Page 27: Status Indicator Configurations Summary
Status Indicator Configurations Summary The table below shows the status indicator configurations. State Status Indicator Off (No Power) On (BT* not connected) Blink blue fast On (BT* connected) Blink blue slowly Phone & Music device Blink blue & red alternately Pairing mode Call in progress Blink blue very slowly... -
Page 28: Technical Data
Technical Data Unit Dimensions (L x W X H) 75mm x 45mm x 26mm Weight Audio Frequency response 30Hz to 20 kHz Sampling rate 48kHz, 16 bit 105dB +/- 2dB Bluetooth Specifications Version 2.1 EDR, Class 1 Profiles HSP, HFP, A2DP, AVRCP, Intercom Radio Carrier frequency... -
Page 29: Troubleshooting Operational Tips
Troubleshooting Operational Tips -During the group intercom session, if your phone causes problem to your HBC200, please disconnect your phone from the device. Notices Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. -
Page 30: Notices
Notices BATTERY WARNING: The UCLEAR helmet communicator contains a rechargeable lithium ion polymer battery. To reduce risks of fire or burns, do not disassemble, crush, puncture, short external contacts or dispose in fire or water. CHARGING NOTICE: To reduce the risk of personal injury, electrical shock, fire or damage to equipments, please follow all the instructions below: - Do not immerse the product, AC adaptor or speakers in water. - Page 31 LIMITATIONS OF WARRANTY: All product warranties for the product by are limited to those mentioned in the product manual. You must register your product upon purchase at uclear-digital.com, and warranty period is good for two years from purchase date. WAIVER AND DISCLAIMER:...
- Page 32 BITwave reserves the right to amend or improve the product design or user guide without any restrictions and without any obligation to notify users. All information here is accurate as of the date of printing. Please periodically check for the latest firmware version to receive feature enhancements on www.uclear-digital.com...
- Page 33 Notices PERSONAL SAFETY: Do not open the seal of the hardware, tamper, repair or modify any parts. Do not touch the product with metal objects or parts or chemical products. Violation of the above will lead to potential fire hazards and mishaps. Please contact the technical support or your local supplier if your product malfunctions.
- Page 34 Notices T ECHNICAL SUPPORT: For additional information please visit our website at www.uclear-digital.com For customer and technical support in the US and Canada, please contact: BITwave USA LLC 1093 E lron Eagle Dr. #115 Eagle, ID 83616 1-855-BIT-WAVE COPYRIGHTS: Copyright © 2014 BITwave Pte Ltd. All rights reserved. No part of this guide may be reproduced in any form or by any process whatsoever without prior written consent from BITwave Pte Ltd.
- Page 35 Notices LICENCES: The UCLEAR trademark and logo is exclusively owned by BITwave Pte Ltd. Any use of the mark by any other parties without prior written permission of BITwave Pte Ltd constitutes an infringement of legal rights. The Bluetooth trademark is owned by Bluetooth SIG and is used under licence by BITwave Pte Ltd.
- Page 36 ® US-PUB#200MAR14...
