Uclear HBC 100 User Manual

Helmet communicator
Hide thumbs Also See for HBC 100:

Advertisement

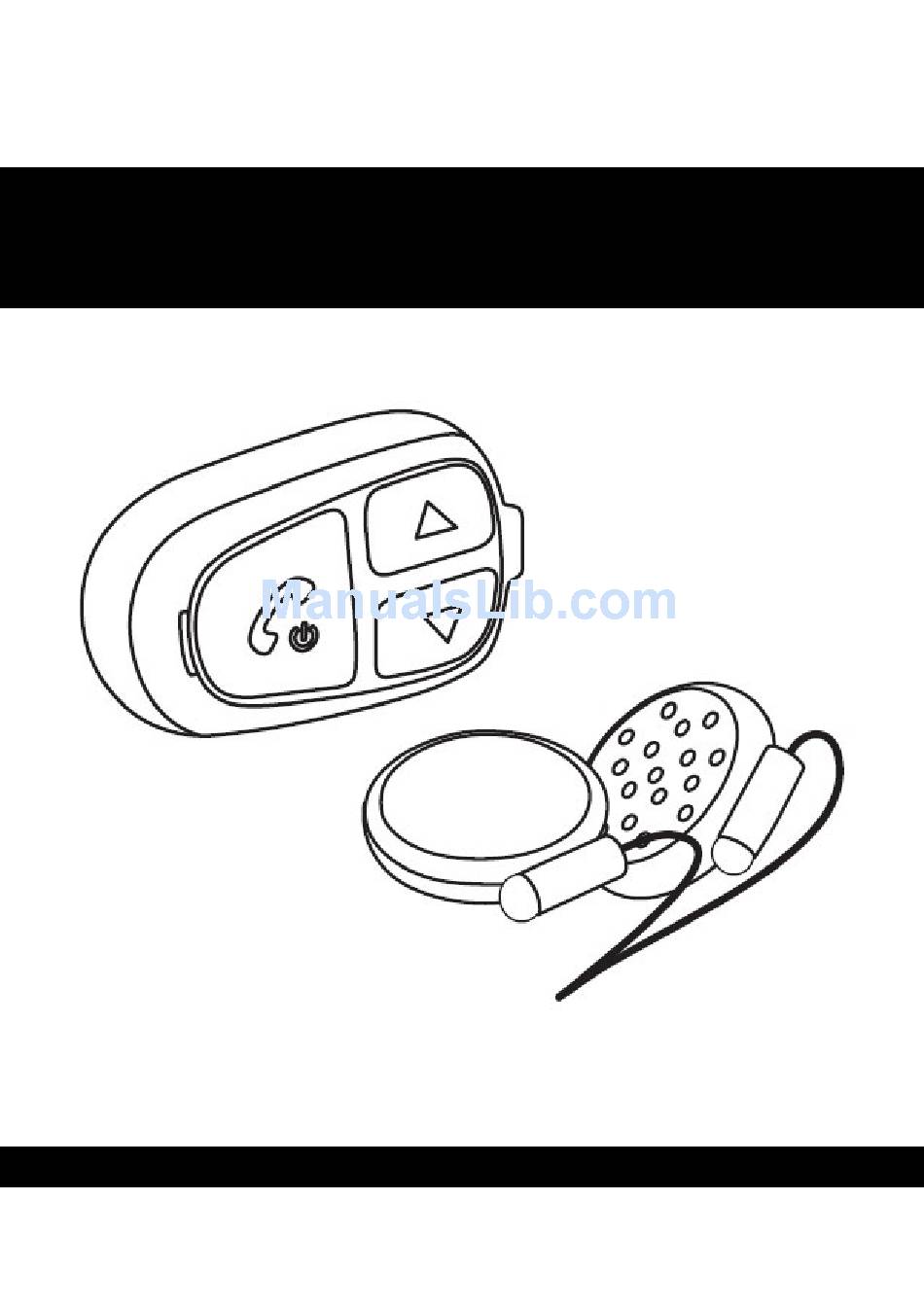

TM
UC
LEAR
Helmet Communicator
HBC 100
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HBC 100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Uclear HBC 100

  • Page 1 LEAR Helmet Communicator HBC 100 User Manual...
  • Page 2 Welcome to UC LEAR HBC100 Helmet Communicator User Manual Note LEAR...
  • Page 3: Table Of Contents

    Contents Contents --------------------------------------------- 2 Quick User Guide ------------------------------------ 3 Warnings and Safety Instructions ------------------ 7 Features --------------------------------------------- 9 Installation ------------------------------------------ 10 General Operations --------------------------------- 13 Mobile Phone Operations --------------------------- 15 Music Streaming Operations ----------------------- 17 Intercom Operations ------------------------------- Button Configurations Summary ------------------ Status Indicator Configurations Summary -------- 20 Technical Data -------------------------------------- 21 Notices ---------------------------------------------- 22...
  • Page 4: Quick User Guide

    Quick User Guide Your HBC100 at a glance Answer Up button button Speaker / Status charging socket indicator Down button ENERAL UNCTIONS Before using your HBC100 please charge it first! Attach Charger Charge o To charge, use the provided charging cable connecting it either to a USB port or to the adaptor provided.
  • Page 5: Power Off

    Hold Up and Down buttons together for 2 seconds. The status indicator would alternately blink blue and red. o From your mobile phone Bluetooth menu, search for ‘UCLEAR HBC100’. o Your phone would prompt you for a passcode, enter ‘0000’.
  • Page 6: Answer Incoming Call

    Quick User Guide Answer Incoming Call Last Number Redial o Use voice pickup, say ‘hello’ o Hold Answer and Up or ‘pickup’. button for 2 second. o Manually press Answer button once. Reject/ End Incoming Call o Hold Answer button for 2 seconds. 3 Way Calling Voice Dial o To...
  • Page 7 Quick User Guide Backtrack Fast Forward o Press the Down button o Press the Up button 2 times. 2 times. NTERCOM UNCTIONS Pairing your HBC100 to another HBC100 Helmet 2 Helmet 1 (Secondary Unit) (Master Unit) Pairing (Needs to be done once) o The helmet communicator needs to be switched off before performing the following steps: Press Answer and Down buttons for 5 seconds on...
  • Page 8: Warnings And Safety Instructions

    Warnings and Safety Instructions This manual uses the icons to highlight certain instructions. Below is an explanation of the icons. Attention - This icon highlights special instructions and precautions intended to avoid damage to the system. Non-compliance may void the product warranty. Warning - This icon provides precautions important to prevent injuries to the user.
  • Page 9 Warnings and Safety Instructions - Prolonged exposure to loud sounds may lead to permanent hearing damage. - Do not attempt to place an outgoing call through the mobile phone while riding on the motorcycle at any point of time. - Please do not use the UC helmet communicator in LEAR anyway that may distract you or hinder your judgment whilst...
  • Page 10: Features

    Features The UC helmet communicator has three main LEAR functions: to make mobile phone calls, to listen to music entertainment by wireless Bluetooth and for intercom talk. Mobile Phone Functions • Bluetooth phone audio capabilities, HFP & HSP Profile. • Voice activated call pick up. Music Streaming Functions •...
  • Page 11: Installation

    Installation The UC HBC100 helmet communicator package LEAR contains: A UC HBC100 helmet communicator LEAR control unit A pair of hi-fi stereo headset with embedded microphones Velcro for speakers A clip bracket and anti slip rubber patch A metal mounting bracket with double sided tape An AC charger and USB charging cable A user manual Install Speakers...
  • Page 12 Installation Your UC HBC100 helmet communicator package LEAR comes with 2 types of mounting bracket: a clip bracket and a metal mounting bracket. Use either of the brackets to install the HBC100 control unit onto your helmet. Install Clip Bracket •...
  • Page 13 Installation Install Metal Mounting Bracket • Identify a position on the helmet to adhere the Metal Mounting Bracket. • Peel off the double sided tape protective film. • Carefully place the Metal Mounting Bracket onto the position identified in step 1. (You may only do this step once) •...
  • Page 14: General Operations

    General Operations Your UC HBC100 helmet communicator is now setup LEAR and ready to go! Answer Up button button Speaker / Status charging socket indicator Down button The operations described here are applicable to all modes of operations. Power On •...
  • Page 15 General Operations • When the battery level is low, the status indicator would flash red twice every 2 seconds while emitting a warning beep every minute. Charging the Unit • To charge the helmet communicator, connect the provided charging cable to the speaker/ charging socket. Upon charging, if the unit is on, system would automatically initiate power down.
  • Page 16: Mobile Phone Operations

    The status indicator would blink blue and red alternately. • Next, turn on the mobile phone Bluetooth functions and search for Bluetooth devices. Select ‘UCLEAR HBC100’ to pair with the desired device. • When prompted to enter a passcode, enter ‘0000’.
  • Page 17 Mobile Phone Operations Voice Call • To activate voice call, hold the Down and Answer buttons for 2 second. The accuracy of this function is dependent on the mobile phone. Last Number Redial • To redial the last number, hold the Up and Answer buttons for 2 second.
  • Page 18: Music Streaming Operations

    Music Streaming Operations To use the helmet communicator with your music dongle you must connect them first wirelessly first by pairing. This step is only required for music streaming dongles. Pairing • To connect the helmet communicator to a music dongle, hold the Up and Down buttons for 2 seconds.
  • Page 19: Intercom Operations

    Intercom Operations To use the intercom profile on the helmet communicator for the first time, you would need to first connect the two helmet communicators wirelessly by pairing. LEAR Pairing • Pairing readies one UC helmet communicator to search LEAR for the other UC helmet communicator.
  • Page 20: Button Configurations Summary

    Button Configurations Summary The table below shows the button configurations. Action Button Common Instruction Commands Power on Hold Answer for 2 seconds Power off Hold Answer for 5 seconds Activate Bluetooth pairing Hold Up & Down for 2 seconds Volume up Press Up once Volume down Press Down once...
  • Page 21: Status Indicator Configurations Summary

    Status Indicator Configurations Summary The table below shows the status indicator configurations. State Status Indicator Off (No power) On (BT not connected) Blink blue fast On (BT connected) Blink blue slowly Phone & Music dongle Blink blue & red alternately Pairing mode Call in progress Blink blue very slowly...
  • Page 22: Technical Data

    Technical Data Unit Dimensions (L x W x H) 60mm x 40mm x 15mm Weight 30g/0.2lbs Audio Frequency response 30Hz to 20kHz Sampling rate 48kHz, 16 bit 105dB + 2dB 0.5% Bluetooth Specifications Version 2.1 EDR, Class 2 Profiles HSP, HFP, A2DP, AVRCP, Intercom Radio Carrier frequency 2.4 –...
  • Page 23: Notices

    Notices BATTERY WARNING: The UC helmet communicator contains a rechargeable LEAR lithium ion polymer battery. To reduce risks of fire or burns, do not disassemble, crush, puncture, short external contacts or dispose in fire or water. CHARGING NOTICE: To reduce the risk of personal injury, electrical shock, fire or damage to equipments, please follow all the instructions below: - Do not immerse the product, AC adaptor or speakers in water.
  • Page 24 Notices The sender will bear all transportation charges for functioning products but which were declared defective. LIMITATIONS OF WARRANTY: All product warranties for the product by UC are limited to LEAR those mentioned in the product manual. WAIVER AND DISCLAIMER: BITwave, FSC and all their representatives, agents, distributors, suppliers and resellers shall not be liable and will be held harmless from any and all litigation, claims, debts, demands,...
  • Page 25 Notices agents, distributors, suppliers, resellers and all others in its supply and distribution chain either due to the designer’s or manufacturer’s negligence or omissions or any third parties involved. Always comply with the local law and traffic regulations. Where use of the product is not permitted or allowed by any laws and regulations including the traffic laws of your country, we warn you not to go against such restrictions.
  • Page 26 All information here is accurate as of the date of printing. Please check for the latest version of any the modified or upgraded product on the website www.uclear-digital.com from time to time. PERSONAL SAFETY: Do not open the seal of the hardware, tamper, repair or modify any parts.
  • Page 27 Notices TECHNICAL SUPPORT: For additional information please visit our website at www.uclear-digital.com For technical support please contact us at: technical@uclear-digital.com COPYRIGHTS: Copyright © 2010 BITwave Pte Ltd & FSC. All rights reserved. No part of this guide may be reproduced in any form or by any process whatsoever without prior written consent from BITwave Pte Ltd and FSC.
  • Page 28 LEAR...
