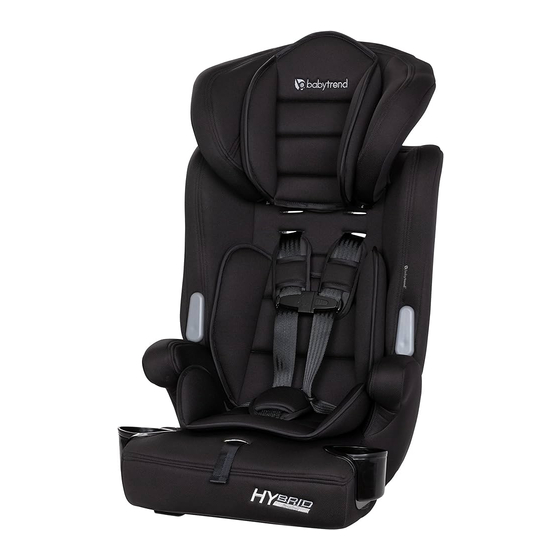

Baby trend hybrid 3-in-1 car seat owner's manual
Table of Contents

Advertisement

WARNING
Carefully read and understand all instructions and warnings in
this manual. Failure to properly use this Car Seat increases the
risk of SERIOUS INJURY or DEATH in a sudden stop or crash.
Store this manual in the pocket provided on the back of the seat.
KEEP INSTRUCTIONS FOR FUTURE USE.
Car Seat
Stage
1
Stage
2
Stage
3
Toddler Car Seat
with Built-in
High-back Booster
Car Seat
Backless Booster
Car Seat
Harness
OWNER'S MANUAL
www.babytrend.com o llamar al: 1-800-328-7363.
Para instrucciones en Español, conéctese a
Convenience through innovation and thoughtful design
www.babytrend.com
Store this manual in the pocket provided
on the side of the Car Seat Base.
Convenience through innovation and thoughtful design
Baby Trend, Inc.
1607 S. Campus Ave.,
Ontario, CA 91761
1-800-328-7363
(8:00am ~ 4:30pm PST)
www.babytrend.com
WARNING
Carefully read and understand all instructions and warnings in
this manual. Failure to properly use this Car Seat increases the
risk of SERIOUS INJURY or DEATH in a sudden stop or crash.
KEEP INSTRUCTIONS FOR FUTURE USE.
Store this manual in the pocket provided
on the side of the car seat base.
Car Seat
1
Stage
Stage
Toddler Car Seat
High-back Booster
with Built-in
Car Seat
Harness
OWNER'S MANUAL
Para instrucciones en Español, conéctese a
www.babytrend.com o llamar al: 1-800-328-7363.
FF0301D0114
Convenience through innovation and thoughtful design
www.babytrend.com
Copyright © 2013-2014, Baby Trend, Inc.
2
3
Stage
Backless Booster
Car Seat
EFB58FF0114U

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FB58944 and is the answer not in the manual?

Questions and answers

Summary of Contents for Baby Trend FB58944

  • Page 1 Convenience through innovation and thoughtful design www.babytrend.com o llamar al: 1-800-328-7363. FF0301D0114 Baby Trend, Inc. 1-800-328-7363 1607 S. Campus Ave., (8:00am ~ 4:30pm PST) Convenience through innovation and thoughtful design Ontario, CA 91761 www.babytrend.com www.babytrend.com Copyright © 2013-2014, Baby Trend, Inc. EFB58FF0114U...
  • Page 2: Table Of Contents

    Table of Contents Table of Contents Installation WITH LATCH 1.0 General Warnings and Information..........3 7.4.1 Installation - LATCH FRONT ENTRY Belt Routing....27 WARNINGS................5 7.4.2 Installation - LATCH REAR ENTRY Belt Routing....32 3.0 Features and Benefits Installation WITH Lap/Shoulder Belt 3.1 Toddler Car Seat................9 7.5.1 Installation - Lap/Shoulder Belt FRONT ENTRY 3.2 Toddler Car Seat................10...
  • Page 3: General Warnings And Information

    NEED HELP? requires that you read and understand this entire manual and Contact Baby Trend’s Customer Service Department at 1-800-328-7363 your vehicle’s owner’s manual before placing your child in the with any questions concerning your car seat. Please have the model seat.
  • Page 4: Warnings

    WARNINGS WARNINGS Failure to follow these instructions and Car Seat labels can result • Toddler Use Mode: in child striking the vehicle’s interior during a sudden stop or - Secure this car seat with the vehicle’s Child Restraint Anchor- crash. age System (LATCH) if available or with a vehicle belt.
  • Page 5 Car Seat in the home, on boats or other non-certified applications. • DO NOT use accessories or parts other than those provided by Baby Trend, Inc. Use of accessories or parts from other manufacturers could alter the performance and safety of the Car Seat.
  • Page 6: Features And Benefits

    Features and Benefits Features and Benefits Toddler Car Seat Toddler Car Seat (WITH Built-in Harness System) (WITH Built-in Harness System) Head Support Head Support Harness Strap Slots Back Support Top Tether Strap Harness Strap Covers Harness Clip Back Support Toddler Shoulder Belt Guide Belt Path Belt Path...
  • Page 7: High-Back Booster Car Seat

    Features and Benefits Features and Benefits High-back Booster Car Seat Backless Booster Car Seat (WITHOUT Harness System) (WITHOUT Harness System and Back Support) Head Support Shoulder Belt Guide Head Support Booster Shoulder Belt Shoulder Positioner Assembly Belt Guide Booster (Stored in Owner’s Shoulder Manual Storage Pocket) Belt Guide...
  • Page 8: Preparing Car Seat For Use

    Built-in Harness System “22 - 50 lbs.” (10 to 23 kg) (see Weight and Height Recommendations” section). • Select a vehicle seating location with a tether anchor, if available. Baby Trend requires using the tether for - Use Body Insert with smaller child. - Harness strap height must be at or installation whenever possible.
  • Page 9: Proper Use Check List

    Preparing Car Seat for Use Weight and Height Recommendations Proper Use Check List WARNING! Toddler Car Seat (WITH Harness) DEATH or SERIOUS INJURY can occur: Car seat is securely installed in vehicle. √ • FAILURE TO USE CHILD RESTRAINT IN A MANNER The correct belt routing for installation is used based on the √...
  • Page 10: Toddler Car Seat Use (With Built-In Harness System)

    127 cm). at or below top harness slots. Baby Trend and the American Academy of Baby Trend and the American Academy of Pediatrics recommend Pediatrics recommend using a Car Seat using a High-back Booster Car Seat as long as possible before...
  • Page 11: Backless Booster Car Seat Use (Without Built-In Harness System)

    See “Vehicle Seat Belts” section for more information on vehicle Baby Trend and the American Academy of Pediatrics recommend seat belts. using a Backless Booster Car Seat until the child reaches a standing height of 57 in.
  • Page 12: Overall Considerations For Selecting

    Installation with Top Tether is Recommended. vehicle with the LATCH in the Booster a. Baby Trend requires using the Top Tether provided with this use mode to 100 lbs. (45kg). car seat whenever possible. Installation of a car seat using...
  • Page 13: Seating Locations To Avoid

    Selecting a Vehicle Seating Location Toddler Car Seat (With Built-in Harness) Installation and Use Seating Locations to Avoid Proper Installation DO NOT use this Car Seat in the following seating locations. WARNING! • Never use this Car Seat in a vehicle seating • Proper installation is required. location that has an Active Frontal Air Bag unless Tether The belt routing for securing recommended in the vehicle owner’s manual.
  • Page 14: Installation Options Based On Child's Weight

    Note: Installation with Top Tether is recommended when a vehicle The belt path routing used to secure this car seat into tether anchor is available. a vehicle is dependent on the child’s WEIGHT Baby Trend requires using the Top Tether provided with this installation WITH WITHOUT the Top Tether.
  • Page 15: Rear Entry Belt Routing

    Toddler Car Seat (With Built-in Toddler Car Seat (With Built-in Harness) Installation and Use Harness) Installation and Use REAR ENTRY Belt Routing WARNING! 7.3.2 Back • From the rear of the car seat, Support • Only use the car seat LATCH System in vehicle seating insert the LATCH connector or positions designated by the vehicle manufacturer as LATCH the vehicle seat belt latch plate use positions and have anchor spacing of 11 inches (280 mm).
  • Page 16 Toddler Car Seat (With Built-in Toddler Car Seat (With Built-in Harness) Installation and Use Harness) Installation and Use 4. Place Top Tether Strap over the top of 10. Attach Top Tether Hook to vehicle tether Tether the Head Support and rest inside seating anchor .
  • Page 17: Installation - Latch Rear Entry Belt Routing

    Toddler Car Seat (With Built-in Toddler Car Seat (With Built-in Harness) Installation and Use Harness) Installation and Use To remove car seat: Installation - LATCH 7.4.2 REAR ENTRY Belt Routing 1. Loosen Top Tether by pressing the button Tether • Use this installation method when using WITH a on Tether Adjuster and sliding belt through Adjuster Top Tether for children 22 to 40 lbs.
  • Page 18 Toddler Car Seat (With Built-in Toddler Car Seat (With Built-in Harness) Installation and Use Harness) Installation and Use LATCH Connectors 2. If Tether will not be used store Top Tether by 8. Attach the LATCH connectors on the Lower securing Tether Hook on Tether Storage at Anchor Belt to the vehicle LATCH anchorages bottom of Back Support as shown.
  • Page 19: Installation With Lap/Shoulder Belt

    Toddler Car Seat (With Built-in Toddler Car Seat (With Built-in Harness) Installation and Use Harness) Installation and Use • If the car seat moves less than 1 inch, installation is Installation WITH Lap/Shoulder Belt complete. However if the car seat still moves more than 1 inch, try another seating position or see the Installation - Lap/Shoulder Belt 7.5.1 “Vehicle Seat Belts”...
  • Page 20 Toddler Car Seat (With Built-in Toddler Car Seat (With Built-in Harness) Installation and Use Harness) Installation and Use 3. Adjust the harness strap height for - Route Vehicle Lap/Shoulder Belt over your child – Harness straps MUST be at or top of the Harness Straps so that above the child’s shoulders (see “Changing Harness Straps are routed between...
  • Page 21 Toddler Car Seat (With Built-in Toddler Car Seat (With Built-in Harness) Installation and Use Harness) Installation and Use To remove car seat: 13. While holding the lap belt tight, pull slack out of shoulder belt and allow retractor to tighten shoulder belt.
  • Page 22: Installation - Lap/Shoulder Belt Rear Entry Belt Routing

    Toddler Car Seat (With Built-in Toddler Car Seat (With Built-in Harness) Installation and Use Harness) Installation and Use Installation - Lap/Shoulder Belt 3. Adjust the harness strap height for your 7.5.2 child – Harness straps MUST be at or REAR ENTRY Belt Routing above the child’s shoulders (see •...
  • Page 23: Installation With Lap Belt Only

    Toddler Car Seat (With Built-in Toddler Car Seat (With Built-in Harness) Installation and Use Harness) Installation and Use Installation WITH Lap Belt only 9. Place knee inside seat and while pressing down , pull on the vehicle shoulder belt just above the vehicle buckle to tighten the Installation - Lap Belt only...
  • Page 24 Toddler Car Seat (With Built-in Toddler Car Seat (With Built-in Harness) Installation and Use Harness) Installation and Use 3. Adjust the harness strap height for 8. Pull to check that the vehicle buckle your child – Harness straps MUST is securely locked. be at or above the child’s shoulders NOTE: If Lap belt is not long enough (see “Changing Harness Strap...
  • Page 25: Installation - Lap Belt Only Rear Entry Belt Routing

    Toddler Car Seat (With Built-in Toddler Car Seat (With Built-in Harness) Installation and Use Harness) Installation and Use Installation - Lap Belt only 13. Check for a secure installation by 7.6.2 grasping the car seat armrest and REAR ENTRY Belt Routing pushing side-to-side and front-to-back.
  • Page 26 Toddler Car Seat (With Built-in Toddler Car Seat (With Built-in Harness) Installation and Use Harness) Installation and Use 3. Adjust the harness strap height for your 10. If installing with Top Tether, attach Top child – Harness straps MUST be at or Tether Hook to vehicle tether anchor above the child’s shoulders (see .
  • Page 27: Securing Your Child

    Toddler Car Seat (With Built-in Toddler Car Seat (With Built-in Harness) Installation and Use Harness) Installation and Use To remove car seat: Securing your Child 1. Loosen Top Tether by pressing the button on Tether Adjuster and sliding belt through Minimum Use Recommendations Tether adjuster...
  • Page 28 - DO NOT use the Car Seat if the provided by Baby Trend. harness buckle does not lock • Do not use Car Seat with harness straps loose or unbuckled. securely. Contact Baby Trend at Harness straps MUST be snug and positioned over shoulders Buckle 1-800-328-7363 for assistance.
  • Page 29 Toddler Car Seat (With Built-in Toddler Car Seat (With Built-in Harness) Installation and Use Harness) Installation and Use 5. Close Harness Clip and position as 4. Snugly adjust harness around your child by pulling the harness close to arm pit level as possible adjuster strap at front of car seat shown.
  • Page 30: Booster Car Seat (Without Built-In Harness System)

    Toddler Car Seat (With Built-in Booster Car Seat Harness) Installation and Use (Without Built-in Harness) Installation and Use To remove your child: WARNING! 1. Unbuckle Harness Clip – press on the tabs in the top and bottom of the Harness DEATH or SERIOUS INJURY can occur: Clip and pull apart...
  • Page 31: High-Back Booster Car Seat

    Booster Car Seat Booster Car Seat (Without Built-in Harness) (Without Built-in Harness) Installation and Use Installation and Use WARNING! NOTE: LATCH or Top Tether may be used to secure the High-back Booster Car Seat in position. Securing the High-back Booster Car Seat in the vehicle can make it easier for a child to get in DEATH or SERIOUS INJURY can occur: and out of the High-back Booster Car Seat (see, Section 7.3.1).
  • Page 32 Booster Car Seat Booster Car Seat (Without Built-in Harness) (Without Built-in Harness) Installation and Use Installation and Use 5. If the vehicle seat back is adjustable, adjust 9. Adjust Head Support so that the vehicle into the upright position or the position shoulder belt passes over the shoulder specified in the vehicle owner’s manual midway between the neck and the end...
  • Page 33: Backless Booster Car Seat

    Booster Car Seat Booster Car Seat (Without Built-in Harness) (Without Built-in Harness) Installation and Use Installation and Use 11. Check fit of the vehicle seat belts on child: Backless Booster Car Seat (WITHOUT Built-in - Vehicle lap belt must be low on hips contacting the thighs. Harness) Installation and Use - Vehicle shoulder belt must contact the chest and be centered on the shoulder.
  • Page 34 Booster Car Seat Booster Car Seat (Without Built-in Harness) (Without Built-in Harness) Installation and Use Installation and Use 7. Pull the vehicle lap/shoulder belt across front 2. Tuck harness adjustment belt up under front of of child and buckle vehicle seat belt. the seat base.
  • Page 35: Vehicle Seat Belts

    Booster Car Seat Vehicle Seat Belts (Without Built-in Harness) Installation and Use Check that the Vehicle Seat Belt is Safe to Use Toddler Car Seat use (WITH Built-in Harness) . Check fit of the vehicle seat belts on child: The Car Seat must be tightly secured at all times. The vehicle seat - Vehicle lap belt must be low on hips belt must be capable of maintaining tight installation at all times.
  • Page 36 Use of a Belt Locking Clip may be required. but once fastened, must be unbuckled Belt Locking clip and allowed to retract fully before allowing Contact Baby Trend Customer Service the belt to be lengthened again. Department to obtain a Belt Locking Clip if needed.
  • Page 37 Vehicle Seat Belts Vehicle Seat Belts Combination Lap/Shoulder Belt With Retractor: Unsafe Seat Belt Systems: DO NOT use a vehicle lap/shoulder belt system if the lap belt and shoulder DO NOT use the following types of vehicle seat belt systems with the belt each have retractors at one end.
  • Page 38 Vehicle Seat Belts Vehicle Seat Belts Lap Belts Located Forward of Seat Crease: If you have any of the above vehicle seat belt systems, DO NOT use it to secure the Car Seat in the vehicle. Look in the vehicle for a location that has a more suitable vehicle seat belt system as described DO NOT use a vehicle seat belt that is in the “Vehicle seat belt Systems that are Adequate for installation of...
  • Page 39: Operation And Adjustments

    Operation and Adjustments Operation and Adjustments 10.0 10.0 10.1 Assembly and Removal of Back Support 10.2 Changing Harness Strap Adjustment WARNING! Before using your Car Seat in your vehicle, you must assemble the Back Support and prepare the Car Seat harness straps for your child. To assemble Back Support: •...
  • Page 40: Changing Harness Strap Height

    Operation and Adjustments Operation and Adjustments 10.0 10.0 10.3 Changing Harness Strap Height 3. Check that the Harness Straps are snugly adjusted. The harness strap is properly tightened if you are not able to insert more than one finger between the harness strap WARNING! and the child’s shoulder or thigh. DEATH or SERIOUS INJURY can occur: •...
  • Page 41 Operation and Adjustments Operation and Adjustments 10.0 10.0 To re-attach Harness Straps in the new height positions: The harness can be adjusted to four different heights. The proper height of the harness straps is at or just above your child’s shoulders. If your child’s shoulders are between two levels, always use the higher of the two.
  • Page 42: Harness Removal And Assembly

    Operation and Adjustments Operation and Adjustments 10.0 10.0 10.4 Harness Removal and Assembly e. Remove lower end of harness strap and Crotch Belt. Harness Removal: - From bottom of Seat Base, pull the metal harness retainer away from the a. Buckle harness and chest clip to hold harness bottom of the Seat Base.
  • Page 43: Harness Assembly

    Operation and Adjustments Operation and Adjustments 10.0 10.0 Harness Assembly: - Slide the metal harness retainer through the harness slot opening in the Seat Pad and Seat Base. WARNING! - Pull the metal harness retainer down through the harness slot on the shoulder away from the bottom of the Seat Base, •...
  • Page 44: Adjusting The Head Support

    Operation and Adjustments Operation and Adjustments 10.0 10.0 - From back of car seat, pull Harness 10.5 Adjusting the Head Support Straps through the Harness Strap Slots in back support until you have enough The Head Support on this Car Seat is designed to provide maximum strap to reach the Belt Adjuster Plate.
  • Page 45 Operation and Adjustments Operation and Adjustments 10.0 10.0 To attach vehicle Shoulder Belt Positioner: Use and Adjustment of Shoulder Belt Positioner • Attaching the Shoulder Belt - Insert the vehicle shoulder belt into both Positioning Clip to backless booster: sides of the clip. Free end - Lay Shoulder Positioning Belt Clip - Pull the free end of the strap down to out on flat surface with free end...
  • Page 46: Additional Information

    Additional Information Cleaning and Maintenance 11.0 12.0 11.1 Certifications 12.0 Cleaning and Maintenance This Car Seat conforms to all Federal Motor Vehicle Safety The hard surfaces of the Car Seat (plastic components and metal Standards for use in motor vehicles and aircraft. See use modes parts) except the Buckle, may be cleaned by wiping below: with a solution of water with mild soap.
  • Page 47 Air dry. • Slide back support pad off of back support. DO NOT launder the straps as they may become damaged or To Remove Vehicle Shoulder Belt Positioner: weakened. Contact Baby Trend customer service or order • From back of car seat, unthread the Shoulder Belt Positioner replacement straps. from the loop end. • Store the Shoulder Belt Positioner in pouch located on side of...
  • Page 48: Replacement Parts

    Send your name, address, e-mail address if available, and the restraint’s model number and manufacturing date to: Baby Trend, Inc., 1607 S. Campus Avenue, Ontario, CA 91761 or call 1-800-328-7363 or register online at: http://www.babytrend.com/registration.html.
