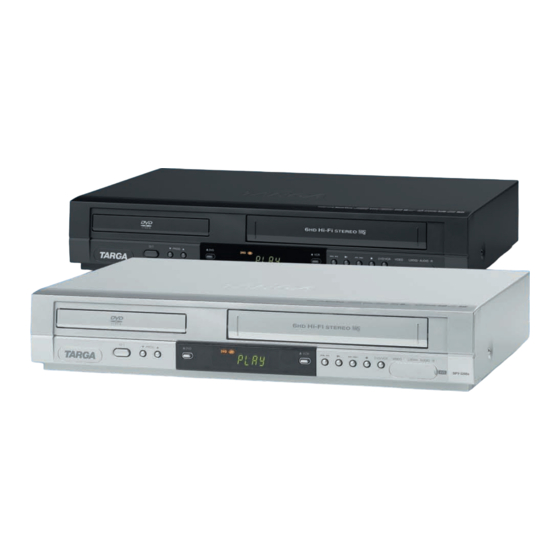

Targa DPV-5200 Series User's Manual And Service Information
  1. Manuals
  2. Brands
  3. Targa Manuals
  4. DVD VCR Combo
  5. DPV-5200 Series
  6. User's manual and service information

Targa DPV-5200 Series User's Manual And Service Information

Digital video disc player
Hide thumbs
Table of Contents

Advertisement

Quick Links

TARGA GmbH
Lange Wende 41
D-59494 Soest
www.targa-online.com
Targa DPV-5200x
User's guide and service information
Front panel connections
Rear Panel
1. Disc Tray
1. AERIAL
Insert a disc here.
Connect the aerial using this jack.
2. 1/I
2. RF.OUT
Switches the unit to ON or OFF.
Connect to your TV using this jack.
3. PROG. (V
v)
3. VIDEO/AUDIO OUT(Left/Right) (DVD/VCR OUT)
/
Channel Programme Selectors.
Connect to a TV with video and audio inputs.
4.
DVD
4. COMPONENT/PROGRESSIVE SCAN VIDEO OUT (Y Pb Pr)
Opens or closes the disc tray.
(DVD EXCLUSIVE OUT)
5. Display window
Connect to a TV with Y Pb Pr inputs.
Shows the current status of the unit.
5. COAXIAL (Digital audio out jack) (DVD EXCLUSIVE OUT)
DVD:
Connect to digital (coaxial) audio equipment.
DVD deck is selected.
:
6. AUDIO OUT (Left/Right) (DVD EXCLUSIVE OUT)
A disc is loaded in the DVD deck.
[P]:
Connect to an amplifier, receiver or stereo system.
Indicates the Progressive Scan is set to On
7. EURO AV2 DECODER
mode.
:
AV2/Decoder connector to connect an external device
Indicates repeat mode.
:
or to connect a decoder to watch encrypted broadcasting channels.
DVD+VCR is in timer recording or a timer
8. EURO AV1 AUDIO/VIDEO (VCR IN+OUT / DVD OUT)
recording is programmed.
:
Connect to your TV set or another video recorder.
A Cassette is in the VCR deck.
9. AC Power Cord
VCR:
VCR deck is selected.
Connect to a power source.
REC:
VCR recording is engaged.
DVD to VHS copy is in progress.
TV:
Indicates TV mode.
(See Notes on page 22.)
:
Indicates total playing time/elapsed
time/current time.
6. Remote Sensor
Point the remote control here.
7.
Tape Compartment
8.
VCR
Tape Eject
9. .
. / / m
m
Go to beginning of current chapter/track or to
PREVIOUS chapter/track.
Press and hold for two seconds for a fast reverse
search. Rewinds the tape.
10. N
N
Starts playback.
11. M
M / / >
>
Go to NEXT chapter/track.
Press and hold for two seconds for a fast
forward search. Winds the tape forwards.
12. x x
Stops playback.
13. DVD/VCR
DVD/VCR Selector
14.
Video IN Jack
15.
Audio IN (L/R) Jacks

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DPV-5200 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Targa DPV-5200 Series

Summary of Contents for Targa DPV-5200 Series

  • Page 1 Targa DPV-5200x Front panel connections Rear Panel 1. Disc Tray 1. AERIAL Insert a disc here. Connect the aerial using this jack. User's guide and service information 2. 1/I 2. RF.OUT Switches the unit to ON or OFF. Connect to your TV using this jack.
  • Page 2 Remote control - Overview POWER DISPLAY CLK/CNT Switch this unit ON or OFF. OPEN/CLOSE Access the On-Screen Display. Shows you the current time or counter. EJECT b / B / v / V(left/right/up/down) Open or close the disc tray. Select an item in the menu. Tape Eject.

  • Page 3: Important Instructions

    Important Instructions The following instructions should be read before the Do not use any extension cords. product is operated. The wall outlet must be easily accessible. This instruction manual should be retained for future The switch on the device does not completely reference.

  • Page 4: Safety Precautions

    Safety Precautions SERIAL NUMBER: The serial number is found on the back of CAUTION this unit. This number is unique to this unit and not available to others. You should record requested information here and RISK OF ELECTRIC SHOCK retain this guide as a permanent record of your purchase. DO NOT OPEN Model No.

  • Page 5: Table Of Contents

    Table of Contents Introduction Operation Safety Precautions ......3 Operation with tape ..... 21-24 Table of Contents .

  • Page 6: Before Use

    Before Use To ensure proper use of this product, please read this Notes on Discs owner’s manual carefully and retain for future reference. Handling Discs This manual provides information on the operation and Do not touch the playback side of the disc. Hold the disc maintenance of your DVD player.

  • Page 7: Types Of Playable Discs

    Before Use (Continued) Types of Playable Discs Notes on Copyrights: It is forbidden by law to copy, broadcast, show, broad- cast via cable, play in public, or rent copyrighted materi- al without permission. This product features the copy (8 cm / 12 cm disc) protection function developed by Macrovision.

  • Page 8: Front Panel

    Front Panel 6 7 8 9 10 11 12 13 14 1. Disc Tray 6. Remote Sensor Insert a disc here. Point the remote control here. 2. 1 1 / / I 7. Tape Compartment Switches the unit to ON or OFF. 3.

  • Page 9: Remote Control

    Remote Control POWER DISPLAY Switch this unit ON or OFF. CLK/CNT OPEN/CLOSE Access the On-Screen Display. Shows you the current time or counter. EJECT Open or close the disc tray. F G D E (left/right/up/down) Select an item in the menu. Tape Eject.

  • Page 10: Rear Panel

    Rear Panel AERIAL Connect the aerial using this jack. VIDEO/AUDIO OUT(Left/Right) (DVD/VCR OUT) Connect to a TV with video and audio inputs. COMPONENT/PROGRESSIVE SCAN VIDEO OUT (Y Pb Pr) (DVD EXCLUSIVE OUT) Connect to a TV with Y Pb Pr inputs. AUDIO OUT (Left/Right) (DVD EXCLUSIVE OUT) Connect to an amplifier, receiver or stereo system.

  • Page 11: Connections

    Connections Caution: DVD exclusive out connection Make sure this unit is connected directly to the TV. Set Component Video connection the TV to the correct video input channel. 1. Connect the COMPONENT/PROGRESSIVE SCAN Do not connect this unit’s AUDIO OUT jack to the VIDEO OUT jacks on the DVD Player to the phone in jack (record deck) of your audio system.

  • Page 12: Connecting To Optional Equipment

    Connections (Continued) Connecting to Optional Equipment Rear of this unit Connecting to an amplifier equipped with two chan- nel analog stereo or Dolby Pro Logic II/Pro Logic Connect the Left and Right DVD/VCR AUDIO OUT or AUDIO OUT (DVD EXCLUSIVE OUT) jacks on this unit to the audio left and right in jacks on your amplifier, receiver or stereo system, using the audio cables.

  • Page 13: Before Operation-Vcr Part

    Before Operation-VCR part Tuning in a video channel on your Using your VCR for the very first time Video channel (RF output channel) is the channel on Following picture will display on the TV screen when which your TV receives picture and sound signals from you have just connected your video recorder for the the DVD+VCR through the RF cable.

  • Page 14: Setting The Clock Manually

    Before Operation-VCR part Setting the clock Manually To set the colour system The clock in your DVD+VCR controls time and date set- 1. Press i. tings for your DVD+VCR. 2. The main menu will appear on the TV screen. The clock is set automatically during ACMS (Automatic Channel Memory System) when your DVD+VCR 3.

  • Page 15: How To Use The Main Menu

    Before Operation-VCR part How to use the main menu Tuning in TV Stations Automatically This DVD+VCR can easily be programmed by using the If the TV broadcast signal is weak your DVD+VCR may menus displayed on screen. not detect the necessary information and will not be able The menus are controlled by the Remote Control to store them correctly.

  • Page 16: Tuning In Tv Stations Manually

    Before Operation-VCR part Tuning in TV Stations Manually In certain areas of the country broadcast signals may STATION be too weak for your DVD+VCR’s automatic tuning process to find or assign TV stations correctly. You must tune in these weaker broadcast stations man- CHANNEL/CABLE : AV P SET ually in order for your DVD+VCR to store them.

  • Page 17: Changing The Order Of Tv Stations

    Before Operation-VCR part Changing the order of TV Stations Deleting TV Stations After tuning TV stations into your DVD+VCR you may After tuning TV stations into your DVD+VCR you may wish to change the order in which they are stored with- wish to delete a station.

  • Page 18: Before Operation-Dvd Part

    Before Operation-DVD part Displaying Disc Information Initial Settings on-screen By using the DVD Setup menu, you can make various adjustments to items such as picture and sound. You can You can display various information about the disc also set a language for the subtitles and the Setup menu, loaded on-screen.

  • Page 19: Language

    Before Operation-DVD part LANGUAGE Progressive Scan Progressive Scan Video provides the highest quality pic- LANGUAGE tures with less flickering. English Menu Language If you are using the Component Video jacks for connec- Disc Audio Original tion to a TV or monitor that is compatible with a progres- Disc Subtitle sive scan signal, set Progressive Scan to On.

  • Page 20: Audio

    Before Operation-DVD part AUDIO LOCK (Parental Control) Each DVD disc has a variety of audio output options. LOCK Set this unit’s AUDIO options according to the type of Unlock Rating audio system you use. Password Area Code AUDIO Dolby Digital Bitstream Bitstream MPEG...

  • Page 21: Area Code

    Before Operation - DVD part DivX(R) VOD Area Code We provide you the DivX ® VOD (Video On Demand) Enter the Area Code whose standards were used to registration code that allows you to rent and purchase rate the DVD video disc, based on the list in the videos using the DivX ®...

  • Page 22: Operation With Tape

    Operation with tape Playing a tape , Shuttle : 6. Slow motion playback During playing back or still picture press You will only be able to load and eject video cassettes You can reach the following playback speeds. when your DVD+VCR is plugged into the mains. (REV, PB 5-, PB 1-, Still, SLW, PLAY, 2PLY, CUE) Your DVD+VCR may also playback recordings from To switch off the slow motion and shuttle, press the...

  • Page 23: Instant Timer Recording

    Operation with tape Instant Timer Recording (ITR) 7. Press PAUSE/STEP to avoid recording unwanted scenes. Press PAUSE/STEP to continue recording. Your DVD+VCR allows you to make recordings using a variety of simple methods: Caution: If the key PAUSE/STEP is pressed for more than 5 seconds the recording is stopped and Instant Timer Recording (ITR) start recording immedi- must be continued manually.

  • Page 24: Video Plus+ Programming

    Operation with tape VIDEO Plus+ Programming 6. Press to select the recording speed. in Timer menu = VPS activated; no in Timer VIDEO Plus+ greatly simplifies entering the date, menu = VPS deactivated) channel, start and end times of a Timer Recording by Press to select the desired tape speed simply entering PlusCode Programming numbers.

  • Page 25: Timer Recording Using On Screen Display

    Operation with tape Timer recording using On Screen DATE T I M E Display PR-03 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - You may set up to seven timer record events - - - - - - - -...
  • Page 26 Operation with tape Timer recording using On Screen Programme Delivery Control (PDC) The Programme Delivery Control (PDC) system Display (Continued) adjusts the start and end times of a timer record event. This can be particularly useful with sports 9. Press i to set another timer record event and follow events which may run over into extra time.

  • Page 27: Additional Operation - Vcr Part

    Additional Operation - VCR part Hi-Fi Stereo Sound System Tape Counter Memory Stop Your VCR will record and playback Hi-Fi stereo sound. The Digital Tape Counter can be displayed on the dis- In addition it has a stereo NICAM digital stereo sound play window instead of the time by pressing CLK/CNT decoder.

  • Page 28: Video Doctor (Self-Diagnosis)

    Additional Operation - VCR part Video Doctor (Self-Diagnosis) Wide Screen Compatibility 16:9 This feature informs you that there is a problem with your Your DVD+VCR can record and play back wide screen DVD+VCR. These error messages will appear on the TV aspect ratio programmes (16:9).

  • Page 29: Recording From External Components

    Additional Operation - VCR part Recording from External Components Copying from DVD to VCR You can record from an external component, such as a You can copy the contents of a DVD to a VHS tape. camcorder or VCR, connected to any of the DVD+VCR’s 1.

  • Page 30: General Playback Features - Dvd Part

    General Playback features - DVD Part Buttons Operations Discs Z (OPEN / CLOSE) Opens or closes the disc tray. X (PAUSE) During playback, press X to pause playback. Press X repeatedly to play Frame-by-Frame. DivX . / > During playback, press . or > to go to the next chapter/track or to return to the beginning of the current chapter/track.

  • Page 31: Playing A Dvd Or Video Cd

    Playing a DVD or Video CD Notes on general features: Marker Search DivX • On a Video CD with PBC, you must set PBC to Off on To enter a Marker the setup menu to use the repeat function (See “PBC” You can start playback from up to nine memorized on page 20).

  • Page 32: Playing An Audio Cd Or Mp3/Wma File

    Playing an Audio CD or MP3/WMA file This unit can play Audio CDs or MP3/WMA files record- Programmed Playback ed media. The program function enables you to store your favorite MP3/ WMA/ Audio CD tracks from any disc in the player memory. Once you insert an MP3/WMA files recorded media or A program can contain 30 tracks.

  • Page 33: Viewing A Jpeg File

    Viewing a JPEG file This unit can play JPEG files recorded media. Moving to another File 1. Insert a JPEG files recorded media. The PHOTO Press . or > or cursor (b or B) once while view- menu appears on the TV screen. ing a picture to advance to the next or previous file.

  • Page 34: Playing A Divx Movie File

    Playing a DivX Movie file Using this DVD Player you can play DivX file. DivX disc compatibility with this player is limited 1. Insert a DivX file recorded media. The MOVIE menu as follows: appears on the TV screen. • Available resolution size of the DivX file is under MOVIE 720x576 (W x H) pixel.

  • Page 35: Playing A Dvd Vr Format Disc

    Playing a DVD VR format Disc This unit will play DVD-R/RW discs recorded using the DVD-Video format that have been finalized using a DVD-recorder. • This unit will play DVD-RW discs recorded using the Video Recording (VR) format. 1. Insert a disc and close the tray, It start playing automatically.

  • Page 36: Additional Operation

    Additional Operation Maintenance and Service Refer to the information in this chapter before contacting a service technician. Handling the Unit When shipping the unit Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory.

  • Page 37: Language And Area Code List

    Language and Area Code List Language Code List Use this list to input your desired language for the following initial settings: Disc Audio, Disc Subtitle, Disc Menu. Language Code Language Code Language Code Language Code Abkhazian 6566 Fiji 7074 Lingala 7678 Singhalese 8373...

  • Page 38: Troubleshooting

    Troubleshooting Check the following guide for the possible cause of a problem before contacting service. Symptom Cause Correction No power. Plug the power cord into the wall outlet The power cord is disconnected. securely. The power is on, but No disc is inserted. Insert a disc.

  • Page 39: Specification

    Audio -6.0dBm, less than 1 kohms (SCART) Video 1.0Vp-p, 75 ohms, unbalanced (SCART) RGB output 0.7 Vp-p, 75 ohms Design and specifications are subject to change without notice. P/NO : 3834RV0038U TARGA GmbH Lange Wende 41 59494 Soest Germany www.targa-online.com...
