iPECS Communicator for iOS
Installation and Operation Guide
Please read this manual carefully before
operating your set. Retain it for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Communicator for iOS and is the answer not in the manual?

Questions and answers

Related Manuals for iPECS Communicator for iOS

Summary of Contents for iPECS Communicator for iOS

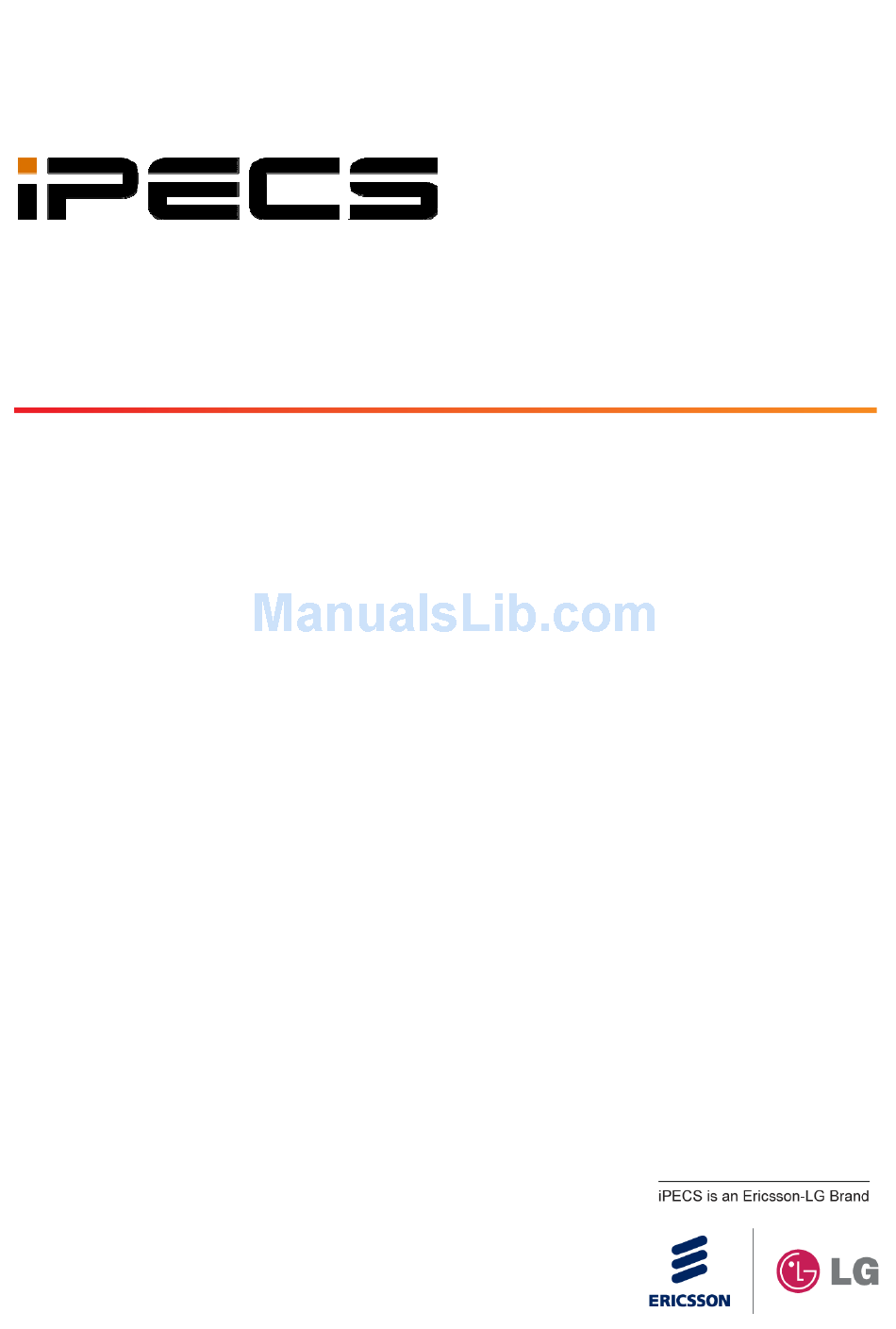

  • Page 1 Communicator for iOS Installation and Operation Guide Please read this manual carefully before operating your set. Retain it for future reference.

  • Page 2: Revision History

    Communicator for iOS Installation and Operation Guide Issue 1.2 Revision History Issue Date Description of Changes Sep, 2012 Initial Release Jan,2013 General update Mar, 2012 3.4 Transfer a call: The description is changed that screened transfer is not supported.

  • Page 3: Table Of Contents

    Communicator for iOS Installation and Operation Guide Issue 1.2 Table of contents 1. Introduction ........................1 iPECS Communicator Client Screen ..................2 2. Installation ........................3 Hardware requirements ......................3 iPECS Client Download ......................4 Client Account Configuration and Registration ................ 6 3.
  • Page 4 Communicator for iOS Installation and Operation Guide Issue 1.2 5.2.2 Codecs settings for Cell network ....................19 SSDP and Trunk Access settings ..................... 19 Appendix A - Status and Notifications Icons ..............20 Appendix B - Troubleshooting ..................21...

  • Page 5: Introduction

    Communicator and iPECS-MG. There are differences in the functions depending on which host iPECS Communicator system is used, and the function screen may be different as a result. Basic features of the iPECS host available to include: iPECS Communicator ...

  • Page 6: Ipecs Communicator Client Screen

    Communicator for iOS Installation and Operation Guide Issue 1.2 iPECS Communicator Client Screen main screen displays various function modules to enable simple and effective use. iPECS Communicator’s Each of the modules is depicted in the diagram below. For reference purposes, Appendix A presents a list of icons for the Status bar.

  • Page 7: Installation

     Download the iPECS Communicator iOS application, section 2.2  Configure the client and register with the iPECS host, section 2.3 Hardware requirements The minimum and recommended Smartphone requirements to operate iPECS Communicator are as follows. The application has been operated with LGE and other Smartphone brands. For a list of compatible models, contact your LG-Ericsson representative.

  • Page 8: Ipecs Client Download

    Communicator for iOS Installation and Operation Guide Issue 1.2 iPECS Client Download iPECS Communicator application is downloaded directly to the Smartphone from the Apple Application Store, generally displayed on the Smartphone as the ‘App Store’. Once downloaded, the client application will be available for execution on the phone.
  • Page 9 Communicator for iOS Installation and Operation Guide Issue 1.2 4. In the Apps description screen touch Free and Install Button. 5. When the installation is complete, verify the iPECS Communicator icon appears in the Smartphone Desktop; Touching the icon opens...

  • Page 10: Client Account Configuration And Registration

    3. In the Accounts menu, select “Add Account”. In the Add Account screen, enter values for the Server address (Domain), User Id (Username) and other Account parameters to match the iPECS host system. Advanced account settings are available under “Additional” submenu.
  • Page 11 Communicator for iOS Installation and Operation Guide Issue 1.2 To use TCP mode for lower battery consumption in background mode 1. In the Accounts menu, select “Advanced” in the iPECS Communicator Accounts menu. 2. Select “Background” in Advanced menu. In the Background screen, select “for TCP and TLS”...
  • Page 12 Smartphone’s WiFi radio to communicate with the host iPECS system. If no WiFi network is available and 3G/4G mobile data service is enabled, the client attempts to employ the mobile data service to register and connect to the host iPECS system.

  • Page 13: Basic Phone Functions

    CO iPECS Communicator lines and trunks of the iPECS host. Calls can be placed by dialing the number with the dial pad, selecting a number from the Call Log or Contacts lists.

  • Page 14: Place A Call On Hold

    To access a held call, touch the “hold” button again. Transfer a Call You can send an active call to another user of the iPECS host. You can transfer the call without announcing it to the receiver. To transfer the active call, 1.

  • Page 15: Conference Calls

    When the cellular call is received, the Incoming call selection screen appears. You can select the green button to accept the call or the red button to reject the call. Note:  When an iPECS call is received during a cellular call, the Smartphone will not recognize or notify you of the incoming call.

  • Page 16: Other Phone Functions

    Messages Waiting icon when notified of new voice messages. To access your voice mail: 1. Select voice messages button to place a call to Voicemail IVR 2. You are connected to your voice mail through the iPECS host. Recent Calls Log When a call is placed or received, iPECS Communicator generates a call record that is stored in the Recent Calls Log.
  • Page 17 Communicator for iOS Installation and Operation Guide Issue 1.2 To view and manage your Contact list, Select the “Contacts” button. This will display the Contact list. The user can select the type of call records to view by selecting the filter type desired (All, Favorites) and add new contact by selecting “+”...

  • Page 18: Short Message Service (Sms)

    + button to select from contacts. 4. Touch the message box and enter your message. 5. Touch “Send” button. Notes:  A message can contain no more than 80-bytes with the iPECS system.

  • Page 19: Call Recording

    Communicator memory. The recording is stored in the iPECS-Communicator shared documents directory and it is available from iTunes to download as WAV file. The file is named with the year, month, day, minute and second the recording was started.
  • Page 20 Communicator for iOS Installation and Operation Guide Issue 1.2 To remove recorded calls (for example: when device memory is full), simply go to calls history, choose edit in bottom right corner of the screen and remove recorded call by clicking on the remove icon, which has appeared...

  • Page 21: Advanced Client Settings

    -For TCP, TLS and UDP  -For TCP and TLS  -Off, but allow to finish a call. In case you do not need to run iPECS in background, you can always turn off background mode and save your battery.

  • Page 22: Enable Mobile Data

    As a default, iPECS Communicator employs an available WiFi network to register and connect to the resources of the host iPECS platform. If enabled, can register and connect to the iPECS Communicator host employing the cellular carrier mobile data network. To allow operation of iPECS Communicator over the mobile data network, check Enable mobile data.

  • Page 23: Media Settings

    When the Trunk Access code is configured and seven or more digits are used in the Station Numbering Plan of the iPECS host, the client can be configured not to insert the access code when the digit pattern matches the start digits of a Station number. For this, the client must be configured with the first digits of stations with more than a six-digit number, the Station Start Digit Pattern.

  • Page 24: Appendix A - Status And Notifications Icons

    Appendix A - Status and Notifications Icons Below is a description of the icons shown in the iPECS Communicator Registration icon, green indicates registered with iPECS host Registration icon, grey indicates not registered SMS, one or more SMS messages have been received...

  • Page 25: Appendix B - Troubleshooting

    The call does not end using the End button While on a call the End button does not terminate the call. If the connection to the iPECS host is lost during a call due to loss of the wireless connection or other network problem, the End button will not terminate the call.
  • Page 26 The contents of this document are subject to revision without notice due to continued progress in methodology, design and manufacturing. Ericsson-LG shall have no liability for any error or damage of any kind resulting from the use of this document. www.ericssonlg.com Posted In Korea ©...
