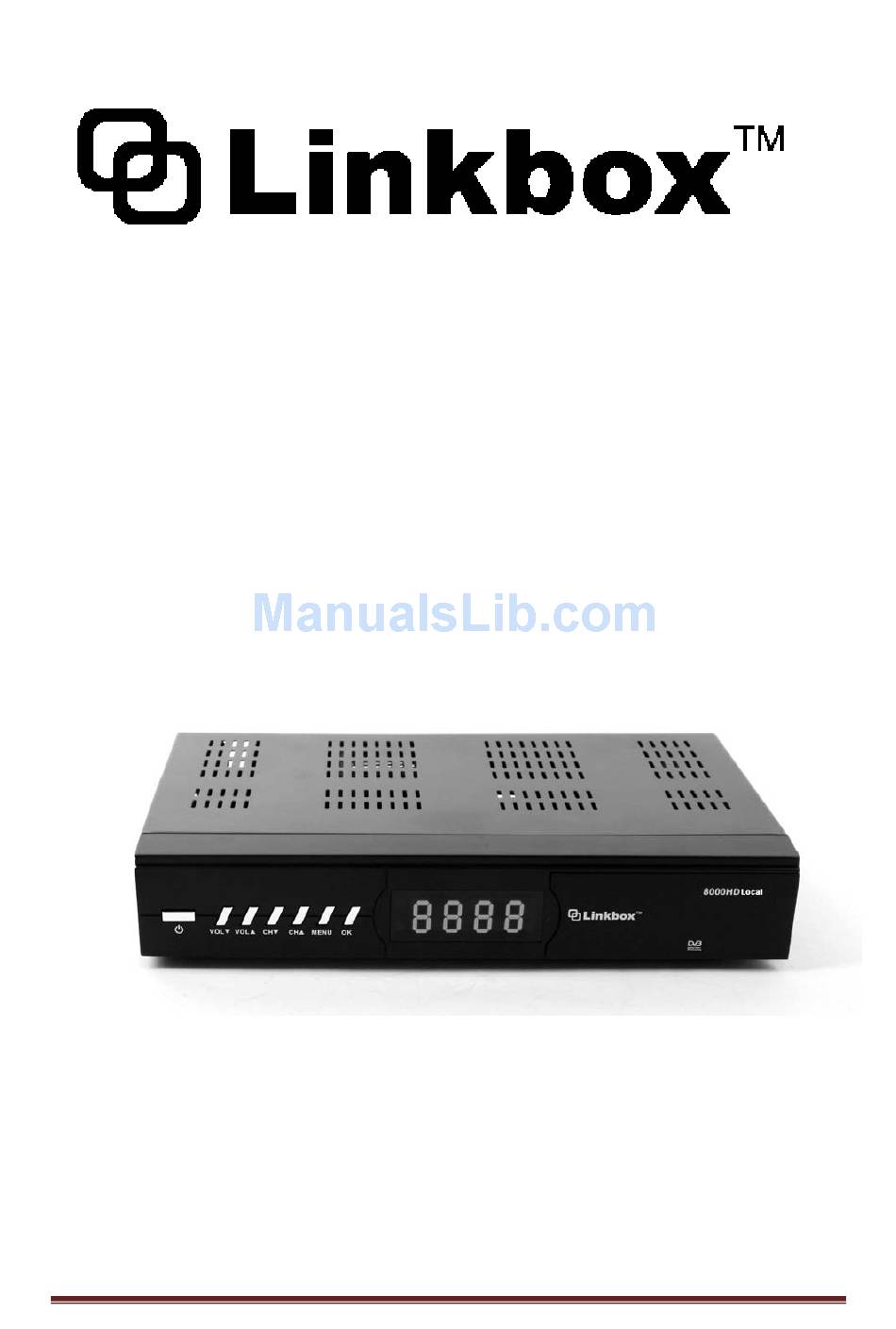

- Page 1 User’s Guide Linkbox 8000HD Local Satellite & Terrestrial Receiver LinkTV Media Sun Valley, California, U.S.A. ©Copyright 2012, LinkTV Media...
- Page 2 ©Copyright 2012, LinkTV Media Page 1...
-
Page 3: Table Of Contents
CONTENTS GETTING STARTED ..................... 4 Introduction ......................4 Caution ....................... 4 What’s inside the box ..................5 Control and Displays ..................... 6 Operation ....................... 8 Initial Setup ......................8 ... - Page 4 3.7.2 Storage Information..................18 3.7.3 PVR Setting ....................18 3.7.4 Media Player ....................18 PVR ........................20 3.8.1 Recording ..................... 20 3.8.3 Timeshift ....................... 21 3.8.4 Jump ......................21 ...
-
Page 5: Getting Started
This manual will show you how to setup and operate the Linkbox 8000HD. You will find the operation of the Linkbox 8000HD to be simple and easy to handle. Any problems not addressed in this manual should be handles by qualified personnel. -
Page 6: What's Inside The Box
1.3 What’s inside the box Please confirm that the following items are enclosed in the box when you open it: 1- Remote Control 2- AAA Batteries HDMI Cable NOTE: If any of the items are missing, please contact the vendor where this product was purchased. -
Page 7: Control And Displays
2. Control and Displays Remote Control Function Power on/off Mute PAUSE Holds the picture or releases the pause Shows channel information AUDIO Selects audio mode, Selects audio language LAST Returns to previous channel MENU Enter/Exit main menu screen EXIT Move to previous menu PAGE - Page down... -
Page 8: Front Panel
Front Panel Name Fuction POWER Switches the unit between standy and on VOL ▼ Change volume up VOL ▲ Change volume down CH ▼ Change CH down CH ▲ Change CH up MENU Moves to MENU Select in menus DISPLAY Segment LED Display IR Receiver... -
Page 9: Operation
3. Operation 3.1 Initial Setup When the receiver is powered on for the first time, the main menu will appear. When first powering on the unit, please do the following: 1) Select the System Setup 2) Switch the language using the ◀ ▶ buttons. -
Page 10: Motor Diseqc
You can Edit, Add, or Delete entries in Select Tune LNB1 or LNB2, Satellite, the Satellite List LNB Type, transponder and DiSEqC(1.0 and 1.1). 3.2.2.1 Motor DiSEqC 3.2.2.1.1 DiSEqC 1.2 “Local Longitude”/”Local Latitude” is disabled for DiSEqC 1.2 3.2.2.1.2 Motor Setting ... -
Page 11: Single Satellite Search
3.2.2.1.3 USALS Set the satellite’s longitude and local longitude / local latitude. USALS can move the dish automatically. Local Longitude: Please input the Local Longitude using the numeric keys. Adjust East/West using the ◀ ▶ buttons Local Latitude: Please input the Local Latitude using the numeric keys and adjust South/North using the ◀... -
Page 12: Edit Channel
Select a specific media by using keys between Terrestrial or ◀ ▶ Cable. Select frequency range by using keys ◀ ▶ Press [OK] to start scan procedure in the ‘Start Scan’ 3.2.6.2 Manual Scan Select a specific media by using keys between Terrestrial or ◀... - Page 13 to watch the locked channel. 3.3.1.3 Skip Press the green button. This will place a “skip” marker on the right side of the highlighted channel. After saving and exiting the menu, the channel will be skipped when navigating through the channels. 3.3.1.4 Move ...
-
Page 14: Radio Channel List
1) Press the red button to switch to capital. 2) Press the green button to delete the character. 3) Press the yellow button to save the modification. 4) Press the blue button to cancel the operation. 3.3.1.5.3 Delete Press the blue button in the Edit Channel menu. ... -
Page 15: Tv System
selected in “First Audio”, it will play use the audio selected in “Second Audio” if available. 3.4.2 TV System Video Resolution : 576i, 576p, 720p, 1080i o Press [OK] to select the Video Resolution (options : 576i, 576p, 720p, 1080i.). After selecting the resolution, it will ask you if you would like to save the setting. -
Page 16: Timer Setting
o If the current channel provides the correct time information, you will see the current time while you enter the Time menu. If the channel does not provide the time, you will have to input the date and time information manually. ... -
Page 17: Osd Setting
locked channels. To change the password, select New Password. Use the numerical buttons to enter the new password when prompted. The user will be asked to re-enter the new password to confirm. If both entries match, the new password will be saved and you will be taken to the System Setup menu. -
Page 18: Upgrade Via Rs232 (Receiver To Receiver)
Enter the 4 digit password when prompted and press [OK]. The default password is “0000”. If you have forgotten your password, contact your dealer for a master factory password. If you do not wish to proceed, press [Exit] before password is entered. 3.5.3 Upgrade via RS232 (Receiver to Receiver) ... -
Page 19: Game
User needs to put the upgrade file under root in the USB storage device. When the user switches to the Download – USB mode, “File” field will show the upgrade file. Select the mode and download the file. ... - Page 20 The Media Playlist will be displayed if the USB device is plugged in. Scroll through the playlist to preview pictures (JPG,BMP). A MP3 logo is displayed for MP3 files. Pressing [F1] once will allow the Storage Type (Partition and other Device) to be changed.
-
Page 21: Pvr
Use the [Red] button show playlist selected. Use the [Green] button To select the file. Use the [Yellow] buttons to select all files in the folder. Use the [Blue] button to enter Edit Mode Use the [FAV] button to set the slideshow time and mode ... -
Page 22: Timeshift
3.8.2 Record Fi e List [PVRi] button during playback of a recorded file to display the recording file list. Selecting another file will start playback of that file. 3.8.3 Timeshift Use this option to enable or disable the Timeshift. Enabling Timeshift will cause the system to store any current channel into a buffer as it plays. -
Page 23: Program Guide (Epg)
3.10 Program Guide (EPG) Press the [EPG] button to open the program guide. The title and start time of the program will be shown. Navigate the channel list using the ▲▼ PG↑ PG↓ buttons. Press [OK] to select a channel to watch. -
Page 24: Wifi Function
3.14 WiFi Function 3.14.1 WiFi Manager Insert WiFi Adapter (Ralink RT5370) to USB port Main MENU Tool WiFi Manager Change WiFi Device On condition by using left/right volume key Currently available AP(Access Point) list will be appeared ... -
Page 25: Upgrade By Network
If connected successfully, “AP Connected” pop up message will be appeared. 3.14.3 Upgrade By Network Select Upgrade Mode. Press Start and check the software version.Then selec Yes to start download Do not turn the power off until download and rebooting completed ©Copyright 2012, LinkTV Media Page 24... -
Page 26: Specifications
4. SPECIFICATIONS Satellite Tuner Input Connector F-type,IEC169-24 Frequency Range 950MHz to 2150MHz Input Level 65 dBm~-25 dBm LNB Power 14V/19V (400mA Max) Symbol Rate 1 to 45Msps.(SCPC,MCPC) DiSEqc Diseqc 1.2 & USALS Compatible Band Switch 22KHz tone Demodulation QPSK/8PSK/APSK Viterbi Decoding Rate 1/2,2/3,3/4,5/6,7/8 Reed Solomon Decoding FEC 204,188,t=8... - Page 27 Ethernet+USB RJ-45/USB2.0 Data Port RS 232 (D-SUB) UHF Input Option for UHF Remote Kit ATSC Tuner 1 Input and 1 loopout Front Features PWR,CH Up/Down, Volume Up/Down, 7 Key Menu,Ok Display 4 Digit 7 Segment Display 1 Host USB2.0 Remote Control Type IR RCU Battery...
-
Page 28: Troubleshooting
5. TROUBLESHOOTING If the unit is not functioning properly, use this guide to identify and troubleshoot some common causes. If your problem cannot be solved using this guide, please contact your vendor to resolve the issue. Problem Possible causes Remedy 1. - Page 29 LIMITED WARRANTY LinkTV Media warrants to the original purchaser that this product shall be free from defects in workmanship and material for two years from the date of original purchase. During this warrant period LinkTV Media will provide free of charge both parts and labor necessary to correct defects in workmanship or material.
