Summary of Contents for Gato Audio FM-2

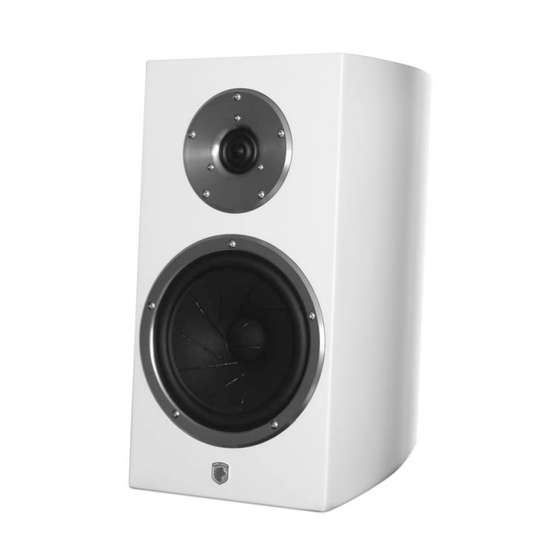

- Page 1 FM-2 2-way Speaker User Manual...
-
Page 2: Table Of Contents
Gato Audio FM-2 - 2-way Speaker Contents Don’t be a stranger Package contents A few words on your new speakers Installation Mounting the driver grilles Connecting your speakers Bi-wiring and bi-amping Placement of the speakers Make it last! If all else fails…... -
Page 3: Package Contents
A few words on your new speakers A good cabinet is the essential foundation of any loudspeaker. The FM-2 cabinet incorporates several noteworthy details. First of all, the cabinet is made from solid high-density fi berboard, and the rounded sides are laminated with fi ve layers of material to ensure strength, stiff ness and resonance control. -
Page 4: Installation
(+) to the positive speaker output on your amplifi er. Now connect the white speaker terminal (-) to the negative speaker output terminal on your amplifi er. Bi-wiring and bi-amping The FM-2 features a double set of high-quality WBT gold plated copper binding posts that can accommodate separate cables and/or amplifi ers for high and low frequency reproduction respectively. -
Page 5: Placement Of The Speakers
Again: what might work well in your listening room may not be the perfect solution in other setups. For the best result, place the FM-2 on a solid stand with a height of approx. 60cm. Use spikes or other hard coupling material between the speaker and the stand and also between the stand and the fl oor. -
Page 6: Make It Last
This warranty does not cover damage or wear directly or indirectly caused by improper use, violence, tampering with or unauthorized access to or servicing of any part of the product. If you are in need of service or repair, please do not hesitate to contact us at info@gato-audio.com or visit our website www.gato-audio.com for more information. -
Page 7: Technical Stuff
User Manual Technical stuff Technical specifi cations Frequency response 48 Hz – 25 kHz (-6 dB) Sensitivity (2,83 v) 89 dB Recommended power amplifi er 50 to 300 Watts Nominal impedance 4 Ω Connectors Gold plated WBT binding post / 4 mm plugs, bi-wire Drivers High Frequency 30 mm Ring Radiator, neodymium motor... - Page 8 Gato audio Hoerkaer 14 DK-2730 Herlev Denmark Phone: +45 4095 2205 www.gato-audio.com info@gato-audio.com...
