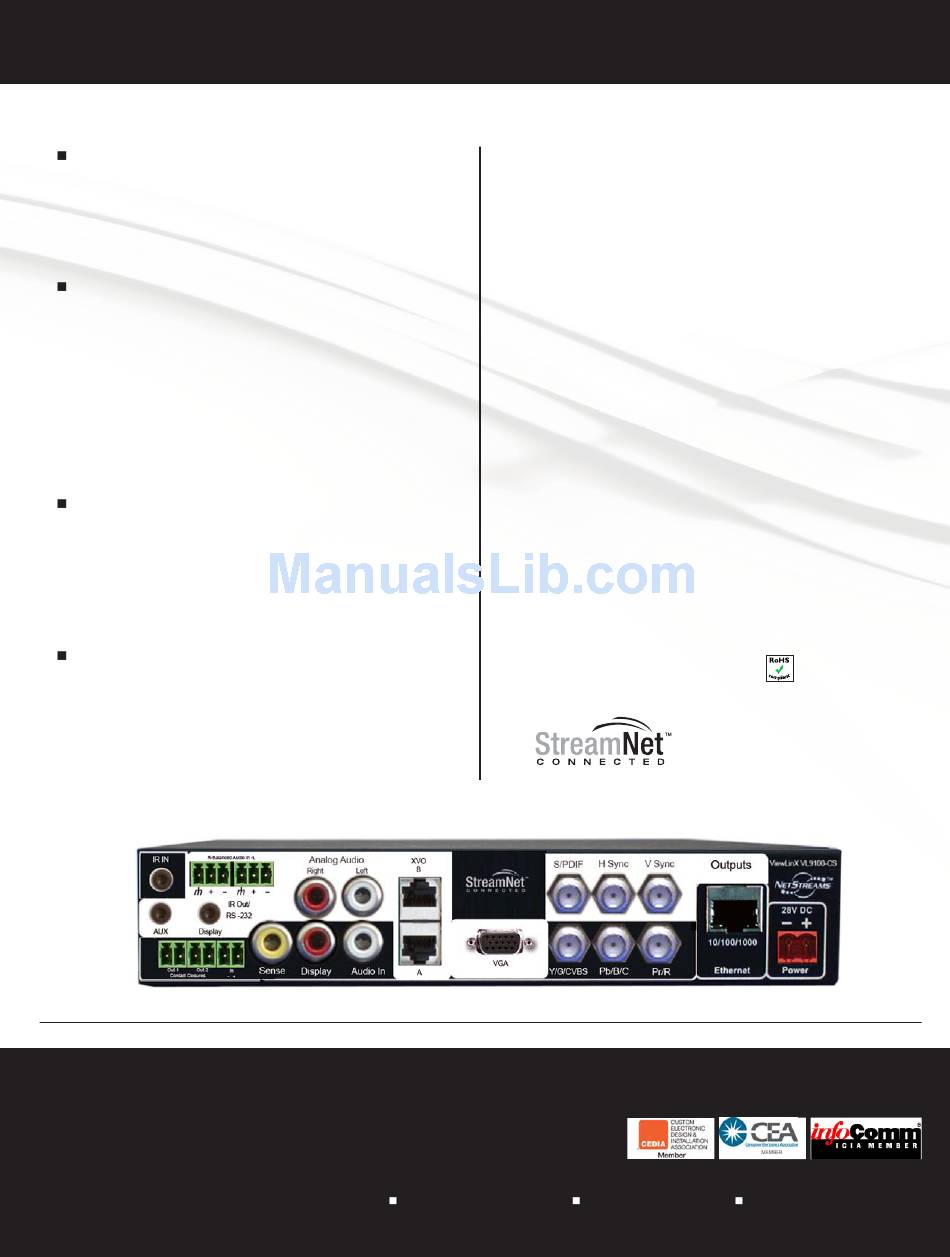

Specifications - Netstreams ViewLinX VL9100-CS Specifications

Features
Audio Decoder - In addition to outputting video the ViewLinX is
capable of outputting analog (line level and balanced) audio and digital
(S/PDIF) audio. These audio outputs are ideal for situations where the
zone does not have an amplifier and the display also functions as the
speakers are used.
Additional Features - XVO (extended Video Output) allows the
display to plug into a 2 gang multimedia port that is connected up to
50 meters from a ViewLinX providing a very clean installation. The
multimedia port and ViewLinX output can both be connected
enabling 1 ViewLinX to drive up to 3 displays with the source content.
The ViewLinX includes 2 macro controlled contact closures that can
be used to trigger projector screens. It also includes an input sense
that can trigger a macro making ideal for use in museums or kiosks
that need content started when motion is detected.
Mounting Options - The VL9100-CS can be rack mounted, wall
mounted, table mounted, or left freestanding. The 1U high ½ rack
width chassis can be mounted in a 19" rack by itself or coupled with
another VL9100-CS. Each VL9100-CS also includes mounting plates
that allow it to be mounted directly to a wall or ceiling. It can also be
left freestanding.
StreamNet Connected - NetStreams Patent-pending StreamNet
Technology provides the backbone for DigiLinX.
technology and ensures that audio between all zones are within 500
microseconds of each other, StreamNet Connected devices work
seamlessly together,and can be updated in the future as new features
become available.
NetStreams, DigiLinX, SpeakerLinX, SwitchLinX, MediaLinX, TouchLinX, ViewLinX, NetPower and StreamNet are trademarks of NetStreams LLC. All other trademarks are registered by their respective companies.
Excellence in Design
NetStreams is focused on providing high quality networked digital A/V systems. By leveraging its patent pending technologies and applications, NetStreams
is creating the future of IP A/V - today.
Support -
NetStreams offers world-class support for all products.
Email-support@netstreams.com or toll free - 866.353.3496
3 6 0 0 W. P a r m e r L a n e , S u i t e 1 0 0 , A u s t i n , T X 7 8 7 2 7
A l l s p e c i f i c a t i o n s s u b j e c t t o c h a n g e w i t h o u t n o t i c e . C o p y r i g h t © 2 0 0 8 N e t S t r e a m s . A l l r i g h t s r e s e r v e d .
ViewLinX VL9100-CS
StreamNet
5 1 2 . 9 7 7 . 9 3 9 3 p h o n e

Specifications

Standards Supported . . . . . . . . . . . . . . . . . .NTSC, PAL
Video Output Connectors: . . . . . . . . . . . .Hsync,V Sync,Y/G/CVBS,
Balanced Audio Output: . . . . . . . . . . . . . . .One S/PDIF output
Audio Input Connectors: . . . . . . . . . . . . . .one RCA Analog input for
Gigabit Ethernet Connection . . . . . . . . . .(RJ45)
2-pin Phoenix connector for power . . . .(20-32 V DC)
IR Emitter outputs / RS-232 . . . . . . . . . . .one (3.5 mm)
IR Receiver input . . . . . . . . . . . . . . . . . . . . .one (3.5mm)
Auxiliary Output (IR/RS-232) . . . . . . . . . . .one (3.5 mm)
LEDs for Signal detection, Power detection, and Activity status
3 I/O channels . . . . . . . . . . . . . . . . . . . . . . . .one input, two output
XVO Extended Video Output . . . . . . . . . .2 RJ45
IR Emitter . . . . . . . . . . . . . . . . . . . . . . . . . . .included
IR Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . .included
3.5mm to RS-232 cable . . . . . . . . . . . . . . . .included
Power State Sense Input
Dimensions: . . . . . . . . . . . . . . . . . . . . . . . . .9 1/2" x 1 3/4" x 8 2/3"
(W x H x D) . . . . . . . . . . . . . . . . . . . . . . . . . . . .(244mm x 45mm x 220mm)
Weight: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 lb (2.722 kg)
™
NetPower . . . . . . . . . . . . . . . . . . . . . . . . .4
Restriction of use of certain Hazardous
Substances (RoHS) compliant
5 1 2 . 9 7 7 . 9 3 9 8 f a x
PB/B/C, Pr/R
(Digital Stereo or Digital
Bitstream BNC)
Balanced Streo Audio Output
(phoenix connector) one
Analog Stereo Audio (RCA)
accepting a TV monitor
w w w. n e t s t r e a m s . c o m
