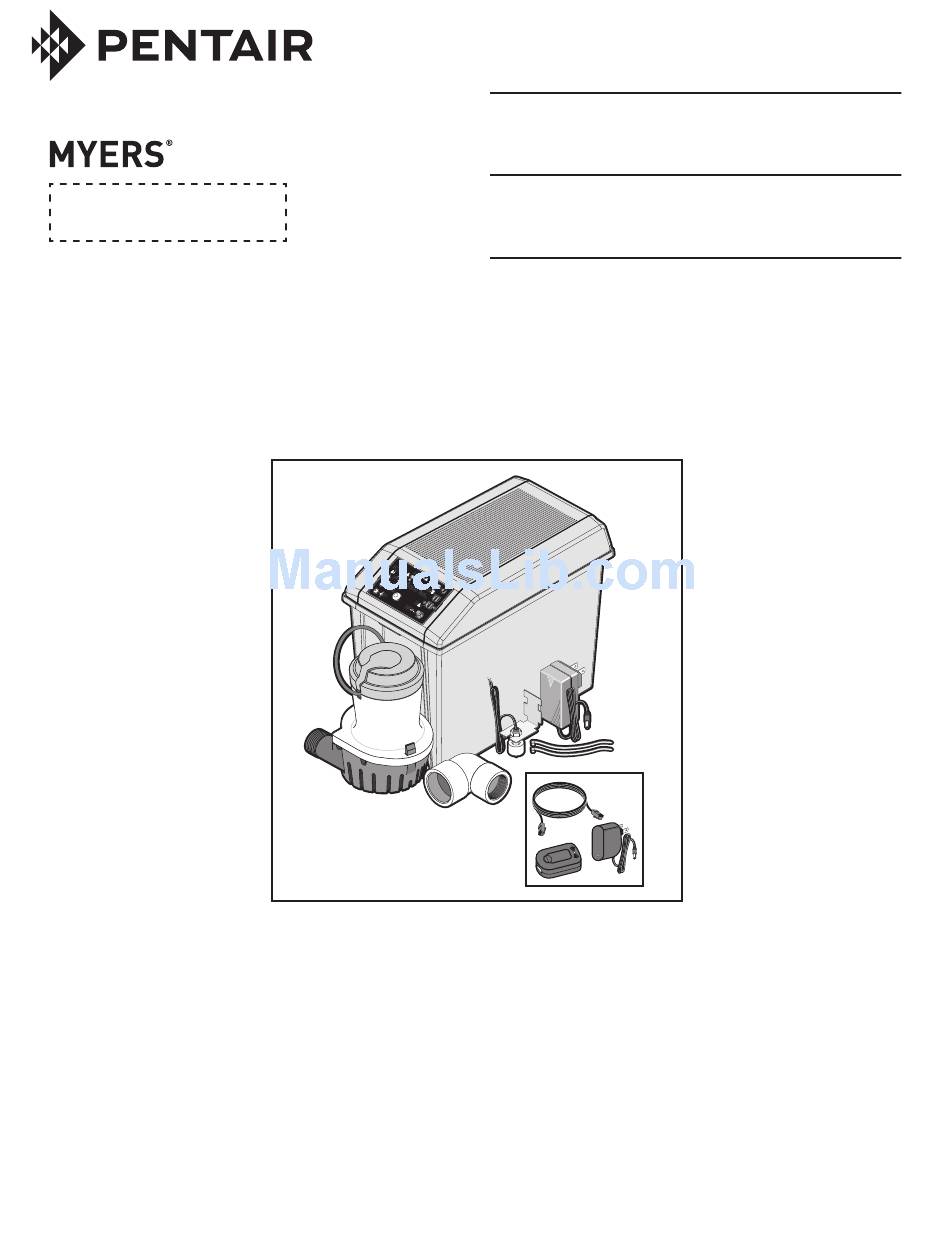

  • Page 1 OWNER’S MANUAL Battery Backup System NOTICE D’UTILISATION Système de secours à batterie MANUAL DEL USUARIO Device ID Key Sistema de batería de respaldo MBSP-3 Installation/Fonctionnement/Pièces Instalación/Operación/Piezas Installation/Operation/Parts Pour plus de renseignements Para mayor información sobre el For further operating, installation, concernant l’utilisation,...

  • Page 2: Important Safety Instructions

    Safety Important Safety Instructions Risk of electrical shock. Do not lift the SAVE THESE INSTRUCTIONS - This manual contains pump by the electrical cord; lift pump only by the important instructions that should be followed during discharge pipe, lifting ring or handle on the pump. Lifting by the cord can damage the cord.

  • Page 3: Installation And Operation

    Installation BASIC TOOLS AND PARTS NEEDED NOTICE: For ALL installations, once the installation is complete, run both the primary sump pump and the BBU (Purchase Separately) through at least one complete cycle to make sure that Channel locks or large adjustable pliers everything operates correctly.
  • Page 4 Installation “Separate Discharge” “Common Discharge” NOTICE: NOTICE: In this installation, if the Primary Sump Pump (PSP) does not have a Check Valve Flapper(s) must swing AWAY and flow arrow(s) must point check valve installed below the wye, you MUST install a check valve for the PSP AWAY from pump being protected.
  • Page 5 Installation INSTALLATION (Typical): Separate Discharge Risk of fire and chemical inhalation. Whenever using PVC primer and PVC cement, follow Risk of electrical shock. Can shock, burn, or the glue manufacturer’s instructions. kill. Unplug the primary sump pump before beginning this 14.
  • Page 6 Installation INSTALLATION (Typical): Common Discharge 13. Make sure that the BBU will clear the primary sump pump and its switch. If there isn’t room for both pumps Risk of electrical shock. Can shock, burn, or to sit on the floor of the sump, the BBU will have to be kill.

  • Page 7: Battery Requirements

    Battery Requirements BATTERY REQUIREMENTS Pre-Qualification Test – 1 and 2 Charger is charging at a very low level to try to bring a Hazardous electric current. Can cause dead battery back to life. If the battery is taking too long, severe burns and start a fire if the battery terminals are try resetting the charger once or twice (push the ‘SYSTEM short circuited.

  • Page 8: Wiring • Setup

    Wiring • Setup BBU WIRING AND SETUP 1. Connect the positive (+) charger/controller lead 4. Test the float and the pump by lifting and holding wire (red) to the positive (+) battery terminal (red). the float. The system alert LED will blink while Connect the negative (–) charger/controller lead the float is up.
  • Page 9 Wiring • Setup NOTICE: During normal operation, the flashing C. Fast Beep/Fast LED Flash - the battery is severely ‘PUMP STATUS’ LED indicates that the pump has discharged. The battery will continue to charge run in your absence. (as long as the 115V AC power to the charger is on) at the rate of .5 AH until the battery’s charge 1.
  • Page 10 Virtual Water Assistant Setup Battery Backup Internet Connection and 4. Once the gateway LED is green, go to the BBU and verify that the AC power LED is solid. Alerts Configuration 5. Log onto the website www.VirtualWaterAssistant.com Before setting up the Virtual Water Assistant (VWA), make • Select “Sign Up”...
  • Page 11 Charger/Controller LED Display TABLE II – Operating Code Displays (LEDs Lighted Continuously or Flashing) LED Operating Code Display System Operating Condition SYSTEM ALERT ALARM SILENCED CHARGING PUMP ACTIVITY BATTERY STATUS AC POWER Indicates 115V AC Power is connected / Unit online Indicates 115V AC Power is connected / Unit offline Indicates...
  • Page 12 Charger/Controller LED Display TABLE IV – Error Code Displays (LEDs Flashing) TABLE V – Control Button Functions Control Button: Result of Pushing Button: System Test Pump starts and all LEDs light up. Will reset the ‘PUMP ACTIVITY’ LED. When pushed with the ‘SILENCE ALARM’ button, the Charger/Controller microprocessor resets and error code resets.

  • Page 13: Troubleshooting - Pump

    Troubleshooting TROUBLESHOOTING - PUMP Pump won’t run: Check all the wiring connections. Check for a low or defective battery. Check that the automatic switch is free to move up and down. Press the circuit breaker reset button on the control panel. Motor hums but pump won’t run: Check for low or defective battery.

  • Page 14: Repair Parts

    Repair Parts Key No. Part Description Part Number DC Backup Pump PS17-2005** 1-1/4 FNPT x 1-1/2 Slip Elbow U78-1012 Float Switch PS17-2003 Charger/Controller PS217-1522 Battery Case Base PS17-2044 Battery Case Cover PS14-2045 AC Adaptor PS17-2008 Cable Ties - 11” Gateway Kit U117-1568 -Gateway -Power Supply...

  • Page 15: Limited Warranty

    12 months from date of original installation, MBSP-2, MBSP-2C or 18 months from date of manufacture 24 months from date of original installation, MBSP-3, MBSP-3C or 30 months from date of manufacture 12 months from date of shipment from factory Wastewater Solids Handling Pumps...
