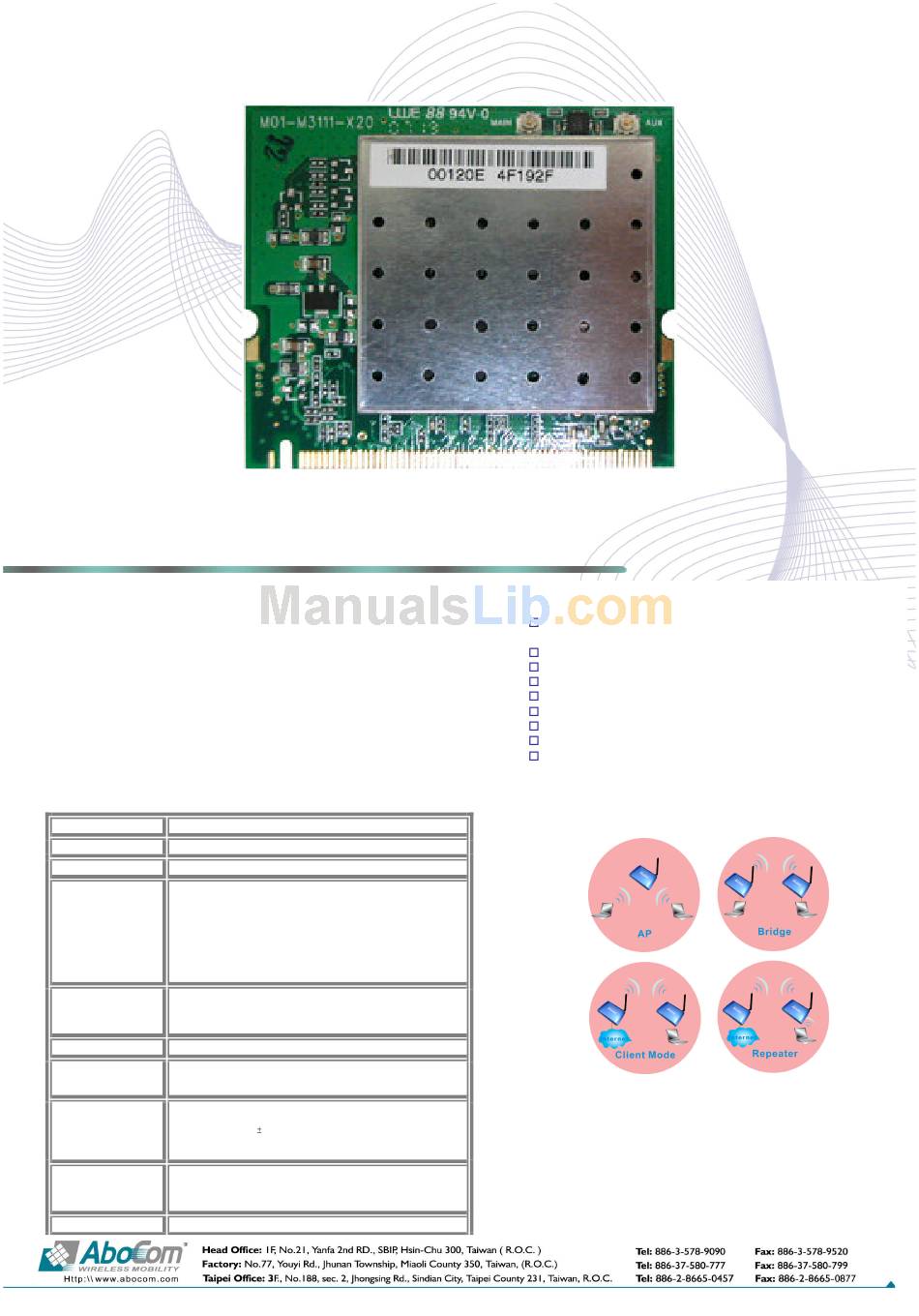

Abocom WM3111 Specification

WM3111
Wireless 802.11a/b/g LAN Mini Card High Power
Description
The 802.11a/b/g Wireless LAN MiniPCI Card is a device that lets you install
inside the Access Point.
The 802.11a/b/g Wireless LAN MiniPCI Card allows you to take full
advantage of your AP's. Plus, with the network installation simplicity and
flexibility, you can eliminate the need to pull cable through walls and
ceilings and allow the network to go where wires cannot go. Exploring
WWW and augmenting networks can never be done more easily.
The 802.11a/b/g Wireless LAN MiniPCI Card it enables a high
performance, cost effective, low power, compact solution that easily fits
onto on side of a miniPCI card
Specification
Standards IEEE 802.11a/b/g
Frequency Band 2412 ~ 2483 MHz 5.15GHz~5.724GHz, 5.725GHz~5.825GHz
Operating Voltage 3.3V and 5V
11a/g:Orthogonal Frequency Division Multiplexing (OFDM)
54Mbps/48Mbps:QAM-64
36Mbps/24Mbps:QAM-16
18Mbps/12Mbps:QPSK
Modulation
9Mbps/6Mbps:BPSK
11b:Direct Sequence Spread Spectrum (DSSS)
11Mbps/5.5Mbps:CCK
2Mbps:DQPSK
1Mbps:DBPSK
USA,Canada(FCC):23channels(2.412GHz~2.462GHz,
5.15GHz~5.25GHz, 5.25GHz~5.35GHz, 5.725GHz~5.825GHz)
Channels
Europe(CE):32channels(2.412GHz~2.472GHz,
5.15GHz~5.25GHz, 5.25GHz~5.35GHz, 5.47~5.724GHz)
Output Interface Mini PCI
802.11b(11 Mbps, 5.5 Mbps, 2 Mbps, 1 Mbps)
Support Data Rate 802.11a/g(54 Mbps, 48 Mbps, 36 Mbps, 24 Mbps, 18 Mbps, 12 Mbps, 9
Mbps, 6 Mbps)
11a OFDM: 17dBm ± 1dBm(54Mbps)
11a OFDM: 20dBm ± 1dBm(6Mbps)
Output Power 11g OFDM: 20dBm
11g OFDM: 23dBm ± 1dBm(6Mbps)
11b CCK: 23dBm ± 2dBm(1~11Mbps)
Weight: 13g
Dimension: 59.6 (L) x 50.95(W) mm
Physical Specification
PCB (thickness): 1.0 +/- 0.1 mm
Height (thickness): 3.4 mm (included RF metal shield case)
Certifications FCC, CE
1dBm(54Mbps)
Features
Complies with IEEE 802.11a/b/g standard for 2.4GHz and
5GHz Wireless LAN.
Single chip solution for dual-mode.
Works with all existing network infrastructure.
Complies with specific wireless products and services.
Freedom to roam while staying connected.
Wi-Fi and WHQL compliant
54 Mbps provided in 802.11 a/g mode of operation
Lower power consumption.
Easy to install and configure.
