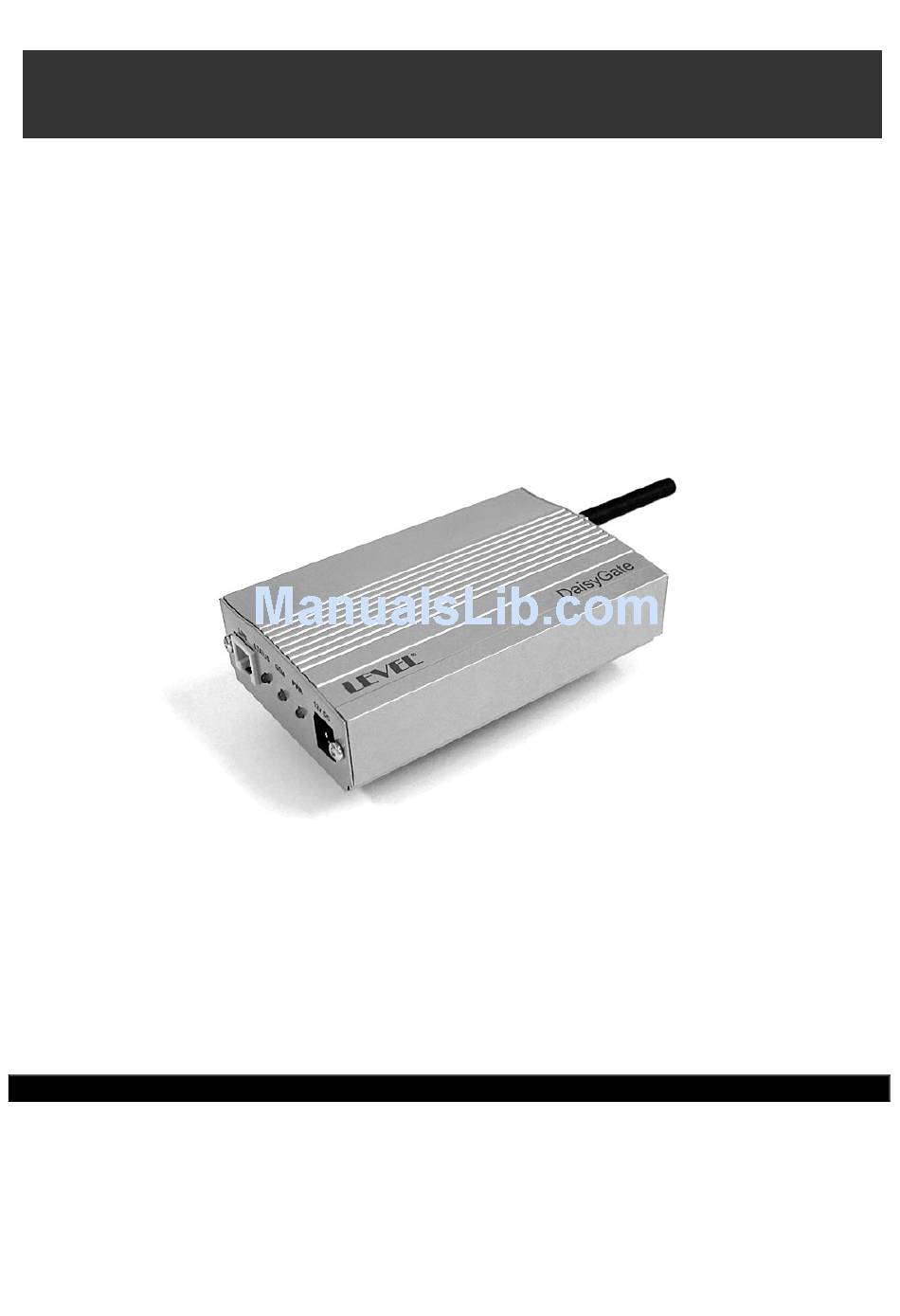

- Page 1 GSM GATE DAISYGATE GB 102 Series with Built-in GSM Module Two-way Converter of Phone Line to GSM USER GUIDE LEVEL LEVEL LEVEL LEVEL...
- Page 3 We would like to congratulate you on buying our product – GSM Gate GB 102. This way you obtained high-class and technically highly modern product. GSM Gate by LEVEL provides possibility of significant phone costs savings as well as installation of phone line even in place where it otherwise would not be possible Before connection of GB 102 and its setting into operation, please, read carefully these instructions manual.
-
Page 4: Table Of Contents
5.15. ALARM SMS Messages and Set-up of B-numbers for SMS Sending....14 5.16. Set-up of Numbers for ALARM Calling..............14 5.17. Set-up of Text of ALARM SMS Messages ............14 5.18. Set-up of Logical Level of Outputs ...............15 5.19. Set-up of Sensitivity of Audio Input ..............15 5.20. Set-up of Volume of Audio Output...............15 5.21. -
Page 5: Description And Usage Of Product
(○) accessory can be used with the given type of product Safety Instructions GSM Gates by LEVEL are conformable with technical standards for operation in our mains. Power source with voltage 10,6-16 V DC fitted with connector with positive central contact shall be used for power supply. Dimension for current 600 mA –... -
Page 6: Installation
3. Installation 3.1. GSM Gate Assembly GSM Gates by LEVEL are designed for operation in dry places. During assembly avoid hot places and places where device would be exposed to direct solar radiation or places close to heating elements. Do not place GSM Gate or antenna mast close to phone exchange or other electronic device or line. -
Page 7: Indication By Led
To ensure the GSM gate cooperates with SIM card correctly it is necessary to set the same PIN number in GB 102 configuration as on the SIM card or set no PIN code blocking on the SIM. 3.4. Indication by LED Indication LEDs on GB 102 indicate basic operational states: PWR–... -
Page 8: Configuring Gateway From Pc Connected Over Remote Access
4.2. Configuring gateway from PC connected over remote access To use the remote access possibility it is necessary to have the data services activated on the SIM cart used in the GB 102 and the remote access connection must be enabled in configuration of GB 102. It is recommended to use a PC GSM modem for the remote access. -
Page 9: Control Instructions
SMS messages coming to phone number of SIM card are decoded. Control messages are immediately realized. General format of control SMS message is following: XXpppp INSTRUCTION1 parameter1 INSTRUCTION2 parameter2… Opening digits – two capital letters X. pppp Actual PIN of gate. INSTRUCTION Key word of instruction in SMS message –... -
Page 10: Set-Up Of Direction Adding
Dial Command SMS Command Default 0000xxxx# PIN xxxx 1234 Change of PIN SIM Where xxxx are four digits of new PINs. Example: Original PIN of GSM gate is 1234. PIN of SIM card, which will be used in GSM gate is 4321. ●... -
Page 11: Code For Disallowed Directions
0207x# ADIR7 x 0208x# ADIR8 x 0209x# ADIR9 x 0210x# ADIR10 x 0211x# ADIR11 x 0212x# ADIR12 x 0213x# ADIR13 x 0214x# ADIR14 x 0215x# ADIR15 x 0216x# ADIR16 x Where x is 1 to 7-digit-number of pre-selection. Removal of values is carried out by instruction 0201#, 0202#, etc. or by SMS message ADIR1 . -
Page 12: Set-Up Of Delay Before Dial
● Enter the phone programming mode #pppp# (see Chapter. 4.1.) ● Dial 03001234# and hang up the phone or send a command SMS message (as described in Chapter 4.2.) XXpppp CDIR 1234 From this moment the gateway will start connecting all calls to numbers starting 1234 just like to other allowed prefixes while it will remove the 1234 code and send dialing of the rest of the number into GSM. -
Page 13: Set-Up Of Dial Tone Type
maximum of 9 digits, it would make sense to set 9 as maximum number of digits. After selection of the 9 digit, dialing of number starts immediately without waiting for control. Dial Command SMS Command Default 0900x#... LDIAL x 24 set from production Where x is number in range from 3 to 24 and means maximum number of digits. -
Page 14: Number For Information Sms Messages
5.12. Number for Information SMS Messages GB 102 allows automatic sending of information about changes in configuration, operation time and about RESET. Information is sent as SMS message to set cell phone number if this number is entered in following way: Dial Command SMS Command Default... -
Page 15: Alarm Sms Messages And Set-Up Of B-Numbers For Sms Sending
Recommended linkage of input, example for input No. 1. (Drawing of connector on GB 102) Since output works at the same time also as input set-up of logical level 0 on output avoids activation of sending SMS message from particular input. -
Page 16: Set-Up Of Logical Level Of Outputs
5.18. Set-up of Logical Level of Outputs Each input No. 1-5 is also output at the same time (only GB 102 x2x). Value of logical level of particular output can be changed in following way: Instruction by Phone SMS Instruction Pre-set 260xy#... - Page 17 Example of Creating a Virtual Tie Line: PBX “A” user dials 7123, where 7 is the direction towards the remote PBX “B” and 123 is the extension number. PBX “A” directs the phone call via the connected GSM gateway “A”. The GSM gateway “A” receives the dial 7123, replaces the digit 7 for real number of GSM gateway “B”...
-
Page 18: Reset Of Gate And Time Counters
Dial Command SMS Command Default 310xy#... TIEENTERx y Not preset from production Where x is number of position 1 to 5. Where y is up to 16 digits of enter prefix dial selection. Result Dial This is the phone number of the remote PBX which will replace the enter prefix dial number. -
Page 19: Initialization Of Gate To Initial Set-Up From Production
5.23. Initialization of Gate to Initial Set-up from Production. Remote initialization of GB 102 can be carried out using SMS message. All adjustable parameters except PIN numbers and blocking of SIM card are set to initial values set from production. At the same time RESET is carried out. Implementation of INIT makes GSM Gate during 20 sec. -
Page 20: List Of Programming Commands
List of Programming Commands Switch-over into programming mode is carried out by dialing #pppp# on phone line. Code XXpppp must forgo instructions in each control SMS message where pppp is PIN of the GSM gateway. 6.1. Basic Programming Commands By phone SMS Command Initial Instruction... - Page 21 x= 0 - delete SMS SMS message 1500x # SMSMODE x x= 2 - another no. Phone number for 1501x # x= 1-20 digits SMSREROUTETOx resending SMS Number for info. SMS 2000x # NOTIFYSMS x x=. or 1-20 digits Number for monthly 2100x # MCALL x x=.
-
Page 22: Additional Programming Commands
6.2. Additional Programming Commands Additional programming commands can be entered using SMS commands (details in Chapter 4.2.) Defa Description Command Range Complete information about device, name, PRODUCT serial number, hardware and software version Type of device PRONAME Serial number of device PRONUM Software version (firmware) SWVER... -
Page 23: Utility Software For Pc
Edit all parameters of GB 102. Opening / saving configuration from file / to file and from GB 102 / into GB 102. Remote control to the GB 102 configuration using the GSM network connection Display the level of GSM signal. -
Page 24: Basic Technical Parameters
Basic Technical Parameters. Line GB 102 Dialing of number Dial pulse or tone dialing Line voltage 24 V Ringing 48 Vef. 50 Hz - 1 s / 4 s Tones 425 Hz Impulse 16 kHz 16000 Hz ±0,1 %, 35 ms, min. 150 mV Connecting connector RJ 11 SMS inputs... -
Page 25: Guarantee Certificate
GUARANTEE CERTIFICATE Product name: Type : Production number: Date of sale: Signature: Seller: Address, Phone, Stamp: Date of Date of Description of Defect Receipt Shipping... -
Page 26: Guarantee Conditions
Guarantee repair will be carried out at latest within 10 working days after receipt of defective goods by company LEVEL provided that spare part is disposable in store. If it is not possible alternative solution will be offered to user for the time of repair. - Page 28 GB 102 2xx @ 1.03 © LEVEL, 2005 LEVEL Ltd., Plhovská 1997, Náchod 547 01, CZECH REPUBLIC www.levelna.cz...
