Titan
TITAN COMPONENTS & OPERATION
product description
Power Panel
(Units without TX-750 AutoLink or DD-750 Digital Delay Module)

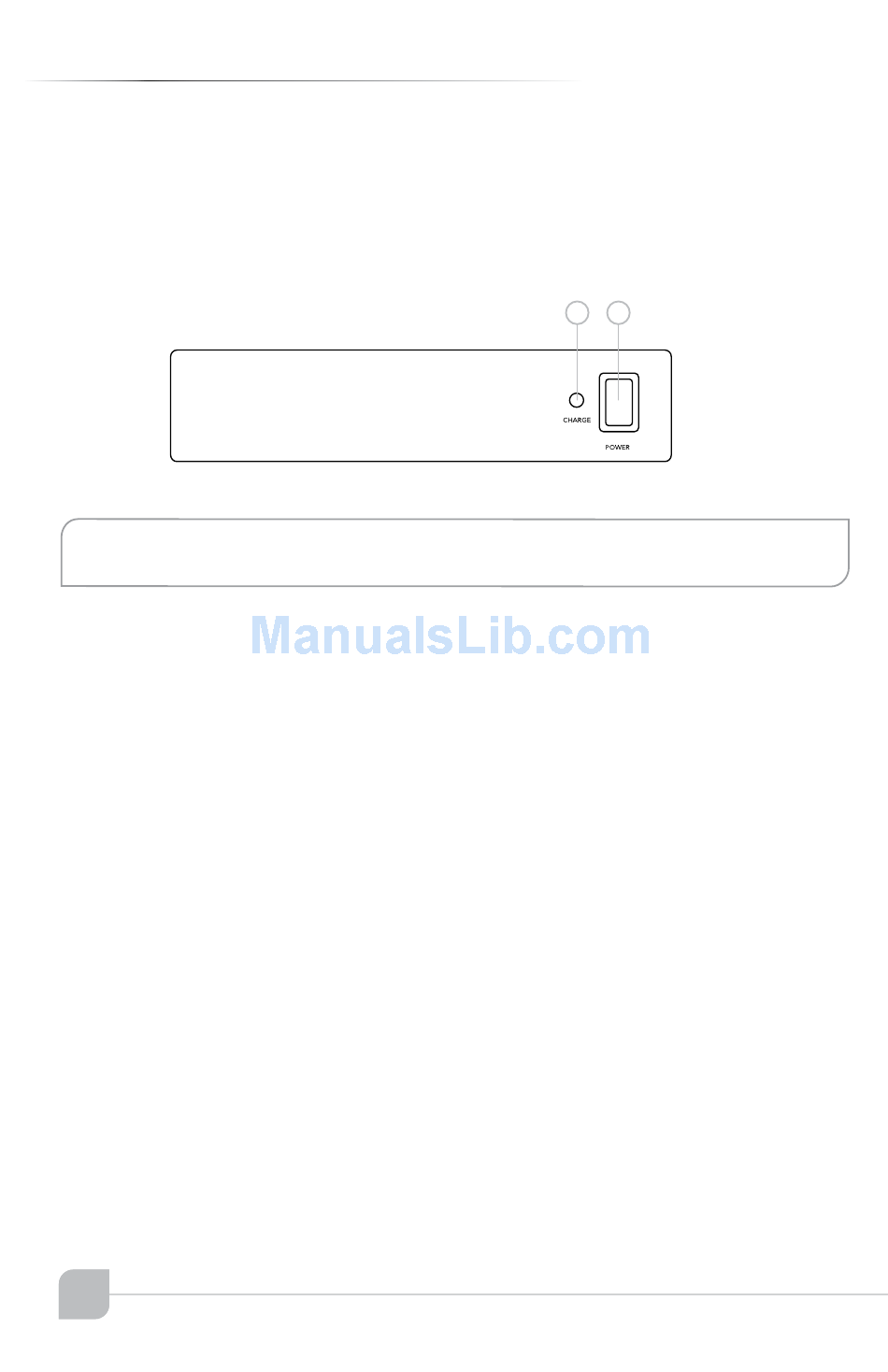

The basic power panel houses the master power switch with power indicator
and charging LED.
1
Battery Charging IndicatorChannel "Up/Down" Selector
2
System Power Switch
Operation
Push rocker switch to "on" position. Indicator in switch will illuminate steady
1.
"red".
If plugged into AC power, LED will glow "Green" if batteries are fully charged
2.
If "red" indicator in switch flashes: Indicates batteries are getting low and
3.
unit should be turned "off" or plugged into AC power for continued use.
Plugged into AC power, the charging LED will glow "red" indicating batter-
4.
ies are being charged.
Once batteries are 80 – 90% charged, the charging LED will flash "red" and
5.
"green" until fully charged
Once fully charged, the charging LED will glow steady "green"
6.
When plugged into AC power, the batteries will automatically get charged.
7.
12
1
2
2
