- Page 1 Owner’s Manual ATTENTION: Please read the content of your owner’s manual before operating your scooter. The Ultimate In Style & Performance ® Exeter, PA St. Catharines, ON 1-800-800-8586 www.pridemobility.com...
- Page 2 WARNING! Failure to heed the warnings in this owner’s manual may result in personal injury. CAUTION! Failure to heed the cautions in this owner’s manual may result in damage to your scooter. Copyright © 2003 Pride Mobility Products Corp.
-
Page 3: Table Of Contents
IV. SPECIFICATIONS ........................11 DESCRIPTION .......................... 13 VI. BATTERIES AND CHARGING .................... 17 VII. OPERATION ..........................22 VIII. COMFORT ADJUSTMENTS....................24 IX. OPTIONAL ACCESSORIES ....................27 BASIC TROUBLESHOOTING ..................... 28 XI. CARE AND MAINTENANCE ....................29 XII. WARRANTY..........................30 Wrangler... -
Page 4: Introduction
I N T R O D U C T I O N Welcome to Pride Mobility Products Corporation (Pride). Congratulations on the purchase of your new Pride PMV (Personal Mobility Vehicle). Your PMV design combines the most advanced state-of-the-art components with modern, attractive styling. -
Page 5: I. Introduction
Quick Reference Information: PMV Model:________________________________________________________________________ Serial Number:__________________________________________________________________________ Purchase Date:________________________________________________________________________ NOTE: If you ever lose or misplace your product registration card or this owner’s manual, call or write to us and we will be glad to send you a new one immediately. Wrangler... -
Page 6: Safety
As you begin to use your Wrangler during your daily activities, you will encounter situations that may require some practice. Simply take your time as you operate your Wrangler and you will soon be in full and confident control as you maneuver through doorways, on and off of elevators, up and down ramps, and over moderate terrain. -
Page 7: Ii. Safety
The controlled tests show that, when you approach an incline, it is best to lean forward. See figures 2 and 3. This shifts the center of gravity of you and your Wrangler toward the front of the PMV for improved stability. - Page 8 Do not carry passengers on your Wrangler under any circumstances. n Never drive your Wrangler across the side of a hill or diagonally up or down a hill; do not stop, if possible, while driving up or down an incline.
- Page 9 One precaution you can take against inadvertent motion of your Wrangler is to make certain that you or someone else is not the cause of the unintended motion. n Turn off your Wrangler by removing the key from the key switch when you are getting on or off of your Wrangler.
-
Page 10: Iii. Emi/Rfi
However, it is always possible that EMI problems could arise if you are close to a source of radio waves. Therefore, it is very important for you to be alert to this possibility. The Wrangler PMV meets or exceeds a resistance level of at least 20 V/m. - Page 11 I V . S P E C I F I C A T I O N S 25"- 28" 8" 80˚ 19"- 23" 2" 7" FIGURE 4. WRANGLER DIMENSIONS 63" 16" 18" 25" 77" Turning Radius 31" Wrangler...
-
Page 12: Specifications
Rear Plastic Shroud: 3.5 lbs. Seat: 37 lbs. 100 AH battery weight (two required): 63 lbs. (each) Ground Clearance 7 in. Optional Accessories Rear basket, flag, canopy, dust cover, cup holder, golf bag holder (rear), rear view mirror, full light package Wrangler... -
Page 13: Description

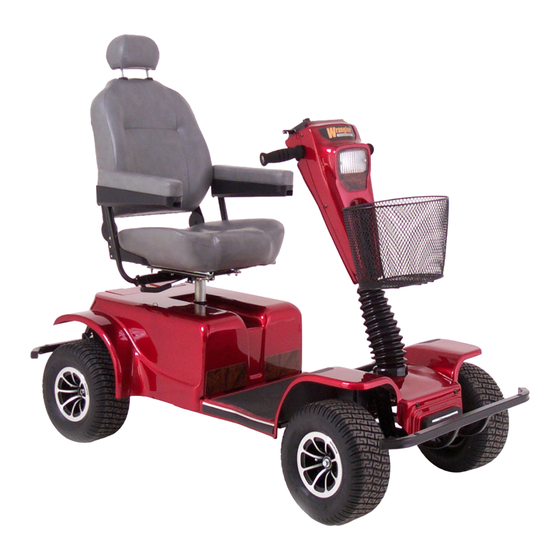

D E S C R I P T I O N Your Wrangler is an indoor/outdoor motorized electric PMV designed to enhance your personal mobility. It was designed to travel primarily on smooth surfaces such as sidewalks, roads, parking lots, floors, and driveways. For easy transportation or storage, you can disassemble your Wrangler into six (6) components. -
Page 14: V. Description
When your Wrangler’s key is fully inserted, this meter indicates the approximate battery voltage strength. For further information on battery charging, see VI. “Batteries and Charging.” Speed Adjustment Dial This dial allows you to select and limit your Wrangler’s speed up to the highest speed you set with the 5-10 mph switch. 5-10 MPH Switch This switch limits the top speed of your Wrangler to either 5 or 10 mph. -
Page 15: Battery Charger
Main Citcuit Breaker When the voltage in your Wrangler’s batteries becomes low or your PMV is heavily strained because of excessive loads, the main circuit breaker may trip to protect your Wrangler’s motor and electronics from damage. n The main circuit breaker is mounted between the two batteries. See figure 7. - Page 16 Whenever you want to push your Wrangler for short distances, you can put it in manual freewheel mode. The manual freewheel levers are located on the end of the motors at the rear of the Wrangler. See figure 7A. n Push down on the manual freewheel levers to disable the drive system and the brake system; you will then be able to push your Wrangler.
-
Page 17: Batteries And Charging
Recharge the batteries with the convenient onboard battery charger. Two important points to remember are: n Charge your Wrangler’s batteries with the supplied onboard battery charger prior to using it for the first time. n Keep your batteries fully charged to keep your Wrangler running smoothly. - Page 18 “full day” of service. We recommend you charge your Wrangler’s batteries for 8 to 14 hours after daily use. n If you use your Wrangler once a week or less, charge its batteries at least once a week for 12 to 14 hours at a time.
- Page 19 What type and size of battery should I use? We recommend deep-cycle batteries that are sealed and maintenance free. Both sealed lead-acid (SLA) and gel cell are deep-cycle batteries that are similar in performance in your Wrangler. Do not use wet-cell batteries, which have removable caps.
- Page 20 It may take a few days for the temperature of your Wrangler’s batteries to stabilize and adjust to their new room or ambient temperature.
- Page 21 C H A R G I N G For prolonged storage, you may wish to place several boards under the frame of your Wrangler to raise it off the ground and take the weight off the tires. This reduces the possibility of flat spots developing on the areas of the tires contacting the ground.
- Page 22 Gently release the throttle lever to decelerate and come to a complete stop. The electric brake automatically engages when your Wrangler comes to a stop. n To move in reverse, use your thumb to gently push the left throttle lever to disengage your Wrangler’s brakes and move rearward.
-
Page 23: Vii. Operation
4. Carefully get out of the seat and stand to the side of your Wrangler. 5. You may, if you wish, leave the seat facing to the side to facilitate boarding your Wrangler the next time you are going to operate it. -
Page 24: Comfort Adjustments
NOTE: In order to lower the tiller to its lowest position, you must first remove the seat and both batteries. SEAT HEIGHT ADJUSTMENT Your Wrangler’s seat can be repositioned to one of three different heights. 1. Remove the seat from your Wrangler. See figure 11. - Page 25 C O M F O R T A D J U S T M E N T S HIGH-BACK SEAT HEADREST ADJUSTMENT If your Wrangler is equipped with a high-back seat, the head- HEADREST rest height can be adjusted to several positions.
-
Page 26: Armrest Angle Adjustment
A D J U S T M E N T S ARMREST ANGLE ADJUSTMENT The armrests of your Wrangler can be adjusted upward or downward. See figure 15. n By turning the adjustment dial, the armrest will either raise or lower. -
Page 27: Optional Accessories
I X . O P T I O N A L A C C E S S O R I E S OPTIONAL ACCESSORIES For information concerning these optional accessories, see your authorized Pride Mobility Products Corporation Provider. REAR BASKET... -
Page 28: X . B A S I C T R O U B L E S H O O T I N G
• Obtain a battery load tester at most any automotive parts store; follow the directions supplied with the load tester. If you experience any problems with your Wrangler that you are not able to resolve, immediately contact your authorized Pride Provider for information, maintenance, and service. Wrangler... -
Page 29: Care And Maintenance
CONSOLE, CHARGER, AND ELECTRONIC CONTROLLER MODULE: n Keep these areas away from moisture. n Let any of these areas dry thoroughly before operating your Wrangler if they have been exposed to moisture. STORAGE: n Refer to VI. “Batteries and Charging.”... - Page 30 ONE-YEAR LIMITED WARRANTY For one (1) year from the date of purchase, Pride Mobility Products Corporation will repair or replace, at our option, to the original purchaser, free of charge, any part found upon examination by an authorized representative of Pride to be defective in material and/or workmanship.
-
Page 31: Xii. Warranty
The warranty gives you specific rights, and you may also have other rights, which vary from state to state. Please fill out the warranty card and mail it to Pride. Doing so assists Pride in providing you with the best possible technical and customer service. Wrangler... - Page 32 182 Susquehanna Avenue Exeter, PA 18643 1-800-800-8586 www.pridemobility.com INFMANU1138/REV I/JANUARY 2003...
Need help?
Do you have a question about the Wrangler and is the answer not in the manual?
Questions and answers

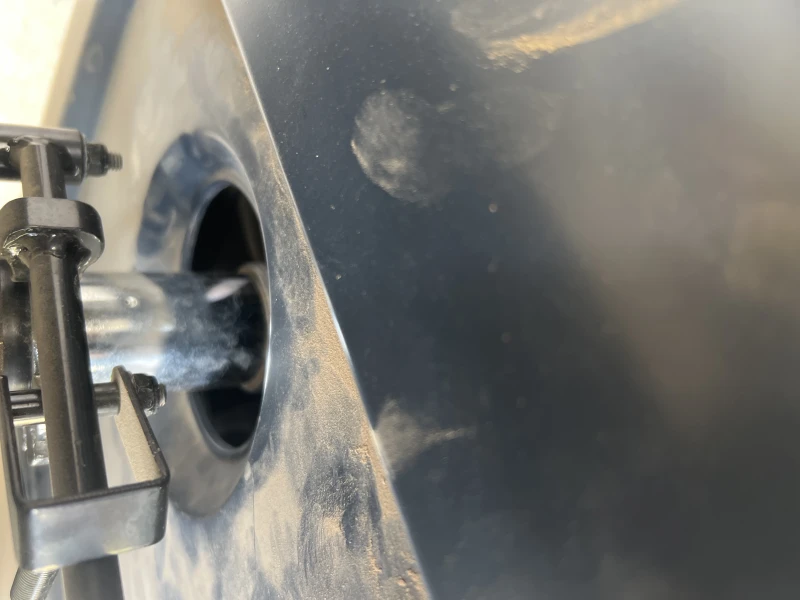

Seat removal, this model does not have a height adjustment pin as show in your manual. So how do I remove the seat to change the batteries?
To remove the seat on a Pride Mobility Wrangler to change the batteries, follow these steps:
1. Fold the seat back down.
2. Place one hand underneath the front of the seat and the other at the back.
3. Lift straight up without tilting in any direction. The seat is heavy and requires some effort to remove.
4. Once lifted, the seat will detach from the seat post, which has a male connection insert in the middle.
After removing the seat, you can proceed with removing the rear shroud and accessing the batteries.
This answer is automatically generated

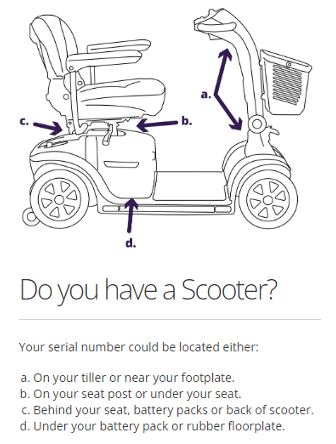

where do I find the model and serial munber on my older pride wrangler
