Advertisement

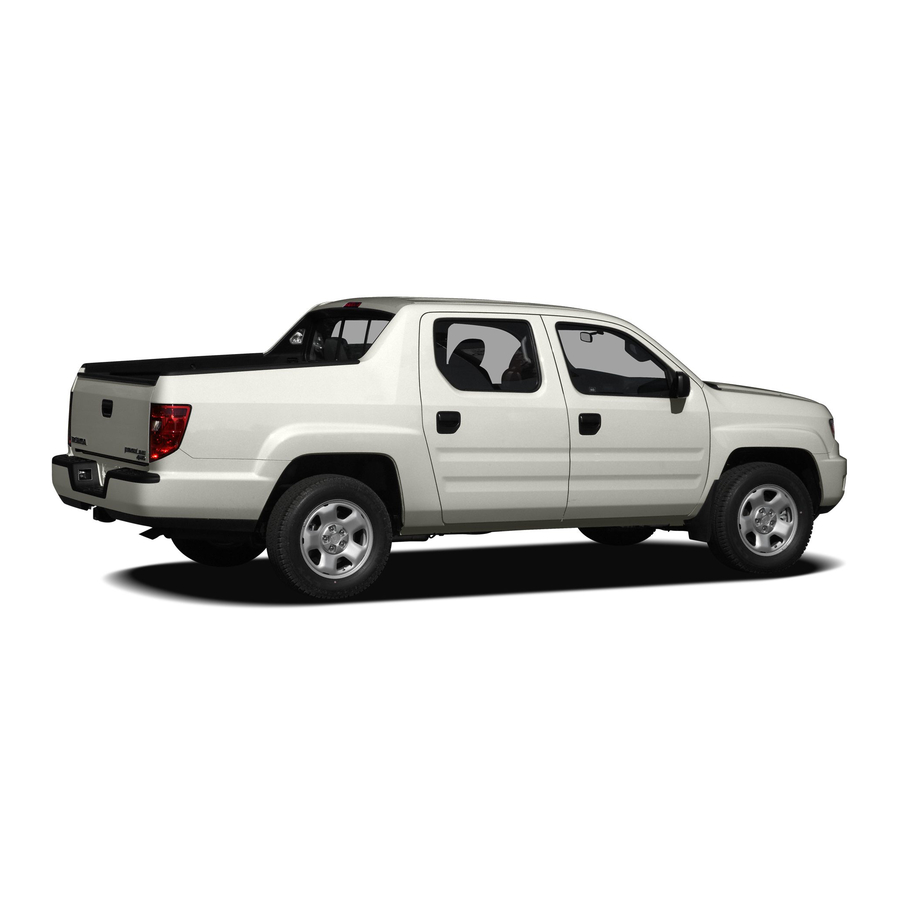

2009 Ridgeline
Owner's Manual
(Unlinked)
This document does not contain hyperlinks and may be formatted for printing instead of web use. This is due to changes
in content and specifications of the vehicle that happen throughout the model year. This manual will be replaced with a
hyperlinked version at the end of the model year.
© 2008 Honda Motor Co., Ltd.
P/N 00X31-SJC-6300

Advertisement

   Also See for Honda 2009 Ridgeline

   Related Manuals for Honda 2009 Ridgeline

   Summary of Contents for Honda 2009 Ridgeline

  • Page 1

    This document does not contain hyperlinks and may be formatted for printing instead of web use. This is due to changes in content and specifications of the vehicle that happen throughout the model year. This manual will be replaced with a hyperlinked version at the end of the model year. © 2008 Honda Motor Co., Ltd. P/N 00X31-SJC-6300...

  • Page 2

    The information and specifications included CITY STATE/PROVINCE ZIP CODE/ in this publication were in effect at the time of approval for printing. Honda Motor Co., POSTAL CODE Ltd. reserves the right, however, to V. I. N. discontinue or change specifications or...

  • Page 3

    Introduction Congratulations! Your selection of a 2009 Honda Ridgeline was a wise As you read this manual, you will investment. It will give you years of driving pleasure. find information that is preceded by symbol. This One of the best ways to enhance the enjoyment of your new vehicle is to information is intended to help you read this manual.

  • Page 4

    Introduction California Proposition 65 Warning WARNING: This product contains or emits chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Event Data Recorders This vehicle is equipped with one or more devices commonly referred to as event data recorders. These devices record front seat belt use, front passenger seat occupancy, airbag deployment data, and the failure This data belongs to the vehicle owner and may not be accessed by anyone else of any airbag system component.

  • Page 5

    A Few Words About Safety Your safety, and the safety of others, You will find this important safety information in a variety of forms, is very important. And operating this including: vehicle safely is an important responsibility. on the vehicle. Safety Labels preceded by a safety alert symbol and one of...

  • Page 6: Important Handling Information

    Important Handling Information Your vehicle has higher ground clearance than a passenger vehicle designed for use only on pavement. Higher ground clearance has many advantages for off-highway driving. It allows you to travel over bumps, obstacles, and rough terrain. It also provides good visibility so you can anticipate problems earlier. Your vehicle also has a shorter wheelbase, allowing it to respond quicker to the steering wheel than other sport utility vehicles with a longer wheelbase.

  • Page 7

    Contents Your Vehicle at a Glance (main controls) ....................Driver and Passenger Safety (seat belts, SRS, and child protection) ............(indicators, gauges, multi-information display, dashboard, and steering column) Instruments and Controls ..59 (climate control, audio, steering wheel, security, cruise control, and HomeLink ) Features ......

  • Page 8

    Overview of Contents Contents Before Driving Technical Information A convenient reference to the What gasoline to use, how to break- ID numbers, dimensions, capacities, sections in this manual. in your new vehicle, and how to load and technical information. luggage and other cargo. Your Vehicle at a Glance Warranty and Customer A quick reference to the main...

  • Page 9: Your Vehicle At A Glance

    Your Vehicle at a Glance INSTRUMENT PANEL INDICATORS (P.62) DRIVER’S FRONT REAR VIEW MIRROR WITH PASSENGER’S FRONT GAUGES (P.76) (P.9, 25) (P.210) AIRBAG COMPASS AIRBAG (P.9, 25) AUDIO SYSTEM (P.159) PARKING BRAKE RELEASE HANDLE AUXILIARY INPUT (P.132) JACK (P.203) MIRROR CONTROLS (P.134) HEATING/COOLING (P.146)

  • Page 10: Table Of Contents

    Your Vehicle at a Glance (P.76) INSTRUMENT PANEL TRIP/RESET BUTTON SELECT BUTTON INFO ( ) BUTTON (P.98) BRIGHTNESS (P.76) (P.76) SHIFT LEVER MOONROOF SWITCH SEL/RESET BUTTON (P.131) (P.271) (P.76) VTM-4 LOCK MULTI-CONTROL LEVER (P.276) INFO ( ) BUTTON (WINDSHIELD WIPERS/ (P.76) WASHERS/TURN SIGNALS/ HEADLIGHT HIGH BEAMS)

  • Page 11: Table Of Contents

    Driver and Passenger Safety This section gives you important Additional Information About Your All Children Should Sit in a information about how to protect Seat Belts ........20 Back Seat ........35 yourself and your passengers. It Seat Belt System Components . 20 The Passenger’s Front Airbag shows you how to use seat belts.

  • Page 12: Important Safety Precautions

    Important Safety Precautions You’ll find many safety every additional drink. So don’t drink Restrain All Children recommendations throughout this Children age 12 and under should and drive, and don’t let your friends section, and throughout this manual. ride properly restrained in a back drink and drive, either.

  • Page 13: Your Vehicle's Safety Features

    Your Vehicle’s Safety Features Your vehicle is equipped with many (11) (10) features that work together to (10) protect you and your passengers during a crash. Some features do not require any action on your part. These include a strong steel framework that forms a safety cage around the passenger compartment, front and rear crush zones, a collapsible steering column,...

  • Page 14: Seat Belts

    Your Vehicle’s Safety Features Seat Belts Why Wear Seat Belts Your vehicle is equipped with seat Seat belts are the single most belts in all seating positions. effective safety device for adults and Not wearing a seat belt properly larger children. (Infants and smaller increases the chance of serious The pickup bed is not equipped with children must be properly restrained...

  • Page 15: Airbags

    Your Vehicle’s Safety Features Help keep you from being thrown Airbags against the inside of the vehicle and against other occupants. Keep you from being thrown out of the vehicle. Help keep you in a good position should the airbags ever deploy. A good position reduces the risk of injury from an inflating airbag and allows you to get the best...

  • Page 16

    Your Vehicle’s Safety Features The most important things you need Always wear What you should do: to know about your airbags are: your seat belt properly, and sit upright and as far back from the steering wheel as possible while Airbags do not replace seat belts.

  • Page 17: Protecting Adults And Teens, Close And Lock The Doors

    Protecting Adults and Teens Introduction Your vehicle also has an On models with navigation system The following pages provide In-Bed Trunk open Your vehicle also has a tailgate, In- instructions on how to properly indicator to show when the In-Bed Bed Trunk, and door open indicator protect the driver, adult passengers, Trunk lid is not tightly closed (see...

  • Page 18

    Protecting Adults and Teens When one or more doors are not When the In-Bed Trunk is not tightly When the tailgate is not tightly tightly closed, the ‘‘DOOR OPEN’’ closed, the ‘‘TRUNK OPEN’’ closed, the ‘‘TAILGATE OPEN’’ message will come on. message will come on.

  • Page 19: Adjust The Front Seats

    Protecting Adults and Teens Locking the doors reduces the Adjust the Front Seats chance of someone being thrown out of the vehicle during a crash, and it helps prevent passengers from accidentally opening a door and falling out. Locking the doors also helps prevent an outsider from unexpectedly opening a door when you come to a stop.

  • Page 20: Adjust The Seat-backs

    Protecting Adults and Teens If you sit too close to the steering Adjust the Seat-Backs wheel or dashboard, you can be seriously injured by an inflating front Sitting too close to a front airbag, or by striking the steering airbag can result in serious wheel or dashboard.

  • Page 21: Adjust The Head Restraints

    Protecting Adults and Teens Adjust the Head Restraints When a passenger is seated in the rear center seating position, make sure the center head restraint is Reclining the seat-back too far adjusted to its highest position. can result in serious injury or death in a crash.

  • Page 22: Fasten And Position The Seat Belts

    Protecting Adults and Teens If necessary, pull up on the belt again Fasten and Position the Seat to remove any slack, then check that Belts Insert the latch plate into the buckle, the belt rests across the center of then tug on the belt to make sure the your chest and over your shoulder.

  • Page 23: Maintain A Proper Sitting Position

    Protecting Adults and Teens Maintain a Proper Sitting Never place the shoulder portion of a Position RELEASE lap/shoulder belt under your arm or BUTTONS This could cause After all occupants have adjusted behind your back. very serious injuries in a crash. their seats and head restraints, and put on their seat belts, it is very If a seat belt does not seem to work...

  • Page 24: Advice For Pregnant Women

    Protecting Adults and Teens In addition, an occupant who is out of When driving, remember to sit Advice for Pregnant Women position in the front seat can be upright and adjust the seat as far seriously or fatally injured in a crash back as possible while allowing full by striking interior parts of the control of the vehicle.

  • Page 25: Additional Safety Precautions

    Protecting Adults and Teens Additional Safety Precautions Two people should never use the Keep your hands and arms away If they do, they If your Never let passengers ride in the same seat belt. from the airbag covers. could be very seriously injured in a hands or arms are close to an area in front of a folded-up rear If they do, they could be very...

  • Page 26: Seat Belt System Components, Seat Belts

    Additional Information About Your Seat Belts Seat Belt System Components the beeper stops, the indicator will If the indicator comes on or the Your seat belt system includes lap/ stop flashing but remain on. beeper sounds when the driver’s seat shoulder belts in all seating positions.

  • Page 27: Lap/shoulder Belt, Automatic Seat Belt Tensioners

    Additional Information About Your Seat Belts Lap/Shoulder Belt All seat belts have an emergency Automatic Seat Belt Tensioners The lap/shoulder belt goes over locking retractor. In normal driving, your shoulder, across your chest, the retractor lets you move freely in and across your hips.

  • Page 28: Seat Belt Maintenance

    Not checking or maintaining airbags would not be needed, but the seat belts can result in serious additional restraint could be helpful. Honda provides a limited warranty injury or death if the seat belts on seat belts. See your Honda...

  • Page 29: Additional Information About Your Airbags, Airbag System Components

    Additional Information About Your Airbags Airbag System Components Your airbag system includes: (13) (11) (10) Two SRS (supplemental restraint system) front airbags. The driver’s (5) (4) airbag is stored in the center of (14) the steering wheel; the front (12) passenger’s airbag is stored in the dashboard.

  • Page 30

    Additional Information About Your Airbags Automatic front seat belt Weight sensors that monitor the An indicator on the instrument tensioners (see page weight on the front passenger’s panel that alerts you to a possible seat. If the weight is about 65 lbs problem with your airbags, Sensors that can detect a (29 kg) or less (the weight of an...

  • Page 31: How Your Front Airbags Work

    Additional Information About Your Airbags How Your Front Airbags Work During a frontal crash, your seat belt restrains your lower body and torso, and the front airbag helps protect your head and chest. Although both airbags normally inflate within a split second of each other, it is possible for only one airbag to deploy.

  • Page 32

    Additional Information About Your Airbags The total time for inflation and Dual-Stage Airbags Dual-Threshold Airbags deflation is one-tenth of a second, so Your front airbags are dual-stage Your front airbags are also dual- fast that most occupants are not airbags. This means they have two threshold airbags.

  • Page 33

    If the seat is under the seat. Although Honda under the front seats. too far forward, the airbag will does not encourage carrying an...

  • Page 34: How Your Side Airbags Work

    Additional Information About Your Airbags Be aware that objects placed on the A rear passenger pushing or How Your Side Airbags Work passenger’s seat can also cause the pulling on the back of the front airbag to be turned off. passenger’s seat.

  • Page 35

    To get the best protection from the indicator will go out. Although Honda does not encourage side airbags, front seat occupants children to ride in front, if the should wear their seat belts and sit...

  • Page 36: How Your Side Curtain Airbags Work, How The Srs Indicator Works

    Additional Information About Your Airbags How Your Side Curtain Airbags How the SRS Indicator Works In a Rollover Work A rollover sensor monitors the The SRS indicator alerts degree and rate your vehicle may roll you to a potential problem SIDE CURTAIN AIRBAG over and automatically deploy the with your airbags or seat belt...

  • Page 37: How The Side Airbag Off Indicator Works, How The Passenger Airbag Off Indicator Works

    Additional Information About Your Airbags How the Side Airbag Off How the Passenger Airbag Off On models with navigation system You will also see a ‘‘CHECK Indicator Works Indicator Works AIRBAG SYSTEM’’ message on the U.S. Canada PASSENGER AIRBAG OFF INDICATOR multi-information display (see page This indicator alerts you that the passenger’s side airbag has been...

  • Page 38: Airbag Service

    Additional Information About Your Airbags Be aware that objects placed on the If the indicator comes on with no Airbag Service front seat can cause the indicator to front seat passenger and no objects Your airbag systems are virtually come on. on the seat, or with an adult riding maintenance free, and there are no there, something may be interfering...

  • Page 39

    If water or remove or modify a front seat to another liquid soaks into a seat- accommodate a person with back, it can prevent the side airbag disabilities, first contact Honda cutoff system from working Automobile Customer Service at properly. (800) 999-1009.

  • Page 40: All Children Must Be Restrained

    Protecting Children General Guidelines All Children Must Be Restrained Each year, many children are injured or killed in vehicle crashes because Children who are unrestrained they are either unrestrained or not or improperly restrained can be properly restrained. In fact, vehicle seriously injured or killed in a accidents are the number one cause crash.

  • Page 41: Back Seat, The Passenger's Front Airbag Can Pose Serious Risks

    Protecting Children General Guidelines All Children Should Sit in a Back The Passenger’s Front Airbag Small Children Seat Can Pose Serious Risks Placing a forward-facing child seat in According to accident statistics, Front airbags have been designed to the front seat of a vehicle equipped children of all ages and sizes are help protect adults in a moderate to with a passenger’s front airbag can...

  • Page 42: Protecting Children General Guidelines

    Protecting Children General Guidelines To remind you of the passenger’s U.S. Models front airbag hazards, and that SUN VISORS DASHBOARD children must be properly restrained in a back seat, your vehicle has warning labels on the dashboard (U.S. models) and on the front visors. Please read and follow the instructions on these labels.

  • Page 43: If You Must Drive With Several Children, If A Child Requires Close Attention

    Protecting Children General Guidelines If a child requires close physical If You Must Drive with Several If a Child Requires Close attention or frequent visual contact, Children Attention Your vehicle has a back seat where Many parents say they prefer to put we strongly recommend that another children can be properly restrained.

  • Page 44

    Protecting Children General Guidelines seat belt around their neck, they Additional Safety Precautions Lock all doors and the In-Bed can be seriously or fatally injured. Never hold an infant or child on Trunk when your vehicle is not in If you are not wearing a (See pages for how to Children who play in vehicles...

  • Page 45: Protecting Infants And Small Children, Protecting Infants

    Protecting Infants and Small Children Two types of seats may be used: a Protecting Infants Rear-facing Child Seat Placement seat designed exclusively for infants, A rear-facing child seat can be placed or a convertible seat used in the rear- in any seating position in the back facing, reclining mode.

  • Page 46: Protecting Small Children

    Protecting Infants and Small Children In any of these situations, we Protecting Small Children We also recommend that a small strongly recommend that you install child use the child seat until the child the child seat directly behind the reaches the weight or height limit front passenger’s seat, move the seat for the seat.

  • Page 47: Selecting A Child Seat

    Protecting Infants and Small Children, Selecting a Child Seat Even with advanced front airbags Selecting a Child Seat In seating positions and vehicles not that automatically turn the When buying a child seat, you need equipped with LATCH, a LATCH- passenger’s front airbag off (see to choose either a conventional child compatible child seat can be installed...

  • Page 48: Installing A Child Seat

    Selecting a Child Seat, Installing a Child Seat Installing a Child Seat movement can be expected and The child seat should fit the After selecting a proper child seat should not reduce the child seat’s vehicle seating position (or and a good place to install the seat, effectiveness.

  • Page 49: With Latch

    Installing a Child Seat Installing a Child Seat with BUTTON UPPER GUIDE LATCH Your vehicle is equipped with LATCH (lower anchors and tethers for children) at the rear seats. The lower anchors are located between the seat-back and seat bottom, and are to be used only with a child seat designed for use with LATCH.

  • Page 50

    Installing a Child Seat Make sure the head restraint is in the lowest position. Lift the cover, then route the tether strap around the upper guide. Route the tether strap downward properly, making sure the strap is not twisted, then attach the strap hook to the center tether anchor.

  • Page 51

    Installing a Child Seat UPPER GUIDE UPPER GUIDE Outer Position Center Position TETHER ANCHOR TETHER ANCHOR On the outer seating position Tighten the strap according to the Lift the head restraint (see page seat maker’s instructions. ), then route the tether strap over the seat-back and through Push and pull the child seat the head restraint legs.

  • Page 52: With A Lap/shoulder Belt

    Installing a Child Seat Installing a Child Seat with a Lap/ Shoulder Belt When not using the LATCH system, all child seats must be secured to the vehicle with the lap part of a lap/ shoulder belt. In addition, the lap/shoulder belts in all seating positions except the driver’s have a lockable retractor that must be activated to secure a...

  • Page 53

    Installing a Child Seat To deactivate the lockable retractor and remove a child seat, unlatch the buckle, unroute the seat belt, and let the belt fully retract. After confirming that the belt is Push and pull the child seat locked, grab the shoulder part of forward and from side-to-side to the belt near the buckle, and pull verify that it is secure enough to...

  • Page 54: With A Tether

    Installing a Child Seat Installing a Child Seat with a When using a tether anchor, always Using an Outer Tether Anchor Tether hook the tether strap through the upper guide to route it properly. UPPER GUIDE COVER CENTER TETHER Since a tether can provide additional ANCHOR security to the lap/shoulder belt installation, we recommend using a...

  • Page 55

    Installing a Child Seat Route the tether strap downward Using the Center Tether Anchor UPPER GUIDE properly, making sure the strap is Make sure to attach the tether strap not twisted. hook to the anchor before installing the child seat, because the tether Attach the tether strap hook to the anchor is positioned behind the child outer tether anchor on the outside...

  • Page 56

    Installing a Child Seat Properly secure the child seat (see UPPER GUIDE page ), then tighten the tether strap according to the seat maker’s instructions. Whenever using the tether strap, make sure to route the strap through the upper guide before attaching the tether strap hook to the tether anchor.

  • Page 57: Protecting Larger Children, Checking Seat Belt Fit

    Protecting Larger Children When a child reaches the Checking Seat Belt Fit recommended weight or height limit for a forward-facing child seat, the Allowing a child age 12 or under child should sit in a back seat on a to sit in front can result in injury booster seat and wear a lap/shoulder or death if the passenger’s front belt.

  • Page 58: Using A Booster Seat

    Protecting Larger Children Does the shoulder belt cross Using a Booster Seat Booster seats can be high-back or between the child’s neck and arm? low-back. Whichever style you select, make sure the booster seat meets Is the lap part of the belt as low as federal safety standards (see page possible, touching the child’s ) and that you follow the booster...

  • Page 59: When Can A Larger Child Sit In Front

    Protecting Larger Children When Can a Larger Child Sit in Of course, children vary widely. And If you decide that a child can safely Front while age may be one indicator of ride up front, be sure to: The National Highway Traffic Safety when a child can safely ride in front, Administration and Transport there are other important factors you...

  • Page 60

    Protecting Larger Children Additional Safety Precautions Do not put any accessories on a Devices intended to Do not let a child wear a seat belt seat belt. This could result improve a child’s comfort or across the neck. in serious neck injuries during a reposition the shoulder part of a crash.

  • Page 61: Carbon Monoxide Hazard

    Carbon Monoxide Hazard Your vehicle’s exhaust contains With a truck cap installed and the carbon monoxide gas. Carbon back window open, engine exhaust monoxide should not enter the may enter the vehicle and cause a Carbon monoxide gas is toxic. vehicle in normal driving if you hazardous condition.

  • Page 62: Safety Labels

    Safety Labels These labels are in the locations DASHBOARD SUN VISORS U.S. models shown. They warn you of potential U.S. models only hazards that could cause serious injury or death. Read these labels carefully. If a label comes off or becomes hard to read (except for the U.S.

  • Page 63

    Safety Labels HOOD DOORJAMBS U.S. models Canadian models Canadian models U.S. models PICKUP BED U.S. models Canadian models...

  • Page 65: Seat Heaters, Hazard Warning Button

    Instruments and Controls This section gives information about Control Locations ......60 Power Windows ......128 the controls and displays that Instrument Panel ......61 Moonroof ........131 contribute to the daily operation of Instrument Panel Indicators ..

  • Page 66: Control Locations

    Control Locations INSTRUMENT PANEL INDICATORS (P.62) REAR VIEW MIRROR WITH COMPASS (P.210) AUDIO SYSTEM GAUGES (P.76) (P.159) AUXILIARY INPUT PARKING BRAKE JACK (P.203) RELEASE HANDLE (P.132) HEATING/COOLING (P.146) CONTROLS CLIMATE CONTROL MIRROR CONTROLS SYSTEM (P.152) (P.134) GLOVE BOX POWER DOOR LOCK (P.138) MASTER SWITCH (P.103)

  • Page 67: Instrument Panel

    Instrument Panel LIGHTS ON INDICATOR (P.69) HIGH BEAM SECURITY SYSTEM INDICATOR (P.68) INDICATOR (P.67) TIRE PRESSURE MONITORING SIDE AIRBAG OFF INDICATOR (P.64) (P.73) SYSTEM (TPMS) INDICATOR CRUISE MAIN (P.71) MAINTENANCE MINDER INDICATOR LOW TIRE PRESSURE INDICATOR/ INDICATOR (P.67) IMMOBILIZER SYSTEM INDICATOR (P.66) (P.72) TPMS INDICATOR...

  • Page 68: Instrument Panel Indicators

    Instrument Panel Indicators The instrument panel has many Seat Belt Reminder If your front passenger does not indicators to give you important Indicator fasten their seat belt, the indicator information about your vehicle. This indicator comes on when you comes on about 6 seconds after the turn the ignition switch to the ON ignition switch is turned to the ON (II) position.

  • Page 69

    Instrument Panel Indicators Malfunction Indicator Low Oil Pressure Charging System Lamp Indicator Indicator For more information, see page The engine can be severely damaged If this indicator comes on when the if this indicator flashes or stays on engine is running, the battery is not when the engine is running.

  • Page 70

    Instrument Panel Indicators Supplemental Restraint On models with navigation system U.S. Canada System Indicator You will also see a ‘‘CHECK Side Airbag Off This indicator comes on for several AIRBAG SYSTEM’’ message on the Indicator seconds when you turn the ignition multi-information display (see page This indicator comes on for several switch to the ON (II) position.

  • Page 71

    Instrument Panel Indicators Parking Brake If it stays on after you have fully On models with navigation system U.S. Canada and Brake You will also see a ‘‘RELEASE released the parking brake while System PARKING BRAKE’’ message on the the engine is running, or if it Indicator multi-information display (see page comes on while driving, there...

  • Page 72: Hazard Warning Button

    Instrument Panel Indicators Anti-lock Brake System Immobilizer System Turn Signal and (ABS) Indicator Indicator Hazard Warning This indicator normally comes on for This indicator comes on for a few Indicators a few seconds when you turn the seconds when you turn the ignition The left or right turn signal indicator ignition switch to the ON (II) switch to the ON (II) position.

  • Page 73

    Instrument Panel Indicators Daytime Running Lights High Beam Indicator Washer Level Indicator Indicator If this indicator comes on when the This indicator comes on with the This indicator comes on when the ignition switch is turned to the ON high beam headlights. For more washer fluid level is low.

  • Page 74

    Instrument Panel Indicators Low Fuel Indicator Security System Indicator On models with navigation system You will also see a ‘‘FUEL LOW’’ On RTS, RTL models, and Canadian message on the multi-information EX-L models display. LOW FUEL INDICATOR This indicator comes on as a SECURITY SYSTEM INDICATOR reminder that you must refuel soon.

  • Page 75

    Instrument Panel Indicators Lights On Indicator A/T Temperature Indicator This indicator reminds you that the This indicator monitors the Continuing to drive with the A/T exterior lights are on. It comes on temperature of the automatic temperature indicator on may cause when you turn the headlight control transmission fluid.

  • Page 76

    Instrument Panel Indicators VTM-4 Indicator Vehicle Stability Assist On models with navigation system (VSA) System Indicator You will also see a ‘‘CHECK VSA This indicator normally comes on for This indicator normally comes on for SYSTEM’’ message on the multi- a few seconds when you turn the a few seconds when you turn the information display (see page...

  • Page 77

    Instrument Panel Indicators VSA Activation Indicator Maintenance Minder On models with navigation system You will also see a ‘‘CHECK VSA Indicator This indicator normally comes on for SYSTEM’’ message on the multi- This indicator comes on for a few a few seconds when you turn the information display (see page seconds when you turn the ignition ignition switch to the ON (II)

  • Page 78

    Instrument Panel Indicators Low Tire Pressure If this happens, pull to the side of the Low Tire Pressure/ Indicator road when it is safe, check which tire TPMS Indicator has lost the pressure on the tire On models without navigation system On models with navigation system This indicator normally comes on for pressure monitor, and determine the...

  • Page 79

    Instrument Panel Indicators If this happens, pull to the side of the If this indicator begins to flash, Tire Pressure Monitoring road when it is safe, check which tire there is a problem with the tire System (TPMS) Indicator has lost pressure on the multi- pressure monitoring system On models without navigation system information display, and determine...

  • Page 80

    Instrument Panel Indicators Message Indicator Bed Lights On Indicator If you turn the ignition switch to the ACCESSORY (I) or LOCK (0) This indicator reminds you that the position without turning off the bed On models with navigation system This indicator comes on when there bed lights are on.

  • Page 81

    Instrument Panel Indicators In-Bed Trunk Open Door and Tailgate Open Back Window Open Indicator Indicator Indicator This indicator reminds you that the This indicator comes on if any door This indicator reminds you that the In-Bed Trunk is open. If you do not or the tailgate is not closed tightly.

  • Page 82

    Gauges Temperature Gauge On models without navigation system This shows the temperature of the SPEEDOMETER TEMPERATURE GAUGE engine’s coolant. During normal TACHOMETER operation, the pointer should rise to about the middle of the gauge. In severe driving conditions, the pointer may rise to the upper zone.

  • Page 83

    Gauges Information Display On models with navigation system SELECT BUTTON On models without navigation system For information about the multi- The information display shows the information display, see page odometer, trip meter, engine oil life, outside temperature (if equipped), current fuel mileage, average fuel mileage, range (estimated distance), and maintenance item code(s).

  • Page 84

    Gauges INFORMATION DISPLAY OUTSIDE TEMPERATURE INDICATOR SELECT button ODOMETER ODOMETER TRIP/RESET button TRIP METER B TRIP METER A AVERAGE FUEL AVERAGE FUEL MILEAGE B MILEAGE A CURRENT CURRENT TRIP METER A TRIP METER B FUEL MILEAGE FUEL MILEAGE RANGE RANGE TRIP METER B TRIP METER A ENGINE OIL LIFE...

  • Page 85

    Gauges Both trip meters will reset if the (32°F, 0°C) could mean that ice is Odometer The odometer shows the total vehicle’s battery goes dead or is forming on the road surface. distance your vehicle has been disconnected. driven. It measures miles in U.S. If the outside temperature is models and kilometers in Canadian Outside Temperature Indicator...

  • Page 86

    Gauges Tire Pressure Monitor Current Fuel Mileage Range (Estimated Distance) This display shows the current, or This display shows the estimated instant fuel mileage you are getting. distance you can travel on the fuel remaining in the tank. TIRE PRESSURE MONITOR It shows the number of mpg (U.S.) or l/100 km (Canada).

  • Page 87

    Gauges If the system still detects a leak in Maintenance Minder Check Fuel Cap Message The information display in the Your vehicle’s onboard diagnostic your vehicle’s evaporative emissions instrument panel shows you the system will detect a loose or missing system, the malfunction indicator engine oil life and maintenance fuel fill cap as an evaporative system...

  • Page 88: Multi-information Display

    Multi-Information Display With the ignition switch in the ON On models with navigation system INFO ( ) BUTTON The multi-information display in the (II) position, the multi-information instrument panel displays various display changes as shown in the next information and messages when the page each time you press the INFO ignition switch is in the ON (II) ( / ) button or SEL/RESET...

  • Page 89

    Multi-Information Display (See page84) Trip Computer (See page87) Tire Pressure for each tire (See page86) Go to HandsFree-Link Menu (See page86) Go to Language Selection Menu (See page92) INFO ( / ) button SEL/RESET button U.S. model is shown.

  • Page 90

    Multi-Information Display Odometer Trip Meter When you reset Trip A, AVERAGE FUEL A, AVERAGE SPEED A, and ELAPSED TIME A are reset at the same time. When you reset Trip B, AVERAGE FUEL B, AVERAGE SPEED B, and ELAPSED TIME B are reset.

  • Page 91

    Multi-Information Display The temperature sensor is in the If the outside temperature is Outside Temperature front bumper. The temperature incorrectly displayed, you can adjust reading can be affected by heat it up to 5°F in U.S. models ( 3°C reflection from the road surface, in Canadian models) warmer or OUTSIDE TEMPERATURE engine heat, and the exhaust from...

  • Page 92

    Multi-Information Display Engine Oil Life Tire Pressure Monitor Bluetooth HandsFreeLink U.S. Canada ENGINE OIL LIFE This shows the remaining life of the When the tire pressure monitor is You can receive or make phone calls engine oil. It shows 100% after the shown on the multi-information from your cell phone through your engine oil is replaced and the display...

  • Page 93

    Multi-Information Display To use the system, your cell phone Trip Computer and the HFL system must be linked. Not all cell phones are compatible INFO ( / ) button with this system. Refer to page SEL/RESET button for instructions on how to link Average Fuel Economy/Range your cell phone to the HFL and how to receive or make phone calls, or...

  • Page 94

    Multi-Information Display Along with the trip meter, the trip AVERAGE FUEL A/B ELAPSED TIME A/B computer calculates these values: This shows your vehicle’s average This shows the time passed traveled fuel economy in mpg (U.S. models) since you last reset it. When you turn Average Fuel Economy or liter/100 km (Canadian models) the ignition switch to the ON (II)

  • Page 95

    Multi-Information Display System Messages The system message(s) triggers the When there are several messages to appropriate indicator(s) on the be shown, the system switches the instrument panel, including the messages every 5 seconds. system message indicator, to come The message is shown until you on.

  • Page 96

    Multi-Information Display U.S. U.S. See page See page See page Canada Canada See page U.S. See page See page See page Canada See page See page U.S. See page Canada...

  • Page 97

    Multi-Information Display See page See page See page See page See page See page See page See page See page See page See page See page...

  • Page 98

    Multi-Information Display Language Selection There are three language selections Press the SEL/RESET button to see When your selection is successfully you can make: English, Spanish, and the selections. completed, the display returns to the French. To choose the language you ‘‘LANGUAGE SELECTION’’...

  • Page 99: Moonroof Switch (p, Remote Audio Controls, Hazard Warning Button

    Controls Near the Steering Wheel (P.76) INSTRUMENT PANEL TRIP/RESET BUTTON SELECT BUTTON INFO ( ) BUTTON (P.98) BRIGHTNESS (P.76) (P.76) SHIFT LEVER MOONROOF SWITCH SEL/RESET BUTTON (P.131) (P.271) (P.76) VTM-4 LOCK MULTI-CONTROL LEVER (P.276) INFO ( )BUTTON (WINDSHIELD WIPERS/ (P.76) WASHERS/TURN SIGNALS/ HEADLIGHT HIGH BEAMS) PASSENGER AIRBAG OFF...

  • Page 100: Multi-control Lever

    Multi-Control Lever The multi-control lever has many The wipers run at low speed. functions, including windshield wipers and washers, turn signals, The wipers run at high speed. headlight high beams, and headlight high beam flashing. The wipers run at high speed MIST: until you release the lever.

  • Page 101

    Multi-Control Lever, Headlights Turn Signal Push down on the Headlight Control Dial Automatic Heated Wiper Zone Your vehicle has heating wires at the multi-control lever to signal a left bottom of the windshield to help turn and up to signal a right turn. To heat the wiper blades and the signal a lane change, push lightly on windshield.

  • Page 102

    Headlights Turning the dial to If you remove the key from the Headlights Automatic Lighting Off Feature the ‘‘ ’’ position turns on the The automatic lighting off feature ignition switch with the headlight parking lights, taillights, instrument turns off the headlights, all other control dial on, but do not open the panel lights, and license plate lights.

  • Page 103

    Headlights, Fog Lights Daytime Running Lights Fog Lights On models with navigation system With the headlight control dial off, If you see a ‘‘CHECK DRL If equipped the daytime running lights come on SYSTEM’’ message on the multi- when you turn the ignition switch to information display, there is a the ON (II) position and release the problem with the daytime running...

  • Page 104: Instrument Panel Brightness

    Instrument Panel Brightness If you do not insert the key in the The instrument panel brightness is ignition switch after opening the dimmed when you turn the headlight driver’s door, the illumination turns control dial to the ‘‘ ’’ or off about 30 seconds after you close ‘‘...

  • Page 105

    Hazard Warning Button, Steering Wheel Adjustment Hazard Warning Button Steering Wheel Adjustment Make any steering wheel adjustment before you start driving. Adjusting the steering wheel position while driving may cause you to lose control of the vehicle and be seriously injured in a crash.

  • Page 106

    They will not TRANSMITTER have to get a lost key replaced. Use work to start the engine if the only Honda-approved key blanks. circuits are damaged. Protect the keys from direct sunlight, high temperature, and high humidity.

  • Page 107: Immobilizer System

    Immobilizer System The immobilizer system protects The system may not recognize your As required by the FCC: your vehicle from theft. If an key’s coding if another immobilizer This device complies with Part 15 of the improperly coded key (or other key or other metal object (i.e.

  • Page 108: Ignition Switch

    Ignition Switch You can insert or Use this position LOCK (0) START (III) remove the key only in this position. only to start the engine. The switch To turn the key, the shift lever must returns to the ON (II) position when be in Park, and you must push the you let go of the key.

  • Page 109: Door Locks

    Door Locks Power Door Locks The lock tab on each door locks and To lock any passenger’s door when unlocks that door. Pulling up on the getting out of the vehicle, push the driver’s door lock tab only unlocks lock tab down, and close the door. LOCK TAB the driver’s door.

  • Page 110

    Door Locks Childproof Door Locks Auto Door Locking/Unlocking Auto Door Locking Your vehicle has customizable The auto door locking feature has settings for the doors to three possible settings: automatically lock and unlock. There are default settings for each of these The auto door locking is features.

  • Page 111

    Door Locks Push and hold the front of the To turn off the Auto Door Lock To program the Park Lock mode: master door lock switch on the modes: Locks all doors when the shift lever is driver’s door until you hear a click moved out of the Park (P) position.

  • Page 112

    Door Locks Push and hold the front of the Push and hold the brake pedal, To program the Drive Lock mode: master door lock switch on the and move the shift lever out of the Locks all doors when the vehicle’s speed driver’s door.

  • Page 113

    Door Locks Auto Door Unlocking Push and hold the rear of the To turn off the Auto Door Unlock The auto door unlocking feature has master door lock switch on the modes: five possible settings: driver’s door. You will hear a click, and after about 5 seconds, you will The auto door unlocking is hear another click.

  • Page 114

    Door Locks Push and hold the rear of the To program the Park Unlock mode: To program the Ignition Switch master door lock switch on the Unlocks the driver’s door or all doors Unlock mode: driver’s door. You will hear a click. when the shift lever is moved into the Unlocks the driver’s door or all doors Continue to hold down the switch:...

  • Page 115

    Door Locks Push and hold the brake pedal, Release the switch and, within 5 If your vehicle’s battery is removed then move the shift lever out of seconds, turn the ignition switch or goes dead, the auto door lock/ the Park (P) position. to the ACCESSORY (I) position.

  • Page 116: Remote Transmitter

    Remote Transmitter Press this button once If you do not open any door within 30 UNLOCK LOCK to unlock the driver’s door and the seconds, the doors automatically BUTTON In-Bed Trunk. Push it twice to relock, and the security system sets unlock the remaining doors.

  • Page 117

    Remote Transmitter Remote Transmitter Care Replacing the Transmitter Avoid dropping or throwing the Battery transmitter. Protect the transmitter from extreme temperature. BATTERY Do not immerse the transmitter in any liquid. If you lose a transmitter, the replacement needs to be reprogrammed by your dealer.

  • Page 118

    Remote Transmitter Remove the old battery from the As required by the FCC: back of the inner cover, and insert This device complies with Part 15 of the a new battery into the back of the FCC rules. Operation is subject to the cover with the side facing down.

  • Page 119

    Dual-Action Tailgate You can open the tailgate two Before you open the tailgate a To Drop Open the Tailgate different ways: different way (dropped open, and then swung open), make sure it is UPPER HANDLE Drop it open by using the upper fully closed.

  • Page 120

    Dual-Action Tailgate The dropped open tailgate can be To Swing Open the Tailgate used as an extended pickup bed. Make sure to secure the items in the Do not drive with the tailgate swung pickup bed, and do not exceed the open.

  • Page 121

    Dual-Action Tailgate Do not allow anyone to hang on the If you do not fasten the seat belt, you Tailgate Open Indicator swung open tailgate. This could first hear the seat belt reminder damage the tailgate. alarm, then the tailgate reminder On models without navigation system This indicator is in the door and beeper sounds.

  • Page 122

    In-Bed Trunk If your vehicle’s battery is disconnected or goes dead, the release button on the In-Bed Trunk lid is disabled. To open the In-Bed Trunk, use the master key. The bed lights come on when you open the In-Bed Trunk. You can also turn the bed lights on or off by pushing the bed light switch on the RELEASE...

  • Page 123

    In-Bed Trunk To avoid damaging the key and key To avoid damaging the seal on the Emergency Opener cylinder of the In-Bed Trunk lid, do In-Bed Trunk lid, remove any debris not close the tailgate when the key is from the lid’s mating surface before in the lid.

  • Page 124

    In-Bed Trunk In-Bed Trunk Main Switch Washing the In-Bed Trunk Cargo Hooks MAIN SWITCH CARGO HOOKS DRAIN PLUG To protect items in the In-Bed Trunk, You can wash the inside of the There are two cargo hooks for you can disable its release button by In-Bed Trunk with a water and mild plastic grocery bags at the back of turning off the main switch in the...

  • Page 125

    Seats The front passenger’s seat in all Manual Seat Adjustments models adjusts manually. On RT and Canadian DX and VP models See pages for important safety information and warnings about how to properly position the seats and seat- backs. Make all seat adjustments before you start driving.

  • Page 126

    Seats Driver’s Seat Manual Height Make sure to pull the lever upward Adjustment or downward to its full range. Make all seat adjustments before you start driving. To change the seat-back angle of the front seat, pull up the lever on the outside of the seat bottom.

  • Page 127

    Seats Power Seat Adjustments Moves the whole seat up and forward, or down On RTS, RTL and Canadian EX-L and backward. The front models of the seat also tilts up or See pages for important safety down at the same time. information and warnings about how to properly position the seats and seat- backs.

  • Page 128

    Seats Armrests Head Restraints See page for important safety FRONT REAR information and a warning about improperly positioning head restraints. Your vehicle is equipped with head restraints in all seating positions to help protect you and your passengers from whiplash and other injuries.

  • Page 129

    Seats CUSHION Rear Center Position CUSHION SEAT- BACK LEGS RELEASE BUTTON LEGS RELEASE BUTTON They are most effective when you The head restraints adjust for height. When a passenger is seated in the adjust them so the center of the back You need both hands to adjust the rear center seating position, make of the occupant’s head rests against...

  • Page 130

    If the restraints do not return to their normal position, or in the event of a severe collision, have the vehicle inspected by a Honda dealer. The driver’s and front passenger’s seats have active head restraints. If the vehicle is struck severely from...

  • Page 131

    Do not place any object between an occupant and the seat-back. Install each restraint in its proper location. Only use genuine Honda To fold a rear seat cushion, pull up replacement head restraints. the lever on the outside of the cushion.

  • Page 132

    Seats, Seat Heaters Make sure all items in the cargo area Seat Heaters LEGS are secured. Loose items can fly forward and cause injury if you have Passenger’s to brake hard (See Seat Carrying Cargo on page You can also store small items under the rear seats.

  • Page 133: Seat Heaters

    Seat Heaters In the HI setting, the heater turns off Follow these precautions when using when the seat gets warm, and turns the seat heaters: back on after the seat’s temperature SEAT HEATER SWITCHES drops. Use the HI setting only to heat the seats quickly, because it draws In the LO setting, the heater runs large amounts of current from the...

  • Page 134: Power Windows

    Power Windows The windows operate for up to 10 To open or close the AUTO DRIVER’S WINDOW MAIN SWITCH minutes after you turn off the driver’s window, push or pull the SWITCH ignition switch. Opening either front window switch firmly down or up to door cancels this function.

  • Page 135

    Power Windows AUTO REVERSE If the driver’s If your vehicle’s battery is Back Window window senses any obstacle while it disconnected or goes dead, or the Your vehicle has a power back is closing automatically, it will driver’s window fuse is removed, the window.

  • Page 136

    Power Windows If you remove the ignition key and Opening the Side Windows with open the driver’s door without the Remote Transmitter UNLOCK BUTTON closing the back window, you hear You can open all of the side windows five beeps and see the indicator blink. from the outside with the remote If you do not close the back window transmitter.

  • Page 137

    Power Windows, Moonroof Turn the key clockwise again, and To close the windows further, turn Moonroof hold it. All four side windows start and hold the key again (within to open. To stop the windows, 10 seconds). release the key. If the windows stop before NOTE: To open the windows further, turn...

  • Page 138

    Moonroof, Parking Brake To tilt up the back of the moonroof, You can open and close the Parking Brake press and hold the center part of the moonroof for up to 10 minutes after switch ( ). To close the you turn off the ignition switch.

  • Page 139

    Parking Brake, Mirrors Mirrors If equipped The rear view mirror has a compass function to indicate the vehicle’s Driving the vehicle with the parking direction. brake applied can damage the rear Refer to on page brakes and hubs. A beeper will sound if Compass the vehicle is driven with the parking brake on.

  • Page 140

    Mirrors When you finish, move the Adjusting the Power Mirrors Heated Mirrors selector switch to the center (off) HEATED MIRROR BUTTON ADJUSTMENT SWITCH position. This turns the adjustment switch off to keep your settings. SELECTOR SWITCH Turn the ignition switch to the ON If equipped (II) position.

  • Page 141: Interior Convenience Items

    Interior Convenience Items VANITY MIRROR SUN VISOR CENTER CONSOLE CONSOLE COMPARTMENT SUNGLASSES BEVERAGE HOLDER COAT HOOK HOLDER ACCESSORY POWER SOCKET CENTER UPPER POCKET GLOVE BOX ACCESSORY POWER SOCKETS CENTER POCKET CENTER LOWER POCKET BEVERAGE HOLDERS : On vehicle without navigation system...

  • Page 142

    Interior Convenience Items Center Console Console Compartments The center console main compartment is under the tray and the beverage holder. You can access the main compartment in two ways (front or rear). To open the rear of the compartment, Your vehicle has a multi-function push the button at the end of the center console.

  • Page 143

    Interior Convenience Items Cargo Hooks Beverage Holders The center console has two beverage holders on the front. Your vehicle also has beverage holders in the rear seat armrest and the rear door panels. Be careful when you are using the beverage holders.

  • Page 144

    Interior Convenience Items Glove Box Coat Hooks Sunglasses Holder Open the glove box by pulling up on SUNGLASSES HOLDER the handle. Close it with a firm push. Lock or unlock the glove box with the master key. The glove box light comes on when the parking lights are on.

  • Page 145

    Interior Convenience Items Accessory Power Sockets None of the sockets will power an automotive type cigarette lighter FRONT REAR element. When both sockets are being used, the combined power rating of the accessories should be 120 watts or less (10 amps). There are three accessory power These sockets are intended to supply sockets in your vehicle.

  • Page 146

    Interior Convenience Items Sun Visor Make sure you put the sun visor Vanity Mirror back in place when you are getting into or out of the vehicle. Slide SUN VISOR To use the sun visor, pull it down. Pull up the vanity mirror cover to use When using the sun visor for the side window, remove the support rod from the clip, and swing it out.

  • Page 147

    Interior Convenience Items AC Power Outlet Always run the engine when you use The AC power outlet is not NOTE: the AC power outlet. designed for electric appliances which require high initial peak The maximum capacity for this wattage such as cathode-ray tube power outlet is 115 volt AC at 100 type televisions, refrigerators, watts or less.

  • Page 148: Interior Lights

    Interior Lights Interior Light Control Switch When the switch is in the door position: When the switch is in the OFF position: DOOR POSITION The individual map lights and the None of the lights come on when a rear console light come on when door is opened.

  • Page 149

    Interior Lights Individual Map Lights Individual Interior Lights Courtesy Light Turn on a front individual map light The courtesy light in each door by pushing the lens. Push the lens comes on when you open that door. again to turn it off. With the interior The light around the ignition switch light control switch in the door only comes on when you open the...

  • Page 150: Bed Lights

    Bed Lights If you turn the ignition switch to ACCESSORY (I) or LOCK (0) without turning off the bed lights, the lights and the indicator will remain on, then go off after 20 minutes (see page BED LIGHT SWITCH Your vehicle has bed lights in the To turn off the lights, push the light pickup bed: a light on each front switch again, or close the tailgate...

  • Page 151

    Features The heating and air conditioning Vents, Heating and A/C ....146 Rearview Camera and Monitor . 246 system in your vehicle provides a Climate Control System ....152 comfortable driving environment in Playing the AM/FM Radio ...

  • Page 152

    Vents, Heating, and A/C On RTS, RTL and Canadian EX-L RT, Canadian DX, and VP models models See page for automatic climate AIR CONDITIONING BUTTON TEMPERATURE control and semi-automatic operation CONTROL DIAL information. FAN CONTROL DIAL MAX A/C BUTTON MODE BUTTONS RECIRCULATION BUTTON MODE BUTTONS WINDSHIELD DEFROSTER BUTTON...

  • Page 153

    Vents, Heating, and A/C Fan Control Dial Air Conditioning (A/C) Button Recirculation Button Turn this dial to increase or decrease This button turns the air When the indicator in the button is the fan speed and airflow. conditioning on and off. You will see on, air from the vehicle’s interior is A/C ON or A/C OFF in the display.

  • Page 154

    Vents, Heating, and A/C Mode Control Windshield Defroster Button MAX A/C Button Use the mode control buttons to Air flows from the defroster The system automatically select the vents air flows from. Some vents at the base of the windshield. turns on the A/C and switches to air will flow from the dashboard Recirculation mode.

  • Page 155

    Vents, Heating, and A/C Ventilation Using the Heater Using the A/C The ventilation system draws in The heater uses engine coolant to Air conditioning places an extra load outside air, circulates it through the warm the air. If the engine is cold, it on the engine.

  • Page 156

    Vents, Heating, and A/C you can To Defog and Defrost Automatic Heated Wiper Zone If the interior is very warm, cool it down more rapidly by partially To remove fog from the inside of the Your vehicle has heating wires at the opening the windows, turning on the windows: bottom of the windshield to help...

  • Page 157

    Vents, Heating, and A/C To Remove Exterior Frost or Ice To Turn Everything Off Rear Ventilation Turning the fan speed control dial all From the Windows Set the fan and temperature the way to the left shuts the system DIAL controls to maximum level.

  • Page 158: Climate Control System

    Climate Control System Voice Control System RTS, RTL, and Canadian EX-L models On models with navigation system ON/OFF BUTTON DRIVER’S SIDE PASSENGER’S SIDE The climate control system can also TEMPERATURE TEMPERATURE be operated by voice control. See the CONTROL DIAL CONTROL DIAL Navi section in your quick start AUTO BUTTON...

  • Page 159

    Climate Control System Using Automatic Climate Control The system automatically selects the When you set either side The automatic climate control proper mix of conditioned and/or temperature to its lower limit system in your vehicle picks the heated air that will, as quickly as ) or its upper limit ( proper combination of air possible, raise or lower the interior...

  • Page 160

    Climate Control System To Turn Everything Off Semi-automatic Operation On models with navigation system In AUTO mode, the vehicle’s To turn the system completely off, You can manually select various temperature is independently press the ON/OFF button. functions of the climate control regulated, based on the driver’s and system when it is in fully automatic passenger’s side setting.

  • Page 161

    Climate Control System Recirculation Button Mode Control Windshield Defroster Button When the indicator in the button is Use the mode control button to This button directs the main airflow on, air from the vehicle’s interior is select the vents the air flows from. to the windshield for faster sent through the system again.

  • Page 162

    Climate Control System For your safety, make sure you have Automatic Heated Wiper Zone Rear Ventilation a clear view through all the windows Your vehicle has heating wires at the before driving. bottom of the windshield to help DIAL heat the wiper blades and the When the indicator in the button is windshield.

  • Page 163

    Climate Control System Dual Temperature Control The temperatures of the driver’s side Driver’s Side Passenger’s Side and the front passenger’s side are controlled independently. To adjust each temperature, turn either of the temperature control dials on the climate control panel. When you set each temperature to its lower limit or its upper limit, it will be displayed as ‘‘...

  • Page 164

    Climate Control System Sunlight and Temperature Sensors SUNLIGHT SENSOR TEMPERATURE SENSOR The climate control system has two sensors. A sunlight sensor is in the top of the dashboard, and a temperature sensor is under the steering column. Do not cover the sensors or spill any liquid on them.

  • Page 165: Playing The Am/fm Radio

    Playing the AM/FM Radio RT, Canadian DX, and VP models RTS model SOUND BUTTON VOLUME KNOB POWER POWER VOLUME KNOB BUTTON BUTTON STEREO INDICATOR STEREO INDICATOR AM/FM AM/FM BUTTON BUTTON A.SEL (AUTO A.SEL SELECT) SOUND SCAN SCAN (AUTO BUTTON BUTTON BUTTON BUTTON SELECT)

  • Page 166

    Playing the AM/FM Radio RTL and Canadian EX-L models without RTL and Canadian EX-L models with navigation system navigation system VOLUME KNOB VOLUME KNOB POWER POWER AM/FM BUTTON STEREO INDICATOR BUTTON BUTTON STEREO INDICATOR AM/FM BUTTON SCAN BUTTON SOUND SOUND BUTTON BUTTON A.SEL...

  • Page 167

    Playing the AM/FM Radio To Play the AM/FM Radio To Select a Station with a strong signal. When it finds The ignition switch must be in the You can use any of five methods to one, it will stop and play that station ACCESSORY (I) or ON (II) position.

  • Page 168

    Playing the AM/FM Radio AUTO SELECT If you are If you do not like the stations auto Each mode is shown in the display as traveling far from home and can no select has stored, you can store it changes. Turn the VOLUME knob longer receive your preset stations, other frequencies on the preset bars to adjust the setting to your liking.

  • Page 169

    Playing the AM/FM Radio Operating the Radio on the While you are listening to the radio, Adjusting the Sound Navigation System Screen you can change to another band by pressing the AUDIO button next to AUDIO BUTTON the navigation system screen, and then touching the desired band icon (FM1, FM2, or AM).

  • Page 170

    Playing the AM/FM Radio Left/Right Balance and Front/ Voice Control System Rear Fader These modes adjust On models with navigation system the strength of the sound coming The audio system can also be from each speaker. Left/Right operated by voice control. See the balance adjusts the side-to-side Navi section in your quick start strength, while Front/Rear fader...

  • Page 171: Am/fm Radio Reception

    AM/FM Radio Reception Radio Frequencies Radio Reception The radio can receive the complete How well the radio receives stations AM and FM bands. is dependent on many factors, such Those bands cover these frequen- as the distance from the station’s cies: transmitter, nearby large objects, atmospheric conditions, and even...

  • Page 172

    AM/FM Radio Reception As required by the FCC: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Radio signals, especially on the FM Radio reception can be affected by band, are deflected by large objects atmospheric conditions such as such as buildings and hills.

  • Page 173

    Playing the XM Satellite Radio RTL and Canadian EX-L models without RTL and Canadian EX-L models with navigation system navigation system POWER BUTTON XM BUTTON VOLUME DISPLAY/MODE BUTTON POWER BUTTON XM BUTTON KNOB VOLUME DISPLAY/MODE BUTTON KNOB SCAN BUTTON SCAN BUTTON CATEGORY BAR PRESET BARS TUNE BAR...

  • Page 174

    Playing the XM Satellite Radio Adjust the volume by turning the On RTL and Canadian EX-L models Your vehicle is capable of receiving volume knob. The last channel you XM Satellite Radio anywhere in the listened to will show in the display. United States, and Canada, except Hawaii and Alaska.

  • Page 175

    Playing the XM Satellite Radio Press the TUNE bar to You can store up to 12 Pick a preset number (icon) you TUNE Preset change channel selections. Press preset channels using each side of want for that channel. Press and for higher numbered channels the preset bar or preset icons on the hold the bar (icon) until you hear a...

  • Page 176

    Playing the XM Satellite Radio The signal is XM Satellite Radio Display ‘‘NO SIGNAL’’ currently too Messages XM is loading the weak. Move the ‘‘LOADING’’ audio or program vehicle to an area information. away from tall buildings, and with an ‘‘OFF AIR’’...

  • Page 177

    Playing the XM Satellite Radio The XM satellites are in orbit over the equator; therefore, objects south Signal weaker in Signal may be blocked by of the vehicle may cause satellite these areas. mountains or large obstacles to reception interruptions. To help the south.

  • Page 178

    Playing the XM Satellite Radio Depending on where you drive, you your credit card number. To get your As required by the FCC: may experience reception problems. radio I.D. number, press the TUNE Changes or modifications not expressly Interference can be caused by any of bar until ‘‘0’’...

  • Page 179: Playing Cds

    Playing CDs This audio system can also play If you have a disc that is a On RT, Canadian DX, and VP models You operate the CD player with the CD-Rs and CD-RWs compressed in combination of CD-DA tracks and same controls used for the radio.

  • Page 180

    Playing CDs The specifications for compatible The specifications for compatible MP3 files are: WMA files are: Sampling frequency: Sampling frequency: 32/44.1/48 kHz (MPEG1) 32/44.1/48 kHz 16/22.05/24 kHz (MPEG2) Bitrate: Bitrate: 48/64/80/96/128/160/192 kbps 32/40/48/56/64/80/96/112/128/ Compatible with variable bitrate 160/192/224/256/320 kbps and multi-session (MPEG1) Maximum layers 8/16/24/32/40/48/56/64/80/96/...

  • Page 181

    CD Player On RT, Canadian DX, and VP models RT, Canadian DX, and VP models To Play a Disc To load or play a disc, the ignition switch must be in the CD SLOT EJECT BUTTON ACCESSORY (I) or ON (II) position. You operate the disc player with the same controls used for the radio.

  • Page 182

    CD Player The display shows up to about 16 To Load a Disc Text Data Display Function Insert a disc about halfway into the Each time you press the DISP button, characters of selected text data (the disc slot. The drive will pull the disc the display shows you the text data folder name, file name, etc.).

  • Page 183

    CD Player You will also see some text data To Change or Select Tracks/Files In MP3 or WMA mode under these conditions: You can use the SEEK/SKIP bar FOLDER SELECTION while a disc is playing to select select a different folder, press either When a new folder, file, or track is passages and change tracks (files in side of the TUNE/FOLDER bar.

  • Page 184

    CD Player REPEAT (TRACK/FILE In MP3 or WMA mode RANDOM (Random within a To continuously replay This feature, This feature plays the REPEAT) FOLDER-REPEAT disc) a track (files in MP3 or WMA mode), when activated, replays all files on tracks within a disc (the files in MP3 press and release the RPT button.

  • Page 185

    CD Player In MP3 or WMA mode SCAN (TRACK/FILE SCAN) In MP3 or WMA mode This The scan function samples all tracks This feature, FOLDER-RANDOM FOLDER SCAN feature, when activated, plays all (files in MP3 or WMA) on the disc in when activated, samples the first file files on the selected folder in random the order they are recorded on the...

  • Page 186

    CD Player If you turn the system off while a To select the CD changer, press the To Stop Playing a Disc Press the eject button ( ) to disc is playing, either with the PWR AUX button. The disc and track remove the disc.

  • Page 187

    CD Changer (Models without navigation system) RT model RTL and Canadian EX-L models without navigation system LOAD BUTTON CD SLOT LOAD BUTTON CD SLOT EJECT BUTTON CD BUTTON CD/AUX BUTTON PWR BUTTON EJECT BUTTON PWR BUTTON DISPLAY BUTTON DISPLAY BUTTON REPEAT BUTTON REPEAT...

  • Page 188

    CD Changer (Models without navigation system) Insert a CD into the CD slot. On RTS, RTL, and Canadian EX-L Loading Discs Your vehicle’s in-dash disc changer Insert it only about halfway; the models without navigation system To Play a Disc holds up to six discs.

  • Page 189

    CD Changer (Models without navigation system) If you are not loading CDs into all six If the text data has more than 17 Text Data Display Function positions, press the LOAD button Each time you press the DISP button, characters, you will see the first 15 again after the last CD has loaded.

  • Page 190

    CD Changer (Models without navigation system) When you change the audio mode SKIP Each time you press and To Change or Select Tracks/Files to play a disc with text data or in Use the SEEK/SKIP bar while a disc release the side of the SEEK/ MP3 or WMA.

  • Page 191

    CD Changer (Models without navigation system) REPEAT (TRACK/FILE DISC REPEAT This feature In MP3 or WMA mode FOLDER SELECTION REPEAT) To continuously replay continuously replays the current disc. select a different folder, press either a track (files in MP3 or WMA mode), To activate disc repeat, press and side of the TUNE/FOLDER bar.

  • Page 192

    CD Changer (Models without navigation system) RANDOM (Random within a SCAN The SCAN function In MP3 or WMA mode disc) This feature plays the FOLDER RANDOM This samples all the tracks on the disc in tracks within a disc (the files in MP3 feature, when activated, plays the the order they are recorded on the or WMA mode) in random order.

  • Page 193

    CD Changer (Models without navigation system) DISC SCAN This feature, when When the first track in the last disc, In MP3 or WMA mode FOLDER SCAN This feature, activated, samples the first track in or the first file in the last main folder when activated, samples the first file each disc in order (the first file in in the last disc begins to play, the...

  • Page 194

    CD Changer (Models without navigation system) To Stop Playing a Disc You can also eject discs when the Removing Discs from the In-dash Press the eject button ( ) to ignition switch is on or off: Disc Changer remove the disc. If you eject the disc, To remove the disc currently in play, but do not remove it from the slot, press the eject button (...

  • Page 195

    CD Changer (Models with navigation system) On RTL and Canadian EX-L models with RTL and Canadian EX-L models with navigation system navigation system LOAD INDICATOR To Play a Disc LOAD BUTTON CD SLOT EJECT BUTTON Your audio system has an in-dash CD changer that holds up to six CDs, providing several hours of continuous entertainment.

  • Page 196

    CD Changer (Models with navigation system) The CD changer is behind the Loading Discs navigation system screen. To use the CD changer, press the OPEN button LOAD BUTTON LOAD INDICATOR beside the screen. The screen folds back, and the CD changer appears. Be careful not to injure your fingers when opening or closing the navigation system screen.

  • Page 197

    CD Changer (Models with navigation system) The indicators above the disc Repeat this until all six positions Text Data Display Function buttons of the empty positions will are loaded. The system will then Each time you press the DISP button, blink, and the green load indicator begin playing the first CD loaded.

  • Page 198

    CD Changer (Models with navigation system) The display shows up to about 16 You will also see some text data To Change or Select Tracks/Files characters of selected text data (the under these conditions: You can use the SEEK/SKIP bar folder name, file name, etc.).

  • Page 199

    CD Changer (Models with navigation system) Each time you press and release the In MP3 or WMA mode In MP3 or WMA mode FOLDER SELECTION FOLDER REPEAT This feature, RPT button, the mode changes from select a different folder, press either when activated, replays all the files file repeat to folder repeat, to disc side of the TUNE bar.

  • Page 200

    CD Changer (Models with navigation system) SCAN The SCAN function In MP3 or WMA mode In MP3 or WMA mode FOLDER RANDOM This samples all the tracks on the disc in F-SCAN This feature, when feature, when activated, plays the the order they are recorded on the activated, samples the first file in files within a current folder in...

  • Page 201

    CD Changer (Models with navigation system) D-SCAN This feature, when When the first track in the last disc, Using a Track List activated, samples the first track in or the first file in the last main folder each disc in order (the first file in in the last disc begins to play, the FOLDER ICON TRACK FILE ICON...

  • Page 202

    CD Changer (Models with navigation system) If the disc was not recorded with text To Stop Playing a Disc Removing CDs from the In-dash data, only the track number is shown. To take the system out of CD mode, CD Changer press the AM/FM button or XM To remove the disc that is currently To scroll through the display, touch...

  • Page 203

    CD Changer (Models with navigation system) When you press the eject button Protecting Discs while listening to the radio, or with For information on how to handle the audio system turned off, the disc and protect discs, see page that was last selected is ejected. After that disc is ejected, pressing the eject button again will eject the next disc in numerical order.

  • Page 204: Protecting Your Cds

    Protecting Your CDs General Information Protecting CDs When using CD-R or CD-RW discs, When a CD is not being played, store use only high quality CDs labeled it in its case to protect it from dust for audio use. and other contamination. To prevent warpage, keep CDs out of direct When recording a CD-R or sunlight and extreme heat.

  • Page 205

    Protecting Your CDs Additional Information on Bubbled, wrinkled, labeled, and excessively thick discs Recommended Discs The in-dash disc player/changer has a sophisticated and delicate mechanism. If you insert a damaged disc as indicated in this section, it may become stuck inside and damage the audio unit.

  • Page 206

    Protecting Your CDs Small, irregular shaped discs Discs with scratches, dirty discs Recommended discs are printed with the following logo. 3-inch (8-cm) CD Triangle Shape Audio unit may not play the (Only on models Fingerprints, scratches, etc. following formats. with CD changer.) CD-R or CD-RW may not play due to the recording conditions.

  • Page 207

    CD Player/Changer Error Messages The chart on the right explains the Error Message Cause Solution error messages you may see in the display while playing a disc. HEAT ERROR High Temperature Will disappear when the temperature returns to If you see an error message in the normal.

  • Page 208: Remote Audio Controls

    Remote Audio Controls The MODE button changes the If you are playing a disc, the system On RTS, RTL and Canadian EX-L mode. Pressing the button skips to the beginning of the next models repeatedly selects FM1, FM2, AM, track each time you press the top MODE BUTTON XM1, XM2 (if equipped), CD (if a ( ) of the CH button.

  • Page 209

    Remote Audio Controls, Auxiliary Input Jack If you are listening to XM Satellite Auxiliary Input Jack Radio, use the CH button to change channels. Each time you press the AUXILIARY top ( ) of the button, the system INPUT JACK goes to the next preset channel.

  • Page 210: Radio Theft Protection

    Radio Theft Protection Your vehicle’s audio system will If your vehicle’s battery is disable itself if it is disconnected disconnected or goes dead, or the from electrical power for any reason. radio fuse is removed, the audio To make it work again, you must system will disable itself.

  • Page 211: Setting The Clock

    Setting the Clock RT, Canadian DX, and VP models RTS, RTL, and Canadian EX-L models without navigation system CLOCK BUTTON CLOCK BUTTON Model without XM satellite PRESET BARS PRESET BARS radio model is shown. On models without navigation system Press the clock set button again to For example: 1:06 will reset to 1:00 If your vehicle’s battery is...

  • Page 212: Security System

    Security System The security system will not set if If equipped The security system helps to protect the hood, In-Bed Trunk, or any door your vehicle and valuables from theft. is not fully closed. If the system will The horn sounds and a combination not set, check the door and tailgate of headlights, parking lights, license open monitor and In-Bed Trunk open...

  • Page 213: Cruise Control

    Cruise Control Cruise control allows you to maintain Using Cruise Control Press and release the SET/ a set speed above 25 mph (40 km/h) DECEL button on the steering CRUISE BUTTON RES/ACCEL without keeping your foot on the wheel. The CRUISE CONTROL BUTTON accelerator pedal.

  • Page 214

    Cruise Control Cruise control may not hold the set You can decrease the set cruising Changing the Set Speed speed when you are going up and You can increase the set cruising speed in any of these ways: down hills. If your vehicle speed speed in any of these ways: increases going down a hill, use the If you need to decrease your...

  • Page 215

    Cruise Control Even with cruise control turned on, Canceling Cruise Control Resuming the Set Speed you can still use the accelerator When you push the CANCEL button pedal to speed up for passing. After or tap the brake pedal, the system CRUISE BUTTON completing the pass, take your foot remembers the previously set speed.

  • Page 216

    Compass Compass Function The compass can be affected by REAR VIEW MIRROR driving near power lines or stations, If equipped Your vehicle has a compass in the across bridges, through tunnels, rear view mirror. The compass over railroad crossings, past large indicates the vehicle direction with vehicles, or driving near large illuminated letters: N (north), S...

  • Page 217

    Compass Compass Calibration Drive the vehicle slowly in circles Press and hold the compass The compass may need to be at less than 5 mph (8 km/h) until button for about 3 seconds. When manually calibrated after exposure to the center icon turns blue. This all of the direction icons begin to a strong magnetic field.

  • Page 218

    Compass Zone Map Compass Display for Each Zone...

  • Page 219: Homelink Universal Transceiver

    HomeLink Universal Transceiver General Information Do not use HomeLink with any If equipped The HomeLink Universal Before programming your garage door opener that lacks safety Transceiver built into your vehicle HomeLink to operate a garage door stop and reverse features. can be programmed to operate up to opener, confirm that the opener has three remote controlled devices...

  • Page 220

    HomeLink Universal Transceiver Units manufactured between April 1, Important Safety Precautions Training HomeLink 1982 and January 1, 1993 may be Refer to the safety information that If you just Before you begin equipped with safety stop and came with your garage door opener received your vehicle and have not reverse features.

  • Page 221

    HomeLink Universal Transceiver If you are training the second or third buttons, go directly to step 1. CONTINUED...

  • Page 222

    HomeLink Universal Transceiver HomeLink is a registered As required by the FCC: trademark of Johnson Controls, Inc. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired...

  • Page 223: Bluetooth Handsfreelink

    Using Voice Control on page owned by Bluetooth SIG, Inc. and handling your cell phone. To use this any use of such marks by Honda Motor Co., Ltd. is under license. feature, you need a Bluetooth- Bluetooth Wireless Technology...

  • Page 224

    Bluetooth HandsFreeLink Phonebook Microphone HFL Buttons The HFL can store up to 50 names The HFL microphone is on the HFL TALK and phone numbers in its phonebook. ceiling, between the front map lights BUTTON With a linked phone, you can then and the HomeLink buttons.

  • Page 225

    Bluetooth HandsFreeLink The HFL buttons are used as Information Display You will also see ‘‘HANDS FREE follows: LINK’’ on the audio display. HFL Talk: This button is used before ‘‘ ’’ indicator will be displayed on you give a command, to answer the audio display if your Bluetooth - incoming calls, and to confirm compatible phone is linked to the...

  • Page 226

    Bluetooth HandsFreeLink Multi-Information Display Signal Strength Indicates the Battery Level Status Indicates network signal strength of the the power currently remaining in SIGNAL BATTERY current phone. Five bars equals your phone’s battery. Five bars STRENGTH MODE LEVEL STATUS full strength. equals full battery strength.

  • Page 227

    Bluetooth HandsFreeLink How to Use the HFL Using Voice Control Give a voice command in a clear The HFL is operated by the HFL Here are some guidelines for using natural speaking voice without Talk and Back buttons on the left voice control: pausing between words or side of the steering wheel.

  • Page 228

    Bluetooth HandsFreeLink To hear a list of available options To go back one step in a command When you finish a command at any time, press the Talk button, process, say, ‘‘Go back,’’ or press sequence, the HFL goes back to wait for the beep, and say, ‘‘Hands the Back button.

  • Page 229

    Bluetooth HandsFreeLink Setting Up the System Press and release the Talk button. Press and release the Talk button. The voice of the HFL can be set to After the beep, say ‘‘Male’’ or After the beep, say ‘‘Ring tone’’ or male or female (U.S.

  • Page 230

    Bluetooth HandsFreeLink Setting Your Passcode Press and release the Talk button. cycle. If the passcode is set, its The HFL will accept a numeric, four- After the beep, say ‘‘Yes.’’ The response is ‘‘The system is locked. digit passcode that you can use for HFL response is ‘‘Security is on.

  • Page 231

    ‘‘1, 2, 3, 4. Is this correct?’’ 528-7876. In Canada, call (888) 9- HONDA-9. Your phone retailer With your phone on and the Press and release the Talk button. should also be able to confirm that ignition in the ACCESSORY (I) or After the beep, say ‘‘Yes.’’...

  • Page 232

    Bluetooth HandsFreeLink Follow the prompts on your phone To rename a paired phone, do this: To delete a paired phone, do this: to get it into its Discovery mode. Press and release the Talk button. Press and release the Talk button. The phone will search for the HFL.

  • Page 233

    Bluetooth HandsFreeLink Press and release the Talk button. phones paired to the system have To change from the currently linked After the beep, say ‘‘Yes.’’ The been read, the HFL response is phone to another paired phone, do this: HFL response is ‘‘Preparing to ‘‘The entire list has been read.

  • Page 234

    Bluetooth HandsFreeLink Making a Call Press and release the Talk button. Press and release the Talk button. You can make calls using any phone After the beep, say the number After the beep, say ‘‘Call’’ or ‘‘Dial.’’ number, or by using a name in the you want to call.

  • Page 235

    Bluetooth HandsFreeLink To end the call, press the Back Sending Numbers or Names To make a call using a name in the HFL button. During a Call phonebook, do this: With your phone on and the The HFL allows you to send ignition in the ACCESSORY (I) or To redial the last number called by numbers or names during a call.

  • Page 236

    Bluetooth HandsFreeLink Press and release the Talk button. Receiving a Call Transferring a Call After the beep, say ‘‘Send.’’ The If you receive a call when you are not During a call, you can transfer it dial tones will be sent, and the call on the phone, the HFL interrupts the from the HFL to your phone, or from will continue.

  • Page 237

    Bluetooth HandsFreeLink Muting a Call Setting up the Phonebook Press and release the Talk button. During a call, you can mute or The HFL phonebook can store up to After the beep, say the name you unmute your voice to the person you 50 names with their associated would like to store.

  • Page 238

    Bluetooth HandsFreeLink Press and release the Talk button. Press and release the Talk button. To edit the number of a name, do this: Press and release the Talk button. After the beep, say ‘‘Enter.’’ The After the beep, say ‘‘Yes.’’ The After the beep, say ‘‘Phonebook.’’...

  • Page 239

    528-7876. In Canada, call (888) 9- example, Eric, press the Talk HONDA-9. You can see your phone’s Select a desired number from the button, and then say ‘‘Call.’’ The owner’s manual for information.

  • Page 240

    Bluetooth HandsFreeLink Press and release the Talk button. If you want to continue to store Press and release the Talk button. After the beep, say the name you any other numbers, press and After the beep, say the name you would like to store.

  • Page 241

    Link consumer support at (888) Phonebook’’ from the Information 528-7876. In Canada, call (888) 9- screen. The navigation display will HONDA-9. You can see your phone’s change as shown above. owner’s manual for information. If any phonebook is not stored and your phone is not linked to the HFL, Cellular Phonebook is grayed out.

  • Page 242

    Bluetooth HandsFreeLink Search Imported Phonebook: This NOTE: To import the cellular phonebook option allows you to search the You can import the phonebook of HFL does not allow you to pair phone numbers stored in the HFL. your cellular phone into the HFL. your phone if the vehicle is When you enter a keyword for a Link your phone to the HFL, and...

  • Page 243

    Bluetooth HandsFreeLink Select a phonebook from the To search the imported phonebook displayed list. If the phonebook you select has a PIN icon, you will need the 4-digit PIN number to access the phonebook. The following screen will appear. You can search the stored number Enter the keyword for a person’s by entering keywords.

  • Page 244

    Bluetooth HandsFreeLink Select the number (1 6) of the desired person from the list. Work Up to three category icons are displayed in the right side of the list. These category icons indicate how many numbers are stored for the Pager person.

  • Page 245

    Bluetooth HandsFreeLink Select a phonebook from the To store a number in the Bluetooth To delete the imported phonebook displayed list. If the phonebook you HandsFreeLink select has a PIN icon, you will need the 4-digit PIN number to access the phonebook.

  • Page 246

    Bluetooth HandsFreeLink After you enter the correct PIN To add, change, or remove a PIN To add a PIN number number, or if the phonebook you number from any phonebook select is not PIN protected, the following screen appears. Select the phonebook you wish to You can add, change or remove a add the PIN number to.

  • Page 247

    Bluetooth HandsFreeLink To change a PIN number Enter the 4-digit PIN number. You Select the phonebook that you Enter your current PIN number. will be asked to re-enter the PIN to wish to change the PIN number verify. for. The display will change as shown above.

  • Page 248

    Bluetooth HandsFreeLink Clearing the System Press and release the Talk button. This operation clears the HFL of After the beep, say ‘‘Yes.’’ The your passcode, your paired phones, HFL response is ‘‘Preparing to all names in the HFL phonebook, clear all paired phones, all and all imported phonebooks.

  • Page 249

    Bluetooth HandsFreeLink If you said ‘‘OK,’’ after a short Changing Language Press and release the Talk button. period of time, the HFL response After the beep, say ‘‘Oui’’ or ‘‘Yes.’’ Canadian models only is, ‘‘System has been cleared. If there are no paired phones To change from English to French, do without French name tags, the Returning to the main menu.’’...

  • Page 250

    Bluetooth HandsFreeLink The HFL response is, for example, Press and release the Talk button. To change from French to English, do ‘‘Quel est le nom Français pour After the beep, say ‘‘Yes’’ or ‘‘Oui.’’ this: Paul’s phone ?’’ Press and Press and release the Talk button.

  • Page 251

    Bluetooth HandsFreeLink The HFL says, for example, ‘‘What As required by the FCC: Changes or modifications not expressly is the English name for This device complies with Part 15 of the approved by the party responsible for Téléphone de Paul ?’’ Press FCC rules.

  • Page 252: Rearview Camera And Monitor

    Rearview Camera and Monitor For the best picture, always keep the On models with navigation system rearview camera clean, and do not cover the camera lens. To avoid scratching the lens when you clean it, use a moist, soft cloth. Since the rearview camera display area is limited, you should always back up slowly and carefully, and...

  • Page 253: Before Driving

    Before Driving Before you begin driving your Break-in Period ......248 vehicle, you should know what Fuel Recommendation ....248 gasoline to use and how to check the Service Station Procedures ..249 levels of important fluids. You also Refueling ........

  • Page 254

    Break-in Period, Fuel Recommendation your authorized dealer for service. Break-in Period Fuel Recommendation Help assure your vehicle’s future Your vehicle is designed to operate reliability and performance by paying on unleaded gasoline with a pump Some gasoline today is blended with extra attention to how you drive octane number of 87 or higher.

  • Page 255

    Service Station Procedures Refueling Remove the fuel fill cap slowly. You may hear a hissing sound as pressure inside the tank escapes. Gasoline is highly flammable The fuel fill cap is attached to the and explosive. You can be Pull fuel filler with a tether.

  • Page 256

    Service Station Procedures Screw the fuel fill cap back on Tighten Fuel Cap Message normal driving once you tighten or until it clicks at least once. replace the fuel fill cap. To scroll to On models with navigation system another message, press the INFO button.

  • Page 257

    Service Station Procedures Gasoline or fuel vapors are Filling a Portable Fuel Container Whenever filling a fuel container, extremely flammable and explosive. use an approved fuel container, and Improperly handling fuel can cause Do not fill a portable fuel place it on the ground. Do not fill the an explosion in which you can be container in the pickup bed.

  • Page 258

    Service Station Procedures Opening and Closing the Hood HOOD RELEASE HANDLE SUPPORT ROD GRIP LATCH Park the vehicle, and set the Put your fingers under the front Holding the grip, pull the support parking brake. Pull the hood edge of the hood. The hood latch rod out of its clip.

  • Page 259

    Service Station Procedures Oil Check Engine Coolant Check DIPSTICK RESERVE TANK UPPER MARK LOWER MARK Wait a few minutes after turning the Remove the dipstick again, and Look at the coolant level in the engine off before you check the oil. check the level.

  • Page 260: Fuel Economy

    Fuel Economy Actual Mileage and EPA Fuel Economy Estimates Comparison. City MPG Highway MPG Fuel economy is not a fixed number. It varies based on driving conditions, driving habits and vehicle condition. Therefore, it is not possible for one set of estimates to predict fuel economy precisely for all drivers in all environments.

  • Page 261

    Fuel Economy Fuel Economy Factors Use the recommended viscosity Drive Efficiently The following factors can lower your motor oil, displaying the API Drive moderately Rapid vehicle’s fuel economy: Certification Seal (see page acceleration, abrupt cornering, Aggressive driving (hard and hard braking increase fuel acceleration and braking) consumption.

  • Page 262

    Fuel Economy Minimize the use of the air Checking Your Fuel Economy conditioning system The A/C puts an extra load on the engine which makes it use more fuel. Use the fresh-air ventilation when possible. Gallons of Miles per Miles driven fuel Gallon Plan and combine trips...

  • Page 263: Accessories And Modifications

    Accessories or killed. Your dealer has Honda accessories Before installing any accessory: that allow you to personalize your Follow all instructions in this vehicle. These accessories have owner’s manual regarding...

  • Page 264

    Accessories installed in Lowering the vehicle with a non- these areas may interfere with Honda suspension kit that proper operation of the side significantly reduces ground If you plan to modify your vehicle, curtain airbags.

  • Page 265: Carrying Cargo

    Carrying Cargo The pickup bed on your vehicle GLOVE BOX allows you to carry heavy and large DOOR POCKET cargo. You can also store items in IN-BED TRUNK the In-Bed Trunk and on a roof-rack DASHBOARD (if equipped). POCKETS Your vehicle also has these convenient storage areas inside: Glove box Front door and seat-back pockets...

  • Page 266

    Carrying Cargo Load Limits (Payload) These figures include the total Steps for Determining Correct Load The maximum load for your vehicle weight of all occupants, cargo, and Limit: accessories, and the tongue load if Locate the statement ‘‘The you are towing a trailer. combined weight of occupants and On vehicles without moonroof cargo should never exceed XXX...

  • Page 267

    Carrying Cargo The resulting figure equals the available amount of cargo and luggage load capacity. For Example 1 example, if the ‘‘XXX’’ amount Max Load (1,530 lbs) Passenger Weight Cargo Weight equals 1,400 lbs. and there will be (150 lbs x 2 = 300 lbs) (1,230 lbs) five 150 lb.

  • Page 268

    Carrying Cargo If you fold the rear seats up, tie Carrying Items in the Passenger Carrying Cargo in the In-Bed down items that could be thrown Compartment Trunk or on a Roof Rack Store or secure all items that could about the vehicle during a crash or Distribute cargo evenly on the be thrown around and hurt...

  • Page 269

    Carrying Cargo Carrying Cargo in the Pickup Bed When loading and unloading cargo, If you stack items higher than the Your vehicle can carry a large make sure all passengers or any bed sides, tailgate, or back window, amount of cargo in the pickup bed. objects are clear of the tailgate secure them with a net or cover.

  • Page 270

    Carrying Cargo Tie Down Cleats You can also support motorcycles on the pickup bed floor with the cleats. The floor panel of the pickup bed is Never let passengers ride on TIE DOWN CLEAT designed to hold motorcycle tires. Be the pickup bed or in the In-Bed sure to tighten motorcycles securely, Trunk space.

  • Page 271

    Carrying Cargo Optional Cargo Net Optional Cargo Cover The cargo net can be used to hold The cargo cover can be used to lightweight items in the pickup bed. cover the cargo area on the pickup Secure all items properly. The net bed.

  • Page 273

    Driving This section gives you tips on Driving Guidelines ......268 starting the engine under various Preparing to Drive ......269 conditions, and how to operate the Starting the Engine ......270 automatic transmission. It also Automatic Transmission ....

  • Page 274: Driving Guidelines

    Driving Guidelines Your vehicle has higher ground To prevent rollovers or loss of With heavy cargo on the pickup bed, clearance that allows you to travel control: your vehicle has a higher center of over bumps, obstacles, and rough gravity. Drive slowly and cautiously, terrain.

  • Page 275: Preparing To Drive

    Preparing to Drive You should do the following checks Check the adjustment of the and adjustments before you drive inside and outside mirrors (see your vehicle. page Make sure all windows, mirrors, Check the steering wheel and outside lights are clean and adjustment (see page unobstructed.

  • Page 276: Starting The Engine

    Starting the Engine Apply the parking brake. Without touching the accelerator If the engine does not start within pedal, turn the ignition key to the 15 seconds, or starts but stalls In cold weather, turn off all START (III) position. Do not hold right away, repeat step 4 with the electrical accessories to reduce the key in the START (III)

  • Page 277: Shift Lever P

    Automatic Transmission Shift Lever Position Indicators The ‘‘D’’ indicator comes on for a Shifting few seconds when you turn the ignition switch to the ON (II) position. If it flashes while driving (in any shift position), it indicates a possible problem in the transmission. If the malfunction indicator lamp comes on along with the ‘‘D’’...

  • Page 278: Automatic Transmission

    Automatic Transmission Park (P) This position mechani- Reverse (R) Press the brake cally locks the transmission. Use pedal and pull the shift lever towards Park whenever you are turning off or you to shift from Park to reverse. To starting the engine. To shift out of shift from reverse to neutral, come Park, you must press on the brake to a complete stop, and then shift.

  • Page 279

    Automatic Transmission Neutral (N) Use neutral if you Drive (D) Use this position for need to restart a stalled engine, or if your normal driving. The it is necessary to stop briefly with transmission automatically selects a the engine idling. Shift to the Park suitable gear (1 through 5) for your position if you need to leave your speed and acceleration.

  • Page 280

    Automatic Transmission Second (2) To shift to second, When towing a trailer on level roads pull the shift lever towards you, then under normal driving conditions, do This will increase the shift to the lower gear. This position not use D3. automatic transmission fluid locks the transmission in second temperature and may cause...

  • Page 281

    Automatic Transmission First (1) To shift from second to Engine Speed Limiter Shift Lock Release first, pull the shift lever towards you, If you exceed the maximum speed This allows you to move the shift then shift to the lower gear. This for the gear you are in, the engine lever out of Park if the normal position locks the transmission in...

  • Page 282

    Automatic Transmission, VTM-4 System VTM-4 System COVER VTM-4 LOCK BUTTON SHIFT LOCK RELEASE SLOT Insert the built-in key into the shift Remove the key from the shift lock release slot. lock release slot, then reinstall the Your vehicle is equipped with a cover.

  • Page 283

    VTM-4 System If you become stuck, you can Press the VTM-4 LOCK button. The VTM-4 Lock will temporarily activate the VTM-4 by pressing the The indicator in the button comes disengage when the vehicle speed VTM-4 LOCK button while in first exceeds 18 mph (30 km/h).

  • Page 284

    Tire Pressure Monitoring System (TPMS) Low Tire Pressure Driving on a significantly under On models without navigation system Your vehicle is equipped with a tire Indicator inflated tire causes the tire to pressure monitoring system (TPMS) When the low tire pressure indicator overheat and can lead to tire failure.

  • Page 285

    Tire Pressure Monitoring System (TPMS) For example, if you check and fill Although your tire pressure is Tire Pressure Monitoring your tires in a warm area, then drive monitored, you must manually check System (TPMS) Indicator in extremely cold weather, the tire the tire pressures monthly.

  • Page 286

    Tire Pressure Monitoring System (TPMS) Changing a Tire with TPMS pressure indicator goes off. As required by the FCC: If you have a flat tire, the low tire This device complies with Part 15 of the pressure indicator will come on. The low tire pressure indicator or FCC rules.

  • Page 287

    Tire Pressure Monitoring System (TPMS) Low Tire Pressure/ If you think you can safely drive a On models with navigation system Your vehicle is equipped with a tire TPMS Indicator short distance to a service station, When the low tire pressure/TPMS proceed slowly to the station, then pressure monitoring system (TPMS) indicator is on, one or more of your...

  • Page 288

    Tire Pressure Monitoring System (TPMS) For example, if you check and fill Although your tire pressure is Tire Pressure Monitor your tires in a warm area, then drive monitored, you must manually check in extremely cold weather, the tire the tire pressures monthly. pressure will be lower than measured and could be underinflated Each tire, including the spare, should...

  • Page 289

    Tire Pressure Monitoring System (TPMS) U.S. models Canadian models To see the inflation pressures of all Each tire pressure is shown in PSI Each tire has its own pressure four tires, press the SEL/RESET (U.S. models) or in kPa (Canadian sensor.

  • Page 290

    Tire Pressure Monitoring System (TPMS) TPMS System Failure Also, the low tire pressure/TPMS indicator begins to flash, then stays on (see page If there is a problem with the TPMS, If there is a problem with the TPMS, the tire pressure monitor shows a you will see the above message on ‘‘SYSTEM FUNCTION ERROR’’...

  • Page 291

    Tire Pressure Monitoring System (TPMS) If the low tire pressure/TPMS Changing a Tire with TPMS This indicator and the warning indicator comes on, or the multi- If you have a flat tire, the low tire message on the multi-information information display shows a pressure/TPMS and tire monitor display will go off, after several miles ‘‘CHECK TPMS SYSTEM’’...

  • Page 292

    Tire Pressure Monitoring System (TPMS), Parking Parking As required by the FCC: This device complies with Industry Always use the parking brake when This device complies with Part 15 of the Canada Standard RSS-210. you park your vehicle. Make sure FCC rules.

  • Page 293

    Parking Parking Tips Lock the doors. If the vehicle is facing uphill, turn Make sure the moonroof (if the front wheels away from the equipped) and the windows are curb. On vehicles with security system closed. Check the indicator on the driver’s door to verify that the security If the vehicle is facing downhill, Turn off the lights.

  • Page 294: Braking System

    Braking System Your vehicle is equipped with disc Constant application of the brakes Braking System Design brakes at all four wheels. A power when going down a long hill builds The hydraulic system that operates assist helps reduce the effort needed up heat and reduces their effective- the brakes has two separate circuits.

  • Page 295: Anti-lock Brakes (abs)

    Anti-lock Brakes (ABS) The anti-lock brake system (ABS) You will feel a pulsation in the brake ABS Indicator helps prevent the wheels from pedal when the ABS activates, and locking up, and helps you retain you may hear some noise. This is If this indicator comes on, the anti- steering control by pumping the normal: it is the ABS rapidly...

  • Page 296

    Anti-lock Brakes (ABS) If the ABS indicator and the brake Important Safety Reminders A vehicle with ABS may require a system indicator come on together, ABS does not reduce the time or longer distance to stop on loose or and the parking brake is fully distance it takes to stop the uneven surfaces, such as gravel or released, the EBD system may also...

  • Page 297: Vehicle Stability Assist (vsa ) System

    Vehicle Stability Assist (VSA ) System The vehicle stability assist (VSA) VSA Activation Indicator On models with navigation system system helps to stabilize the vehicle You will also see a ‘‘CHECK VSA during cornering if the vehicle turns When VSA activates, you will see the SYSTEM’’...

  • Page 298

    Vehicle Stability Assist (VSA ) System VSA Off Switch VSA and Tire Sizes In certain unusual conditions when Driving with varying tire or wheel your vehicle gets stuck in shallow sizes may cause the VSA to mud or fresh snow, it may be easier malfunction.

  • Page 299: Towing Weight Limits

    Towing Weight Limits Your vehicle has been designed to Load Limits tow a trailer, as well as carrying passengers and their cargo. To Exceeding any load limit or safely tow a trailer, you should improperly loading your vehicle carefully observe the load limits (see and trailer can cause a crash in page ), use the proper equipment,...

  • Page 300

    Towing Weight Limits Gross Vehicle Weight Rating Estimating Loads (GVWR) The maximum The best way to confirm that all allowable weight of the vehicle, all loads are within limits is to check occupants, all accessories, all cargo, them at a public scale (see page and the tongue load is 6,050 lbs (2,745 kg).

  • Page 301

    Towing Weight Guidelines Total Trailer Weight and Tongue Load Guidelines: Number of Max. Trailer Weight Max. Tongue Load Occupants 5,000 lbs (2268 kg) 600 lbs (272 kg) 4,750 lbs (2155 kg) 600 lbs (272 kg) 4,750 lbs (2155 kg) 570 lbs (258 kg) 4,500 lbs (2041 kg) 516 lbs (234 kg) The corresponding weight limits assume occupants fill seats from the front of the vehicle to the back, each occupant weighs 150 lbs (70 kg),...

  • Page 302: Towing A Trailer

    Towing a Trailer Checking Loads To accurately check your loads at the public scale, the vehicle and trailer should be fully loaded, and all occupants should stay in the vehicle while the attendant watches the scale. Check the gross vehicle weight. Check the gross combined weight.

  • Page 303

    Honda equipment whenever possible. Weight Distributing Hitch A weight distributing hitch is not Your dealer offers trailer packages...

  • Page 304

    Towing a Trailer A factory installed, 4-pin gray Use this illustration to identify each Trailer Brakes Honda recommends that any trailer connector is located under the terminal in the trailer brake with a total trailer weight of 1,000 lbs instrument panel near the top of the controller connector.

  • Page 305

    Towing a Trailer Safety Chains Spare Tires Always use safety chains when you When towing a trailer, we tow a trailer. Make sure the chains recommend that you carry a full-size are secured to the trailer and hitch, spare wheel and tire for your vehicle and that they cross under the tongue and trailer.

  • Page 306

    LEFT TURN SIGNAL RIGHT TURN SIGNAL AND BRAKE LIGHTS AND BRAKE LIGHTS We recommend that you have your (GREEN/RED) (GREEN/RED) dealer install a Honda wiring harness and converter. This harness has ELECTRIC BRAKE TAILLIGHTS been designed for your vehicle. (BROWN/WHITE) (GREEN/BLACK)

  • Page 307

    Towing a Trailer Towing Equipment Insert the connector securely into Connecting the Trailer Connectors the socket. Except RT models 7-PIN TRAILER CONNECTOR Hook the retaining tab on the inner side of the lid against the RETAINING retaining tab of the connector to prevent disconnection during RETAINING TAB operation.

  • Page 308

    Towing a Trailer Trailer Connector Sockets Trailer Jumper Harness Trailer Brake Fuse Insert the trailer brake fuse into the Except RT models Except RT models secondary under-hood fuse box (see ELECTRIC BRAKE page GROUND SMALL CHARGE (BROWN/WHITE) (BLACK) LIGHT (BLACK) BRAKE LIGHTS (GREEN) RIGHT...

  • Page 309

    Towing a Trailer Pre-Tow Checklist The lights and brakes on your Driving Safely With a Trailer When preparing to tow, and before vehicle and the trailer are working The added weight, length, and driving away, be sure to check the properly.

  • Page 310

    Towing a Trailer If you must stop when facing uphill, Towing Speeds and Gears Making Turns and Braking Drive slower than normal in all Make turns more slowly and wider use the foot brake or parking brake. driving situations, and obey posted than normal.

  • Page 311

    Towing a Trailer Turn the front wheels toward the Backing Up Retrieving a Boat Always drive slowly and have curb on a downhill, and away from If the vehicle’s tires slip when someone guide you when backing up. the curb on an uphill. retrieving a boat from the water, Grip the of the steering wheel,...

  • Page 312

    Off-Highway Driving Guidelines General Information If you decide to drive on unpaved Your vehicle has been designed roads, you will find that it requires primarily for use on pavement. But somewhat different driving skills. Improperly operating this its higher ground clearance and four- Your vehicle will also handle vehicle on or off-pavement can wheel drive VTM-4 system allow you...

  • Page 313

    Off-Highway Driving Guidelines Important Safety Precautions Remember Check Out Your Vehicle To avoid loss of control or rollover, The route presents limits (too steep Before you leave the pavement, be be sure to follow all precautions and or bumpy roads). You have limits sure to do all scheduled maintenance recommendations.

  • Page 314

    Off-Highway Driving Guidelines Accelerating and Braking Avoiding Obstacles Driving on Slopes For better traction on all surfaces, Your vehicle is not equipped with If you can’t clearly see all conditions accelerate slowly and gradually build undercarriage guards to protect key or obstacles on a slope, walk the up speed.

  • Page 315

    Off-Highway Driving Guidelines Crossing a Stream The banks and surface under the If You Get Stuck Before driving through water, stop, water provide good traction. The If you get stuck, and cannot get get out if necessary, and make sure water may hide hazards such as unstuck with the VTM-4 system, that:...

  • Page 316

    Off-Highway Driving Guidelines Use a nylon strap to attach your Towing a Trailer Off-Road vehicle to the recovery vehicle, and You may safely tow a trailer off-road carefully take out the slack in the if you follow these guidelines: strap. Once the strap is tight, the recovery vehicle should apply force.

  • Page 317

    Maintenance This section explains why it is Maintenance Safety ...... . 312 important to keep your vehicle well Maintenance Minder ..... 313 maintained and how to follow basic Fluid Locations ....... 325 maintenance safety precautions. Adding Engine Oil ......

  • Page 318: Maintenance Safety

    Maintenance Safety All service items not detailed in this Injury from moving parts. section should be performed by a not run the engine unless certified technician or other qualified instructed to do so. Improperly maintaining this mechanic. vehicle, or failing to correct a problem before driving can Important Safety Precautions cause a crash in which you can...

  • Page 319: Maintenance Minder

    Maintenance Minder Your vehicle displays engine oil life The remaining engine oil life is Engine Oil Life Display and maintenance service items on shown on the display according to On models without navigation system the information display or multi- this table: information display (depending on models) to show you when you Calculated Engine...

  • Page 320

    Maintenance Minder MAINTENANCE MINDER INDICATOR ‘‘SERVICE’’ MESSAGE MAINTENANCE ITEM CODE(S) ENGINE OIL LIFE INDICATOR U.S. model is shown. If the remaining engine oil life is 15 The 15 and 10 percent oil life When the remaining engine oil life is to 6 percent, you will see the engine indicator reminds you that the time 5 to 1 percent, you will see a...

  • Page 321

    Maintenance Minder The maintenance item code or codes indicate the main and sub items required at the time of the oil change (see page You can switch the information display from the engine oil life display to the odometer or the trip meter.

  • Page 322

    Maintenance Minder To change the information display Maintenance Main Items and Sub Resetting the Engine Oil Life from the engine oil life display to the Items Display odometer or the trip meter, press On models without navigation system On models without navigation system and release the SELECT button.

  • Page 323

    Maintenance Minder On models with navigation system SEL/RESET BUTTON ENGINE OIL LIFE DISPLAY U.S. model is shown. Press the TRIP/RESET button for Press the TRIP/RESET button for about 10 seconds. The engine oil another 5 seconds. The To see the current engine oil life, life and the maintenance item maintenance item code(s) will turn the ignition switch to the ON...

  • Page 324

    Maintenance Minder To cancel the system message, press and release the INFO ( / ) button on the dashboard. At this time, the system message indicator will also be turned off. Then the display will change to the engine oil life display. SYSTEM MESSAGE INDICATOR MAINTENANCE ITEM CODE(S) U.S.

  • Page 325

    Maintenance Minder You will also see the system To cancel the system message, press message every time you turn the and release the INFO ( / ) button ignition switch to the ON (II) on the dashboard. At this time, the position until you have the indicated system message indicator will also maintenance performed by your...

  • Page 326

    Maintenance Minder To cancel the system message, press The system message will appear and release the INFO ( / ) button again by pressing the INFO ( / ) on the dashboard. At this time, the button after canceling it. system message indicator will turned off.

  • Page 327

    Maintenance Minder Maintenance Main Items and Sub Resetting the Engine Oil Life Items Display On models with navigation system On models with navigation system Your dealer will reset the display after completing the required maintenance service. You will see ‘‘OIL LIFE 100%’’ on the display the next time you turn the ignition switch to the ON (II) position.

  • Page 328

    Maintenance Minder Important Maintenance Your authorized Honda dealer We recommend the use of Honda Precautions knows your vehicle best and can parts and fluids whenever you have If you have the required service provide competent, efficient service. maintenance done. These are...

  • Page 329

    Maintenance Minder U.S. Vehicles: Owner’s Maintenance Checks Brakes Check the fluid level Maintenance, replacement, or You should check the following monthly. See page repair of emissions control items at the specified intervals. If devices and systems may be done you are unsure of how to perform Tires Check the tire pressure any check, turn to the appropriate...

  • Page 330

    Maintenance Minder Symbol Maintenance Main Items Symbol Maintenance Sub Items Replace engine oil Rotate tires Replace engine oil and oil filter Replace air cleaner element Inspect front and rear brakes If you drive in dusty conditions, replace every 15,000 Check parking brake adjustment miles (24,000 km).

  • Page 331: Fluid Locations

    Fluid Locations ENGINE OIL DIPSTICK (Orange loop) BRAKE FLUID (Gray cap) WASHER FLUID (Blue cap) AUTOMATIC TRANSMISSION ENGINE COOLANT FLUID DIPSTICK RESERVOIR (Yellow loop) POWER STEERING FLUID (Red cap) ENGINE OIL FILL CAP RADIATOR CAP : Under the gray cover...

  • Page 332: Adding Engine Oil

    5W-20 lubricant for your vehicle. It is engine’s performance and longevity. highly recommended that you use Always use a premium-grade 5W-20 Honda Motor Oil in your vehicle for detergent oil displaying the API optimum engine protection. Make Certification Seal. This seal indicates...

  • Page 333

    Adding Engine Oil, Changing the Engine Oil and Filter Synthetic Oil Changing the Engine Oil and You may use a synthetic motor oil if Filter it meets the same requirements Always change the oil and filter given for a conventional motor oil: it according to the maintenance displays the API Certification Seal, messages shown on the information...

  • Page 334

    Changing the Engine Oil and Filter Install a new oil filter according to Reinstall the engine oil fill cap. OIL FILTER the instructions that come with it. Start the engine. The oil pressure Make sure to clean off any dirt indicator should go out within 5 and dust on the connecting seconds.

  • Page 335: Engine Coolant

    Engine Coolant Adding Engine Coolant Always use Honda Long-life Anti- If the reserve tank is completely freeze/Coolant Type 2. This coolant empty, you should also check the is pre-mixed with 50 percent coolant level in the radiator. antifreeze and 50 percent water.

  • Page 336

    Engine Coolant, Windshield Washers The coolant level should be up to Windshield Washers the base of the filler neck. Add Check the fluid level in the RADIATOR CAP coolant if it is low. windshield washer reservoir at least monthly during normal use. Pour the coolant slowly and carefully so you do not spill any.

  • Page 337

    Windshield Washers, Automatic Transmission Fluid Automatic Transmission Fluid The transmission should be drained and refilled with new fluid when this Do not use engine antif reeze or a service is shown on the information vinegar/water solution in the display or multi-information display windshield washer reservoir.

  • Page 338: Automatic Transmission Fluid

    Damage resulting f rom the use of compartment. transmission f luid other than Honda Genuine ATF-Z1 is not covered by the Insert the dipstick all the way into Always use Honda Genuine ATF-Z1 Honda new vehicle warranty.

  • Page 339

    Rear Differential Fluid, Transfer Assembly Fluid Rear Differential Fluid Always use Honda VTM-4 Transfer Assembly Fluid The rear differential should be Differential Fluid, and have your The transfer assembly should be drained and refilled with new fluid dealer replace the rear differential...

  • Page 340: Brake Fluid

    (depending on models). container, as a temporary replacement. Check the fluid level in the brake Using any non-Honda brake fluid can fluid reservoir monthly. cause corrosion and decrease the life of the system. Have the brake system flushed and refilled with Honda Heavy Duty Brake Fluid DOT 3 as soon as possible.

  • Page 341: Power Steering Fluid

    Fluid. You may use another power steering fluid as an emergency replacement, but have the power steering system flushed and refilled with Honda PSF as soon as possible. LOWER LEVEL Remove the cover, then check the A low power steering fluid level can level on the side of the reservoir indicate a leak in the system.

  • Page 342

    Timing Belt, Lights Timing Belt Headlight Aiming Replacing a Headlight Bulb The timing belt should be replaced The headlights were properly aimed Your vehicle has halogen headlight at the intervals shown in the when your vehicle was new. If you bulbs.

  • Page 343

    Lights Install the new bulb into the hole, Push the electrical connector onto CONNECTOR HOLD-DOWN WIRE making sure the tabs are in their the new bulb. Make sure it is slots. Pivot the hold-down wire connected securely. Turn on the back in place, and clip the end into headlights to test the new bulb.

  • Page 344

    Lights Replacing a Front Turn Signal/ Insert the socket back into the Hazard/Parking Light Bulb headlight assembly. Turn it To change the passenger’s side clockwise to lock it in place. bulb, start the engine, turn the steering wheel all the way to the Turn on the lights to make sure left, and turn off the engine.

  • Page 345

    Lights Replacing Front Fog/Daytime INNER FENDER CONNECTOR BOLTS Running Light Bulbs Your vehicle uses halogen light bulbs. When replacing a bulb, handle it by its plastic case, and protect the glass from contact with your skin or hard objects. If you touch the glass, clean it with denatured alcohol and a clean cloth.

  • Page 346

    Lights Install the new bulb into the hole Replacing Rear Bulbs and turn it one-quarter turn clockwise to lock it in place. Push the electrical connector back onto the bulb. Make sure it is on all the way. Turn on the lights to test the new bulb.

  • Page 347

    Lights Install the new bulb into the Replacing a High-mount Brake socket. Light Bulb Push the socket into the light SCREW assembly, and turn it clockwise BULB until it locks. Turn on the lights to make sure the new bulb is working. Install the rear light assembly in the rear pillar.

  • Page 348

    Lights Put the lens back on the light Replacing a Rear License Plate assembly, and tighten the Bulb mounting bolts securely. BULB Turn on the lights to make sure the new bulb is working. Put the light assembly back into the vehicle.

  • Page 349

    Lights Turn on the lights to make sure Replacing a Bed Light Bulb the new bulb is working. SCREW Reinstall the light assembly in the bumper. BULB SOCKET SCREW Remove the mounting screw from Pull the bulb straight out of its the bed light assembly.

  • Page 350

    Lights, Cleaning the Seat Belts Reinstall the light assembly. Cleaning the Seat Belts Dirt build-up in the loops of the seat belt anchors can cause the belts to Turn on the lights to make sure retract slowly. Wipe the insides of LOOP the new bulb is working.

  • Page 351

    Floor Mats, Dust and Pollen Filter Floor Mats A non-Honda floor mat may not fit Dust and Pollen Filter your vehicle properly. This could This filter removes the dust and prevent the proper operation of the pollen that is brought in from the folding rear seats and the passenger’s...

  • Page 352: Wiper Blades

    Wiper Blades Check the condition of the wiper To replace a wiper blade: WIPER ARMS blades at least every six months. Replace them if you find signs of To raise the wiper arm, turn the cracking in the rubber, areas that are ignition switch to the ON (II) getting hard, or if they leave streaks position and activate the wipers...

  • Page 353

    Wiper Blades BLADE BLADE REINFORCEMENT LOCK TAB Disconnect the blade assembly Remove the blade from its holder Examine the new wiper blades. If from the wiper arm: by grabbing the tabbed end of the they have no plastic or metal Press and hold the lock tab.

  • Page 354

    Wiper Blades, Wheels, Tires Slide the new wiper blade into the Wheels Tires holder until the tabs lock. Clean the wheels as you would the To safely operate your vehicle, your rest of the exterior. Wash them with tires must be the proper type and Slide the wiper blade assembly the same solution, and rinse them size, in good condition with adequate...

  • Page 355

    Tires Inflation Guidelines Even though your vehicle is If you check air pressures when the Keeping the tires properly inflated equipped with TPMS, we tires are hot [driven for several miles provides the best combination of recommend that you visually check (kilometers)], you will see readings 4 handling, tread life, and riding your tires every day.

  • Page 356

    Tires Never use a puncture-repairing agent The compact spare tire pressure is: INDICATOR LOCATION MARKS in a flat tire. If used, you will have to 60 psi (420 kPa , 4.2 kgf/cm ) replace the tire pressure sensor. Have the flat tire repaired by your For convenience, the recommended dealer as soon as possible.

  • Page 357

    If you your vehicle’s aluminum wheels. Use the sidewall of the tire and indicate purchase directional tires, rotate only Honda wheel weights f or the date of manufacture (See only front-to-back. Tire balancing.

  • Page 358

    Tires It is best to replace all four tires at Replacing Tires and Wheels Replace your tires with radial tires of the same time. If that is not possible the same size, load range, speed or necessary, replace the two front Installing improper tires on your rating, and maximum cold tire tires or two rear tires as a pair.

  • Page 359

    Tires Wheel and Tire Specifications Winter Driving Snow Tires Wheels: Tires marked ‘‘M S’’ or ‘‘All If you mount snow tires on your Season’’ on the sidewall have an all- vehicle, make sure they are radial RT, RTS models, and Canadian DX, weather tread design suitable for tires of the same size and load range VP models...

  • Page 360

    This tire chain is available at many Make sure the chains are installed auto supply stores. To find a local clearance, Honda strongly tightly, and that they are not store that carries the chain, call recommends using the chains listed contacting the brake lines or Quality Chain Corp at 1-800-843-8824.

  • Page 361

    Tires If you ever hear the chains contacting the body or chassis, stop and investigate. If the chains have Using the wrong chains, or not Traction devices that are the wrong loosened, retighten them. Make sure properly installing chains, can size or improperly installed can they do not contact the brake lines damage the brake lines and...

  • Page 362: Checking The Battery

    Checking the Battery Check the terminals for corrosion (a If you need to connect the battery to TEST INDICATOR WINDOW white or yellowish powder). To a charger, disconnect both cables to remove it, cover the terminals with a prevent damaging your vehicle’s solution of baking soda and water.

  • Page 363

    Checking the Battery, Vehicle Storage Vehicle Storage Block the rear wheels. On models without navigation system If your vehicle’s battery is If you need to park your vehicle for disconnected, or goes dead, the time an extended period (more than 1 If the vehicle is to be stored for a setting may be lost.

  • Page 364: Vehicle Storage

    Vehicle Storage Cover the vehicle with a ‘‘breathable’’ cover, one made from a porous material such as cotton. Non-porous materials, such as plastic sheeting, trap moisture, which can damage the paint. If possible, periodically run the engine until it reaches full operating temperature (the cooling fans cycle on and off twice).

  • Page 365: Taking Care Of The Unexpected

    Taking Care of the Unexpected This section covers the more Compact Spare Tire ...... . 360 common problems that motorists Changing a Flat Tire ..... 361 experience with their vehicles. It If the Engine Won’t Start ....369 gives you information about how to Jump Starting ........

  • Page 366: Compact Spare Tire

    Compact Spare Tire Use the compact spare tire as a Do not use your compact spare INDICATOR LOCATION MARK temporary replacement only. Get tire on another vehicle unless it is your regular tire repaired or replaced, the same make and model. and put it back on your vehicle as soon as you can.

  • Page 367

    Changing a Flat Tire If you have a flat tire while driving, stop in a safe place to change it. Drive slowly along the shoulder until you get to an exit or an area to stop that is far away from the traffic lanes. The vehicle can easily roll off the jack, seriously injuring anyone underneath.

  • Page 368

    Changing a Flat Tire WING BOLT TIRE TIRE TRAY HOLDING BOLTS TRAY TOOL BOX STRAP Open the In-Bed Trunk. Pull out the tire tray with the Unfasten the strap to remove the handle, and hook the rear of the tool box, and unscrew the wing Remove the two tire tray holding tire tray to the guides on the back bolt.

  • Page 369

    Changing a Flat Tire DIAL JACKING POINT Loosen each wheel nut 1/2 turn Place the jack under the jacking Turn the dial at the bottom of the with the wheel nut wrench. point nearest the tire you need to jack clockwise until the top of the change.

  • Page 370

    Changing a Flat Tire CONNECTOR BUTTON WHEEL NUT WRENCH DIAL HOOK EXTENSION STAY CONNECTOR BUTTON Attach the stay to the extension, Insert the hook at the end of the Turn the jack dial (wheel nut then attach the wheel nut wrench stay into the opening on the dial at wrench) clockwise as shown to to the end of the extension.

  • Page 371

    Changing a Flat Tire Put on the spare tire. Put the wheel nuts back on finger-tight, then tighten them in a crisscross pattern with the wheel nut wrench until the wheel is firmly against the hub. Do not try to tighten the wheel nuts fully.

  • Page 372

    Changing a Flat Tire Release the tire tray and slide it WING BOLT back in place. Tighten the tire tray holding bolts securely. For normal For spare SPACER CONE tire tire Tighten the wheel nuts securely in Place the flat tire face up on the the same crisscross pattern.

  • Page 373

    Changing a Flat Tire TOOL BOX Loose items can be thrown out of the vehicle in a crash and could seriously injure the occupants. Store the wheel, jack, and tools securely before driving. Store the wheel cap or center cap in the In-Bed Trunk.

  • Page 374

    Changing a Flat Tire Securing a Spare Tire on the If you remove the spare tire from the Pickup Bed pickup bed, reinstall the clip back into its hole. SPACER CONE WING BOLT As a temporary mounting location, Place the spare tire on the pickup you can secure a spare tire on the bed as shown.

  • Page 375: If The Engine Won't Start

    If the Engine Won’t Start Diagnosing why the engine won’t Check the transmission interlock. If the headlights dim noticeably or start falls into two areas, depending The transmission must be in Park go out when you try to start the on what you hear when you turn the or neutral or the starter will not engine, either the battery is...

  • Page 376

    If the Engine Won’t Start, Jump Starting Are you using the proper starting Jump Starting To Jump Start Your Vehicle: procedure? Refer to Although this seems like a simple Starting the on page procedure, you should take several Open the hood, and check the Engine precautions.

  • Page 377: Jump Starting

    Jump Starting If the booster battery is in another vehicle, have an assistant start that vehicle and run it at a fast idle. Start the vehicle. If the starter motor still operates slowly, check that the jumper cables have good metal-to-metal contact.

  • Page 378: If The Engine Overheats

    If the Engine Overheats The pointer of your vehicle’s Safely pull to the side of the road. temperature gauge should stay in Put the transmission in Park, and the midrange under most conditions. set the parking brake. Turn off all Steam and spray from an If it climbs to the red mark, you accessories, and turn on the...

  • Page 379

    If the Engine Overheats If the temperature gauge stays at Start the engine, and set the the red mark, turn off the engine. temperature to maximum heat (climate control to AUTO at Removing the radiator cap Look for any obvious coolant leaks, while the engine is hot can ‘‘...

  • Page 380

    Low Oil Pressure Indicator, Charging System Indicator Low Oil Pressure Indicator Safely pull off the road, and shut Charging System Indicator This indicator should never off the engine. Turn on the hazard If the charging system come on when the engine is warning indicators.

  • Page 381: Malfunction Indicator Lamp

    Malfunction Indicator Lamp If this indicator comes on If the indicator comes on repeatedly, On models without navigation system while driving, it means one You will also see a ‘‘CHECK FUEL even though it may turn off as you of the engine’s emissions control CAP’’...

  • Page 382

    Malfunction Indicator Lamp, Brake System Indicator To check if they are set, turn the Readiness Codes Brake System Indicator Your vehicle has certain ‘‘readiness ignition switch to the ON (II) U.S. Canada The brake system codes’’ that are part of the on-board position, without starting the engine.

  • Page 383: Brake System Indicator

    Brake System Indicator However, if the brake pedal does not Slow down by shifting to a lower On models with navigation system You will also see a ‘‘BRAKE FLUID feel normal, you should take gear, and pull to the side of the road LOW’’...

  • Page 384

    Fuses INTERIOR UNDER-HOOD (PRIMARY) UNDER-HOOD (SECONDARY) NOTCH The vehicle’s fuses are contained in The primary under-hood fuse box is Checking and Replacing Fuses three fuse boxes. on the passenger’s side. The If something electrical in your secondary fuse box is next to the vehicle stops working, check for a The interior fuse box is on the brake fluid reservoir.

  • Page 385

    Fuses FUSE BLOWN BLOWN FUSE PULLER Turn the ignition switch to the Check each of the large fuses in Check the smaller fuses in the LOCK (0) position. Make sure the the primary under-hood fuse box under-hood fuse boxes and all the headlights and all other by looking through the side fuses in the interior fuse box by...

  • Page 386

    Fuses If you cannot drive the vehicle If the replacement fuse of the BLOWN without fixing the problem, and you same rating blows in a short time, do not have a spare fuse, take a fuse there is probably a serious of the same rating or a lower rating electrical problem in your vehicle.

  • Page 387: Fuse Locations

    Fuse Locations Amps. Circuits Protected Amps. Circuits Protected PRIMARY UNDER-HOOD FUSE BOX Horn, Stop 10 A Left Headlight Low Beam 20 A Defroster Not Used 20 A 10 A Left Headlight High Beam 40 A Back Up, ACC 15 A Small Lights 15 A Hazard...

  • Page 388

    Fuse Locations Amps. Circuits Protected INTERIOR FUSE BOX INTERIOR FUSE BOX UPPER AREA 30 A IG, Wiper Driver’s Side Not Used (10 A) Driver’s Power Seat Lumbar (20 A) Driver’s Power Seat Sliding Not Used (20 A) Driver’s Power Seat Reclining Not Used 15 A IG ACG...

  • Page 389: Emergency Towing, If Your Vehicle Gets Stuck

    Emergency Towing, If Your Vehicle Gets Stuck If your vehicle needs to be towed, If Your Vehicle Gets Stuck call a professional towing service or If your vehicle gets stuck in sand, TIE DOWN organization. Never tow your vehicle mud, or snow, call a towing service HOOK with just a rope or chain.

  • Page 390: If Your Vehicle Gets Stuck

    If Your Vehicle Gets Stuck To avoid damage to your vehicle, use the tie down hooks f or straight, f lat ground towing only. Do not tow at an angle. These hooks should not be used f or open-road towing.

  • Page 391: Technical Information

    Technical Information The diagrams in this section give Identification Numbers ....386 Exhaust Gas Recirculation you the dimensions and capacities of Specifications ........ . 388 (EGR) System ....398 your vehicle and the locations of the DOT Tire Quality Grading Three Way Catalytic identification numbers.

  • Page 392: Identification Numbers

    Identification Numbers Your vehicle has several identifying numbers in various places. VEHICLE IDENTIFICATION NUMBER (VIN) The vehicle identification number (VIN) is the 17-digit number your dealer uses to register your vehicle for warranty purposes. It is also necessary for licensing and insuring your vehicle.

  • Page 393

    Identification Numbers The engine number is stamped into the engine block. It is on the front. ENGINE NUMBER The transmission number is on a label on top of the transmission. AUTOMATIC TRANSMISSION NUMBER...

  • Page 394: Specifications

    Specifications Dimensions Capacities Length 206.9 in (5,255 mm) Fuel tank Approx. Width 77.8 in (1,976 mm) 22.01 US gal (83.3 ) Height 70.3 in (1,786 mm) Engine Change 1.64 US gal (6.2 ) Wheelbase 122.0 in (3,100 mm) coolant Total 2.14 US gal (8.1 ) Track Front...

  • Page 395

    Specifications Capacities Fuses Transfer Change 0.45 US qt (0.43 ) Interior See page 382 or the fuse label assembly Total 0.48 US qt (0.45 ) attached to the inside of the fuse fluid box lid under the dashboard. Windshield Under-hood See page 381 or the fuse box lid.

  • Page 396

    DOT Tire Quality Grading (U.S. Vehicles) The tires on your vehicle meet all Treadwear Traction U.S. Federal Safety Requirements. The treadwear grade is a compara- The traction grades, from highest to All tires are also graded for tive rating based on the wear rate of lowest, are AA, A, B, and C.

  • Page 397

    DOT Tire Quality Grading (U.S. Vehicles) Temperature Warning: The temperature grade for The temperature grades are A (the this tire is established for a tire that highest), B, and C, representing the is properly inflated and not tire’s resistance to the generation of overloaded.

  • Page 398: Tire Labeling

    Tire Labeling The tires that came on your vehicle Rim diameter in inches. Tire Size have a number of markings. Those Whenever tires are replaced, they you should be aware of are described should be replaced with tires of the Load index (a numerical code below.

  • Page 399

    Tire Labeling Tire Identification Number (TIN) Maximum Tire Pressure The tire identification number (TIN) Max Press The maximum air is a group of numbers and letters pressure the tire can that look like the following example. hold. TIN is located on the sidewall of the tire.

  • Page 400

    Tire Pressure Monitoring System (TPMS) Required Federal Explanation As an added safety feature, your Driving on a significantly under- All Models Each tire, including the spare (if vehicle has been equipped with a tire inflated tire causes the tire to provided), should be checked pressure monitoring system (TPMS) overheat and can lead to tire failure.

  • Page 401

    Tire Pressure Monitoring System (TPMS) Required Federal Explanation Always check the TPMS malfunction On models without navigation system Your vehicle has also been equipped telltale after replacing one or more with a TPMS malfunction indicator tires or wheels on your vehicle to to indicate when the system is not ensure that the replacement or operating properly.

  • Page 402

    Tire Pressure Monitoring System (TPMS) Required Federal Explanation TPMS malfunctions may occur for a On models with navigation system Your vehicle has also been equipped variety of reasons, including the with a TPMS malfunction indicator installation of replacement or to indicate when the system is not alternate tires or wheels on the operating properly.

  • Page 403: Emissions Controls

    ‘‘smog.’’ canister while the engine is off. After Carbon monoxide does not contri- In Canada, Honda vehicles comply the engine is started and warmed up, bute to smog creation, but it is a with the Canadian emission the vapor is drawn into the engine poisonous gas.

  • Page 404

    System remain low, you should use only new combustion and minimize the The exhaust gas recirculation (EGR) Honda replacement parts or their amount of HC, CO, and NOx that system takes some of the exhaust equivalent for repairs. Using lower come out the tailpipe.

  • Page 405: Three Way Catalytic Converter

    The catalytic converter is referred to as a three-way catalyst, since it acts on HC, CO, and NOx. A replacement unit must be an original Honda part or its equivalent. WARM UP THREE WAY CATALYTIC The three way catalytic converter...

  • Page 406: Emissions Testing

    Emissions Testing Make sure the vehicle has been Select a nearby lightly traveled Testing of Readiness Codes If you take your vehicle for an parked with the engine off for 6 major highway where you can emissions test shortly after the hours or more.

  • Page 407

    Emissions Testing Then drive in city/suburban traffic for at least 10 minutes. When traffic conditions allow, let the vehicle coast for several seconds without using the accelerator pedal or the brake pedal. Make sure the vehicle has been parked with the engine off for 30 minutes.

  • Page 409

    Warranty and Customer Relations Customer Service Information . 404 ..Warranty Coverages ..... 405 Reporting Safety Defects (U.S. Vehicles) ......406 Authorized Manuals ..... . 407...

  • Page 410: Customer Service Information

    Vortex Motor Corp. Bella International U.S. Owners: A detailed description of the P.O. Box 190816 problem American Honda Motor Co., Inc. San Juan, PR 00919-0816 Automobile Customer Service Name of the dealer who sold the Mail Stop 500-2N-7A Tel: (787) 620-7546...

  • Page 411: Warranty Coverages

    Warranty and Emissions Accessory Limited Warranty all these warranties. Please read the Performance Warranty these two Honda accessories are covered 2009 Honda warranty information warranties cover your vehicle’s under this warranty. Time and booklet that came with your vehicle emissions control systems. Time,...

  • Page 412

    ; or write to: http://www.saf ercar.gov Administration (NHTSA), in addition However, NHTSA cannot become Administrator, NHTSA, 1200 New to notifying American Honda Motor involved in individual problems Jersey Avenue, SE., Washington, DC between you, your dealer, or Co., Inc. 20590.

  • Page 413: Authorized Manuals

    2006 Model Series Ridgeline Body Repair Manual 31SJC630 2009 Honda Ridgeline Owner’s Manual 31SJC820 2009 Honda Ridgeline Navigation Manual 31SJCQ30 2009 Honda Ridgeline Quick Start Guide 31SJCM30 2009 Ridgeline Honda Service History HON-R Order Form for Previous Years-Indicate Year and Model Desired...

  • Page 415

    Index Auto Door Locking/Unlocking . 104 Bed Lights Automatic Heated Wiper Indicator ........74 Accessories and Modifications . 257 Zone ....... 95, 150, 156 Operation ........144 ACCESSORY (Ignition Key Automatic Seat Belt Tensioners . 21 Before Driving ......

  • Page 416

    Index Bulb Replacement CD Player/Changer Error Climate Control System ....152 Back-up Lights ......340 Messages ........201 Clock ..........205 Brake Lights ....... 340 CD Player ........175 Coat Hooks ........138 Bed Lights .........

  • Page 417

    Index Engine Driving ..........267 Coolant Temperature Gauge ..76 Economy ........254 DANGER, Explanation of ....iii Malfunction Indicator ........... . 273 Lamp ........ . 63, 375 Dashboard ........3, 60 Dual-Action Tailgate Oil Life Display ....

  • Page 418

    Index Filling the Fuel Tank ..... 249 Octane Requirement ....248 Tachometer ........76 Filters Oxygenated ....... . 248 GAWR (Gross Axle Weight Dust and Pollen ......345 Reserve Indicator ......68 Rating) ........294 ..........

  • Page 419

    Index Headlights ........94, 95 Ignition Low Fuel ........68 Keys ..........100 Low Oil Pressure ......63 Aiming ......... 336 Switch ......... . 102 Low Tire Pressure ...... . 72 Automatic Lighting Off ....

  • Page 420

    Index Information Display ......77 Lights Bulb Replacement ..... 336 Engine Oil Life Indicator ..313 Indicator ........69 Maintenance ........311 Maintenance Items ... . 316, 324 Interior ........142 Owner’s Maintenance Inside Mirror .........

  • Page 421

    Index Parking Lights ........95 Rear Differential Fluid ....333 Parking Over Things that Burn . 287 Rear Lights, Bulb Replacement . 340 Octane Requirement, Gasoline . 248 PGM-FI System ......398 Rearview Mirror ......133 Odometer .........

  • Page 422

    Index Seats ..........119 Speedometer ........76 Adjusting the Seat .... . 119, 121 SRS, Additional Information ... 23 Safety Belts ........8, 20 Folding the Rear Seats ....125 Additional Safety Precautions . 33 Safety Defects, Reporting ..

  • Page 423

    Index Sun Visor ......... 140 Timing Belt ........336 Towing Sunglasses Holder ......138 Tire Chains ........354 A Trailer ........296 Supplemental Restraint System Tire, How to Change a Flat ..361 Emergency Wrecker ....

  • Page 424

    Index Unleaded Gasoline ......248 Washer, Windshield Used Oil, How to Dispose of ..328 Checking the Fluid Level ..330 Level Indicator ......67 Operation ........94 Wheels ..........348 Vanity Mirror ........ .

  • Page 428: Service Information Summary

    ATF (see page Recommended Engine Oil: Brake Fluid: API Premium grade 5W-20 Honda Heavy Duty Brake Fluid detergent oil (see page DOT 3 preferred, or a DOT 3 or DOT 4 brake fluid as a temporary Oil change capacity (including...

Comments to this Manuals

Symbols: 0
Latest comments:
