Biasi Activ A 25C Service Manual

Biasi Activ A 25C Service Manual

Activa series wall hung, fan flue, room sealed, high efficiency gas boiler
Hide thumbs Also See for Activ A 25C:
Table of Contents

Advertisement

Quick Links

See also: User Manual and Installation Instructions
Wall hung, fan flue, room sealed, high efficiency gas boiler
Service manual
ActivA
Models:
Activ A 25C
Activ A 30C
Activ A 35C
Activ A 18S
Activ A 25S
Activ A 30S
Leave this manual adjacent to the gas meter
G.C. Appl. No.
47---583---21
47---583---22
47---583---23
41---583---11
41---583---12
41---583---13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Activ A 25C and is the answer not in the manual?

Questions and answers

Related Manuals for Biasi Activ A 25C

Summary of Contents for Biasi Activ A 25C

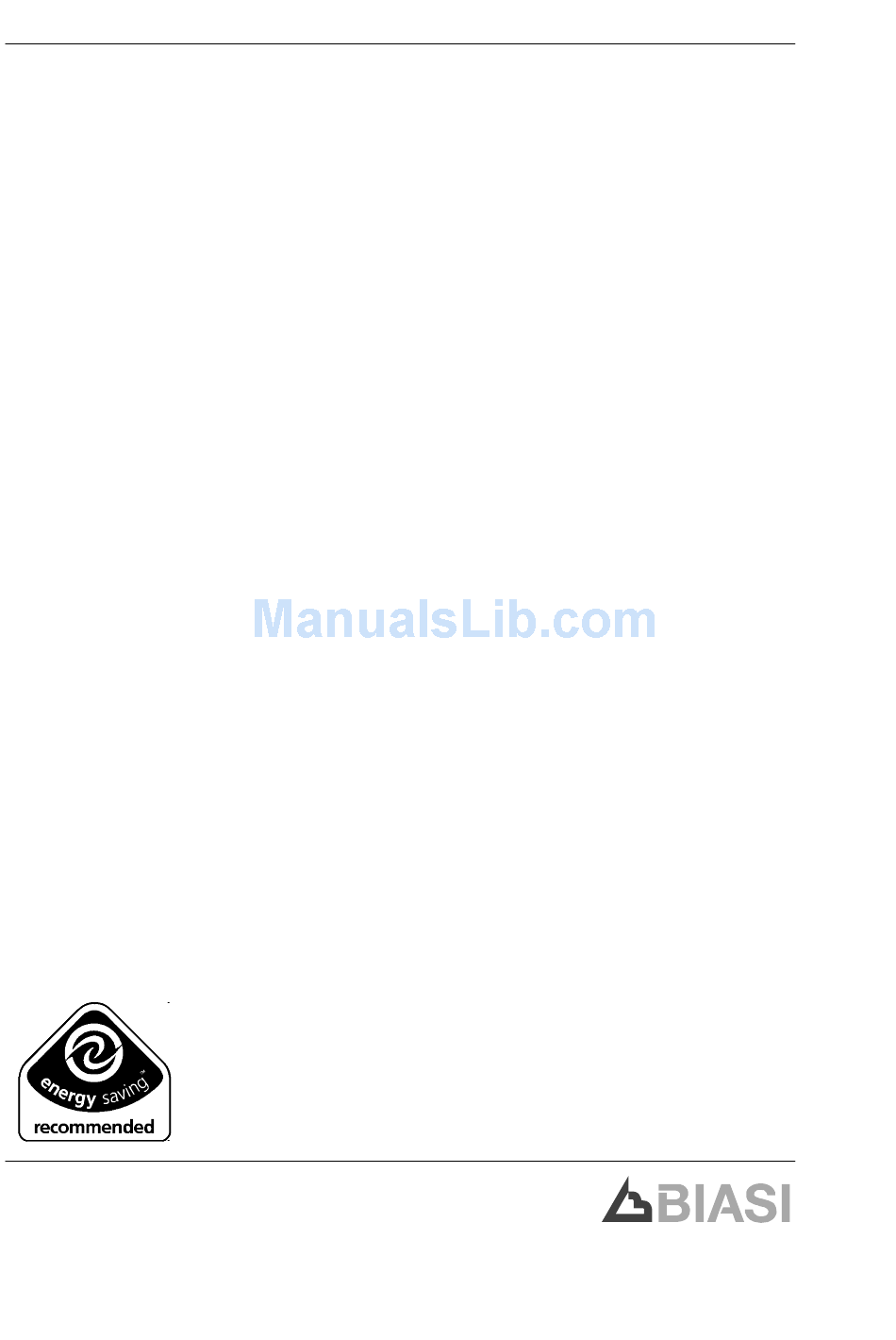

  • Page 1 Wall hung, fan flue, room sealed, high efficiency gas boiler Service manual ActivA Models: G.C. Appl. No. Activ A 25C 47---583---21 Activ A 30C 47---583---22 Activ A 35C 47---583---23 Activ A 18S 41---583---11 Activ A 25S 41---583---12 Activ A 30S...
