Atlantis A02-RA340 User Manual

Adsl2+ vpn router
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

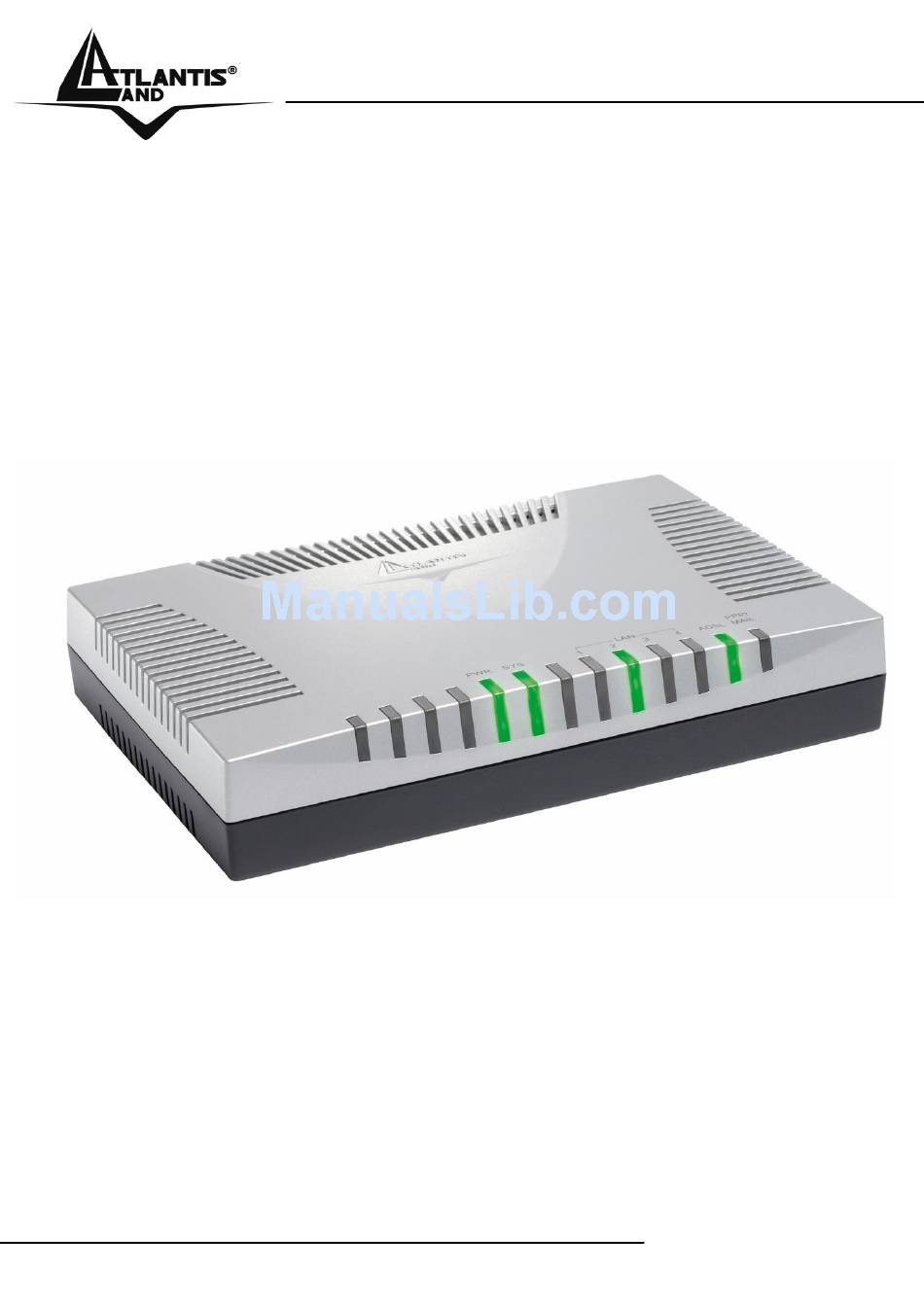

WebShare 340/440
ADSL2+ VPN Router
A02-RA340
A02-RA440
USER'S MANUAL
A02-RA3(4)40_ME01
Where solutions begin
Company certified ISO 9001:2000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A02-RA340 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Atlantis A02-RA340

Summary of Contents for Atlantis A02-RA340

  • Page 1 WebShare 340/440 ADSL2+ VPN Router A02-RA340 A02-RA440 USER’S MANUAL A02-RA3(4)40_ME01 Where solutions begin Company certified ISO 9001:2000...
  • Page 3 WebShare 340/440 Copyright The Atlantis Land logo is a registered trademark of Atlantis Land SpA. All other names mentioned mat be trademarks or registered trademarks of their respective owners. Subject to change without notice. No liability for technical errors and/or omissions.

  • Page 4: Table Of Contents

    WebShare 340/440 TABLE OF CONTENTS CHAPTER 1..........1 1.1 A ADSL2+ VPN R ................1 VERVIEW OF THE OUTER 1.2 P ........................2 ACKAGE ONTENTS 1.3 ADSL2+ VPN R ....................2 OUTER EATURES 1.4 ADSL2+ VPN R ..................5 OUTER PPLICATION CHAPTER 2..........
  • Page 5 WebShare 340/440 3.6.3.3.3 Firmware Upgrade....................37 3.6.3.3.4 Backup/Restore ....................38 3.6.3.3.5 Restart ........................39 3.6.3.3.6 User Management ....................39 3.6.3.4 Firewall .......................... 41 3.6.3.4.1 General Settings ....................41 3.6.3.4.2 Packet Filering ....................43 3.6.3.4.3 Intrusion Detection....................46 3.6.3.4.4 Url Filtering ......................47 3.6.3.4.5 Firewall Log ......................

  • Page 7: Chapter 1

    The router supports embedded Virtual Private Network (VPN) protocols and up to 16 simultaneous IPSec VPN tunnels for users to establish private encrypted tunnels over the public Internet (up to 4 VPN tunnels on A02-RA340). With built-in DES/3DES optimized microcode, the router enhances IPSec VPN performance significantly and ensures data transmitted securely between two or more sites.

  • Page 8: Package Contents

    WebShare 340/440 1.2 Package Contents • Adsl2+ VPN Router (WebShare 340 or WebShare 440) • One CD-ROM containing the online manual • Vera (Multilangue Intercative Tutorial) • One Quick Start Guide • One RJ-11 ADSL/telephone cable • One CAT-5 LAN cable •...
  • Page 9 WebShare 340/440 • Firewall: Supports SOHO firewall with NAT technology. Automatically detects and blocks the Denial of Service (DoS) attack. The URL-blocking, packet filtering are also supported. The hacker’s attack will be recorded associated with timestamp in the security logging area. More firewall features will be added continually, please visit our web site to download latest firmware.
  • Page 10 WebShare 340/440 • Dynamic Host Control Protocol (DHCP) client and server: In the WAN site, the DHCP client can get an IP address from the Internet Server Provider (ISP) automatically. In the LAN site, the DHCP server can allocate up to 253 client IP addresses and distribute them including IP address, subnet mask as well as DNS IP address to local computers.

  • Page 11: Adsl2+ Vpn Router Application

    WebShare 340/440 1.4 ADSL2+ VPN Router Application...

  • Page 12: Chapter 2

    WebShare 340/440 Chapter 2 Using ADSL2+ VPN Router 2.1 Cautions for using the ADSL2+ VPN Router Do not place the ADSL2+ VPN Router under high humidity and high temperature. Do not use the same power source for ADSL2+ VPN Router with other equipment.

  • Page 13: The Rear Ports

    ADSL2+ VPN Router Lit when successfully connected to an ADSL DSLAM. ADSL Steady glow when there is a PPPoA / PPPoE connection. PPP/MAIL Blinking if there is a new incoming mail. 2.3 The Rear Ports PORT Meaning Connect the supplied RJ-11 cable to this port LINE when connecting to the ADSL/telephone (RJ-11) (6)

  • Page 14: Cabling

    WebShare 340/440 2.4 Cabling The most common problem is bad cabling or ADSL line. Make sure that all connected devices are turned on. On the front of the product is a bank of LEDs. As a first check, verify that the LAN Link, ADSL , PWR and SYS LEDs are lit. If they are not, verify that you are using the proper cables.
  • Page 15 ADSL2+ VPN Router If the ADSL Led flashes periodically You have to force modulation. Click on Configuration, WAN then ADSL. On the combo-box Connection Mode please choose ADSL. Press Apply and then click on Save Config to Flash.
  • Page 16 WebShare 340/440...

  • Page 17: Chapter 3

    WebShare 340/440 Chapter 3 Configuration The ADSL2+ VPN Router can be configured with your Web browser. The web browser is included as a standard application in the following operation systems, UNIX, Linux, Mac OS, Windows 95/98/NT/2000/Me, and etc. The product provides a very easy and user-friendly interface for configuration.

  • Page 18: Configuring Pc In Windows

    WebShare 340/440 3.3 Configuring PC in Windows For Windows 95/98/ME 1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and choose the Configuration tab. 2. Select TCP / IP -> NE2000 Compatible, or the name of any Network Interface Card (NIC) in your PC.
  • Page 19 WebShare 340/440 5. Then select the DNS Configuration tab. 6. Select the Disable DNS radio button and click “OK” to finish the configuration.

  • Page 20: For Windows Nt4.0

    WebShare 340/440 For Windows NT4.0 1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and choose the Protocols tab. 2. Select TCP/IP Protocol and click Properties. 3. Select the Obtain an IP address from a DHCP server radio button and click “OK”.

  • Page 21: For Windows 2000

    WebShare 340/440 For Windows 2000 1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and Dial-up Connections. 2. Double-click LAN Area Connection. 3. In the LAN Area Connection Status window, click Properties.
  • Page 22 WebShare 340/440 Select Internet Protocol (TCP/IP) and click Properties. Select the Obtain an IP address automatically and the Obtain DNS server address automatically radio buttons. Click “OK” to finish the configuration.

  • Page 23: For Windows Xp

    WebShare 340/440 For Windows XP 1. Go to Start / Control Panel (in Classic View). In the Control Panel, double-click on Network Connections. 2. Double-click Local Area Connection 3. In the LAN Area Connection Status window, click Properties.
  • Page 24 WebShare 340/440 4. Select Internet Protocol (TCP/IP) and click Properties. 5. Select the Obtain an IP address automatically and the Obtain DNS server address automatically radio buttons 6. Click “OK” to finish the configuration.

  • Page 25: Configuration Check

    3.4 Factory Default Settings Before configurating this ADSL2+ VPN Router, you need to know the following default settings. • Username: admin • Password : atlantis • IP Address : 192.168.1.254 • Subnet Mask : 255.255.255.0 • DHCP server is enabled.

  • Page 26: Username And Password

    WebShare 340/440 3.4.1 Username and Password The default username and password are admin and atlantis respectively. If you ever forget the password to log in, you may press the RESET button to restore the factory default settings. After turning the router on press the...

  • Page 27: Configuring With The Web Browser

    Open the web browser, enter the local port IP address of this ADSL2+ VPN Router, which defaults at http://192.168.1.254, and click “Go”, a username and password window will appear. The default username & password are admin & atlantis, in respectively You will get a status report web page when login successfully.

  • Page 28: Webshare

    WebShare 340/440 When you click the ARP Table, you will see the data of the IP address of each PC in your LAN as well as its associated MAC address. When you click the DHCP Table, you can see the status of the assigned IP addresses with its associated information.

  • Page 29: Quick Start Guide

    WebShare 340/440 3.6.2 Quick Start Guide If you use this device to access the Internet through the ISP, this web page is enough for you to configure this router and access the Internet without a problem. Please check Chapter 3.5 (Information from the ISP), then enter the proper values into this web page, click the Apply button and then Save Config to FLASH in the left panel.

  • Page 30: Configuration

    WebShare 340/440 3.6.3 CONFIGURATION When you click this item, you get following sub-items to configure ADSL2+ VPN Router: • LAN • WAN • System • Firewall • VPN • QoS • Virtual Server • Time Schedule • Advanced 3.6.3.1 LAN A Local Area Network (LAN) is a shared communication system to which many computers are attached and is limited to the immediate area, usually the same building or floor of a building.

  • Page 31: Ethernet

    WebShare 340/440 Note: NAT/NAPT can be applied to management interface only 3.6.3.1.2 Ethernet The default IP address for the router is 192.168.1.254. RIP: RIP v1, RIP v2, RIP v1+v2 and RIP v2 Multicast. The Subnet mask of the Secondary IP Address depends on the setting of the Primary IP Address.

  • Page 32: Ethernet Client Filter

    WebShare 340/440 3.6.3.1.3 Ethernet Client Filter The Ethernet Client Filter supports up to 16 Ethernet network machines that helps you to manage your network control to accept traffic from specific authorized machines or can restrict unwanted machine(s) to access your LAN. There are no pre-define Ethernet MAC address filter rules;...

  • Page 33: Port Setting

    WebShare 340/440 Active PC in LAN displays a list of individual Ethernet device’s IP Address & MAC Address which connecting to the router. You can easily by checking the box next to the IP address to be blocked or allowed. Then, Add to insert to the Ethernet Client Filter table.

  • Page 34: Dhcp Server

    WebShare 340/440 IPv4 TOS priority Control (Advanced users): TOS, Type of Services, is the 2nd octet of an IP packet. Bits 6-7 of this octet are reserved and bit 0-2 are used to specify the priority (precedence) of the packet, and bits 3-5 are specified the delay, throughput and reliability. This feature uses bits 0-2 to classify the packet’s priority.
  • Page 35 WebShare 340/440 If you check DHCP Server and click Next, you can configure parameters of the DHCP server including the IP pool (starting IP address and ending IP address), leased time for each assigned IP address, DNS IP address, and Gateway IP address. Those messages are sent to the DHCP client when it requests an IP address from the DHCP server.

  • Page 36: Wan

    WebShare 340/440 3.6.3.2 WAN A WAN (Wide Area Network) is an outside connection to another network or the Internet. There are three items within the WAN section: ISP, DNS and ADSL. 3.6.3.2.1 ISP The factory default is PPPoE. If your ISP uses this access protocol, click Edit to input other parameters as below.
  • Page 37 WebShare 340/440 PPPoE(RFC 2516) or PPPoA(RFC 2364) PPPoE (PPP over Ethernet) provides access control in a manner similar to dial-up services using PPP. It provides access control and billing functionality in a manner similar to dial-up services using PPP. • Description: User-definable name for the connection. •...
  • Page 38 WebShare 340/440 • Authentication Protocol Type: Default is Chap (Auto). Your ISP will advise you whether to use Chap or Pap. • Always on: If you want the router to establish a PPPoE session when starting up and to automatically re-establish the PPPoA session when disconnected by the ISP. •...
  • Page 39 WebShare 340/440 RFC 1483 Routing or IPoA routed(RFC1577) • Description: Your description of this connection. • VPI and VCI: Enter the information provided by your ISP. • ATM Class: The Quality of Service for ATM layer. • NAT: The NAT (Network Address Translation) feature allows multiple users to access the Internet through a single IP account, sharing the single IP address.

  • Page 40: Dns

    WebShare 340/440 BRIDGE (PPPoE) • Description: A user-definable name for this connection. • VPI/VCI: Enter the information provided by your ISP. • Encapsulation method: Select the encapsulation format, this is provided by your ISP. 3.6.3.2.2 DNS A Domain Name System (DNS) contains a mapping table for domain name and IP addresses.

  • Page 41: Adsl

    WebShare 340/440 address on your PC to the LAN IP address of this router. 3.6.3.2.3 ADSL • Connect Mode: There are three modes ”ADSL”,”ADSL2”and”ADSL2+” that user can select for this connection. • Modulation: The default is Multimode; it will detect the ADSL line code, G.dmt, G.lite, andT1.413 automatically.

  • Page 42: System

    WebShare 340/440 3.6.3.3 System There are six items within the System section: Time Zone, Remote Access, Firmware Upgrade, Backup/Restore, Restart and User Management. 3.6.3.3.1 Time Zone The router does not have a real time clock on board; instead, it uses the Simple Network Time Protocol (SNTP) to get the current time from an SNTP server outside your network.

  • Page 43: Firmware Upgrade

    Upgrade: Click upgrade to begin the upload process. This process may take up to two minutes. Do NOT upgrade firmware on any Atlantis Land product over a wireless connection. Failure of the device may result. Use only hard-wired network connections.

  • Page 44: Backup/Restore

    WebShare 340/440 3.6.3.3.4 Backup/Restore These functions allow you to save and backup your router’s current settings to a file on your PC, or to restore a previously saved backup. This is useful if you wish to experiment with different settings, knowing that you have a backup handy in the case of any mistakes. It is advisable to backup your router’s settings before making any significant changes to your router’s configuration.

  • Page 45: Restart

    WebShare 340/440 3.6.3.3.5 Restart Click Restart with option Current Settings to reboot your router and restore your last saved configuration. If you wish to restart the router using the factory default settings (for example, after a firmware upgrade or if you have saved an incorrect configuration), select Factory Default Settings to reset to factory default settings.
  • Page 46 WebShare 340/440 account, with the exception that once created you cannot change the username. You cannot delete the default admin account; however you can delete any other created accounts by clicking Cancel when editing the user. You are strongly advised to change the password on the default “admin” account when you receive your router, and any time you reset your configuration to Factory Defaults.

  • Page 47: Firewall

    WebShare 340/440 3.6.3.4 Firewall Your router includes a full SPI (Stateful Packet Inspection) firewall for controlling Internet access from your LAN, as well as helping to prevent attacks from hackers. In addition to this, when using NAT (Network Address Translation. Please see the WAN configuration section for more details on NAT) the router acts as a “natural”...
  • Page 48 WebShare 340/440 Firewall Security: When you enable Firewall function, you can select one of the firewall security policies. All blocked/User-defined: By default, all of traffic between WAN and LAN are blocked. You have to configure the type of traffic passed between WAN and LAN, please refer to Packet Filter below.

  • Page 49: Packet Filering

    WebShare 340/440 3.6.3.4.2 Packet Filering User can decide to enable this firewall function including Packet Filter, Block Hacker Attack, and Block WAN request features for better security control or not. But be noted, it wastes network processor computation power. The performance will be lower about 10% to 15%. More firewall features will be added continually, please visit our web site to download latest firmware.
  • Page 50 WebShare 340/440 checks these different filter rules one by one, stating from the first rule. As long as one of the rules is satisfied, the specified action will be taken. • Add TCP/UDP Filter: Click this button to add a new packet filter rule. After click, next figure will appear.
  • Page 51 WebShare 340/440 In this example, all TCP packets generated from every IP Address to every IP Address are allowed. In this situation, you can surf on Internet and you can host a Web Server. If you block Inbound, you can surf on Internet but you can’t host a Web Server because all packets to TCP port 80 Inbound will be blocked.

  • Page 52: Intrusion Detection

    WebShare 340/440 3.6.3.4.3 Intrusion Detection The router’s Intrusion Detection System (IDS) is used to detect hacker attacks and intrusion attempts from the Internet. If the IDS function of the firewall is enabled, inbound packets are filtered and blocked depending on whether they are detected as possible hacker attacks, intrusion attempts or other connections that the router determines to be suspicious.

  • Page 53: Url Filtering

    WebShare 340/440 3.6.3.4.4 Url Filtering URL filter rules allow you to prevent users on your network from accessing particular websites by their URL. There are no predefined URL filter rules; you can add filter rules to meet your requirements. Enable/Disable: To enable or disable URL Filter feature.
  • Page 54 WebShare 340/440 Block Mode: A list of the modes that you can choose to check the URL filter rules. The default is set to Disabled. • Disabled: No action will be performed by the Block Mode. • Always On: Action is enabled. URL filter rules will be monitoring and checking at all hours of the day.

  • Page 55: Firewall Log

    WebShare 340/440 Restrict URL Features: This function enhances the restriction to your URL rules. Example: Andy wishes to disable all WEB traffic except for ones listed in the trusted domain, which would prevent Bobby from accessing other web sites. Andy selects both functions in the Domain Filtering and thinks that it will stop Bobby. But Bobby knows this function, Domain Filtering, ONLY disables all WEB traffic except for Trusted Domain, BUT not its IP address.

  • Page 56: Vpn

    WebShare 340/440 3.6.3.5 VPN Your router support 2 main types of VPN (Virtual Private Network), PPTP and IPSec, and these are the two major section choices from the menu on the left. Click Create to select one of applications to continually setup. 3.6.3.5.1 VPN - PPTP The router supports PPTP VPN to establish secure, end-to-end private network connections over a public networking infrastructure.
  • Page 57 WebShare 340/440 connecting to you to use (when acting as a server). When using PAP, the password is sent unencrypted, whilst CHAP encrypts the password before sending, and also allows for challenges at different periods to ensure that the client has not been replaced by an intruder.
  • Page 58 WebShare 340/440 Application Diagram Configuring PPTP VPN in the Office LAN Router The input IP address 192.168.1.200 will be assigned to the remote worker, please make sure this IP is not used in the Office LAN.
  • Page 59 WebShare 340/440 Configuring PPTP VPN in Remote Side You can configure VPN client with commercial VPN client software package (e.g. SSH) or the Dialup Adaptor in Windows. Please follow the steps below if you are a Windows 2000/XP user. 2. Follow the step and select “Connect to a private network through the Internet” 3.
  • Page 60 WebShare 340/440 4.Follow the step, the following screen appears. The setup is completed. 5. To make the connection, click the Virtual Private Connection icon in Dial-up Networking Group,...
  • Page 61 WebShare 340/440...
  • Page 62 WebShare 340/440 An Example of Configuring a Remote Access PPTP VPN Dial-out Connection Background of the Example Corporate establishes a PPTP VPN connection with the file server located in the remote side. The router is installed in the office, connected with a couple of PCs and Servers. Application Diagram Configuring PPTP VPN in the Office You can either input the IP address (80.123.23.45 in this case) or hostname to reach the...
  • Page 63 The Remote LAN establishes a PPTP VPN tunnel with the Office LAN to connect two private networks by leveraging the Internet infrastructure. The routers are installed in the Office Lan and Remote Lan accordingly. Remote LAN Office LAN Product Code A02-RA440/A02-RA340 A02-WRA4-54G Picture 80.17.56.78 69.121.1.32 Public IP LAN IP 192.168.1.X...
  • Page 64 WebShare 340/440 Configuring PPTP VPN in the Office Lan The input IP address 192.168.2.200 will be assigned to the router located in the Remote LAN. Please make sure this IP is not used in the head office LAN. Configuring PPTP VPN in the Remote Lan The input IP address 69.121.1.32 is the Public IP address of the router located in the Office Lan.

  • Page 65: Vpn - Ipsec

    WebShare 340/440 3.6.3.5.2 VPN - IPSec The router supports IPSec VPN to establish secure, end-to-end private network connections over a public networking infrastructure. Connection Name: A user-defined name for the connection (e.g. “connection to office”). Local: Network: Set the IP address, subnet or address range of the local network. •...
  • Page 66 WebShare 340/440 options, DES, 3DES, AES (128, 192 and 256) and NULL. NULL means it is a tunnel only with no encryption. 3DES and AES are more powerful but increase latency. • DES: Stands for Data Encryption Standard, it uses 56 bits as an encryption method. •...
  • Page 67 WebShare 340/440 This function is only available after completed creating an IPSec account. Click Advanced Optino to change the following settings IKE (Internet key Exchange) Mode: Select IKE mode to Main mode or Aggressive mode. This IKE provides secured key generation and key management. IKE Proposal: Hash Function: It is a Message Digest algorithm which coverts any length of a message into a unique set of bits.
  • Page 68 WebShare 340/440 Diffie-Hellman Group: It is a public-key cryptography protocol that allows two parties to establish a shared secret over an unsecured communication channel (i.e. over the Internet). There are three modes, MODP 768-bit, MODP 1024-bit and MODP 1536-bit. MODP stands for Modular Exponentiation Groups.
  • Page 69 WebShare 340/440 An Example of Configuring a LAN-to-LAN IPSec VPN Connection Remote LAN Office LAN Product Code A02-RA440/A02-RA340 A02-WRA4-54G Picture Public IP 69.121.1.31 69.121.1.32 192.168.1.X 192.168.2.X LAN IP Subnet Mask 255.255.255.0 255.255.255.0 VPN IPSec DES(or 3DES/AES) DES(or 3DES/AES) Encryption Authentication...
  • Page 70 WebShare 340/440 Configuring IPSec VPN in the Office LAN Configuring IPSec VPN in the Remote LAN...

  • Page 71: Qos

    WebShare 340/440 3.6.3.6 QoS QoS function helps you to control your network traffic for each application from LAN (Ethernet) to WAN (Internet). It facilitates you to control the different quality and speed of through put for each application when the system is running with full loading of upstream. You can find two items under the QoS section: Prioritization and IP Throttling (bandwidth management).

  • Page 72: Outbound Ip Throttling (Lan To Wan)

    WebShare 340/440 DSCP Marking: Differentiated Services Code Point (DSCP), it is the first 6 bits in the ToS byte. DSCP Marking allows users to classify traffic based on DSCP value and send packets to next Router. 3.6.3.6.2 Outbound IP Throttling (LAN to WAN) IP Throttling allows you to limit the speed of IP traffic.

  • Page 73: Virtual Server

    WebShare 340/440 Application: A user-define description to identify this new policy/application. Time Schedule: Scheduling your prioritization policy. Refer to Time Schedule for more information. Protocol: The name of supported protocol. Source Port: The source port of packets to be monitored. Destination Port: The destination port of packets to be monitored.

  • Page 74: Edit Dmz Host

    WebShare 340/440 Time Schedule: A self-defined time period to enable your virtual server. You may specify a time schedule or Always on for the usage of this Virtual Server Entry. For setup and detail, refer to Time Schedule section Application: Users-define description to identify this entry or click to select existing predefined rules.
  • Page 75 WebShare 340/440 If you have multiple public/WAN IP addresses from you ISP, you are eligible for One-to-One NAT to utilize these IP addresses. NAT Type: Select desired NAT type. As set in default setting, it disables the One-to-One NAT function. Global IP Address: Subnet: The subnet of the public/WAN IP address given by your ISP.

  • Page 76: Time Schedule

    WebShare 340/440 nternal IP Address: The private IP in the LAN network, which will be providing the virtual server application. List all existing PCs connecting to the network. You may assign a PC with IP address and MAC from this list. Select the Apply button to apply your changes.

  • Page 77: Advanced

    WebShare 340/440 ID: This is the index of the time slot. Name: A user-define description to identify this time portfolio. Day: The default is set from Monday through Friday. You may specify the days for the schedule to be applied. Start Time: The default is set at 8:00 AM.

  • Page 78: Dynamic Dns

    WebShare 340/440 Cost: This is the same meaning as Hop. This should usually be left at 1. 3.6.3.9.2 Dynamic DNS The Dynamic DNS service allows you to alias a dynamic IP address to a static hostname. This dynamic IP address is the WAN IP address. For example, to use the service, you must first apply for an account from this free Web server http://www.dyndns.org/.

  • Page 79: Device Management

    WebShare 340/440 • Enable: Check to enable the routers Emailing checking function. The following fields will be activated and required: Account Name: Enter the name (login) of the POP3 account you wish to check.. Normally, it is the text in your email address before the "@" symbol. If you have trouble with it, please contact your ISP.

  • Page 80: Snmp Access Control

    WebShare 340/440 router’s web server. Setting the IP address to 0.0.0.0 will disable IP address restrictions, allowing users to login from any IP address. Expire to auto-logout: Specify a time frame for the system to auto-logout the user’s configuration session. Universal Plug’n’Play UPnP offers peer-to-peer network connectivity for PCs and other network devices, along with control and data transfer between devices.

  • Page 81: Igmp

    WebShare 340/440 The following MIBs are supported: • RFC 1213 (MIB-II): System group Interfaces group Address Translation group IP group ICMP group TCP group UDP group EGP (not applicable) Transmission SNMP group • RFC1650 (EtherLike-MIB): dot3Stats • RFC 1493 (Bridge MIB): dot1dBase group dot1dTp group dot1dStp group (if configured as spanning tree)

  • Page 82: Save Config To Flash

    WebShare 340/440 IGMP Snooping: Allowing switched Ethernet to check and make correct forwarding decisions. Default is set to Enable 3.6.4 Save Config To Flash After configuring this network router, you have to save all of the configuration parameters to FLASH. 3.6.5 Logout To exit the website, choose Logout to exit completely.

  • Page 83: Appendix A

    Blocking Port Base VLAN VLAN WAN-LAN e LAN-WAN VPN Pass Through (IPSec, L2TP, PPTP) Up to 16 VPN IPSec (A02-RA440) Up to 4 VPN IPSec(A02-RA340) Accelerator DES/3DES (A02-RA440) Input Power 12V DC @ 1A Power Consumption < 10watts Agency and Regulatory...

  • Page 84: Appendix B

    WebShare 340/440 APPENDIX B Traffis Shaping Traffic Shaping is an agreement between the carrier and the subscriber to regulate the average rate and “burstiness” or fluctuation of data transmission over an ATM network. This agreement helps eliminate congestion, which is important for transmission of real time data such as audio and video connections.

  • Page 85: Appendix C

    If you have any problems with the ADSL2+ VPN Router, please consult this manual. If you continue to have problems you should contact the dealer where you bought this ADSL Router. If you have any other questions you can contact the Atlantis Land company directly at the following address:...
