Jensen VX4020 Installation Manual

6.2" double din multimedia receiver
Hide thumbs Also See for VX4020:
1
2
3
4
5
6

Advertisement

Table of Contents

The following items are supplied with
the VX4020:

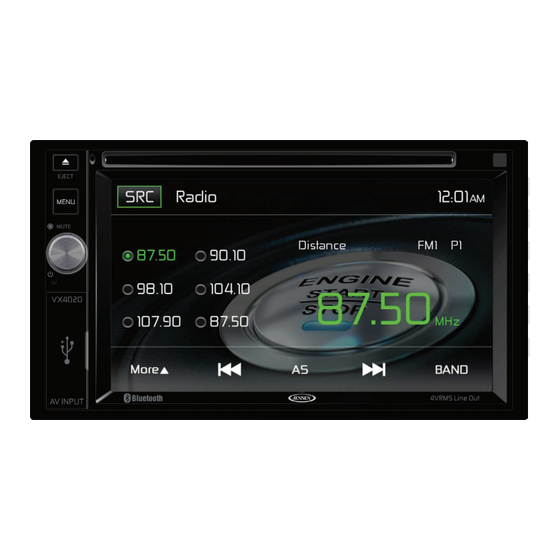

• VX4020 Head Unit
• Trim Ring
• Hardware Bag
• Power/Speaker Output Harness
• Remote Control
• External Microphone
• Owners Manual & Warranty Card
• Installation Guide
WARNING! Never install this unit where operation and viewing could interfere with
safe driving conditions.
128-9283 VX4020 Installation Guide 02-21-14.indd 1
VX4020
6.2" Double DIN Multimedia Receiver

INSTALLATION GUIDE

What's in the Box
Tools and Supplies
The following tools and supplies are
needed to install the VX4020:
• Torx type, flat-head and Philips
screwdrivers
• Wire cutters and strippers
• Tools to remove existing radio (screw
driver, socket wrench set or other
tools)
• Electrical tape
• Crimping tool
• Volt meter/test light
• Crimp connections
• 18 gauge wire for power connections
• 16 – 18 gauge speaker wire
Installation Guide
3/17/2014 12:44:03 PM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VX4020 and is the answer not in the manual?

Questions and answers

Related Manuals for Jensen VX4020

Summary of Contents for Jensen VX4020

  • Page 1: Installation Guide

    • Electrical tape • Installation Guide • Crimping tool • Volt meter/test light • Crimp connections • 18 gauge wire for power connections • 16 – 18 gauge speaker wire WARNING! Never install this unit where operation and viewing could interfere with safe driving conditions. 128-9283 VX4020 Installation Guide 02-21-14.indd 1 3/17/2014 12:44:03 PM...
  • Page 2 128-9283 VX4020 Installation Guide 02-21-14.indd 2 3/17/2014 12:44:03 PM...

  • Page 3: Iso-Din Installation

    ISO-DIN Installation The VX4020 is designed to fit into a 2.0 DIN dashboard opening. The unit has threaded holes in the chassis side panels which may be used with the original factory mounting brackets of some Toyota, Nissan, Mitsubishi, Isuzu, Hyundai and Honda vehicles to mount the radio to the dashboard.

  • Page 4: Wiring Diagram

    Wiring Diagram CAUTION! IMPORTANT: Incorrect wiring connections can damage the unit. Follow the wiring instructions carefully, or have the installation handled by an experienced technician. Need Help? For technical assistance, call the Jensen customer support line at 1-800-323-4815. Black/MICROPHONE Black/ 128-9283 VX4020 Installation Guide 02-21-14.indd 4...
  • Page 5 NOTES: 128-9283 VX4020 Installation Guide 02-21-14.indd 5 3/17/2014 12:44:06 PM...
  • Page 6 Installation Guide Voxx Electronics Corporation Hauppauge, NY 11788 Technical Assistance: 1-800-323-4815 www.jensenmobile.com © 2014 Printed in China 128-9283 128-9283 VX4020 Installation Guide 02-21-14.indd 6 3/17/2014 12:44:06 PM...
