VX7024 / VX4024
Installation / Quick Start Guide
Complete operation manuals are
online at www.jensenmobile.com
Note: There is no operation manual in this package
What's in the Box
The following items are supplied
with the VX7024 / VX4024:
•

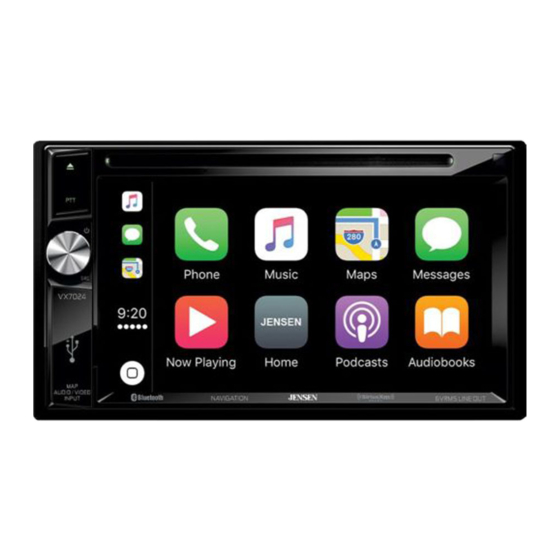

Head Unit / Receiver
•
GPS Antenna (VX7024 only)
•
Trim Ring
•
Hardware
•
Power/Speaker Output Harness
•
Remote Control
•
External Microphone
•
Installation Guide
WARNING! Never install this unit where operation and viewing could interfere with
safe driving conditions.
Tools and Supplies
The following tools and supplies
are needed to install the head unit:
• Torx type, flat-head and Philips
screwdrivers
• Wire cutters and strippers
• Tools to remove existing radio (screw
driver, socket wrench set or other
tools)
• Electrical tape
• Crimping tool
• Volt meter/test light
• Crimp connections
• 18 gauge wire for power connections
• 16 – 18 gauge speaker wire
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Jensen VX7024
Summary of Contents for Jensen VX7024
- Page 1 Note: There is no operation manual in this package What’s in the Box Tools and Supplies The following items are supplied The following tools and supplies with the VX7024 / VX4024: are needed to install the head unit: • Head Unit / Receiver • Torx type, flat-head and Philips screwdrivers •...
- Page 2 1. Set "Radio Select Switch". Set the SWI-RC to position 7 - "Pioneer/Sony/Other". 2. Programming - Use the "Other" radio function mapping order for Jensen branded head units. 3. When programming the SWI-RC, if a function is not supported (or not desired), then the function MUST be skipped as per the PAC SWI-RC instructions.
- Page 3 Wiring Diagram CAUTION! IMPORTANT: Incorrect wiring connections can damage the unit. Follow the wiring instructions carefully, or have the installation handled by an experienced technician. Need Help? 88-921-4088...
- Page 4 • E-mail us at cs@.dualav.com Who is covered? This warranty is extended to the original retail purchaser for products purchased from an authorized Jensen dealer and used in the Exclusion of Certain Damages: This warranty is U.S.A. exclusive and in lieu of any and all other...
