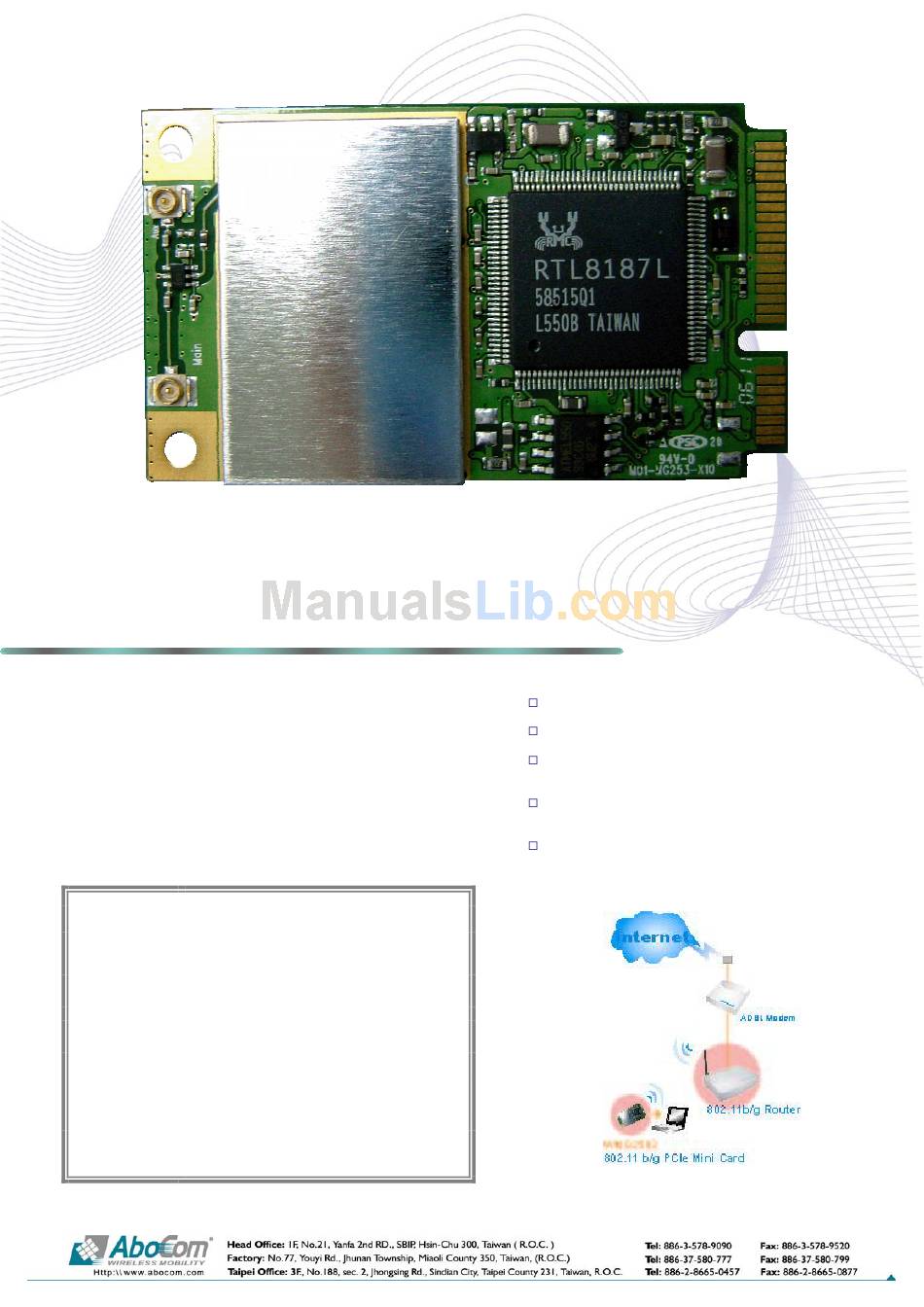

Abocom Wireless 802.11b/g PCIe Mini Card WMG2503 Specifications

WMG2503
Wireless 802.11b/g PCIe Mini Card
Description
The WMG2503 is the new PCI Express Mini Card interface supporting both
IEEE 802.11b/g in a form factor half the size of a Mini PCI card. The
WMG2503 provides cost effectiveness, low power consumption, and low
heat dissipation. For easy integration into the host device, the WMG2503 in
full compliance with the PCI Express Mini Card specification supports USB
2.0 signaling over the Mini Card interface. Despite its small size, the
WMG2503 delivers full IEEE 802.11b /g standards, as well as the
advanced security and quality-of-service (QoS) features of 802.11i, 802.1x,
and 802.11e.. It provides plug-and-play wireless connectivity in the
2.4-GHz band anywhere in the world.
Specification
Standards IEEE 802.11b/g
Frequency Band 2412 ~ 2483 MHz
Operating Voltage 3.3V
11g: Orthogonal Frequency Division Multiplexing (OFDM)
11b+: Packet Binary Convolution Coding (PBCC)
Modulation
11b:Direct Sequence Spread Spectrum (DSSS)
Note: No OFDM modulation on channel 14
USA (FCC): 11 channels (2.412GHz~2.462GHz)
Channels ETSI: 13 channels (2.412GHz~2.472GHz)
Japan: 14 channels (2.412GHz~2.484GHz)
Output Interface USB 2.0
802.11b (22Mbps, 11 Mbps, 5.5 Mbps, 2 Mbps, 1 Mbps)
Support Data Rate 802.11g (54 Mbps, 48 Mbps, 36 Mbps, 24 Mbps, 18 Mbps, 12
Mbps, 9 Mbps, 6 Mbps)
11g/54Mbps OFDM: up to +14dBm
Output Power
11b/11Mbps CCK: up to +18dBm
Weight: TBD
Dimension: 48.05 (L) x 30(W) mm
Physical Specification
PCB (thickness): 1.0 +/- 0.1 mm
Height (thickness): TBD (included RF metal shield case)
Certifications FCC, CE
Operating Temperature: 0℃~60℃ ambient temperature
Environment
Storage Temperature: -20℃~80℃ ambient temperature
Conditions
Operating humidity: 90% maximum (non-condensing)
Storage humidity: 90% maximum (non-condensing)
Features
Support the IEEE 802.11b /g standard, data rates up to 54
Mbps
USB 2.0 signaling on the PCI Express Mini Card interface,
compatibility with USB 1.1 device
Implement the latest standards for strong WLAN data
encryption and authentication, ensuring maximum data
privacy
Dynamic Rate Shifting wireless transmission speed on the
basis of signal strength to achieve maximum availability and link
reliability
Support a user friendly interface for easy configuration
Applications
