  • Page 1: Instruction Manual

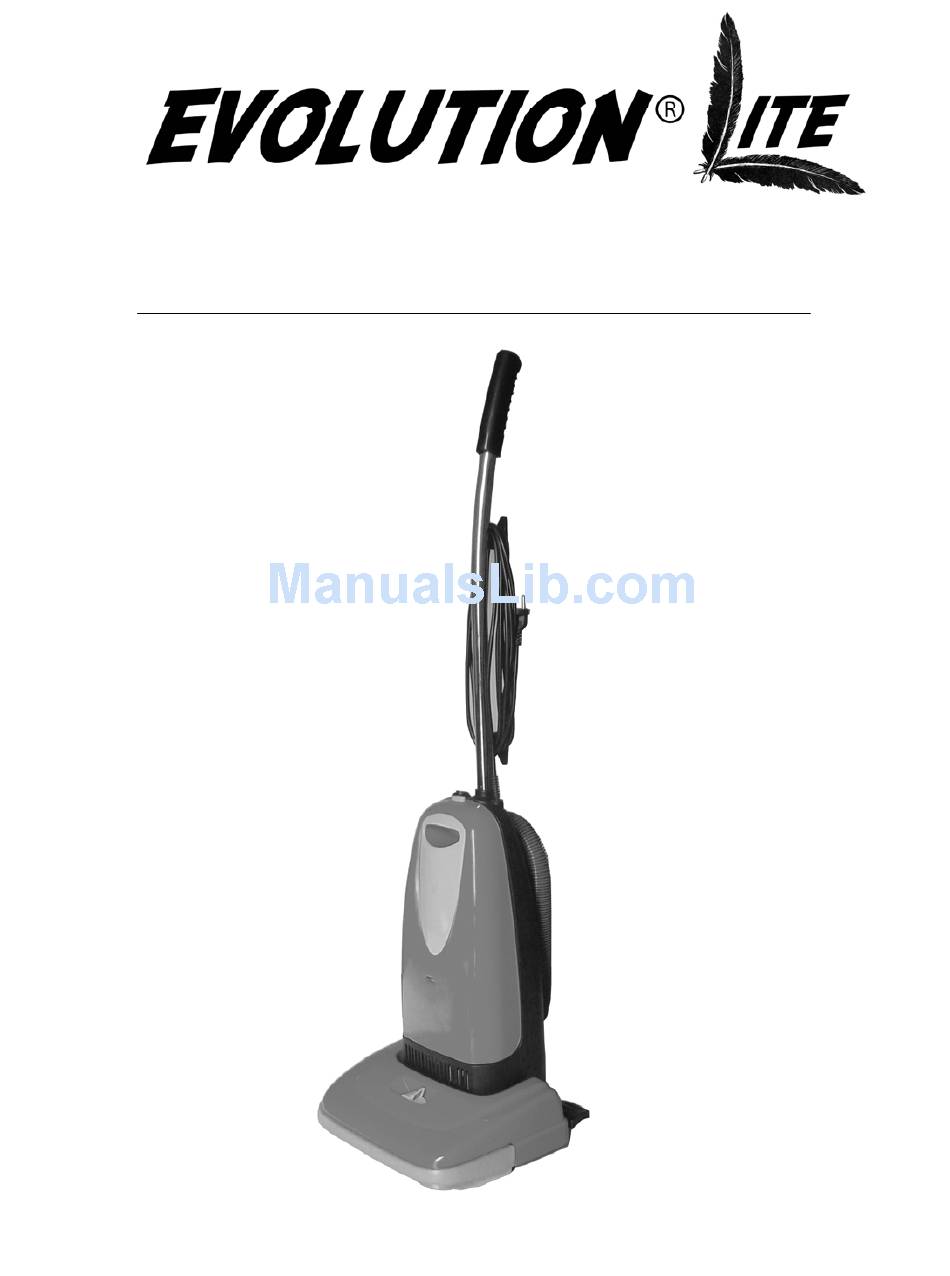

    Instruction Manual Model DCC658...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS When using an electrical vacuum cleaner, basic precautions should always be followed including the following: Read all instructions carefully before using this vacuum cleaner. Warning! To reduce the risk of fire, electric shock, or injury: 1. Electric shock could occur if used outdoors or wet surfaces. 2.
  • Page 3 24. Before servicing this vacuum cleaner, allow all metal parts to cool first. Caution: To reduce the risk of electric shock, this vacuum cleaner has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way.

  • Page 4: Main Parts

    MAIN PARTS 1. HANDLE 7. PEDAL 2. POWER CORD RELEASE HOOK 8. HOSE 3. POWER CORD 9. BUMPER 4. POWER CORD LOWER HOOK 10. FLOOR/RUG SWITCH 5. SCREW 11. FULL BAG INDICATOR 6. CREVICE TOOL 12. FRONT COVER LATCH...

  • Page 5: Operation Instructions

    Operation Instructions 1. Unloading/loading power cord Turn the Power Cord Release Hook 180 degrees, take off the cord. (See the illustration) Power cord release hook Power cord Power cord low hook 2. RUG/FLOOR SELECTOR The RUG/FLOOR selector should only be adjusted while the vacuum cleaner is “ON” and in the upright position.

  • Page 6: How To Adjust The Handle

    3. HOW TO ADJUST THE HANDLE The handle of this vacuum cleaner can be set to either of two position-upright and normal. To release the handle, press the pedal at the left rear corner of the vacuum cleaner. 1.Upright position Normally the handle is locked in this position for storage or when using the On Board Tools.
  • Page 7 Load new bag 1. Insert the new bag into the bag stand Bag stand Back of the bag New bag Grooves Locking 2. Insert the bag hole stand onto the bag bracket. Bag stand...

  • Page 8: How To Change The Filter

    5. HOW TO CHANGE THE FILTER  First unplug the vacuum cleaner from the electrical outlet. Remove the filter with its stand from the bottom of the paper bag HEPA housing.  Make sure that the filter is HEPA stand in place before vacuuming.
  • Page 9 2. Pull out the belt along with the brush roll Belt cover belt Brush roll 3. Push the belt on the brush roll pulley. Take the belt through (underneath) the floor brush section toward motor shaft. Put brush roll in. The two ends of the brush roll need to be in the grooves at the two sides, and then insert the belt onto the motor shaft.
  • Page 10 Belt cover 7. HOW TO REPLACE THE BOTTOM PLATE 1. Insert the front of the bottom plate into the grooves at the front end of the nozzle head, then reset the bottom plate. 2. Fasten it by sliding the latch as shown. latch LOCK OPEN...
  • Page 11 8. HOW TO CLEAN THE SUCTION HOSE When a clog occurs: 1. Unplug the vacuum cleaner from the electrical outlet. Place the vacuum cleaner in the Upright position 2. Hold the connection tube of the suction hose in one hand and the handle in the other. Then pull out the connection tube from the suction pipe of the nozzle head.
