E.H. Wachs 08-051-MAN User Manual

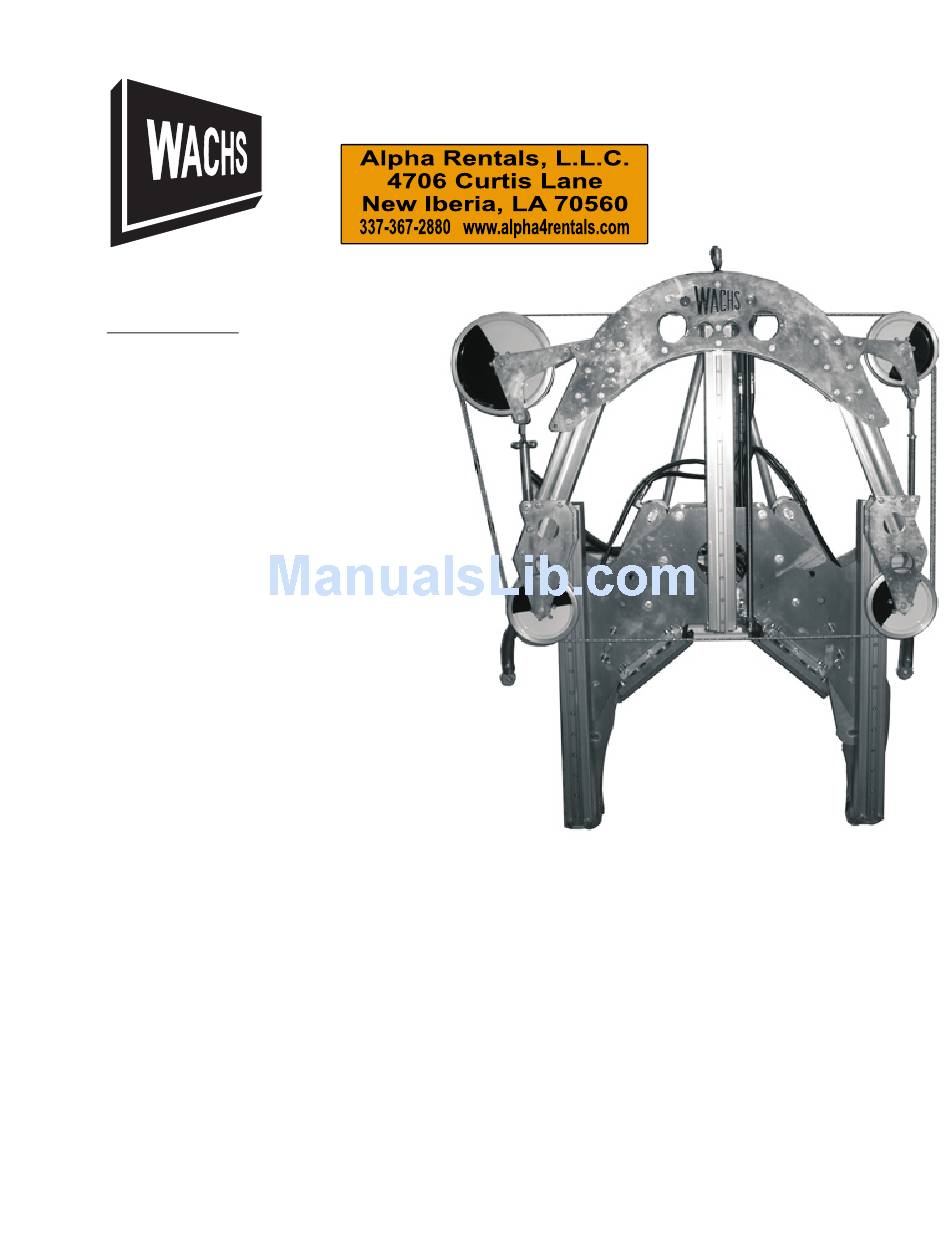

Subsea wire saw
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
E.H. Wachs
600 Knightsbridge Parkway
Lincolnshire, IL 60069
www.ehwachs.com
E.H. Wachs Part No. 08-051-MAN
Rev. 1-0709, July 2009
Revision History:
Original
March 2009
Rev. 1
July 2009
Copyright © 2009 E.H. Wachs. All rights reserved.
This manual may not be reproduced in whole or in part
without the written consent of E.H. Wachs.
Subsea Wire Saw
User's Manual

Advertisement

Table of Contents
loading

Related Manuals for E.H. Wachs 08-051-MAN

Summary of Contents for E.H. Wachs 08-051-MAN

  • Page 1 E.H. Wachs Part No. 08-051-MAN Rev. 1-0709, July 2009 Revision History: Original March 2009 Rev. 1 July 2009 Copyright © 2009 E.H. Wachs. All rights reserved. This manual may not be reproduced in whole or in part without the written consent of E.H. Wachs.
  • Page 2 Subsea Wire Saw User’s Manual Part No. 08-051-MAN, Rev. 1-0709 E.H. Wachs...

  • Page 3: Table Of Contents

    Drive Wheel ............. . 48 E.H. Wachs Part No. 08-051-MAN, Rev. 1-0709...
  • Page 4 WS-5230 ..............68 Part No. 08-051-MAN, Rev. 1-0709...

  • Page 5: Chapter 1: About The Subsea Wire Saw

    Use these instructions to operate and maintain the equipment. The narrower column on the outside contains additional information such as warnings, special notes, and defini- tions. Refer to it for safety notes and other information. E.H. Wachs Part No. 08-051-MAN, Rev. 1-0709...

  • Page 6: Symbols And Warnings

    IMPORTANT An IMPORTANT alert with the damage alert symbol indi- cates a situation that may result in damage to the equipment. Part No. 08-051-MAN, Rev. 1-0709 E.H. Wachs...

  • Page 7: Manual Updates And Revision Tracking

    Feed drive: operates the bow holding the wire drive sys- tem, to feed the wire through the pipe and retract the bow when finished cutting. • Clamp drive: operates the clamping arms that secure the machine to the pipe during cutting. E.H. Wachs Part No. 08-051-MAN, Rev. 1-0709...

  • Page 8: Subsea Wire Saw Models

    Figure 1-1 illustrates the drive system components. Idler wheels Tensioning knob Drive wheel Tension spring Diamond wire Tension wheel Figure 1-1. The photo shows the cutting wire drive system components. Part No. 08-051-MAN, Rev. 1-0709 E.H. Wachs...

  • Page 9: Feed System

    The wire is a custom-made loop for the size of the saw. Spare wires can be ordered from E.H. Wachs. Feed System A feed drive mechanism on the main frame of the machine drives the bow and cutting system up and down to perform the cut and retract the bow after cutting.
  • Page 10 Figure 1-4. Use the manual feed nut to move the saw bow if it cannot be operated using hydraulic power. Turn the nut clockwise to retract the bow away from the workpiece. Part No. 08-051-MAN, Rev. 1-0709 E.H. Wachs...

  • Page 11: Clamping System

    Figure 1-6 illustrates the clamping operation. See the end of this chapter for drawings that illustrate clamp position settings for the range of each wire saw model. E.H. Wachs Part No. 08-051-MAN, Rev. 1-0709...
  • Page 12 These shoes are made of a compressible composite material that deforms slightly under pressure to create a secure, slip-free grip on the pipe when the machine is clamped. Part No. 08-051-MAN, Rev. 1-0709 E.H. Wachs...

  • Page 13: Topside Control Panel

    (shown open) under pressure) Figure 1-9. The photo shows the controls on the top- side control unit. (The fourth circuit, to the far right, is not used with the subsea wire saw.) E.H. Wachs Part No. 08-051-MAN, Rev. 1-0709...

  • Page 14: Rigging The Machine

    IMPORTANT: Do not attach to this hook when lifting the machine vertically! Figure 1-11. To position the machine vertically on the pipe, attach to the two top lift hooks. Part No. 08-051-MAN, Rev. 1-0709 E.H. Wachs...

  • Page 15: Lifting For Horizontal Cut

    You can leave the wire installed on the machine during stor- age. Keep a normal amount of tension on the wire to hold it in place. E.H. Wachs Part No. 08-051-MAN, Rev. 1-0709...
  • Page 16 Subsea Wire Saw User’s Manual Part No. 08-051-MAN, Rev. 1-0709 E.H. Wachs...

  • Page 23: Chapter 2 Safety

    Chapter 2, Safety Chapter 2 Safety In This Chapter The E.H. Wachs Company takes great pride in designing PERATOR AFETY and manufacturing safe, high-quality products. We make user safety a top priority in the design of all our products. AFETY...

  • Page 24: Safety Symbols

    CAUTION This safety alert, with the personal injury hazard symbol, indicates a potentially hazardous situation that, if not avoided, could result in minor or moderate injury. Part No. 08-051-MAN, Rev. 1-0709 E.H. Wachs...

  • Page 25: Protective Equipment Requirements

    Federal OSHA regulations, 29 Code of Federal Regulations, Section 1910.95, Occupational Noise Exposure and ANSI S12.6 Hearing Protectors. AFETY ABELS There is no safety labeling on the subsea wire saw. E.H. Wachs Part No. 08-051-MAN, Rev. 1-0709...
  • Page 26 Subsea Wire Saw User’s Manual Part No. 08-051-MAN, Rev. 1-0709 E.H. Wachs...

  • Page 27: Chapter 3: Operating Instructions

    ERFORMING THE start lines will be offset. EMOVING THE ACHINE Figure 3-1. With no tension on the wire, the feed actuator start lines will be offset. E.H. Wachs Part No. 08-051-MAN, Rev. 1-0709...
  • Page 28 You should be able to deflect the wire fairly easily by pushing it up between the idler wheels. Push it in far enough to compress the tension spring, and make sure the actuator rod extends into the slot in the shaft. Part No. 08-051-MAN, Rev. 1-0709 E.H. Wachs...

  • Page 29: Setting The Clamp Arms For The Pipe Size

    Table 1 and Figure 3-5 describe the pipe size settings for the WS-3012 model. Table 1: Pipe Size Ranges for Clamping Arm Positions—WS-3012 Size Stamp Pipe Diameter Range 12” to 14” (305-356 mm) 14” to 18” (356-457 mm) 18” to 22” (457-559 mm) E.H. Wachs Part No. 08-051-MAN, Rev. 1-0709...

  • Page 30: Ws-3616 Pipe Size Settings

    Figure 3-5. The photo shows the size stamps on the WS-3012 model. The pin is in the 26-30” position. WS-3616 Pipe Size Settings Table 2 and Figure 3-6 describe the pipe size settings for the WS-3616 model. Part No. 08-051-MAN, Rev. 1-0709 E.H. Wachs...

  • Page 31: Ws-5230 Pipe Size Settings

    Table 3: Pipe Size Ranges for Clamping Arm Positions—WS-5230 Size Stamp Pipe Diameter Range 30” to 34” (762-864 mm) 34” to 40” (864-1016 mm) 40” to 46” (1016-1168 mm) 46” to 52” (1168-1321 mm) E.H. Wachs Part No. 08-051-MAN, Rev. 1-0709...

  • Page 32: Positioning The Clamp Arms

    Slide the clamp arm assembly so that the mounting holes line up with the appropriate hole pair for the pipe size you are cutting. Part No. 08-051-MAN, Rev. 1-0709 E.H. Wachs...

  • Page 33: Connecting The Hydraulic Hoses

    Connect the hydraulic hoses from the topside control panel clamp securely on the pipe. (TCP) to the hydraulic bulkhead on the machine, as indi- Damage to the machine cated in Figure 3-10. could result. E.H. Wachs Part No. 08-051-MAN, Rev. 1-0709...

  • Page 34: Mounting The Machine On The Pipe

    (Clamp flow is preset to 4 gpm) • Clamp direction to ENGAGE The flow on the clamp circuit • Feed direction to FORWARD is set internally at 4 gpm. • (Cutter direction is preset to forward). Part No. 08-051-MAN, Rev. 1-0709 E.H. Wachs...

  • Page 35: Performing The Cut

    Figure 3-11. Push the feed flow lever down to supply power to the feed drive. Set the feed speed knob to 2.5 gpm. E.H. Wachs Part No. 08-051-MAN, Rev. 1-0709...
  • Page 36 Push the cutting drive flow lever down to open the This is because smaller pipes cutting drive circuit. fit closer between the mount- ing shoes. Figure 3-13. Push the cutting flow lever down to sup- ply power to the cutting drive. Part No. 08-051-MAN, Rev. 1-0709 E.H. Wachs...
  • Page 37 Continue until the wire has completely severed the NOTE pipe. The feed drive will travel Pull the feed flow lever up to turn off the feed drive. about 2 inches beyond the bottom of the largest pipe size. E.H. Wachs Part No. 08-051-MAN, Rev. 1-0709...

  • Page 38: Removing The Machine

    Pull the cutter flow lever up to turn off the cutter drive. Figure 3-16. Pull the cutter flow lever up to turn off the cutter. EMOVING THE ACHINE Set the feed direction knob on the TCP to REVERSE. Part No. 08-051-MAN, Rev. 1-0709 E.H. Wachs...
  • Page 39 Push the feed flow lever down to open the feed circuit. Figure 3-18. Push the feed flow lever down to supply power to the feed drive. Push the feed speed knob down to 6.5 gpm (maximum flow). E.H. Wachs Part No. 08-051-MAN, Rev. 1-0709...
  • Page 40 Figure 3-20. Pull the feed flow lever up to turn off the feed drive. Rig the shackles to the overhead lift. Lift just enough to put tension on the chains and secure the machine. Push the clamping direction knob to the RETRACT position. Part No. 08-051-MAN, Rev. 1-0709 E.H. Wachs...
  • Page 41 Pull the clamping flow levers back up. Lift the machine off the pipe. Move it to the next cut- ting location or bring it topside if you are finished. E.H. Wachs Part No. 08-051-MAN, Rev. 1-0709...
  • Page 42 Subsea Wire Saw User’s Manual Part No. 08-051-MAN, Rev. 1-0709 E.H. Wachs...

  • Page 43: Chapter 4: Maintenance

    Figure 4-1. Each wheel hub has a grease fitting. Pump AquaLube into the grease fittings on the feed gears, feed motor, and feed block (4 fittings). CAUTION Do not directly apply lubricant to the feed screw. E.H. Wachs Part No. 08-051-MAN, Rev. 1-0709...
  • Page 44 Figure 4-3. Grease the fitting at the bottom of the feed screw. Pump AquaLube into the grease fittings on the cylin- der rod ends until grease is visible. Part No. 08-051-MAN, Rev. 1-0709 E.H. Wachs...

  • Page 45: Replacing The Cutting Wire

    Figure 4-5. Turn the tensioning knob all the way down on the screw to loosen the wire. Slip the wire off the drive wheel, then remove it from the other wheels. E.H. Wachs Part No. 08-051-MAN, Rev. 1-0709...
  • Page 46 The drive wheel fixture is stamped with an arrow show- ing the direction of rotation. Figure 4-8. Install the wire so that the arrows point in the direction of travel, as shown. Part No. 08-051-MAN, Rev. 1-0709 E.H. Wachs...

  • Page 47: Replacing The Mounting Shoes

    Replace the nuts and tighten them securely. EPLACING THE HEEL INERS The liners on the cutting wire wheels are durable and long- lasting. They may wear out after extensive use, or be dam- E.H. Wachs Part No. 08-051-MAN, Rev. 1-0709...

  • Page 48: Tension And Idler Wheels

    Remove the 6 screws holding the side plate in place. something that supports the You only need to remove one side plate. side plate, with a gap for the hub shaft to keep it from sit- ting on the shaft. Part No. 08-051-MAN, Rev. 1-0709 E.H. Wachs...
  • Page 49 Remove the old wheel liner. You may have to pry it loose with a screwdriver. Figure 4-12. Pull the liner off the wheel. You may have to pry it with a screwdriver to get it loose. E.H. Wachs Part No. 08-051-MAN, Rev. 1-0709...
  • Page 50 If you removed the shaft, replace it through the center of the wheel. Figure 4-14. Replace the shaft through the center of the wheel. Replace the side plate, making sure that the keys in the shaft fit into the slots in plate. Part No. 08-051-MAN, Rev. 1-0709 E.H. Wachs...
  • Page 51 Figure 4-16. Replace the screws in the side plate. Replace the wheel into its mounting fixture. Put the bolt through the top of the fixture, and install the nut on the bottom. Tighten the nut securely. E.H. Wachs Part No. 08-051-MAN, Rev. 1-0709...

  • Page 52: Drive Wheel

    Remove the nut from the bolt holding the wheel assembly to the tension rod, then remove the bolt. The wheel and motor assembly will be free from the saw bow. Part No. 08-051-MAN, Rev. 1-0709 E.H. Wachs...
  • Page 53 Replace the tension rod mounting bolt through the plates and tension rod end. Put the nut on the end of the bolt and tighten it securely. Tighten the spacer bolt and hub bolt securely. E.H. Wachs Part No. 08-051-MAN, Rev. 1-0709...
  • Page 54 Pivot pin Stop collars Set screw Figure 4-19. Make sure the pivot pin is through both plates, then position the stop collars and tighten the set screws. Part No. 08-051-MAN, Rev. 1-0709 E.H. Wachs...

  • Page 55: Chapter 5: Parts List And Ordering Information

    ARTS ISTS AND AYOUT RAWINGS To place an order, request service, or get more detailed information on any E.H. Wachs products, call us at one of the following numbers: U.S. 800-323-8185 International: 847-537-8800 You can also visit our Web site at: www.ehwachs.com...

  • Page 56: Warranty Information

    Warranty Infor mation Enclosed with the manual is a warranty card. Please fill out the registration card and return to E.H. Wachs. Retain the owner’s registration record and warranty card for your information.

  • Page 57: Parts Lists And Layout Drawings

    08‐011‐215 ROD, 215 08‐011‐220 PLATE, 220 08‐011‐221 PLATE, 221 08‐011‐222 PLATE, 222 08‐011‐223 ROD, 223 08‐011‐224 PLATE, BULKHEAD 08‐011‐224B WELDMENT, BULKHEAD PLATE 08‐011‐230 ROD, 230 08‐011‐231 BLOCK, 231 08‐011‐242 ROD, 242 08‐011‐243 PLATE, 243 08‐051‐246 PLATE, 246 08‐051‐246B PLATE, 246B 08‐011‐247 BAR, LIFTING 08‐011‐248 CYLINDER, CLAMP 08‐011‐250 TUBE, LIFTING 08‐011‐251 ROD, 251 E.H. Wachs Part No. 08-051-MAN, Rev. 1-0709...
  • Page 58 08‐011‐053E WHEEL, PLATE 053E 08‐011‐054A WHEEL, PLATE 054A 08‐011‐054B WHEEL, PLATE 054B 08‐011‐055 TUBE, 055 08‐011‐056 TUBE, 056 08‐011‐057 SCREW, 057 WHEEL 08‐011‐058 SCREW, 058 WHEEL 08‐011‐059 SCREW, 059 WHEEL 08‐011‐063 RETAINER, DRIVEN WHEEL SEAL 08‐011‐064 RETAINER, DRIVE WHEEL SEAL 08‐011‐720 GRIP, WHEEL 08‐011‐730 GRIP, WHEEL IDLER 08‐011‐730B PLATE, 730B FEED ASSEMBLY 06‐052‐150 HOUSING, FEED BOX OUTPUT 06‐052‐155 COUPLING MATEX MOTOR 06‐052‐158 COUPLER, DRIVE Part No. 08-051-MAN, Rev. 1-0709 E.H. Wachs...
  • Page 59 08‐051‐270 ROD, 270 08‐051‐271 PLATE, 271 08‐051‐272 BLOCK, 272 08‐051‐273 NUT, 273 08‐051‐274 BLOCK, 274 08‐051‐274B BLOCK, 274B 08‐051‐275B BLOCK, 275B 08‐051‐276 ROD, 276 08‐051‐277 BLOCK, 277 08‐051‐278 ROD, 278 08‐051‐278B BLOCK, 278B 08‐051‐279 BLOCK, 279 DIAMOND WIRE ASSEMBLIES 08‐011‐700 DIAMOND WIRE, 10.3 MM TYROLIT Purchased Parts Description MAIN FRAME ASSEMBLY FLOW DIVIDER HYDRAULIC GEAR MOTOR HYDRAULIC CYLINDER E.H. Wachs Part No. 08-051-MAN, Rev. 1-0709...
  • Page 60 3/8 HOSE, SAE100R16 TYPE S 5/8 HOSE, SAE100R16 TYPE S RETAINING RING, EXTERNAL .781 SHAFT RETAINING RING, INTERNAL 1.850 HOUSING CLAMP COLLAR, 1/2" ID (316 SS) CLAMP COLLAR, 1‐1/4" ID BEARING, 20mm ID x 47mm OD x 14 mm  440 SS SINGLE SEALED WASHER, THRUST 30mm ID x 47mm OD x 1mm BUSHING, FLANGE 1" ID x 1‐1/8" OD x 1" LNG. BUSHING, FLANGE 1‐1/4" ID x 1.4 OD x 1" LNG. LINEAR BEARING SYSTEM (RAIL/CARRIAGE)  DIE SPRING, 1/2" ID x 1" OD x 12" FREE LENGTH FITTING, TEE 3/8" JIC (F) x 3/8" JIC (M) x 3/8" JIC (M) COUPLING, FEMALE ‐08 NPT COUPLING, MALE ‐08 NPT COUPLING, MALE ‐12 NPT COUPLING, FEMALE ‐12 NPT FITTING, BULKHEAD 1/2" NPT x 1/2" JIC FITTING, BULKHEAD 3/4" NPT x 3/4" JIC NUT, BULKHEAD LOCK ‐08 NUT, BULKHEAD LOCK ‐12 ROD END, BALL JOINT  EYEBOLT, 5/8‐11 KNOB, 1/2‐13 ZINC ANODE, 2" DIA. 5/8" ANCHOR SHACKLE, W/ SCREW PIN FEED SCREW ASSEMBLY HYDRAULIC MOTOR SNAP RING (3/4" O.D. SHAFT) SNAP RING (1‐5/8" I.D. BORE) CLAMP ON COLLAR, 3/4‐16 (303 SS) BEARING (.75 x 1.625 x .438) WASHER, BELLEVILLE SPRING 2" OD x 1" ID x .065 THICK Part No. 08-051-MAN, Rev. 1-0709 E.H. Wachs...
  • Page 61 FITTING, TEE 1/4" TUBE (F) x 1/4" TUBE (F) x 1/8" NPT (M) FITTING, TEE 1/8" NPT (F) x 1/8" NPT (F) x 1/8" NPT (M) BALL VALVE, 1/8" NPT (F) x 1/8" NPT (F) FITTING, 1/8" NPT (M) x 3/8" HOSE BARB 12"  TUBING, 3/8" CLEAR PVC FITTING, 1/8" NPT (F) x 3/8" HOSE BARB FITTING, TEE 1/8" NPT (F) x 1/8" NPT (F) x 1/8" NPT (F) FITTING, 1/8" NPT (M) x 1/4" JIC (M) AIR VENT, 1/8" NPT (M) TUBE CLAMP, 5/8" CRIMP FITTING, ‐4 HOSE x ‐4 JIC (F) CRIMP FITTING, ‐4 HOSE x ‐4 JIC (F) x 45 DEG. CRIMP FITTING, ‐4 HOSE x ‐4 JIC (F) x 90 DEG. HOSE, 1/4"  Check Valve, 3/8" FITTING, ‐4 SAE (M) x ‐6 JIC (M) 90 DEG. Fitting, 3/8" JIC (F) x 3/8" JIC (F) Fitting, Tee 3/8" JIC (M) x 3/8" JIC (M) x 1/4" ORB (M) Fitting, Tee 3/8" JIC (M) x 3/8" JIC (M) x 1/4" ORB (M) CRIMP FITTING, ‐6 HOSE x ‐8 JIC (F) CRIMP FITTING, ‐6 HOSE x ‐6 JIC (F) x 90 DEG. CRIMP FITTING, ‐6 HOSE x ‐6 JIC (F) HOSE, 3/8"  SPRING,  .72 OD, x .586 ID x 2" LNG. CYLINDER, 2.5" STROKE Fasteners Description MAIN FRAME ASSEMBLY 72 FHCS, 1/4‐20 x 5/8" LNG.  30 FHCS, 5/16‐18 x 3/4" LNG. E.H. Wachs Part No. 08-051-MAN, Rev. 1-0709...
  • Page 62 16 HHCS, 5/8‐11 x 1‐1/2" LNG.  HHCS, 5/8‐11 x 1‐3/4" LNG.  HHCS, 5/8‐11 x 2‐1/4" LNG.  HHCS, 5/8‐11 x 2‐3/4" LNG.  HHCS, 5/8‐11 x 6" LNG.  HHCS, 3/4‐10 x 2" LNG.  12 HHCS, M10 x 45 LNG.  SHCS, 1/4‐20 x 3/4" LNG.  SHCS, 1/4‐20 x 7/8" LNG.  24 SHCS, 1/4‐20 x 1‐1/4" LNG.  12 SHCS, 1/4‐20 x 5/8" LNG.  SHCS, 5/16‐18 x 5/8 LNG.  42 SHCS, 5/16‐18 x 1‐1/4" LNG.  SHCS, 7/16‐14 x 1" LNG.  SSS, CUP POINT 1/4‐20 x 7/8" LNG.  NUT, NYLOCK 1/4‐20  54 NUT, NYLOCK 5/16‐18  107 NUT, NYLOCK 3/8‐16  16 NUT, NYLOCK 7/16‐14  NUT, NYLOCK 1/2‐13  NUT, NYLOCK 5/8‐11  35 PIN, DOWEL 1/4" DIA. X 5/8" LNG.  PIN, DOWEL 1/4" DIA. X 7/8" LNG.  PIN, DOWEL 5/16" DIA. X 1" LNG.  Part No. 08-051-MAN, Rev. 1-0709 E.H. Wachs...
  • Page 63 12 WASHER, 10 MM  ZERK, GREASE (303 SS) ZERK, GREASE 1/4‐28 (303 SS) FEED SCREW ASSEMBLY FASTENERS HHCS, 3/8‐16 x 1" LNG.  HHCS, 3/8‐16 x 1‐1/8" LNG.  SHCS, 8‐32 x 3" LNG.  SHCS, 10‐24 x 1‐1/2" LNG.  SHCS, 1/4‐28 x 5/8" LNG.  HHCS, 5/16‐18 X 5/8" LNG.  SSS, 1/4‐20 x 3/4" LNG. SSS, CUP POINT 5/16‐18 x 1/4" LNG.  SSS, CUP POINT 5/16‐18 x 1" LNG.  PLUG, PIPE 1/8" NPT (316 SS) NUT, NYLOCK 1/4‐20  NUT, NYLOCK 3/8‐16  PIN, SPRING 3/32" DIA x 3/8" LNG (420 SS) PIN, CLEVIS 1/4" OD x 1‐1/2" LNG. (316SS) PIN, DOWEL 1/4" DIA. X 5/8" LNG.  PIN, DOWEL 1/4" DIA. X 1‐3/8" LNG. ZERK, GREASE 1/4‐28 (303 SS) 14 WASHER, 3/8" AN  FEED RELIEF ASSEMBLY FASTENERS SHCS, 8‐32 x 5/8" LNG.  SHCS, 1/4‐28 x 1" LNG. SHCS, 1/4‐28 x 1‐1/2" LNG. SHCS, 1/4‐28 x 5/8" LNG. WASHER, 1/2" 18‐8 SS SHOULDER BOLT, 1/2" DIA. X 1" LNG. SHCS, 10‐24 x 5/8" LNG. FHCS, 1/4‐28 x 1" LNG. PIN, DOWEL 3/16" DIA. X 1‐1/4" LNG. E.H. Wachs Part No. 08-051-MAN, Rev. 1-0709...

  • Page 64: Ws-3616

    PLATE, 203B 08‐011‐204 ROD END, CYLINDER 08‐011‐205 BUSHING, CYLINDER 08‐011‐206 ROD, 206 08‐011‐207 ROD, 207 08‐011‐208 ROLLER 08‐011‐209 ROD, 209 08‐011‐210 TUBE, 210 08‐051‐211 BAR, 211 08‐011‐212 SPACER, 212 08‐011‐213 SPACER, 213 08‐011‐215 ROD, 215 08‐051‐220 PLATE, 220 08‐051‐221 PLATE, 221 08‐051‐222 PLATE, 222 08‐051‐223 ROD, 223 08‐051‐224 PLATE, BULKHEAD Part No. 08-051-MAN, Rev. 1-0709 E.H. Wachs...
  • Page 65 08‐051‐037 BLOCK, MOTOR ADAPTER 08‐051‐038 TUBE, 038 08‐051‐043C PLATE, 043C 08‐051‐043D PLATE, 043D 08‐051‐044 ROD, 044 08‐011‐062 ROD END  DRIVE / GUIDE WHEEL ASSEMBLIES 08‐051‐050 HUB, DRIVE WHEEL 08‐011‐051 MOUNT, BEARING 08‐011‐052 HUB, WHEEL 08‐011‐053A PLATE, 053A 08‐011‐053B WHEEL, PLATE 053B 08‐011‐053C WHEEL, PLATE 053C 08‐011‐053D WHEEL, PLATE 053D 08‐011‐053E WHEEL, PLATE 053E 08‐011‐054A WHEEL, PLATE 054A 08‐011‐054B WHEEL, PLATE 054B E.H. Wachs Part No. 08-051-MAN, Rev. 1-0709...
  • Page 66 08‐011‐046 BUSHING, FEED 08‐011‐047 RETAINER, SCREW 08‐011‐048 WASHER, 048 08‐011‐049 KEY, FEED SCREW FEED TENSION‐SWITCH ASSEMBLY 08‐051‐023 ROD, 023 08‐051‐023C ROD, 023C 08‐011‐026C ROD, 026C 08‐051‐260 BAR, 260 08‐051‐261 ROD, 261 08‐051‐270 ROD, 270 08‐051‐271 PLATE, 271 08‐051‐272 BLOCK, 272 08‐051‐273 NUT, 273 08‐051‐274 BLOCK, 274 08‐051‐274B BLOCK, 274B 08‐051‐275B BLOCK, 275B Part No. 08-051-MAN, Rev. 1-0709 E.H. Wachs...
  • Page 67 08‐051‐281 COVER, GUIDE WHEEL 08‐051‐282 BLOCK, 282 OPTIONAL REPLACEMENT DRIVE WHEEL GRIP KIT 08‐011‐720 GRIP, WHEEL Purchased Parts Description MAIN FRAME ASSEMBLY FLOW DIVIDER FLOW DIVIDER HYDRAULIC CYLINDER HYD. ADP., 20‐16 SAE‐ORB TO JIC, 90 DEG.  HYD. ADP., 16‐16 SAE‐ORB TO JIC 90 DEG. HYD. ADP., 10‐6 SAE‐ORB TO JIC 90 DEG. HYD. ADP., 8‐6 SAE‐ORB TO JIC 90 DEG. HYD. ADP., 6‐6 SAE ORB TO JIC STR. HYD. ADP., 6‐6 FJIC‐MJIC 90 DEG. 37 DEG. BULKHEAD TEE FITTING FEMALE JIC /SAE 37 DEG. SWIVEL ‐6  FEMALE JIC /SAE 37 DEG. SWIVEL ‐16 W/90 DEG. FEMALE JIC/SAE 37 DEG. SWIVEL W/45 DEG. FEMALE JIC/SAE 37 DEG. SWIVEL W/90 DEG. FEMALE JIC/SAE 37 DEG. SWIVEL  20 FT 3/8 HOSE 8 FT 1" HOSE RETAINING RING, EXTERNAL .781 SHAFT RETAINING RING, INTERNAL 1.850 HOUSING CLAMP COLLAR, 1/2" ID (316 SS) CLAMP COLLAR, 1‐1/4" ID E.H. Wachs Part No. 08-051-MAN, Rev. 1-0709...
  • Page 68 COUPLING, FEMALE ‐16 NPT FITTING, BULKHEAD 1/2" NPT x 1/2" JIC FITTING, BULKHEAD 1" NPT x 1" JIC NUT, BULKHEAD LOCK ‐08 NUT, BULKHEAD LOCK ‐16 ROD END, BALL JOINT  EYEBOLT, 5/8‐11 KNOB, 1/2‐13 ZINC ANODE, 2" DIA. 5/8" ANCHOR SHACKLE, W/ SCREW PIN FEED SCREW ASSEMBLY HYDRAULIC MOTOR SNAP RING (3/4" O.D. SHAFT) SNAP RING (1‐5/8" I.D. BORE) CLAMP ON COLLAR, 3/4‐16 (303 SS) BEARING (.75 x 1.625 x .438) WASHER, BELLEVILLE SPRING 2" OD x 1" ID x .065 THICK PLANET SET (3:1) PLANET SPACER PLANET SET (4:1) KEYWAY 3/16" x 3/4" LNG. ROUND ENDS KEYWAY, 1/8" x 1" LNG. ROUND ENDS STANDOFF, 3/8" OD x 5/8" LNG. (SPECIFY 10‐24 THD) 24" #35 CHAIN (SS)  (34 links long) #35 CHAIN CONNECTING LINK FEMALE JIC /SAE 37 DEG. SWIVEL ‐6  FEED TENSION‐SWITCH ASSEMBLY DIRCTIONAL CONTROL VALVE FITTING, 1/4" TUBE x 1/8" NPT (M) FITTING, TEE 1/4" TUBE (F) x 1/4" TUBE (F) x 1/8" NPT (M) FITTING, TEE 1/8" NPT (F) x 1/8" NPT (F) x 1/8" NPT (M) BALL VALVE, 1/8" NPT (F) x 1/8" NPT (F) Part No. 08-051-MAN, Rev. 1-0709 E.H. Wachs...
  • Page 69 TUBE CLAMP, 5/8" CRIMP FITTING, ‐4 HOSE x ‐4 JIC (F) CRIMP FITTING, ‐4 HOSE x ‐4 JIC (F) x 45 DEG. CRIMP FITTING, ‐4 HOSE x ‐4 JIC (F) x 90 DEG. HOSE, 1/4"  Check Valve, 3/8" FITTING, ‐4 SAE (M) x ‐6 JIC (M) 90 DEG. Fitting, 3/8" JIC (F) x 3/8" JIC (F) Fitting, Tee 3/8" JIC (M) x 3/8" JIC (M) x 1/4" ORB (M) Fitting, Tee 3/8" JIC (M) x 3/8" JIC (M) x 1/4" ORB (M) CRIMP FITTING, ‐6 HOSE x ‐8 JIC (F) CRIMP FITTING, ‐6 HOSE x ‐6 JIC (F) x 90 DEG. CRIMP FITTING, ‐6 HOSE x ‐6 JIC (F) HOSE, 3/8"  SPRING,  .72 OD, x .586 ID x 2" LNG. CYLINDER, 2.5" STROKE OPTIONAL WHEEL COVER ASSEMBLIES SPACER, .328 ID x .875 OD x .06‐.066 THICK Fasteners Description MAIN FRAME ASSEMBLY FHCS, 1/4‐20 x 5/8" LNG.  FHCS, 5/16‐18 x 3/4" LNG.  FHCS, 3/8‐16 x 1‐1/4" LNG.  FHCS, 3/8‐16 x 2‐1/4" LNG.  FHCS, 5/8‐11 x 1‐1/2" LNG.  HHCS, 1/4‐20 x 1/2" LNG.  HHCS, 1/4‐20 x 5/8" LNG.  HHCS, 1/4‐20 x 5/8" LNG.  HHCS, 1/4‐20 x 1‐1/2" LNG.  HHCS, 5/16‐18 x 3/4" LNG.  HHCS, 3/8‐16 x 3/4" LNG.  HHCS, 3/8‐16 x 1‐1/8" LNG.  E.H. Wachs Part No. 08-051-MAN, Rev. 1-0709...
  • Page 70 HHCS, 5/8‐11 x 1‐1/2" LNG.  HHCS, 5/8‐11 x 1‐3/4" LNG.  HHCS, 5/8‐11 x 2‐1/4" LNG. HHCS, 5/8‐11 x 2‐3/4" LNG.  HHCS, 5/8‐11 x 6" LNG.  HHCS, 3/4‐10 x 2" LNG.  HHCS , M10 x 45 LNG.  SHCS, 1/4‐20 x 3/4" LNG.  SHCS, 1/4‐20 x 7/8" LNG.  SHCS, 1/4‐20 x 1‐1/4" LNG.  SHCS, 1/4‐20 x 5/8" LNG.  SHCS, 5/16‐18 x 5/8 LNG.  SHCS, 5/16‐18 x 1‐1/4" LNG.  SSS, CUP POINT 1/4‐20 x 7/8" LNG.  NUT, NYLOCK 1/4‐20  NUT, NYLOCK 5/16‐18  NUT, NYLOCK 3/8‐16  NUT, NYLOCK 7/16‐14  NUT, NYLOCK 1/2‐13 NUT, NYLOCK 5/8‐11  PIN, DOWEL 1/4" DIA. X 5/8" LNG.  PIN, DOWEL 1/4" DIA. X 7/8" LNG.  PIN, DOWEL 5/16" DIA. X 1" LNG. PIN, DOWEL 5/16" DIA. X 1‐1/2" LNG.  PIN, HAIRPIN COTTER .177 DIA. X 3‐1/4" LNG. STUD, 5/8‐11 x 2‐1/2" LNG.  WASHER, 1/4" AN  WASHER, 5/16 AN  WASHER, 3/8" AN  WASHER, 7/16" AN  WASHER, 1/2" AN  WASHER, 5/8" AN  WASHER, 3/4" AN  Part No. 08-051-MAN, Rev. 1-0709 E.H. Wachs...
  • Page 71 SSS, 1/4‐20 x 3/4" LNG.  SSS, CUP POINT 5/16‐18 x 1/4" LNG.  SSS, CUP POINT 5/16‐18 x 1" LNG.  PLUG, PIPE 1/8" NPT (316 SS) NUT, NYLOCK 1/4‐20  NUT, NYLOCK 3/8‐16  PIN, SPRING 3/32" DIA x 3/8" LNG (420 SS) PIN, CLEVIS 1/4" OD x 1‐1/2" LNG. (316 SS) PIN, DOWEL 1/4" DIA. X 5/8" LNG.  PIN, DOWEL 1/4" DIA. X 1‐3/8" LNG. ZERK, GREASE 1/4‐28 (303 SS) WASHER, 3/8" AN  FEED RELIEF ASSEMBLY FASTENERS SHCS, 8‐32 x 5/8" LNG.  SHCS, 1/4‐28 x 1" LNG. SHCS, 1/4‐28 x 1‐1/2" LNG. SHCS, 1/4‐28 x 5/8" LNG. WASHER, 1/2" 18‐8 SS SHOULDER BOLT, 1/2" DIA. X 1" LNG. SHCS, 10‐24 x 5/8" LNG. FHCS, 1/4‐28 x 1" LNG. PIN, DOWEL 3/16" DIA. X 1‐1/4" LNG. SSS, 1/4‐20 x 3/8" LNG. SHCS, 1/4‐20 x 1" LNG.  SHCS, 1/4‐20 x 1" LNG.  HHCS, 5/16‐18 x 3/4" LNG. SHCS, 8‐32 x 3/4" LNG.  OPTIONAL WHEEL COVER ASSEMBLIES FHCS, 5/16‐18 x 1" LNG.  NUT, NYLOCK 5/16‐18  FHCS, 1/4‐20 x 1/2" LNG.  OPTIONAL REPLACEMENT DRIVE WHEEL GRIP KIT SHCS, 1/4‐20 x 1‐1/4" LNG. E.H. Wachs Part No. 08-051-MAN, Rev. 1-0709...

  • Page 72: Ws-5230

    TUBE, 210 08‐021‐211 BAR, 211 08‐011‐212 SPACER, 212 08‐011‐213 SPACER, 213 08‐021‐214 BAR, 214 08‐011‐215 ROD, 215 08‐021‐220 PLATE, 220 08‐051‐221 PLATE, 221 08‐021‐222 PLATE, 222 08‐021‐223 ROD, 223 08‐021‐224 PLATE, BULKHEAD 08‐021‐224B WELDMENT, BULKHEAD PLATE 08‐011‐230 ROD, 230 08‐021‐231 BLOCK, 231 08‐021‐242 ROD, 242 08‐021‐243 PLATE, 243 08‐021‐246 PLATE, 246 Part No. 08-051-MAN, Rev. 1-0709 E.H. Wachs...
  • Page 73 08‐051‐044 ROD, 044 08‐011‐062 ROD END  DRIVE / GUIDE WHEEL ASSEMBLIES 08‐051‐050 HUB, DRIVE WHEEL 08‐011‐051 MOUNT, BEARING 08‐011‐052 HUB, WHEEL 08‐011‐053A PLATE, 053A 08‐011‐053B WHEEL, PLATE 053B 08‐011‐053C WHEEL, PLATE 053C 08‐011‐053D WHEEL, PLATE 053D 08‐011‐053E WHEEL, PLATE 053E 08‐011‐054A WHEEL, PLATE 054A 08‐011‐054B WHEEL, PLATE 054B 08‐011‐055 TUBE, 055 08‐011‐056 TUBE, 056 08‐011‐057 SCREW, 057 WHEEL 08‐011‐058 SCREW, 058 WHEEL E.H. Wachs Part No. 08-051-MAN, Rev. 1-0709...
  • Page 74 FEED TENSION‐SWITCH ASSEMBLY 08‐051‐023 ROD, 023 08‐051‐023C ROD, 023C 08‐011‐026C ROD, 026C 08‐051‐260 BAR, 260 08‐051‐261 ROD, 261 08‐051‐270 ROD, 270 08‐051‐271 PLATE, 271 08‐051‐272 BLOCK, 272 08‐051‐273 NUT, 273 08‐051‐274 BLOCK, 274 08‐051‐274B BLOCK, 274B 08‐051‐275B BLOCK, 275B 08‐051‐276 ROD, 276 08‐051‐277 BLOCK, 277 08‐051‐278 ROD, 278 08‐051‐278B BAR, 278B Part No. 08-051-MAN, Rev. 1-0709 E.H. Wachs...
  • Page 75 08‐011‐720 GRIP, WHEEL Purchased Parts Description MAIN FRAME ASSEMBLY FLOW DIVIDER HYDRAULIC GEAR MOTOR HYDRAULIC CYLINDER HYDRAULIC CYLINDER CONTINUED HYD. ADP., 20‐16 SAE‐ORB TO JIC, 90 DEG.  HYD. ADP., 16‐16 SAE‐ORB TO JIC 90 DEG. HYD. ADP., 10‐6 SAE‐ORB TO JIC 90 DEG. HYD. ADP., 8‐6 SAE‐ORB TO JIC 90 DEG. HYD. ADP., 6‐6 SAE ORB TO JIC STR. HYD. ADP., 6‐6 FJIC‐MJIC 90 DEG. FEMALE JIC /SAE 37 DEG. SWIVEL ‐6  FEMALE JIC /SAE 37 DEG. SWIVEL ‐16 W/90 DEG. FEMALE JIC/SAE 37 DEG. SWIVEL W/45 DEG. FEMALE JIC/SAE 37 DEG. SWIVEL W/90 DEG. FEMALE JIC/SAE 37 DEG. SWIVEL  20 FT 3/8 HOSE 8 FT 1" HOSE RETAINING RING, EXTERNAL .781 SHAFT RETAINING RING, INTERNAL 1.850 HOUSING CLAMP COLLAR, 1/2" ID (316 SS) CLAMP COLLAR, 1‐1/4" ID BEARING, 20mm ID x 47mm OD x 14 mm 440 SS SINGLE SEALED WASHER, THRUST 30mm ID x 47mm OD x 1mm BUSHING, FLANGE 1" ID x 1‐1/8" OD x 1" LNG. BUSHING, FLANGE 1‐1/4" ID x 1.4 OD x 1" LNG. LINEAR BEARING SYSTEM (RAIL/CARRIAGE)  E.H. Wachs Part No. 08-051-MAN, Rev. 1-0709...
  • Page 76 EYEBOLT, 5/8‐11 KNOB, 1/2‐13 ZINC ANODE, 2" DIA. 5/8" ANCHOR SHACKLE, W/ SCREW PIN FEED SCREW ASSEMBLY  HYDRAULIC MOTOR SNAP RING (3/4" O.D. SHAFT) SNAP RING (1‐5/8" I.D. BORE) CLAMP ON COLLAR, 3/4‐16 (303 SS) BEARING (.75 x 1.625 x .438) WASHER, BELLEVILLE SPRING 2" OD x 1" ID x .065 THICK PLANET SET (3:1) PLANET SPACER PLANET SET (4:1) KEYWAY 3/16" x 3/4" LNG. ROUND ENDS KEYWAY, 1/8" x 1" LNG. ROUND ENDS STANDOFF, 3/8" OD x 5/8" LNG. (SPECIFY 10‐24 THD) 24" #35 CHAIN (SS)  (34 links long) #35 CHAIN CONNECTING LINK FEMALE JIC /SAE 37 DEG. SWIVEL ‐6  FEED TENSION‐SWITCH ASSEMBLY DIRCTIONAL CONTROL VALVE FITTING, 1/4" TUBE x 1/8" NPT (M) FITTING, TEE 1/4" TUBE (F) x 1/4" TUBE (F) x 1/8" NPT (M) FITTING, TEE 1/8" NPT (F) x 1/8" NPT (F) x 1/8" NPT (M) BALL VALVE, 1/8" NPT (F) x 1/8" NPT (F) FITTING, 1/8" NPT (M) x 3/8" HOSE BARB 12"  TUBING, 3/8" CLEAR PVC FITTING, 1/8" NPT (F) x 3/8" HOSE BARB FITTING, TEE 1/8" NPT (F) x 1/8" NPT (F) x 1/8" NPT (F) FITTING, 1/8" NPT (M) x 1/4" JIC (M) Part No. 08-051-MAN, Rev. 1-0709 E.H. Wachs...
  • Page 77 Check Valve, 3/8" FITTING, ‐4 SAE (M) x ‐6 JIC (M) 90 DEG. Fitting, 3/8" JIC (F) x 3/8" JIC (F) Fitting, Tee 3/8" JIC (M) x 3/8" JIC (M) x 1/4" ORB (M) Fitting, Tee 3/8" JIC (M) x 3/8" JIC (M) x 1/4" ORB (M) CRIMP FITTING, ‐6 HOSE x ‐8 JIC (F) CRIMP FITTING, ‐6 HOSE x ‐6 JIC (F) x 90 DEG. CRIMP FITTING, ‐6 HOSE x ‐6 JIC (F) HOSE, 3/8"  SPRING,  .72 OD, x .586 ID x 2" LNG. CYLINDER, 2.5" STROKE OPTIONAL WHEEL COVER ASSEMBLIES SPACER, .328 ID x .875 OD x .06‐.066 THICK Fasteners Description MAIN FRAME ASSEMBLY FHCS, 1/4‐20 x 5/8" LNG. (18‐SS) FHCS, 5/16‐18 x 3/4" LNG. (18‐8 SS) FHCS, 3/8‐16 x 1‐1" LNG. (18‐8 SS) FHCS, 3/8‐16 x 1‐1/4" LNG. (18‐8 SS) FHCS, 3/8‐16 x 2‐1/4" LNG. (18‐8 SS) FHCS, 5/8‐11 x 1‐1/2" LNG. (18‐8 SS) HHCS, 1/4‐20 x 1/2" LNG. HHCS 1/4‐20 x 5/8" LNG. (18‐8 SS) HHCS, 1/4‐20 x 1‐1/4" LNG. (18‐8 SS) HHCS, 1/4‐20 x 1‐1/2" LNG. (18‐8 SS) HHCS, 5/16‐18 x 3/4" LNG. HHCS, 3/8‐16 x 3/4" LNG. (18‐8 SS) HHCS, 3/8‐16 x 1‐1/8" LNG. (18‐8 SS) HHCS, 3/8‐16 x 1‐1/4" LNG. (18‐8 SS) HHCS, 3/8‐16 x 1‐3/8" LNG. (18‐8 SS) HHCS, 3/8‐16 x 2‐1/4" LNG. (18‐8 SS) HHCS, 3/8‐16 x 4‐1/2"  LNG. (18‐8 SS) E.H. Wachs Part No. 08-051-MAN, Rev. 1-0709...
  • Page 78 HHCS, 5/8‐11 x 6" LNG. (18‐8 SS) HHCS, 3/4‐10 x 2" LNG. (18‐8 SS) HHCS , M10 x 45 LNG. (18‐8 SS) SHCS, 1/4‐20 x 3/4" LNG. SHCS, 1/4‐20 x 7/8" LNG. SHCS, 1/4‐20 x 1‐1/4" LNG. SHCS, 1/4‐20 x 5/8" LNG. SHCS, 5/16‐18 X 5/8" LNG. SHCS, 5/16‐18 x 1‐1/4" LNG. (18‐8 SS) SSS, CUP POINT 1/4‐20 x 7/8" LNG. (18‐8 SS) NUT, NYLOCK 1/4‐20 (18‐8 SS) NUT, NYLOCK 5/16‐18 (18‐8 SS) NUT, NYLOCK 3/8‐16 (18‐8 SS) NUT, NYLOCK 7/16‐14 (18‐8 SS) NUT, NYLOCK 1/2‐13 (18‐8 SS) NUT, NYLOCK 5/8‐11 (18‐8 SS) PIN, DOWEL 1/8" DIA. X 1/2" LNG. PIN, DOWEL 1/4" DIA. X 5/8" LNG.  PIN, DOWEL 1/4" DIA. X 7/8" LNG. PIN, DOWEL 5/16" DIA. X 1" LNG. PIN, DOWEL 5/16" DIA. X 1‐1/2" LNG.  PIN, HAIRPIN COTTER .177 DIA. X 3‐1/4" LNG. STUD, 5/8‐11 x 2‐1/2" LNG. (18‐8 SS) WASHER, 1/4" AN (18‐8 SS) WASHER, 5/16 AN (18‐8 SS) WASHER, 3/8" AN (18‐8 SS) WASHER, 7/16" AN (18‐8 SS) WASHER, 1/2" AN (18‐8 SS) WASHER, 5/8" AN (18‐8 SS) WASHER, 3/4" AN (18‐8 SS) WASHER, 10 MM (18‐8 SS) ZERK, GREASE (303 SS) ZERK, GREASE 1/4‐28 (303 SS) Part No. 08-051-MAN, Rev. 1-0709 E.H. Wachs...
  • Page 79 SHCS, 1/4‐28 x 5/8" LNG. (18‐8 SS) HHCS, 5/16‐18 X 5/8" LNG. (18‐8 SS) SSS, 1/4‐20 x 3/4" LNG. (18‐8 SS) SSS, CUP POINT 5/16‐18 x 1/4" LNG. (18‐8 SS) SSS, CUP POINT 5/16‐18 x 1" LNG. (18‐8 SS) PLUG, PIPE 1/8" NPT (316 SS) NUT, NYLOCK 1/4‐20 (18‐8 SS) NUT, NYLOCK 3/8‐16 (18‐8 SS) PIN, SPRING 3/32" DIA x 3/8" LNG (420 SS) PIN, CLEVIS 1/4" OD x 1‐1/2" LNG. (316SS) PIN, DOWEL 1/4" DIA. X 5/8" LNG.  PIN, DOWEL 1/4" DIA. X 1‐3/8" LNG. ZERK, GREASE 1/4‐28 (303 SS) WASHER, 3/8" AN (18‐8 SS) FEED RELIEF ASSEMBLY ‐ FASTENERS SHCS, 8‐32 x 1" LNG.  SHCS, 1/4‐28 x 5/8" LNG. WASHER, 1/2" 18‐8 SS SHOULDER BOLT, 1/2" DIA. X 1" LNG. SHCS, 10‐24 x 5/8" LNG. FHCS, 1/4‐28 x 1" LNG. PIN, DOWEL 3/16" DIA. X 1‐1/4" LNG. SSS, 1/4‐20 x 3/8" LNG. SHCS, 1/4‐28 x 1‐1/2" LNG. SHCS, 1/4‐20 x 1" LNG.  HHCS, 5/16‐18 x 3/4" LNG. SHCS, 8‐32 x 3/4" LNG.  OPTIONAL WHEEL COVER ASSEMBLIES FHCS, 5/16‐18 x 1" LNG.  NUT, NYLOCK 5/16‐18  FHCS, 1/4‐20 x 1/2" LNG.  OPTIONAL REPLACEMENT DRIVE WHEEL GRIP KIT SHCS, 1/4‐20 x 1‐1/4" LNG. E.H. Wachs Part No. 08-051-MAN, Rev. 1-0709...
  • Page 80 Subsea Wire Saw User’s Manual Part No. 08-051-MAN, Rev. 1-0709 E.H. Wachs...
  • Page 81 57" 80" 12" WS-3012 GENERAL ARRANGEMENT - DIMENSIONS AND FEATURES 30" Lightweight Aluminum plate/spacer frame assemblies 35 3/16" Constant tension bow feed frame module Four replaceable clamp contact pads Indexable clamp pin locator Indexable clamp arm assembly Two synchronized clamp cylinders Clamp arm contact rollers Wire tension spring Wire tension adjustment...
  • Page 82 69 3/4" 92 1/2" 16" 36" 32" 43 3/4" WS-3616 GENERAL ARRANGEMENT - DIMENSIONS AND FEATURES Lightweight Aluminum plate/spacer frame assemblies Constant tension bow feed frame module Four replaceable clamp contact pads Indexable clamp pin locator Indexable clamp arm assembly Two synchronized clamp cylinders Clamp arm contact rollers Wire tension spring...
  • Page 83 87 1/4" 127" WS-5230 GENERAL ARRANGEMENT - DIMENSIONS AND FEATURES 28" 52" Lightweight Aluminum plate/spacer frame assemblies Constant tension bow feed frame module 57" Four replaceable clamp contact pads Indexable clamp pin locator Indexable clamp arm assembly Two synchronized clamp cylinders Clamp arm contact rollers Wire tension spring Wire tension adjustment...
