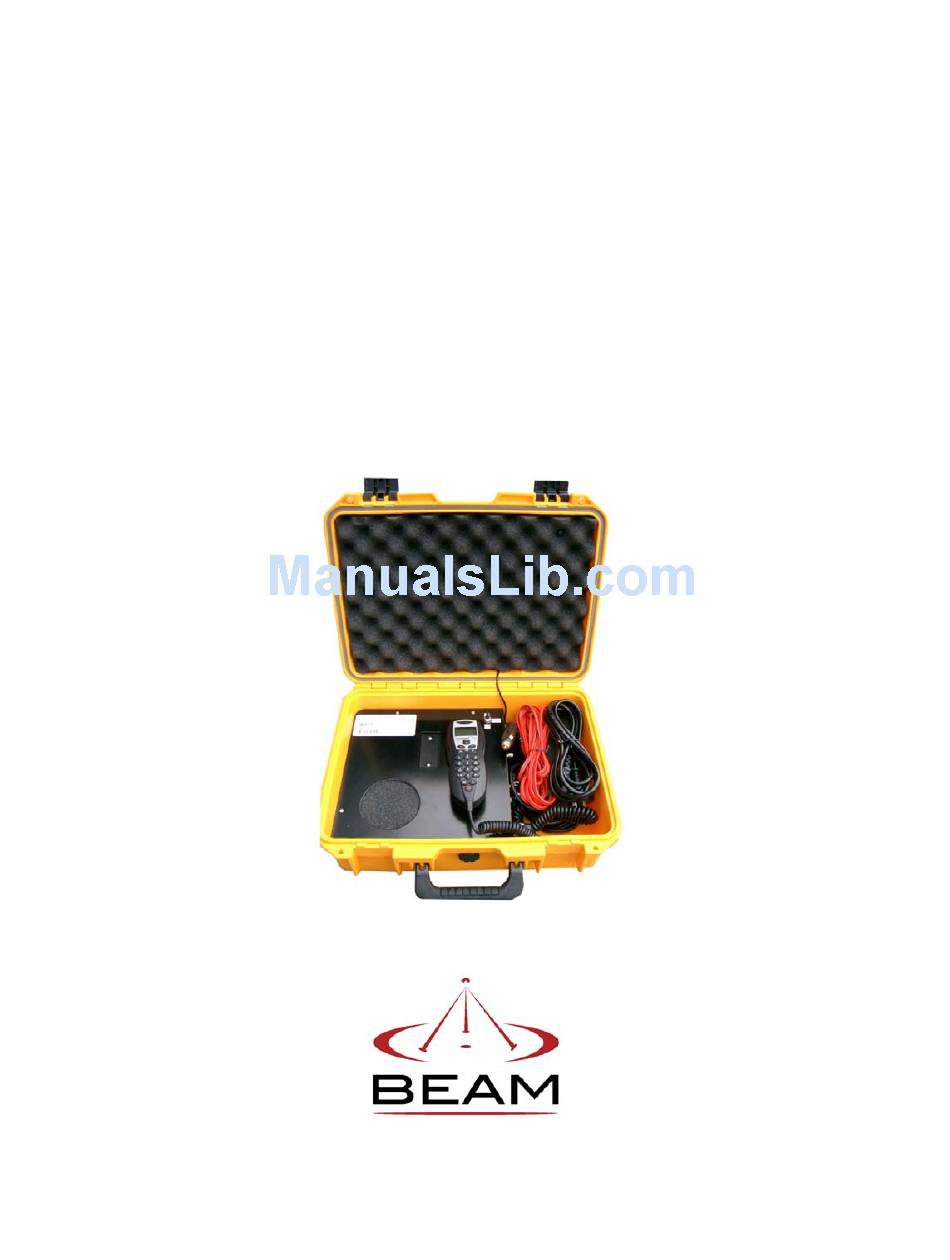

Page 1: Rst625 Installation & User Manual Rev
RST625 Transportable Hands-free Telephone Installation & User Manual Beam Communications Pty Ltd... - Page 2 Beam Communications Pty Ltd Information furnished by Beam Communications Pty Ltd (Beam) is believed to be accurate and reliable. However, no responsibility is assumed by Beam for its use, or for any infringement of patents or other rights of third parties which may result from its use.
-
Page 3: Safety Information
TrasPortable Handsfree Phone. Failure to follow instructions may compromise the safety of the product and the user. DC Fused The RST625 case has a 2A M205 fuse for short circuit safety. Please replace with 2A rated fuse if required. Exposure to Radio Frequency Signals Your satellite system is a low power radio transmitter and receiver. -
Page 4: Pacemakers
RST625 INSTALLATION & USER MANUAL REV 02 Pacemakers The Health Industry Manufacturers Association recommends that a minimum separation of six inches (6") be maintained between a wireless phone’s antenna and a pacemaker to avoid potential interference with the pacemaker. These recommendations are consistent with the independent research by and recommendations of Wireless Technology Research. -
Page 5: Table Of Contents
RST625 INSTALLATION & USER MANUAL REV 01 TABLE OF CONTENTS SAFETY INFORMATION ............3 DC F ........................3 USED ..............3 XPOSURE TO ADIO REQUENCY IGNALS ......................3 NTENNA ..................... 3 HONE PERATION ....................3 LECTRONIC EVICES ......................4 ACEMAKERS ................... 4... - Page 6 RST625 INSTALLATION & USER MANUAL REV 02 .................... 19 ECEIVE A HONE : ............19 ECEIVING ERSONAL ALL ON THE HANDSET ....................19 NANSWERED ALLS ....................19 OICEMAIL AILBOX ..............19 HANGING RIVATE TO EADSET .................. 20 DJUSTING ARPIECE OLUME ......................
- Page 7 RST625 INSTALLATION & USER MANUAL REV 01 ..................31 HANGE THE NLOCK SIM C PIN................ 31 ETTING TO EQUIRE SIM C ..................31 ROTECTING THE SIM C PIN C ..........31 CTIVATE AND EACTIVATE THE SIM C PIN… ..............32...
-
Page 8: Introduction
Handsfree compatibility The case panel includes built in speaker and microphone which operates whenever the handset is seated in its cup (cradle). The RST625 also has sockets to support extended speaker and microphone (optional items). Intelligent Handset Interface The RST625 case uses the Beam Intelligent Handset, RST970. The handset supports voice calls as well as utilizing the Iridium SMS service. -
Page 9: Product Contents
RST625 INSTALLATION & USER MANUAL REV 01 Product Contents The RST625 Case contains the following: RST625 Integrated case system RST970 Intelligent DPL Handset (with hang-up cup / cradle) Iridium dome antenna (magnetic mount) with 5m cable DC power cable to cirgarette lighter plug... -
Page 10: Installation Block Diagram
RST625 INSTALLATION & USER MANUAL REV 02 Installation Block Diagram The side panel connections are as follows: Antenna Optional Optional Extension Extension Microphone DC Power Speaker 11 to 32VDC Fuse RS232 2A M205 Data Port On/Off Switch... -
Page 11: Installing The Sim Card
REV 01 Installing the SIM Card The RST625 Iridium transceiver uses a SIM card (similar to mobile phones) which is installed inside the small removable black door. Insure the system is powered OFF before installing or removing the SIM card. -
Page 12: Antenna Installation
3dB including connector losses. Installing the Antenna The Antenna supplied with the RST625 is a magnetic mount type, which can easily be applied to the top side of a metallic surface. Choose a location which maximizes the sky viewing angle. -
Page 13: Operation Of The Rst625
RST625 INSTALLATION & USER MANUAL REV 01 OPERATION OF THE RST625 Now that you have completed all installation steps, follow these steps: 1. Ensure that the antenna is located in an area where quality signal is available. 2. Ensure that the Intelligent Handset is plugged into the system (either directly, or by using the 2m optional extension cable). -
Page 14: Volume Adjustment
The volume is changed on the speaker and handset simultaneously by using the up/down keys on the handset. NOTE: To save the volume setting in between RST625 power recycling, please perform a power down using the handset power button, located on the bottom of keypad. This will permanently store the speaker volume into memory even after system power-off. -
Page 15: Assuring Quality Of Iridium Service
RST625 INSTALLATION & USER MANUAL REV 01 Assuring Quality of Iridium Service Iridium is committed to providing users around the world consistent, reliable, quality voice and data access all day every day. The Iridium satellite system is monitored for call performance from numerous locations 24 hours a day, 7 days a week in order to achieve this. -
Page 16: Using Your Intelligent Handset
RST625 INSTALLATION & USER MANUAL REV 02 USING YOUR INTELLIGENT HANDSET Read this section to learn how to get up and running with your new satellite phone. Power-On Messages The system phone is powered on and off by the panel power switch. In addition, the system can be put into power down mode by using the power button on the bottom of the handset. -
Page 17: Phone Overview
RST625 INSTALLATION & USER MANUAL REV 01 Phone Overview LCD Display Vol Up/Down Menu Up/Down Menu up Power On/Off Volume Keys The Volume keys are on face of the handset as shown above. This controls the in call volume as well as the ring volume. -
Page 18: Refer To Your Service Provider For Calling Instructions
RST625 INSTALLATION & USER MANUAL REV 02 3. Use the + symbol for international calls 4. Once the number is entered Call?, will appear 5. Press to attempt call 6. To end call if End Call? appears press 7. To end call press... -
Page 19: Emergency Number Dialing
RST625 INSTALLATION & USER MANUAL REV 01 Emergency Number Dialing Refer to your service provider for availability of this service. Call a Number in a Message Ending a Call To end a call, perform one of the following tasks: • Press C or if... -
Page 20: Adjusting Earpiece Volume
RST625 INSTALLATION & USER MANUAL REV 02 Adjusting Earpiece Volume To adjust earpiece volume: Increase the volume by pressing the upper volume key. Decrease the volume by pressing the lower volume key. As you press the keys, the phone's speaker demonstrates the new volume level. The bar graph in the display represents the volume level. -
Page 21: Navigate The Options Menus
RST625 INSTALLATION & USER MANUAL REV 01 Navigate the Options Menus Learning how to use just a few keys enables you to move freely through the entire menu system. If you want to... Then... MENU enter the Options menu Press to access the Options menu. -
Page 22: Default Quick Access Settings
RST625 INSTALLATION & USER MANUAL REV 02 Default Quick Access Settings Menu Number Quick Access Feature Find Name searches your Phone Book by the full name. Check Signal checks the strength of the signal from the satellite Call Voicemail calls your Voicemail number to check your Voice Mute Phone mutes the phone. -
Page 23: Entering The Phone Book Menu
RST625 INSTALLATION & USER MANUAL REV 01 Entering the Phone Book Menu To enter the Phone Book menu: MENU 1. Press to open the Options menu. MENU 2. Press to scroll forward. 1. Press * or # to scroll backward or forward. -
Page 24: Storing Names And Numbers
RST625 INSTALLATION & USER MANUAL REV 02 Storing Names and Numbers Add an Entry Use the Options Menu 1. Follow the steps in "Getting to Personal Numbers..." to get to , and Add Entry then press MENU 2. Press to scroll to... -
Page 25: Modify A Name Or Number
RST625 INSTALLATION & USER MANUAL REV 01 Modify a Name or Number 1. Find an entry, and then press MENU 2. Press until you see , and then press . You Modify Name Number will see , followed by the phone number stored in that entry. -
Page 26: How Messages Are Stored
RST625 INSTALLATION & USER MANUAL REV 02 How Messages Are Stored Your phone stores all messages on your SIM card. The total number of messages that you can store depends on your service provider. If the message indicator is flashing, your SIM card is full. See "Delete Messages" to make room for the new message. -
Page 27: Delete Messages
RST625 INSTALLATION & USER MANUAL REV 01 Delete Messages Use this option to make room for new messages: 1. Follow the steps in "Go to the Next Message" until you see the message you want to delete, and then press MENU 2. -
Page 28: Customizing Phone Features
RST625 INSTALLATION & USER MANUAL REV 02 Customizing Phone Features Once you are comfortable with the basic features of your new phone, use this chapter to set up your phone the way you like it. What You Will Learn • adjusting your phone's ringer volume •... -
Page 29: Adjusting The Ringer Volume
RST625 INSTALLATION & USER MANUAL REV 01 Adjusting the Ringer Volume Use this feature to adjust the volume of the ringer. The phone sounds the new volume level as you adjust it. 1. Follow the steps in "Getting to Phone Setup... -
Page 30: Setting The Keypad Tones
RST625 INSTALLATION & USER MANUAL REV 02 Setting the Keypad Tones Choose the sounds your phone makes when its keys are pressed. Note: This feature is available only when the extended menus are activated. See "Activating Extended Menus" " 1. Follow the steps in "Getting to Phone Setup... -
Page 31: Change The Unlock Code
RST625 INSTALLATION & USER MANUAL REV 01 Change the Unlock Code The unlock code is originally set to 1234. You should change it as soon as possible. 1. Follow the steps in "Getting to Phone Lock..." to get to Change Unlock , and then press to select. -
Page 32: Getting To Require Sim Card Pin
RST625 INSTALLATION & USER MANUAL REV 02 Getting to Require SIM Card PIN… MENU 1. Press until you see , and then press Phone Setup MENU 2. Press until you see , and then press Require SIM Card PIN MENU 3. -
Page 33: Reset Options To Factory Defaults
RST625 INSTALLATION & USER MANUAL REV 01 Reset Options to Factory Defaults Use the master reset option to reset all settings to their original default settings. The master reset option: • resets audible call timers, the in-call timer, and the automatic lock •... -
Page 34: Accessing The Network
RST625 INSTALLATION & USER MANUAL REV 02 Accessing the Network Entering the Network Selection Menu To enter the Network Selection menu: MENU 1. Press to open the Options menu. MENU 2. Press to scroll forward. 2. Press * or to scroll backward or forward. -
Page 35: Showing Call Timers
RST625 INSTALLATION & USER MANUAL REV 01 Getting to Show Call Timers... MENU 1. Press until you see , and then press Call Meters MENU 2. Press until you see , and then press Show Call Timers MENU 3. Press to scroll to one of the features described below. -
Page 36: Glossary
RST625 INSTALLATION & USER MANUAL REV 02 Glossary airtime The amount of time you spend using the satellite system. Especially, the time between successfully placing a call and terminating a call. antenna The device attached to your phone by a cable that sends and receives satellite signals. - Page 37 RST625 INSTALLATION & USER MANUAL REV 01 PIN code Personal Identification Number code. A private numeric password that prevents unauthorized access to your SIM card. PIN2 code A private numeric password that prevents unauthorized access to your SIM card's fixed dialing settings.
-
Page 38: Technical Support
REV 02 Technical Support Please contact your place of purchase for first level support on this product. Should you wish to contact Beam Communications, this can be done so in the following ways. Beam Communications Pty Ltd 8 Anzed Court, Mulgrave, Victoria, Australia 3170... -
Page 39: Beam Warranty Conditions
Customer for the product to which a claim is made. All products manufactured by Beam Communications are warranted to be free from defects in material and workmanship in accordance with and subject to the following terms and conditions: This warranty is limited to the original Customer only. -
Page 40: Rst625 Specification Summary
RST625 INSTALLATION & USER MANUAL REV 02 RST625 Specification Summary Electrical Power 11-32V DC 2.5A Power Consumption Input Voltage: (Average Current) 12VDC 24VDC Standby Mode 0.47 A 0.15 A Talk/Transmit Mode 0.54 A 0.24 A Handset Voltage +12VDC Audio Line level... - Page 41 RST625 INSTALLATION & USER MANUAL REV 01 Certification continued:...
