Summary of Contents for Digital View DVR-810

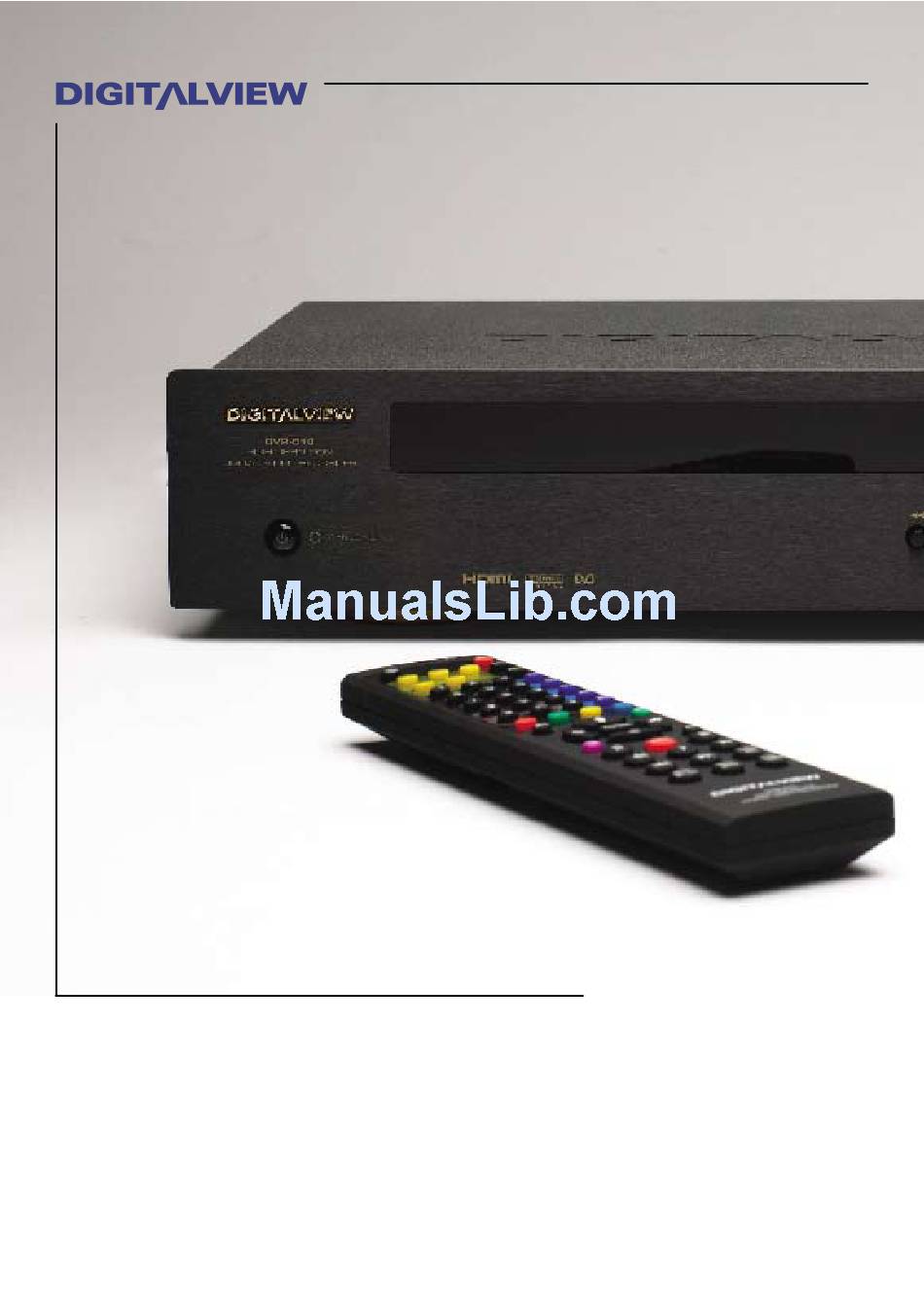

  • Page 1 Owner’s Manual DVR-810 Dual T uner / DVB-T High Definition Digital Video Recorder Ver. 1.0 © 2006-2007 Digitalview Australia...
  • Page 2 For addendums or supplementary information to this manual please refer to our Support page at digitalview.com.au.
  • Page 3: Important Safety Instructions

    Digitalview. should be adhered to. 11. Unplug the DVR-810 and antenna lead during 4. Follow all instructions. - All operating and severe lightning storms or when unused for use instructions should be followed.
  • Page 4: Table Of Contents

    Operational Introduction ................22 Edit......................62 Using the STBY Button................22 Editing a Recorded Title .................63 Tuning the DVR-810 for Digital TV Reception ........23 Book Mark....................64 Watching Live TV and Changing Channels ..........24 Merge...................... 65 INFO Function..................25 Timer Recordings..................
  • Page 5: Introduction

    RCU, including some limited functionality using the buttons on the front panel. In most cases your DVR-810 needs minimal set-up. Refer to the separate Quick-Start Guide for more information. Should you experience any difficulties with the operation of your DVR-810, please consult the relevant section of this manual, or alternatively go to our web page for support at www.digitalview.com.au.
  • Page 6: User Convenience Summary

    24 hour program timer, Extended Program Timer or EPG based timer. Multiple Monitor Connection Four standard or widescreen TV monitors can be connected to the DVR-810 for concurrent program viewing. Video Editing Simple video editor to delete scenes in a video title.
  • Page 7: Technical Performance Summary

    Baseband Video, S-Video, Component (Y,Pb,Pr), RGB and HDMI. Multiple Audio Outputs The DVR-810 supports one stereo analog audio output and two digital (coaxial and optical) audio outputs for connection to Dolby Digital compatible receivers / home theatre systems. Software Upgrades Over the Air Download for unattended software updates.
  • Page 8: Package Contents

    Package Contents The following items are included with your DVR-810. Remote Control Unit Antenna Cable Component (YPbPr) Cable Power Cable Owners Manual Warranty Registration Card Quickstart Guide Introduction...
  • Page 9: Digital Television - Antennas

    Digital Television - Antennas What You Need to Know When upgrading to digital TV, it is important to consider the suitability and condition of your existing antenna and feeder cable. Many older antennas may not cover the digital TV channels in use in your area. A competent antenna installer can advise you on your specific requirements.
  • Page 10: Interlaced (I) And Progressive (P) Scanning

    Television Signal Formats in Australia Analog TV vs Digital TV The Australian Standard for both analog and digital TV transmission is based on variations of the European Standard of PAL and DVB. All analog TV broadcasts are transmitted in the PAL-B/G format while all digital TV broadcasts are transmitted using the DVB-T (T - Terrestrial) standard.
  • Page 11: Dvr-810 Video Output Resolutions

    DVR-810 Video Output Resolutions Standard and High Definition Video Outputs The DVR-810 can connect to all TV monitors that support either 576i, 576p, 720p or 1080i resolutions. When selecting the video output resolution for your TV monitor, all digital TV input formats are converted to the selected video output resolution.
  • Page 12: Aspect Ratios

    Standard and High Definition broadcasts. The following diagrams illustrate the variations that are possible from digital TV broadcasts using both 4:3 and 16:9 screen formats. The DVR-810 allows for the choice of aspect ratios regardless of the screen format. Received digital TV broadcast in 16:9 format.
  • Page 13 Received digital TV broadcast in 16:9 format. Received digital TV broadcast in 16:9 format. DVR-810 aspect ratio set to 16:9. DVR-810 aspect ratio set to 4:3 Letter-box. Received digital TV broadcast in 16:9 format. Received digital TV broadcast in 4:3 Pillar-box format.
  • Page 14: Front Panel Overview

    Front Panel Overview DVR-810 Front and Rear Panel...
  • Page 15: Front Panel Displays And Buttons

    Tuners are active. CTL illuminates Orange whenever a button on the RCU is pressed. R1 and R2 illuminate Red, when the DVR-810 is recording one (R1) or two (R2) programs. ERR illuminates Red when an error in receiving is detected.
  • Page 16: Transport Controls And Navigation Buttons

    11. MENU displays the Main Menu options. Select a menu option from the Main Menu list and press ENTER. 12. EXIT is used to clear all on-screen Menus or Sub-menus including cancellation of any existing input values or setup options. DVR-810 Front and Rear Panel...
  • Page 17: Rear Panel Overview

    Rear Panel Overview DVR-810 Front and Rear Panel...
  • Page 18: Remote Control Unit

    Remote Control Unit Button Definitions 1 Remote Control Unit...
  • Page 19: Button Definitions 2

    Button Definitions 2 Remote Control Unit...
  • Page 20: Button Definitions 3

    Button Definitions 3 Remote Control Unit...
  • Page 21: Tv Connection Using An Analog Tv

    TV Connection using an Analog TV The connection diagram show below is used in some situations where a standard definition or analog TV will be connected to the DVR-810. Ensure that power to both the DVR-810 and TV is OFF before any connections are made.
  • Page 22: Connection Diagram - Component Video Ypbpr (High Definition Analog Video)

    Use this type of connection with a high definition analog TV monitor or Flat Panel Display. If an analog TV monitor is used it must support either 576p, 720p or 1080i resolutions. Ensure that power to both the DVR-810 and TV is OFF before any connections are made. Installation and Setup...
  • Page 23: Connection Diagram - Rgb Video (High Definition Analog Video)

    R, G, B, H, and V. If an analog TV monitor is used it must support either 576p, 720p or 1080i resolutions. Ensure that power to both the DVR-810 and TV is OFF before any connections are made. Installation and Setup...
  • Page 24: Connection Diagram - Hdmi (High Definition Multimedia Interface)

    Theatre System. The results will in most cases be superior picture and sound quality than any analog video or audio connections. Ensure that power to both the DVR-810 and TV is OFF before any connections are made. Installation and Setup...
  • Page 25: Rs232 And Ext Ir Connections

    These types of Automation systems are provided by companies like AMX®, Crestron® and others. The DVR-810 provides one RS232 port and one External IR port on the rear panel to meet most installation requirements. A bi-directional RS232 serial interface port is used for controlling all functions related to recording, playback and general Live TV viewing.
  • Page 26: Operational Introduction

    Operational Introduction Operational Introduction This Introduction is intended to get you started and using the DVR-810 as quickly as possible. Even with its advanced functionality, the DVR-810 is very easy to operate and in most cases will not require any further setup.
  • Page 27: Tuning The Dvr-810 For Digital Tv Reception

    Tuning the DVR-810 for Digital TV Reception When the DVR-810 is switched On for the first time, the start-up screen displays SELECT STATE. 1. Use the Å or Æ buttons on the Remote Control Unit (RCU) to select the State you live 2.
  • Page 28: Watching Live Tv And Changing Channels

    Watching Live TV and Changing Channels There are three simple ways by which to change TV channels: 1. Press the BLUE Channel Group buttons on the RCU. These buttons are identified as N7,N9,N10,ABC and SBS. Pressing any one of the Channel Group buttons repeatedly will select the TV channels/services within that group.
  • Page 29: Info Function

    INFO Function. To display the current operational status of the DVR-810 follow these steps: 1. Press the INFO button. A dialogue box displays the appropriate information related to Live TV viewing, recording and/or playback. 2. If viewing Live TV only, a “summary” dialogue...
  • Page 30 To further augment the EPG feature, some broadcaster may provide a full single day or multiple day program guide. The DVR-810 uses the information provided in this type of EPG for scheduled recordings. See, Using the EPG for Scheduled Recordings.
  • Page 31: Recording Using - On-Demand, Timer, Epg Or Timeshifting

    Recording Using - On-Demand, Timer, EPG or Timeshifting The DVR-810 provides a number of methods to record a current or any scheduled program/s. Each method described is specific to the type of recording required. Note: • The functionality of the DVR-810 permits...
  • Page 32: Using The Channel Browser To Record

    Note: • While recording, a processing delay of approximately one second between the real- time Live TV program and actual recording is normal. In this case the unit is considered to be in Chase mode. For more information on Chase mode please refer to the section on “Chase and Chase Play”.
  • Page 33: Recording Programs Using The Schedule Timers

    RCU or by selection from the MAIN MENU. All time and date information used by the DVR-810 is referenced to the broadcasters “time stamp”. There are two types of Discrete Timers that can be used, these being, EASY TIMER and TIMER REC (Timer Record).
  • Page 34: Using The Timer Rec Function For Scheduled Recordings

    • The Service Switch is used to view the scheduled timer program once recording commences and while watching another program. If required press the red button to turn this option On. Using the TIMER REC Function for Scheduled Recordings 1. Press the TIMER REC button. The TIMER REC main dialogue box is shown.
  • Page 35: Using The Epg For Scheduled Recordings

    • When setting a Timer using the extended Date option, be aware that the Hard Disc Drive (HDD) capacity may be exceeded after multiple Recorded Titles have been stored. For information of the remaining capacity on the HDD refer to the MAIN MENU - Disc Setup - HDD Information menu option.
  • Page 36: Using Timeshift To Record A Current Program

    Using Timeshift to Record a Current Program Timeshifting refers to the on-demand and delayed viewing of a program that is currently being watched. This option is activated using the ;PAUSE button. The Timeshift option would typically be used where an unexpected interruption in watching a Live TV program occurs.
  • Page 37: Playback

    Playback Any Recorded Title can be played by selecting it from the Record Browser. Titles are shown as “thumbnail” pictures for each Recorded Title. All titles are sorted in the Record Browser by date and time, i.e. the most current recording is highlighted when the Record Browser is opened.
  • Page 38: Playback A Recorded Title Using Genre

    Playback a Recorded Title Using Genre 1. Press the REC LIST button on the RCU. The Record Browser dialogue box is displayed showing all Recorded Titles. 2. Press the red button on the RCU. A dialogue box showing the Genre classifications is displayed.
  • Page 39: Transport And Trick Control Modes

    Transport and Trick Control Modes. The DVR-810 has the same basic recording and playback functions of a standard Video Tape Recorder but with a much greater level of user control. For the purpose of this specific product there are two modes of control. These are: 1.
  • Page 40 4. 9REVERSE SKIP 5. :FORWARD SKIP 6. JUMP 7. Variable Speed, Bi-directional Slow Motion Viewing -;PAUSE + 7FAST REWIND or ;PAUSE +8FAST FORWARD 8. Frame by Frame - ;PAUSE repeated. Use these simple steps to operate the Trick Mode controls while recording. When pressing the Trick Mode controls, a status bar at the top of the screen shows any information related to that function.
  • Page 41 3. While recording, press the ;PAUSE button to temporarily suspend real-time viewing of the recording. A single video frame is displayed. Press the4PLAY button to resume viewing. The recording is now in the Chase mode. 4. While recording, press the 9REVERSE SKIP button to move the current recording position 5-sec backwards.
  • Page 42: Bookmarking During Recording Or Playback

    7. VARIABLE SPEED, BI-DIRECTIONAL SLOW MOTION VIEWING – Any current recording can be viewed in forward or reverse Slow Motion. Three incremental speeds are available for each direction. • Press;PAUSE. . The Live TV video and audio stop and a single video frame is displayed. •...
  • Page 43: Supplementary Operations

    Supplementary Operations. Photo Capture and Playback An added feature included with the DVR-810 is the screen capture of single video frames for playback at a later time. This feature is referred to as Photo Capture. Photo Capture can be invoked while watching Live TV, Recording or Playback.
  • Page 44: Pip (Picture-In-Picture)

    PIP (picture-In-Picture) PIP is when a small preview screen is displayed within the main screen, allowing the viewer to watch two programs (Live TV and/or Recorded Title) simultaneously. Only the main screen program audio is heard. The PIP program can be viewed in the main screen by “Swapping”.
  • Page 45: Cc/Tt (Closed Captions/Teletext)

    CC/TT (Closed Captions/Teletext) 1. The CC/TT option is used to display Closed Captions or Teletext pages. 2. Press the CC/TT button to display the Teletext/Subtitle dialogue box. The Stream Type – Teletext/Subtitle is highlighted. 3. Select Teletext/Subtitle to display Closed Captions.
  • Page 46: The Main Menu

    The MAIN MENU The MAIN MENU options for the DVR-810 is used for the setup and customizing of specific functions related to its operation. In most cases the MAIN MENU does not need to be accessed. All operational control is by way of the Remote Control Unit.
  • Page 47: The Channel Browser

    The Channel Browser. The Channel Browser displays a list and Program Preview Window of all digital TV and Radio channels/services available after the initial tuning of the DVR-810. The Channel Browser can be used to select and/or record any selected channel/service. Viewing 1.
  • Page 48: Viewer Preferences

    Viewer Preferences Allows Locking, Deleting and Channel Group Re- assignment of any individual TV channel/service. Lock a Channel/Service – Locking prevents viewing of a specific TV channel/service. A four digit password is required to allow further access to the locked service/channel.
  • Page 49: Viewing A Locked Channel/Service

    Viewing a Locked Channel/Service – 1. While viewing Live TV, select the locked channel/service. A Password dialogue box is displayed. 2. Enter the password using the numerical keypad. The default password is 0000 and is only applicable if this password has not been changed.
  • Page 50 1. Select Viewer Preferences from the MAIN MENU and press ENTER. 2. Select the TV channel/service to reassign using the Ç or È buttons. The button assigned to the channel/service is shown below the preview window. 3. Press the BLUE button according to the assignment show below the preview window.
  • Page 51: Installation

    Installation Used for the overall or selective tuning and management of digital TV services. Installation - Auto Scan Use this option for tuning or re-tuning all Free- to-Air TV channels/services. 1. Select Installation from the MAIN MENU and press ENTER. The Auto Scan option is highlighted.
  • Page 52: Frequency

    Frequency As an alternative to Add Carrier, use the Frequency option to tune to any specific broadcaster or Free-to-Air TV service provider. It is recommended that only service personnel access this option. 1. Select Installation from the MAIN MENU and press ENTER.
  • Page 53: Setup

    TV Settings - Aspect Ratio The Aspect Ratio settings allow you to configure the DVR-810 to independently adjust the display format for widescreen (16:9) and normal screen (4:3) TV’s/Monitors. 1. Select Setup from the MAIN MENU and press ENTER.
  • Page 54: Tv Settings - Video Format

    11.Use the Å or Æ buttons to change the HD Aspect Ratio. The picture changes while each of the three aspect ratio options is selected. 12.Press ENTER to change to the new SD Aspect Ratio. 13.Press the EXIT button to clear any menus and return to normal viewing.
  • Page 55: Tv Settings - Audio Setting

    ENTER. 5. Select Audio Setting using the È button. A description of the audio being received by the DVR-810 is displayed in the information section on the right. Only proceed with the next step if the audio information shows Dolby 6.
  • Page 56: Password Setting

    13.Press the EXIT button to clear any menus and return to normal viewing. Password Setting The DVR-810 uses a password to restrict access to certain functions, if required. The default password is 0000. If required the default password can be changed using the Password Setting option.
  • Page 57: Time Setting

    Factory Default option and press ENTER. Note: • After applying the Factory Default option, the DVR-810 will need to be re-tuned. Refer to the section Tuning the DVR-810 for Digital TV Reception. Time Setting Generally, all broadcasters in each State sends...
  • Page 58: Parental Guidance

    Parental Guidance This option is used to block the viewing of programs and is based on the Parental Rating codes as specified by the Australian free-to-air broadcasters. The Parental Rating in the order of priority consists of eight codes: • P - Pre-school •...
  • Page 59: Osd Settings

    OSD Settings The OSD setting is used to change the On- Screen Display Transparency and Banner Timeout settings. Included with this option is the adjustment of the front panel display, VFD Brightness and Event Notification reminder. OSD Settings - Transparency The Transparency adjustment allows the video to show through some OSD related items (Menus and Dialogue boxes) from opaque to 90% transparent.
  • Page 60: Osd Settings - Vfd Brightness

    OSD Settings - VFD Brightness The VFD Brightness is used adjust the brightness of the front panel display. 1. Select Setup from the MAIN MENU and press ENTER. 2. Select OSD Setting using the Ç or È buttons and press ENTER. 3.
  • Page 61: Signal Strength

    Signal Strength Shows summary information for both tuners. The information is related to the currently active services. Signal Strength should be within the range 70-99 while Signal Quality should be within the range 95-100. 1. Select Signal Strength from the MAIN MENU and press ENTER.
  • Page 62: Disc Navigator

    Disc Navigator The Disc Navigator allows you to manage and edit any the Recorded Titles currently stored on your Hard Disc Drive (HDD). Play Select this option to Play a recorded title. 1. Select Disc Navigator from the MAIN MENU and press ENTER.
  • Page 63: Genre

    Use the same procedure as above for the other Sort options Size, Created Time and Accessed Time. 4. Press the EXIT button to clear any menus and return to normal viewing. Genre Genre is used as another form of sorting to classify a Recorded Title according to the type of program, i.e.
  • Page 64: Rename

    Rename Each Recorded Title has a program name or identification associated with it. The Rename option allows you to change program name or identification. 1. Select Disc Navigator from the MAIN MENU and press ENTER. 2. Select Rename using the Ç or È buttons and press ENTER.
  • Page 65: Lock

    4. Press the Æ button. V is shown next to the Recorded Title that will be deleted. 5. To delete multiple Recorded Titles follow steps 3 & 4. 6. Press ENTER. A confirmation dialogue box is displayed. 7. Confirm Delete by selecting Yes. 8.
  • Page 66: Edit

    Edit The DVR-810 provides an easy to use feature for deleting any selected part (segment) of a Recorded Title. Each segment is referred to as an AB Mark. Editing allows either a single AB segment or multiple AB segments to be deleted.
  • Page 67: Editing A Recorded Title

    All details of the AB segments that you specify for deletion are shown within the Timeline and also in the Mark In – Mark Out section. To move or pause within the Timeline use either or both, the Transport Control buttons and/or the Jump Time option.
  • Page 68: Book Mark

    • Each AB segment is displayed in the No. Mark In – Mark Out dialogue box. This dialogue box displays all the specified AB segments. Any AB segment can be re-edited or cleared by selecting it from the No. Mark In –...
  • Page 69: Merge

    • The Editing Timeline including the positional display of any Bookmarks. 3. Choose one of the Recorded Titles in the list using the Ç or È buttons and press ENTER. Playback of that Recorded Title commences from the beginning, in the Video Preview Window.
  • Page 70: Timer Recordings

    Timer Recordings Use this option for unattended scheduled recording. EASY TIMER and TIMER REC functions can also be accessed using the Timer Recording menu, or the nominated buttons on the RCU. For detailed information, refer to the following sections in this manual. Timer Recording main dialogue box.
  • Page 71: Photo Viewer

    Photo Viewer Configuring the Photo Viewer The Photo Viewer option is used to playback any screen captured video frames. Each captured video frame is defined as a Photo Capture. Refer to the section on Photo Capture and Playback. All screen captured Photos are stored in a single file location and are accessed by using the Photo Viewer.
  • Page 72: Disc Setup

    Disc Setup Using Disc Setup The Disc Setup allows for specific configuration settings of the Hard Disc Drive (HDD) and basic Transport Control options. HDD Information Displays information related to the current Hard Disc Drive configuration including the number of Recorded Titles, remaining HDD size and HDD temperature.
  • Page 73: Power Saving

    Power Saving The Power Saving option provides a means of shutting the HDD off after a preset time and while no recording or playback is in progress. This is referred to as the HDD Time Out. This type of HDD management is used to increase the reliability of the HDD over its operational lifetime.
  • Page 74: Reverse Skip

    1. Select Disc Setup from the MAIN MENU and press ENTER. 2. Select Forward Skip using the Ç or È buttons and press ENTER. The First Press button assignment is highlighted together with the selected preset time. 3. Press ENTER. 4.
  • Page 75: About

    About Information associated with the DVR-810 hardware and software including contact details. The Main Menu...
  • Page 76: Specification

    Specification DTTB Standard Audio Connections Australian DVB-T & MPEG-2 Compliant. In Audio Analog - MPEG 1 Layer 2 (Left 2 x RCA accordance with Australian AS4933.1.2005 and Right) Type and ETSI300744. MPEG-4 / H-264 in new Audio Digital Coaxial - MPEG 1 Layer Australian Draft Specification and not yet fully 2 and AC3 Dolby Digital (S/PDIF) loop 1 x RCA...
