Brinkmann Q-Beam Owner's Manual

Rechargeable 1.000.000 candlepower operating instructions
Hide thumbs Also See for Q-Beam:

Advertisement

Table of Contents

R
®
R E C H A R G E A B L E
1 , 0 0 0 , 0 0 0 C A N D L E P O W E R
OWNER'S MANUAL
OPERATING INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Q-Beam and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Brinkmann Q-Beam

Summary of Contents for Brinkmann Q-Beam

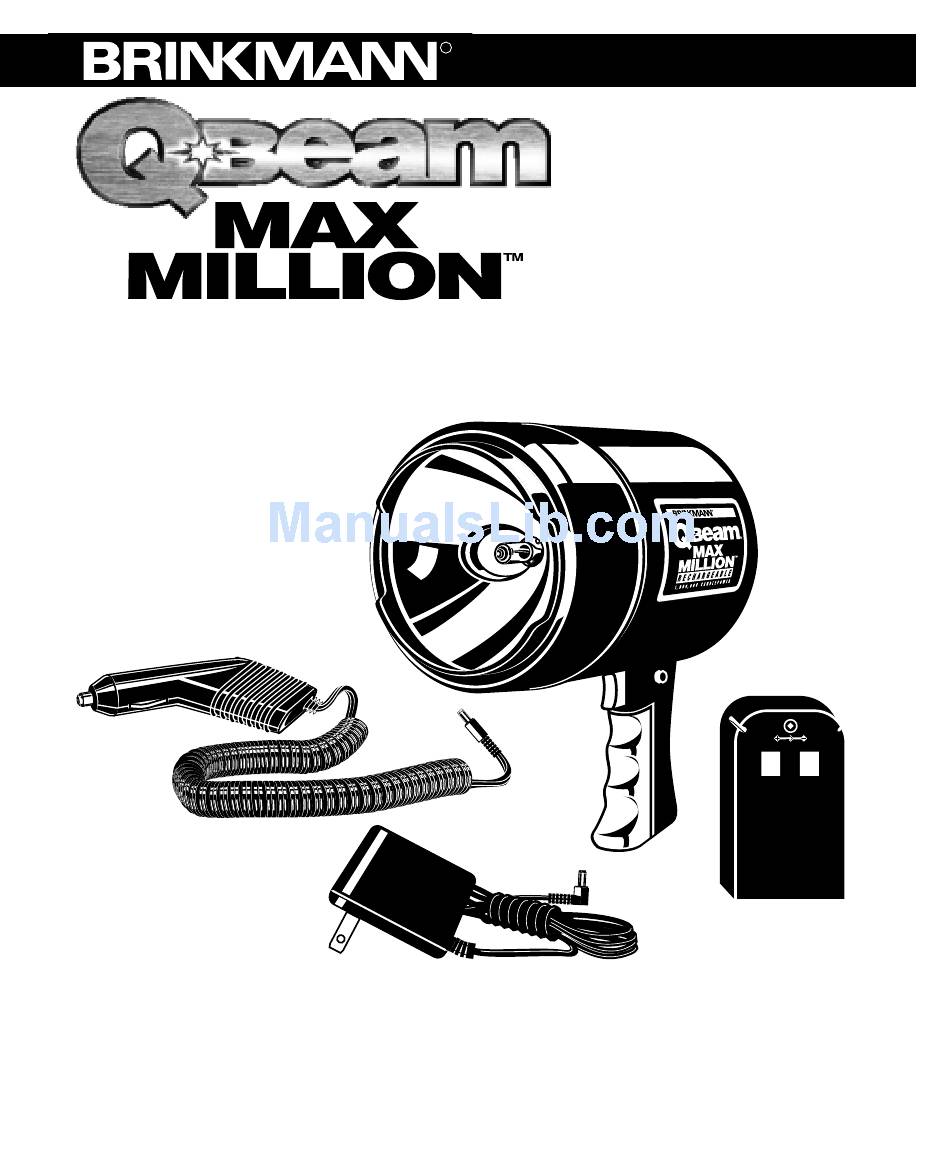

  • Page 1 ® R E C H A R G E A B L E 1 , 0 0 0 , 0 0 0 C A N D L E P O W E R OWNER’S MANUAL OPERATING INSTRUCTIONS...
  • Page 2 Do not allow metal parts to touch metal contacts on battery as this can cause a short circuit and result in a fire. • Do not use an outdoor AC outlet to recharge battery. • Only use charging devices that are provided with the Q-Beam Max Million Rechargeable Spotlight or its replacements. • Do not disassemble or tamper with the battery.

  • Page 3: Product View And Parts List

    • The life expectancy of the battery is approximately 500 cycles, at which time a replacement battery is recommended. A replacement Lock Button battery may be purchased from The Brinkmann Corporation Customer Service Department by calling 1-800-468-5252. Trigger • A fully charged battery will provide approximately 20 minutes of Switch continuous light.
  • Page 4 To Charge THE BATTERY CAN BE CHARGED INSIDE OR OUTSIDE OF SPOTLIGHT. To Charge Battery Inside of Spotlight: Step 1: Make sure the trigger switch is not locked ON. Step 2: Plug the AC or DC charger into bottom of spotlight handle. Step 3: For DC Charger - Allow battery to fully charge using the DC charger for at least 36 hours.
  • Page 5 The Brinkmann Corporation Customer Service Department by calling 1-800-468-5252. To Replace Bulb Only use Brinkmann’s 6V55W halogen bulb that is designed for the Q-Beam Max Million Rechargeable spotlight as a replacement. Use of any other bulb may result in poor performance and may damage Rear your spotlight.
  • Page 6 Step 13: Replace the two screws that were removed in Step 3. Do not over tighten screws. Replacement bulbs may be purchased from The Brinkmann Corporation Customer Service Department by calling 1-800-468-5252.
  • Page 7 DC outlet. Doing so may cause damage to the chargers. Charge Times • Only use charging devices that are provided with the Q-Beam Max Charge times are dependent on usage of the Million Rechargeable Spotlight or its replacements. product. See chart below for recommended charge times.
  • Page 8 Warranty service is limited to repair or replacement of rechargeable lights which prove defective under normal use and which upon examination shall indicate to Brinkmann’s satisfaction, they are defective. If Brinkmann confirms the defect and approves the claim, Brinkmann will elect to repair or replace the rechargeable light as covered by the terms of this warranty. •...

This manual is also suitable for:

Q-beam max million
