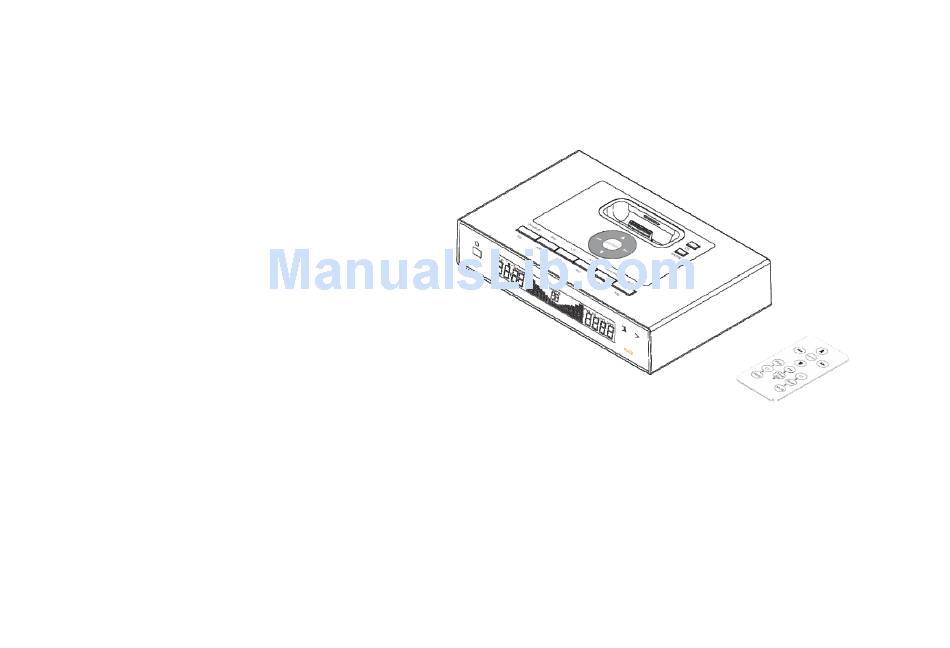

Sergio iH-100 Operation Manual
Thank you for purchasing Sergio iH-100 music sound effect system for your iPod® or MP3 player. The Sergio iH-100 is the
latest innovation from Sergio, a long time leader in the manufacture of professional audio systems. It features a fresh and
innovative new iPod® docking system that allows users to play music with their favorite stereo system, and watch movies on
the big screen display. iH-100's multi functional features not only will diversify your iPod® life, but also creates an environment
for your enjoyment.
1
Advertisement
Table of Contents
Related Manuals for Sergio iH-100
Summary of Contents for Sergio iH-100
- Page 1 Sergio iH-100 Operation Manual Thank you for purchasing Sergio iH-100 music sound effect system for your iPod® or MP3 player. The Sergio iH-100 is the latest innovation from Sergio, a long time leader in the manufacture of professional audio systems. It features a fresh and innovative new iPod®...
- Page 2 IMPORTANT Read Before Proceeding Please read through this operating instruction so you will know how to operate this product properly. After you have finished reading the instruction, put it in a safe place for future reference. In some countries or regions, the shape of power plug or power outlet may sometimes differ from that shown in the explanatory drawings.
-
Page 3: Table Of Contents
Getting Start ……………………………………….……………………………………………………………………… 7 Using Remote Control Unit ………………………………………………………………………………………………………………… 8 Controls and Indicators ……………………………………………………………………………………………………………………… 12 iPod® / MP3 Player ……………………………………………………………………………………………………………………………… 14 Using iH-100 …………………………………………………………………………………………………………………………… 18 Wiring Diagrams ……………………………………………………………………………………………………………………………… 19 Specification …………………………………………………………………………………………………… 20 10. Consumer Guide to Product Safety …………………………………………………………………………………………………………………………… 22 11. -
Page 4: Package Contents
Package Contents The iH-100 package included the following iH-100 multimedia center A power adaptor Antenna USB cord 3.5mm phone jack converter iPod® Inserts Operation manual... -
Page 5: Features
Play and simultaneously charge you iPod® Two line-in 3.5mm plugs for MP3 players (Rear) Transferring video from iPod®-Video to Television Transferring music from iPod® to home stereo system Infrared remote controller Updates iTune and uploads video via iH-100 (USB Port) directly Support FM radio... -
Page 6: Getting Start
Getting Start Install Speakers Connect AV cord or 3.5mm patch cord Install Speakers (RCA Jack) Install Speakers (Phone Jack) from your speakers to RCA jack or phone jack. iPod® Inserts Insert iPod®s onto connector or MP3 player into line-in jack (rear). Shuffle Insert Mini Insert Thin iPod®... - Page 7 Install FM Loop Antenna Plug the FM loop antenna into the connector located on the back of unit for FM band radio operation. For the best reception, please move the FM antenna 12” away from the unit and iPod®. Install AC Adaptor Connect the AC adaptor cable plug into the jack on the back of the system, and then plug adaptor into the wall outlet.
-
Page 8: Using Remote Control Unit
Using Remote Control Unit Install/Replace the Remote Control Battery The remote control battery is already installed at the factory. When the remote control stops operating or its range seems reduced, replace the battery with new one. The battery door is located on the back end of the unit. Squeeze notched tab A while pulling battery door latch B to release the battery door latch and take out the battery holder. -
Page 9: Controls And Indicators
Controls and Indicators 1.Infrared Remote Receiver 2.Time Display 3.Volume Indicator 4.Radio Frequency 5.MUTE Display 6.Power Indicator 7. AM/PM Indicator 8.Volume Number Indicator 9.iPod® Indicator 10.FM Indicator 11.Line1 Indicator 12.Line2 Indicator 13.Pause Indicator 14.Play Indicator... - Page 10 15.iPod® Play/Pause Button 16.Radio Memory 1 17.FM Button 18.Radio Memory 2 19.Line 1 Button 20.Radio Memory 3 21.Radio Memory 4 22.Line 2 Button 23.Radio Memory 5 24.Time Set Button 25.Radio Memory 6 26.Radio Station Scan Button 27.Mute Button 28.Power ON/OFF Button 29.Circular Previous Key 30.Circular ENTER Key 31.Circular Volume Up Key...
- Page 11 34.DC Power Input 35.FM Loop Antenna Socket 36.Line1 Source Right RCA Jack 37.Line1 Source Left RCA Jack 38.Line2 Source Phone Jack 39.USB 2.0 Input 40.S-Video Input 41.Right RCA Jack 42.Left RCA Jack 43.Video Input Jack 44.Audio Output Phone Jack...
- Page 12 45.Previous Key 46.Enter Key 47.Volume Up Key 48.Volume Down Key 49.Next Key 50.FM Radio Key 51.iPod® Play Key 52.Radio Memory 1 53.Line 2 Key 54.Radio Memory 4 55.Power ON/OFF Key 56.Time Set Key 57.Radio Memory 5 58.Radio Memory 2 59.Mute Key 60.Radio Memory 6 61.Scan Key 62.
-
Page 13: Ipod® / Mp3 Player
Note: Please make sure you are using the correct insert for your iPod® or MP3 player and that it is properly docked into the iH-100. Failure to do so may damage your iPod® or MP3 player. *[While your iPod® is docked in the system, it recharges (until fully charged). Note that iPod® Shuffles and other non-docking iPod®s will NOT be charged.]... - Page 14 Listening to a non docking iPod® or other portable audio devices 1. Plug-in the RCA Jack (○ ,○ )or Phone jack (○ ) from the multimedia speaker / subwoofer. 2. Turn the power ON (○ 3. Connect your MP3 player’s audio AV cord to the Line1 line-in jack (○...
-
Page 15: Using Ih-100
Using iH-100 Before operating the following functions, please turn your iH-100 power ON, and connect your speakers’ AV cord to the back of iH-100 AV jack. Time Set On iH-100 Device: Press Time Set button to adjust clock. Press “Next” or “Previous” button to adjust hour, then press “Enter”... - Page 16 Press scan button or press “Next” or “Previous” key on remote control to scan your favorite radio station. Memorize Your Favorite Radio Stations On iH-100 Device: Press FM button to switch to FM mode. Press scan button to scan your favorite radio station.
- Page 17 Manage iTune Music Before you can manage iTune directly from iH-100, you have to turn off the power first in order to let iH-100 switch to iTune mode. The steps are following: Plug-in the USB cord to the USB 2.0 jack on the back of the unit and your computer.
- Page 18 Video out for iPod® Video Note: Video-out feature is only made for 5 generation iPod® and iPod® Photo. Other generations of iPod® are not suitable for this feature. Insert your iPod® to the dock. S-Video Wiring Plug one end the S-Video or yellow AV cord to the S-Video or Video jack on the back of the unit and other end to the television’s S Video input.
-
Page 19: Wiring Diagrams
Wiring Diagrams For Your Speakers RCA Jack Phone Jack Plug-in one end of 3.5mm patchcord into the Out (Out, Plug-in one end of audio cord (RCA cord) into the Main-Out ○ (R/L, ,○ ) and other end to the speaker set for PC or MP3 and other end to the speaker set for PC or MP3 (with ○... -
Page 20: Specification
Specification Specification General Specification Power DC 5V, 1A Power Input AC 100 ~ 240 V / 50 ~ 60Hz / 0.4A Power Consumption 500mA Operating Environment Temperature +5°C - +35°C (+41°F - +95°F) External Dimension 199mm*123mm*40mm Weight 700g Recommend Speaker / Subwoofer Satellite 40 watts (PMPO) *2 (MAX) Impedance: 4-8 Ω. -
Page 21: Consumer Guide To Product Safety
A Consumer Guide to Product Consumer Guide to Product Safety FCC Information This Device complies part 15 of the FCC Rule. Operation Is subject to the condition that this device does not cause harmful interference. This equipment compiles with the limits for a Class B digital device as specified in Part 15 of FCC Rules. These limits provide reasonable protection against radio and TV interference in a residential area. - Page 22 vents located on the product. Lightning and Power Surge Protection: Unplug the unit from the wall outlet during the lightning storm or when it is left unattended and unused for long periods of time. This will prevent damage to the product due to lightning and power-line surges.
-
Page 23: Trouble Shooting
Trouble Shooting Symptom Possible Problem Solution iPod®® does not respond to iPod® is not installed properly Remove your iPod® from the dock and check the unit for obstruction on the connectors in the dock and on your iPod®. Then reseat it in the dock. Your iPod®... - Page 24 Remote Control did not work Battery weak Replace current battery with new battery Remote Control is not pointed toward to Point the Remote Control toward the iH-100, the iH-100 move within 10 feet of the unit...
-
Page 25: Warranty
Limited 90-Day Warranty Information Sergio Products warrants this product to be free from defect in workmanship and materials, under normal use and conditions, for a period of 90 days from the date of original purchase. If this product fails to function in a satisfactory manner, it is best to first return it to the store where it was originally purchased.
