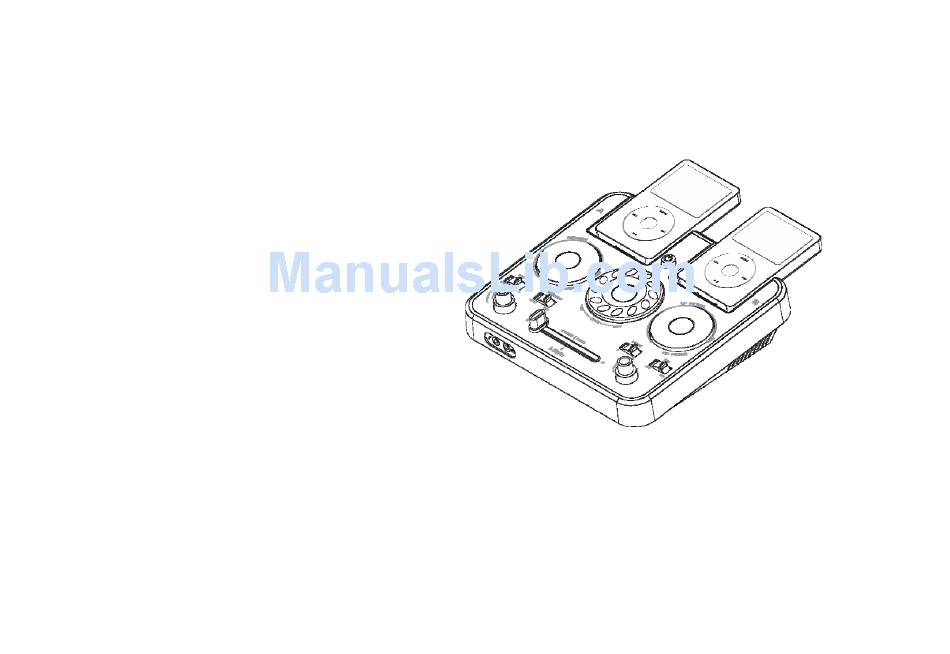

Sergio iSpin Operation Manual
Thank you for purchasing the Sergio iSpin music sound effect system for your iPod® or MP3 player. The Sergio iSpin is the latest
innovation from Sergio, a long time leader in the design of professional audio systems. It is designed specifically to create your
own music style, and remix music anywhere in an easy and fun way.
1
Advertisement
Table of Contents
Related Manuals for Sergio iSpin
Summary of Contents for Sergio iSpin
- Page 1 Sergio iSpin Operation Manual Thank you for purchasing the Sergio iSpin music sound effect system for your iPod® or MP3 player. The Sergio iSpin is the latest innovation from Sergio, a long time leader in the design of professional audio systems. It is designed specifically to create your...
- Page 2 IMPORTANT Read Before Proceeding Please read through this operating instruction so you will know how to operate this product properly. After you have finished reading the instruction, put it in a safe place for future reference. In some countries or regions, the shape of power plug or power outlet may sometimes differ from that shown in the explanatory drawings.
-
Page 3: Table Of Contents
………………………………………………………………………………………………………………………………….… 4 Features ………………………………………………………………………………………………………………………………… 5 Quick Start ………………………………………………………………………………………………………………… 7 Controls and Indicators ……………………………………………………………………………………………………………………… 10 iPod® / MP3 Player ………………………………………………………………………………………………………………………………… 12 Using iSpin …………………………………………………………………………………………………………………………… 17 Wiring Diagrams ……………………………………………………………………………………………………………………………… 18 Specification …………………………………………………………………………………………………… 19 Consumer Guide to Product Safety …………………………………………………………………………………………………………………………… 21 10. Trouble Shooting ………………………………………………………………………………………………………………………………………... -
Page 4: Package Contents
Package Contents The iSpin package includes the following: iSpin sound effect device (Model FV-1) A headphone set (with microphone) A power adaptor Operation manual... -
Page 5: Features
MP3 player + MP3 player iPod® + MP3 player The iPod® will be charged when inserted into iSpin, provided the iSpin is on Two universal iPod® docking stations accept all iPod® models (Top Surface) Two line-in 3.5mm plugs for MP3 players (Rear) -
Page 6: Quick Start
Quick Start Connect the included wall-mount power supply to the jack marked ‘12VDC’. Connect AV cord from your sound system to the iSpin output jacks (RCA type). Note: Connect the iSpin outputs to a suitable sound system. This may be powered speakers, a professional... - Page 7 10-15 GB 3Gen 30GB Nano 2GB Shuffle Mini iPod® 3Gen iPod® iPod® NOTE: 20 GB 3Gen 40GB Nano 4GB iSpin will iPod® 4Gen iPod® 20 GB 4Gen 40GB charge iPod® Photo iPod® iPod® 30 GB Photo 40GB shuffle. iPod®...
-
Page 8: Controls And Indicators
Controls and Indicators Microphone Jack (3.5mm dia.) Headphone Jack (3.5mm dia.) - Page 9 Microphone ON/OFF Selection Switch Top: Headphone Volume Knob, Down: Microphone Volume Knob Headphone Main/Cue Selection Switch CROSS | FADE Program 1 / Program 2 Selection Switch Main Output Volume Knob Microphone Mix / Cue Selection Switch iPod® / MP3 player Source A Effects Control #1 (Reverb/Pitch Down) Spin Feature Knob Power ON/OFF Switch...
- Page 10 Right Channel Output Jack Left Channel Output Jack MP3 player Source B Input MP3 player Source A Input Record Lineout 12V Input Jack...
-
Page 11: Ipod® / Mp3 Player
Note: Please make sure you are using the correct insert for your iPod® or MP3 player and that it is properly docked into the iSpin. Failure to do so may damage your iPod® or MP3 player. ＊[While your iPod® is docked in the system, it recharges (until fully charged). Note that iPod® Shuffles and other non-docking iPod®s will NOT be charged.]... - Page 12 Listening to a non docking iPod® or other portable audio devices Plug-in the RCA Jack (○ ,○ ,○ )or Phone jack (○ ) from the multimedia speaker / subwoofer. If you are using micro headphone, please plug-in your Micro headphone cord to headphone and microphone inserts. (○ ,○...
-
Page 13: Using Ispin
********** AH YES, BUT THE EFFECTS! ************ The effects portion of iSpin is what really makes the device fun. The effects are dramatic, but may require some experience before you can use them confidently in a performance. One important note: When switching between the two effects program... - Page 14 Program 1 a. REVERB The left knob, in program 2, becomes a reverb control, with an interesting feature: As the knob is rotated clockwise, reverb will begin to be added to the program, but if quickly turned clockwise, the most recent sounds of the program will be ‘frozen’ into the reverb.
- Page 15 Spin The simulation of scratch feature in DJ turntable. Cross fader The cross fader does two things at the same time: It fades between the two music sources, allowing you to blend from one program into a new one, but also it does the exact opposite to the CUE channel. This allows you to cue up a new song on the player that ISN’T being sent to the main output.
- Page 16 For Windows XP Users: 3. Turn ON your computer, and start the “Sound Recorder” recording program on your Windows XP for recording purpose. (You may use your favorite recording software to record your created music). Before using Windows XP sound recorder program, you have to configure as following: Go to Control Panel Choose Volume Choose Option...
- Page 17 Please follow the above step1 ~ step2, and use your favorite recording programs by downloading from the Internet or purchase from stores. Connectors...
-
Page 18: Wiring Diagrams
Sergio iSpin’s connector design is an innovate technology that can move up (B) and down (A) to fit any generation of iPod®s. Note: The patent for this technology is processing. Wiring Diagrams... -
Page 19: Specification
For Your Speakers Plug in one end of an audio cable (RCA) into the Main Output (R/L, ○ ,○ ) and the other end to a multimedia speaker set. This could be a powered speaker system, a professional sound system, or even the audio inputs of a television, just as you would with a video game. -
Page 20: Consumer Guide To Product Safety
General Specification Power Output DC 12V, 1.66A Power Input AC 100 ~ 240 V / 50 ~ 60Hz / 0.4A Power Consumption (charging) 1. 980mA (Two iPod®s) 2. 260mA (Two MP3 Players) Operating Environment Temperature +5°C - +35°C (+41°F - +95°F) External Dimension 184mm*200mm*52.3mm Weight... - Page 21 Consumer Guide to Product Safety FCC Information This Device complies part 15 of the FCC Rule. Operation Is subject to the condition that this device does not cause harmful interference. This equipment compiles with the limits for a Class B digital device as specified in Part 15 of FCC Rules. These limits provide reasonable protection against radio and TV interference in a residential area.
-
Page 22: Trouble Shooting
vents located on the product. Lightning and Power Surge Protection: Unplug the unit from the wall outlet during the lightning storm or when it is left unattended and unused for long periods of time. This will prevent damage to the product due to lightning and power-line surges. - Page 23 Please make sure your iPod® is working properly before docking into the unit. Please refer to your iPod® manual for details. Using 1 or 2 generation iSpin cannot control those iPod®s. iPod®, iPod® Shuffle or other devices. iPod® doesn’t iPod® is not installed properly.
- Page 24 Then reseat it in the dock. You have turned the knob1 too Try to turn the knob1 on the iSpin to the initial position to avoid erase much to the end. of sound.
- Page 25 adaptor. package. If you have lost the power adaptor, please purchase the DC 12V, 1.66A power adaptor. Recording does Line in and out cord connect in Please refer to “Recording music to computer” section for proper not work the wrong way. line-in and line-out.
-
Page 26: Warranty
Limited 90-Day Warranty Information Sergio Products warrants this product to be free from defect in workmanship and materials, under normal use and conditions, for a period of 90 days from the date of original purchase. If this product fails to function in a satisfactory manner, it is best to first return it to the store where it was originally purchased.
