- Page 1 MPA-101 WARNING: Improper installation could result in damage to the amplifier and/or speakers. Read all instructions before installation.
-
Page 2: Safety Precautions
The lightning flash with arrowhead, within Warning: The exclamation point within an equilateral To prevent electric shock, never open this an equilateral triangle, is intended to alert the triangle is intended to alert the user to the user to the presence of uninsulated product. -
Page 3: Table Of Contents
Contents: Introduction Page 4 Features: Page 4 Jamo MPA-101 front panel Page 5 Jamo MPA-101 rear panel Page 6 Connection Page 7 Connecting examples Page 8 Passive subwoofer Page 8 Fullrange stereo Page 9 2 x 100W bridged Page 10... -
Page 4: Introduction
The MPA-101 is also a subwoofer amplifier with adjustable electronic crossover. With switch in OFF position it becomes full range amplifier. The power rating for the Jamo MPA-101 power amplifier are obtained using fixed value test load impedances and high intensity sine wave test tones. However, the actual impedance of the loudspeaker will vary with frequency, deviating somewhat from the loudspeaker manufacturer’s... -
Page 5: Jamo Mpa-101 Front Panel

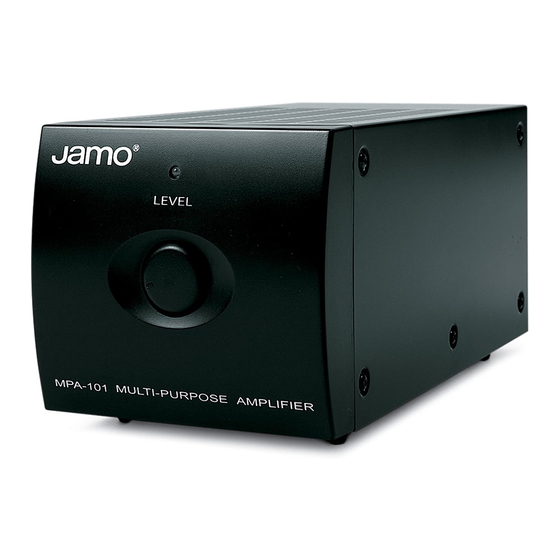

Jamo MPA-101 front panel Power LED Flashing blue - Standby mode Blue - Amplifier On Flashing red - Thermal protection Red - Overload protection Level adjustment... -
Page 6: Jamo Mpa-101 Rear Panel
Jamo MPA-101 rear panel Power switch Stereo/mono: Stereo mode - 2 x 50 watt Socket for mains cable stereo output (4✡) Speaker output: Speakers terminals Mono mode - 100 watt Low pass adjustment: Output frequency mono output (8✡) is adjustable between 50 - 150 Hz. Only... -
Page 7: Connection
Connection The Jamo MPA-101 is equipped with gold-plated push button binding posts which will accept very heavy stripped wire. Ask your local Jamo dealer for advice on the choice of cable. Connect the loudspeakers to your Jamo MPA-101 as follows: 1. -
Page 8: Connecting Examples
Connecting examples Passive subwoofer When „Low pass“ is selected, you can adjust the low pass frequency between 50 - 150 Hz. This makes it possible to make the subwoofer match your front speakers. -
Page 9: Fullrange Stereo
Fullrange stereo... -
Page 10: X 100W Bridged
2 x 100W bridged... -
Page 11: Daisy Chain
Daisy chain When using this feature you can connect all the MPA-101 in parallel you need. -
Page 12: Specifications
Specifications Rated Power Output 50 Watts (Stereo) into 4✡ Load Total Harmonic Distortion (THD) 100 Watts (BTL) into 8✡ Load Signal-to-Noise Ratio <0.1% Crossover Freq. Responce (-3dB): @ Min position 28-45Hz 40Hz/0dB ref @ Max position 32-60Hz 40Hz/odB ref Auto Turn On Sensitivity 11.0V +/-3 Full Range 1KHz 7.0V +/-2 Sub Input 50 Hz Delay „OFF“... -
Page 13: Warranty
The scope of the warranty The warranty period will come into force as from the purchase date stated on the invoice. The warranty will apply for the following period of time: • 2 years for electronics (power supply, amplifier, etc.) •... - Page 16 MPA-101 / 44.2000...
