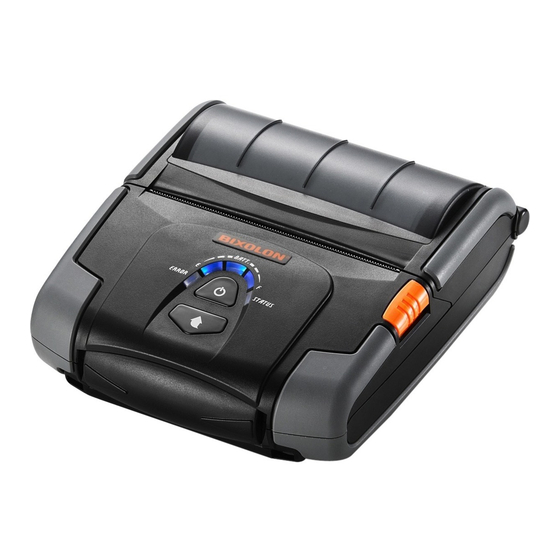

Mobile printer
Hide thumbs Also See for SPP-R400:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Reference Manual, Installation Manual
User's Manual
SPP-R400
Mobile Printer
Rev. 1.01
http://www.bixolon.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPP-R400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BIXOLON SPP-R400

Summary of Contents for BIXOLON SPP-R400

  • Page 1 User's Manual SPP-R400 Mobile Printer Rev. 1.01 http://www.bixolon.com...

  • Page 2: Table Of Contents

    SPP-R400 ■ Table of Contents ※ Manual Information & Usage Precautions · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 3 1.

  • Page 3: Manual Information & Usage Precautions

    This manual provides information on each character code page that can be used with this product. We at BIXOLON maintain ongoing efforts to enhance and upgrade the functions and quality of all our products. In following, product specifications and/or user manual content may be changed without prior notice.

  • Page 4: Safety Precautions

    SPP-R400 ■ Safety Precautions In using the present appliance, please keep the following safety regulations in order to prevent any hazard or material damage. WARNING Violating following instructions can cause serious injury or death. Do not plug several products in one multi-outlet.
  • Page 5 SPP-R400 CAUTION Violating following instructions can cause slight wound or damage the appliance. Keep the desiccant out of children’s reach. If you observe a strange smoke, odor or noise from the printer, unplug it before taking following • If not, they may eat it.
  • Page 6 5. Do not directly connect the battery to an electrical power outlet not specified by BIXOLON or an automobile’s cigarette lighter jack. Doing so may result in overheating, combustion and/or explosion of the battery by over-current and/or over-voltage. 6. Do not heat the battery or place it near a fire. Doing so may melt insulation materials, damage the safety mechanism/equipment, and/or ignite the electrolytic solution.
  • Page 7 SPP-R400 10. Do not pierce the battery with a pointed object, such as nail or awl, or strike with a heavy object, such as a hammer, and take care not to step on the battery. There is a potential risk of battery overheating, combustion, and/or explosion caused by an internal short circuit.
  • Page 8 10. There is a risk of explosion when replacing with an incorrect battery. Only exchange it for another one of the same or equivalent model specified by BIXOLON. Insulate the used battery by attaching insulation tape to its port, and then dispose of the battery according to local regulations.

  • Page 9: Other Precautions

    BIXOLON Co., Ltd. is not legally liable for any damages resulting from the use of the information in this manual. BIXOLON Co., Ltd. and its affiliates are not legally liable (United States excluded) for any...

  • Page 10: Content Confirmation

    SPP-R400 1. Content Confirmation The following items should all be contained in the printer package. Contact the dealer from which the purchase was made if any item is damaged and/or missing. ※ Basic items SPP-R400 Battery Pack Battery Charger Power cord...

  • Page 11: Product Part Names

    SPP-R400 2. Product Part Names • Front Paper Cover Power Button Open Button MSR Cover Power Button • Rear Shoulder Strap Belt Strap Hole Connection Holes Battery Interface Cap Cable Vehicle Cradle Connection Connection Power Connection - 11 - Rev. 1.01...

  • Page 12: Installation & Usage

    CAUTION ② The printer may be seriously damaged if a battery charger not provided by BIXOLON is used. BIXOLON is not liable for such damage. WARNING Turn off the power before charging the battery for the printer. - 12 -...

  • Page 13: Using Single Battery Cradle (Optional)

    ② The printer may be seriously damaged if a ① battery charger not provided by BIXOLON is used. BIXOLON is not liable for such damage. WARNING Turn off the power before charging the battery for the printer. - 13 -...

  • Page 14: Using Quad Battery Charger (Optional)

    SPP-R400 3-2-4 Using Quad Battery Charger (Optional) 3-2-4-1 Connecting the cables 1) Connect the power cord to the adaptor, and Connect the adaptor to the power connector of the quad battery charger. 2) Plug the power cord into a power Outlet.
  • Page 15 SPP-R400 3-2-4-2 Battery Charging 1) Insert the battery into the quad battery charger as shown in the figure on the left. 2) Gently slide the battery until it reaches the bottom of the charger. 3) Charging starts as soon as the battery is completely inserted.

  • Page 16: Paper Installation

    SPP-R400 3-3 Paper Installation 1) Press the Open button to open the paper cover. 2) Insert the paper as shown in the image. (Remove any remaining core of a fully used paper roll.) 3) Take care to align the paper correctly.

  • Page 17: Using Belt Strap

    SPP-R400 3-4 Using Belt Strap 1) Insert the belt strap screw into the belt strap hole. Belt Strap Coin 2) Use a coin to tighten the belt strap screw as shown in the image. Belt 3) Undo the belt strap Velcro.

  • Page 18: Using Case, Protective Case (Optional)

    SPP-R400 3-5 Using Case, Protective Case (Optional) 1) Open its top cover. 2) Insert your printer into the case as shown in the figure on the left. 3) Close the Velcro. 4) Attach the printer to the belt using the clip on the back of the case.

  • Page 19: Using Shoulder Strap (Optional)

    SPP-R400 3-6 Using Shoulder Strap (Optional) 1) Connect the clips of the shoulder strap to the printer as shown in the figure on the left. 2) Connect the clips of the case as shown in the figure on the left.

  • Page 20: Adjusting Paper Guide

    SPP-R400 3-7 Adjusting Paper Guide 1) In order to use 105mm paper, hold the 112mm → 105mm upper edge of the paper guide and adjust the paper guide for both sides in the direc tion of the arrow shown in the picture.

  • Page 21: Using Control Panel

    SPP-R400 3-8 Using Control Panel • Power Button This button is used to turn the printer on/off. 1) To turn the printer on, press and hold the button for approximately two seconds when the printer is off. 2) To turn the printer off, press and hold the button for approximately two seconds when the printer is on.

  • Page 22: Using Msr

    SPP-R400 3-9 Using MSR 1) Press the MSR cover to open. 2) Insert the card as shown in the image and swipe in the direction of the arrow. (can be done in both directions) 3) When finished using, press the MSR cover to close it.
  • Page 23 SPP-R400 • Self-Test Sample (For Bluetooth) Firmware version : V01.00 STOB 050812 Butter Capacity : 128K Bytes Print Density : 100% Bluetooth Interface - Baud rate : 115200 bps Serial Interface - Baud rate : 115200 bps Data bits : 8 bits...
  • Page 24 é â ä à å ç ê ë è ïîìÄ Å É æ Æ ô ö ò û ù ÿ Ö Ü ¢ £ ¥ P t ƒ á í - System Name : SPP-R400 â ä à å ç ê ë è ïîìÄ Å É æ Æ ô ö ò û ù ÿ Ö Ü ¢ £ ¥ P t ƒ á í ó...

  • Page 25: Label Printing Function

    SPP-R400 5. Label Printing Function 5-1 Label Function Setting Label paper and black mark paper available at the label mode. • Setting Operations 1) Turn on the printer power. 2) Open the paper cover and press and hold down the paper feed button for longer than two seconds.

  • Page 26: Ios Mfi Mode Setting (Optional)

    SPP-R400 6. iOS MFi Mode Setting (Optional) This product supports MFi mode that enables Bluetooth communication with iOS devices. (Applicable to MFi support models only) • How to enable and disable MFi mode 1) Turn on the printer. 2) Open the paper cover and press the power button and paper feed button at the same time for longer than two seconds.

  • Page 27: Peripherals Connection

    SPP-R400 7. Peripherals Connection This product can communicate with peripherals by using Bluetooth, wireless LAN or external interface cable (USB or serial cable). 7-1 Bluetooth & Wireless LAN Connection 1) The printer can be connected to devices equipped with Bluetooth communication capacity (PDAs, PCs, etc.).

  • Page 28: Printer Cleaning

    SPP-R400 8. Printer Cleaning If the interior of the printer is dusty, print quality can decline. In such a case, follow the instructions below to clean the printer. CAUTION • Make sure to turn the printer power off prior to cleaning.

  • Page 29: Appendix

    SPP-R400 9. Appendix 9-1 Specifications Item Description Printing Method Thermal printing Printing Speed 80 mm/sec Resolution 203 DPI Paper Supply Easy paper loading Mode Character Size Font A: 12 × 24 Font B: 9 × 17 Font C: 9 × 24...

  • Page 30: Certification

    <Warning> The battery has the potential risk of overheating, fire and/or explosion. To avoid such risks, observe the following instructions: • A visibly swollen battery may be dangerous. Contact BIXOLON or your local dealer. • Only use an eligible charger.

  • Page 31: Label Types

    To avoid incommoding reflexions at visual display workplaces this device must not be placed in the direct field of view 9-3 Label Types The labels used on this product are composed of the following materials; • BIXOLON logo label: PC • Rating Label: PP • Other labels: PET - 31 -...
