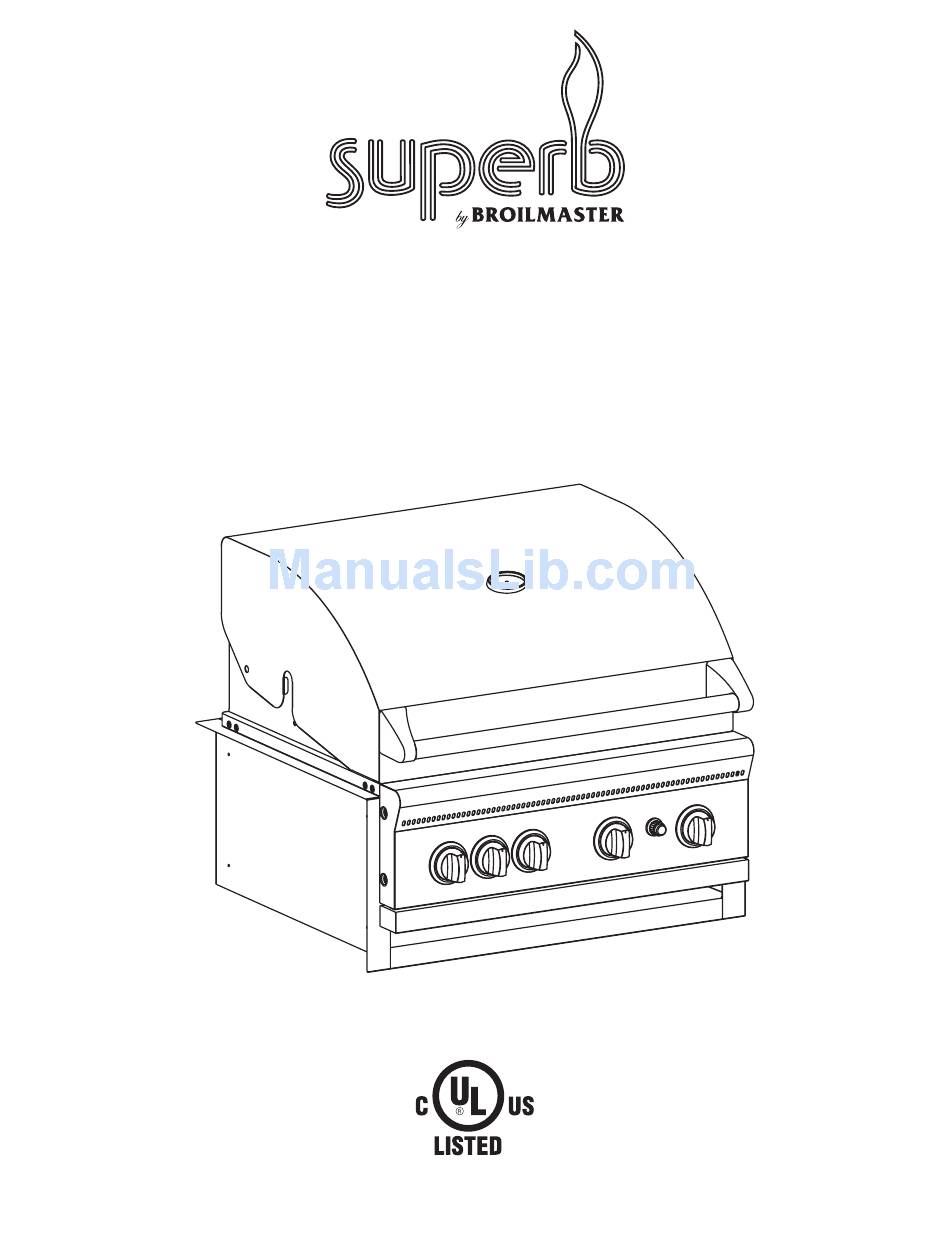

- Page 1 SBB2804-1 Gas Grill With Surround Owner’s Manual GAS-FIRED Page 1...
- Page 2 Parts may have sharp edges. Wear leather work gloves and handle parts carefully during the unpacking, assembly and installation. WARNING Superb by Broilmaster Gas Grills must ONLY use propane cylinders equipped with an Overfill Protec- ® tion Device (OPD). Use only a reputable propane dealer when exchanging or filling cylinders. An over- filled or improperly filled propane cylinder can be dangerous.
-
Page 3: Thank You
Congratulations! Welcome to the beauty and durability of a Superb by Broilmaster ® Gas Grill. At Broilmaster, we continually strive to enhance the performance and quality of our products for your grilling enjoyment. Every ef- fort will be made to ensure that Broilmaster continues to be your choice as the grill of the future. -
Page 4: Table Of Contents
Maintenance ..............................21 Troubleshooting ............................22 Warranty Terms ............................23 Your Superb by Broilmaster Gas Grill is identified by model number, serial number, and gas ® type. This information is provided on a product identification label located on the rear panel of grill. -
Page 5: Hardware Package
HARDWARE PACKAGE SBB00104-2-0808 Page 5... -
Page 6: Parts View
PARTS VIEW All repair part orders should be placed through your local Broilmaster dealer. To locate a dealer in your area, contact Broilmaster Cus- ® tomer Service at 800-851-3153 or www.broilmaster.com. To ensure prompt and accurate service, please provide the following informa- tion when placing a repair part order: Model Number, Serial Number, Part Name, Part Number, and Quantity of parts needed. -
Page 7: Parts List
PARTS LIST INDEX NO. PART NUMBER DESCRIPTION SBB00014 THERMOMETER SBB00108 SBB00013 NUT AND LID BOLT SBB00078 WARMING RACK SBB00064 ROTISSERIE MOTOR SBB00065 ROTISSERIE MOTOR BRACKET SBB00067 ROTISSERIE ROD SBB00068 ROTISSERIE FORKS SBB00069 ROTISSERIE ROD BUSHING & SCREW SBB00092 JAMB NUT SBB00071 ROTISSERIE COUNTERBALANCE SBB00070... -
Page 8: Grill Assembly
• Phillips screwdriver • Soapy water solution (to test for leaks) If you purchased an accessory with your Superb by Broilmaster ® Gas Grill, follow the instructions provided with the accessory for Grill Mountings assembly and installation. If an instruction refers to a step that is not required for your grill model, please continue to the next step. -
Page 9: Surround Location, Connections, And Safety
SURROUND LOCATION, CONNECTIONS, AND SAFETY Surround Kit Location CAUTION: THE GRILL AND ITS INDIVIDUAL SHUTOFF VALVE MUST BE DISCONNECTED FROM THE GAS Built-In Kits are designed for outdoor use ONLY. SUPPLY PIPING SYSTEM DURING ANY SYSTEM PRESSURE TESTING AT TEST PRESSURES IN EXCESS This Built-In Kit is designed for use with SBB2804 Broilmaster ®... -
Page 10: Enclosure Construction Guidelines
ENCLOSURE CONSTRUCTION GUIDELINES Enclosure must be construction from non-combustible material. If tile is used on the top surface of your enclosure, it may be necessary to enlarge openings at the top edges to allow the frame pieces of the SBB and BSA to mount flush against the enclosure. Screws for enclosure mounting have not been supplied. -
Page 11: Surround Assembly
SURROUND ASSEMBLY The grill is shipped with the surround and the grill head at- 3. Secure the SBB surround to the enclosure using up to tached by four screws as shown in the drawing below. Please eight screws (not provided). See Figure 3. remove the four screws to seperate the surround from the grill Note: If you have a masonry structure you may need to head. -
Page 12: Surround And Grill Assembly
SURROUND AND GRILL ASSEMBLY Slide grill head with flex gas line attached into surround. Make sure flex gas line is protruding out surround side. See Figures 4 and 5. Figure 6 6. Place flame tamers over burners. Pins on burner box fit through Figure 4 holes on flame tamer. -
Page 13: Rotisserie Installation
ROTISSERIE INSTALLATION 13. Slide a rotisserie fork onto each end of the spit. See Figure The Infrared burner (Rotisserie burner) is for rotisserie cooking only. Warning: Never use the main burners while using the 14. Adjust spacing between rotisserie forks to accommodate your Infrared Back Burner, as this could result in igniting the drip- food. -
Page 14: Alternate Match Lighting
ALTERNATE MATCH LIGHTING Turn the burner control knobs clockwise to the OFF position. Turn ON gas at the source. Open the grill lid. Locate the Ignitor Rod, which is permanently attached to the inside of the right surround side. Insert an unlit match into the coiled end of the ignitor rod. Light the match. -
Page 15: Rotisserie Operation
ROTISSERIE OPERATION Using the Ignitor Rotisserie Use Warning: Do not operate the side burner option simultane- Caution: If burner fails to light after 5 seconds, turn the burner ously with the rotisserie. The side burner will melt the rotisserie OFF for 5 minutes, to allow the gas to clear, then try again. handle. -
Page 16: Propane Gas Grills
Grill Location Provided with a shutoff valve terminating in a valve outlet as specified in the Standard for Compressed Gas Cylinder Outlet When choosing the ideal location for your Superb by Broilmaster ® and Inlet Connections, ANSI CGA-V-1. Gas Grill, remember this grill is designed for outdoor use ONLY. -
Page 17: Propane Gas Grills
Installation Code, or CAN/CGA-B149.1 Natural Gas Installation Code, and local codes where applicable. Consult your local gas supplier or propane gas dealer for code regulations and recom- mended procedures. Warning: Superb by Broilmaster Gas Grills require Liquid ® Propane (LP) cylinders equipped with an Overfill Protection Device (OPD). -
Page 18: Gas Conversion To Natural Gas
GAS CONVERSION TO NATURAL GAS A conversion kit to natural gas is included with your grill. 15. Replace all control knobs with allen wrench. 16. Apply the completed conversion label adjacent to the rating Remove cooking grids and flame tamer from grill. plate label on the rear panel of the grill. -
Page 19: Operation
OPERATION Checking for Gas Leaks OPERATING INSTRUCTIONS Check for gas leaks every time you connect your Superb by Using Matches Broilmaster propane gas grill to a Propane gas cylinder, when a ® Caution: If a burner fails to light after 5 seconds, turn the... -
Page 20: Operation
OPERATION (cont.) Before Cooking Before cooking on a grill for the first time, it should be “burned off” to remove any oil residue from the manufacturing process. Raise the grill lid. Light grill burners. Burn on HI for ten minutes. Close the lid and burn on HI for an additional ten minutes. -
Page 21: Maintenance
Do not scrape grids. Clean regularly with a solution of mild detergent and hot water. For baked on residue use a BRASS (NOT STEEL) brush on the Superb by Broilmaster protective covers are recommended. Stain- ®... -
Page 22: Troubleshooting
TROUBLESHOOTING Although the manufacturer has attempted to ensure that your grill will operate properly and satisfactorily, sometimes problems do arise. The following troubleshooting guide lists several possible problems and their probable cause and solution. Problem Cause Solution Burner will not light. Gas injector not inserted in venturi tube. -
Page 23: Warranty Terms
What Is Covered And For How Long From the date this Superb by Broilmaster Gas Grill is first purchased, we will make available at our factory a free replacement for any defective part covered by this warranty on the following basis. Proof of purchase required. Warranty applies to original owner and is not transferable. -
Page 24: Sbb00109
URABLE RILL NOWN BROILMASTER ® A Division of Empire Comfort Systems, Inc. 918 Freeburg Ave. Belleville, Illinois 62220 Phone: 1-800-851-3153 FAX: 1-800-443-8648 .broilmaster.com ISIT OUR WEB SITE AT WWW Page 24 SBB00104-2-0808...
